Qcon Pro X

GET OUT OF THE BOX AND INTO YOUR MIX

Expand and command your Digital Audio Workstation (DAW) by adding true tactile control via USB2.0. The QCon Pro X is a control surface designed to get you out of “the box” of your computer and into your music. Record and mix without always having to point and click. QCon Pro X puts the functions of your DAW at your fingertips by providing you with nine (9) full sized motorized faders, eight (8) rotary dual-function encoders, two (2) large backlit LCD screens, LED volume metering, a jog wheel and plenty of buttons to press. Adjust multiple volume or pan levels simultaneously. Mute or solo numerous tracks on the fly. Use the transport section to conveniently play, stop, fast forward, rewind, record, loop, zoom, punch in and punch out of your compositions. Spin the nicely sized jog wheel to scrub through tracks and address areas of special interest. Dedicated buttons also allow you to access your entire mix by banking across tracks in groups of 8 or 1 track at a time.

CONTROL ANY DAW

QCon Pro X is a powerful control surface for any DAW. Integration is facilitated using Mackie Control or HUI protocol to interface with your DAW’s functions. We offer support for the most popular DAWs including Cubase, Nuendo, Ableton Live, ProTools, Logic, Reason, Studio One, Bitwig, Samplitude, Reaper, FL Studio, Harrison Mixbus, Digital Performer and Audition. And if you don’t already have a DAW, no worries. Bitwig Studio 8-Track is included. Once QCon Pro X is linked to your DAW, then it will always boot up in the proper configuration; even after being powered off. Even if your DAW is not supported by a custom module, then you can still map its functions to QCon Pro X using our intuitive MIDI learn mode.

CONTROL YOUR PLUGINS AND AUTOMATION TOO

QCon Pro X also gives you tactile control of your VST, RTAS, Direct X and AU Plugins. Dial in EQ frequencies, Q or gain with the rotary encoders. The values of different parameters are shown on the upper LCD screen. Control Virtual Instruments as well. There’s also a “FLIP” button for fader control of plug-in parameters. Automation of track and plugin parameters is also made easy with QCon Pro X. Write fader rides just like you would on any large format analog console using buttons for familiar functions like GROUP, WRITE, TOUCH, LATCH and TRIM. QCon Pro X is also scalable. Expand in groups of 8 up to 64 channels depending on your DAW, so you can create a custom surface to fit your needs. With the QCon Pro X you get the best of both worlds; the total recall, power and flexibility of your DAW with the look, feel and functionality of a sturdy piece of hardware.

FEATURES:

  • Expandable up to 64 Channels in some DAWs – QCon Pro XS

    8+1 touch-sensitive motorized faders with 10-bit resolution

  • 12 segment LED meter bridge
  • Stereo LED master channel level metering on metering bridge
  • 8 Dual function encoders with multi-color LED indication ring
  • 11-segment multi-color LED surrounding the encoders to indicate the rotation position
  • Dual 2×56 large backlit LCDs to display channel name, control values etc. for each channel
  • 12-segment LED display showing time location of your project in either SMPTE or BBT format
  • 18 assignable buttons
  • Jog shuttle wheel for scrubbing, fast search and control
  • Illuminated buttons for each channel including Record Enable, Solo, Mute, Select and Monitor
  • 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward and Loop
  • Illuminated ZOOM button with 4 direction buttons
  • 9 illuminated assignable MIDI function buttons
  • Expandable to 64 channels using 7 QCon Pro XS expander units depending on the DAW
  • Two (2) 1/4” connectors for foot switches and pedals
  • Automatic and manual mode switch for accessing different DAW modes
  • Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit), Windows 8 (32-bit & 64-bit), Windows 10 (32-bit & 64-bit) and Mac OS X
  • USB 2.0 high speed connectivity
  • ICON “Quick-Setup” driver is available for Cubase, Nuendo, Reason and Bitwig for instant plug & play compatibility

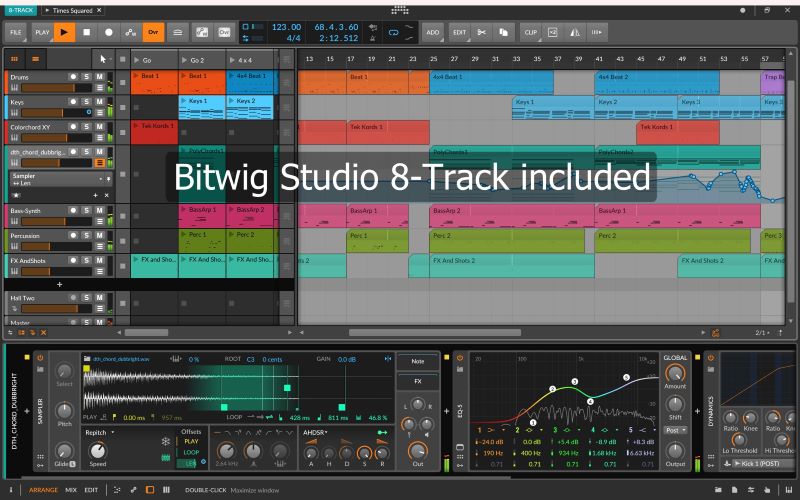

  • Bitwig Studio 8-Track DAW is included.
  • Optional automatic DAW detection mode is available for Cubase, Nuendo, Ableton Live, ProTools, Logic, Reason, Studio One, Bitwig, Cakewalk/Sonar, Samplitude, Reaper, Harrison Mixbus, Digital Performer and Audition
  • Built-in Mackie Control for all DAWs listed (except for ProTools which uses Mackie HUI Protocol)
  • PVC overlays are included for all DAWs listed (except Cubase and Nuendo which is the stock module)
  • User self-defined (MIDI Learn) mode for other DAWs not supported with presets
  • Easy firmware upgrade available via USB connection and iMap software
  • Superior build quality and robust metal casing with Kensington lock port
  • Bitwig 8Track included
  • Dotec audio plugins included
  • Tracktion DAW Essentials Collection included
  • Kilohearts Toolbox plugins included
  • Harrison 32c Vocal Intensity Processor plugin included

QCon Pro X Auto-Program Panel

QCon Pro X APPs – Auto Program Panels – allow users to replace the default panel with a dedicated panel for their DAW of choice.

As the name suggests, the QCon Pro X APP is automatically detected by the QCon Pro X after installation. After a quick reboot of the controller, the QCon Pro X will automatically detect the panel and load into the respective DAW mode.

Click HERE to Purchase QCon Pro X Auto Program Panels





*KNOWN ISSUES
Some DAWs limit the number of extenders that work with their software. The following list includes the maximum number of extenders you can use with the specified DAW.
*1 main unit + 7 extenders = 64 channels – Cubase/Nuendo, Studio One, Digital Performer, Logic Pro X,  Mixbus
*1 main unit + 5 extenders = 48 channels – Ableton Live
*1 main unit + 3 extenders = 32 channels – Pro Tools, Bitwig, Reaper
*1 main unit + 2 extenders = 24 channels – Reason (with Custom Script)
*1 main unit + 1 extender = 16 channels – Cakewalk/Sonar, Samplitude
*FL Studio does not support extenders

LIMITED COMPATIBILITY WITH APPLE’S M1, M1 MAX, M1 PRO, M1 ULTRA AND M2 PROCESSORS
Further testing has shown that the QCon Pro X is not consistently compatible with Apple’s Silicon processors. While an update to firmware version 2.08 or later seems to work for some users, the controller tends to freeze during normal use for others. We have determined that the problem is the USB hub on the back of the QCon Pro X. Some users have corrected this by using a powered Thunderbolt hub, and others have had success with iCON’s OneHub.

In our testing, we have found our new hub, the CH-1, works consistently with Apple Silicon computers.  If you would like, you can order a CH-1 USB hub direct from our factory in Guangzhou while supplies last at the link below.
NameSpec
ConnectorTo computer: USB connector (standard type)
ConnectorTo extender : USB connector (B-Type)
Power supply12V2.5A DC (Outside negative inside positive)
Current consumption2A or less
Weight6kg (13.2lb)
Dimensions473(W) x 416(D) x 188(H)mm
Dimensions18.62”(W) x 16.38”(D) x 7.4”(H)
  • Supports Intel, M1, M1 Max, M1 Pro, M1 Ultra, M2 and AMD processors
  • (Firmware is recognized on M1 Max, M1 Pro, M1 Ultra and M2 and AMD CPUs, however, you can only use Intel or M1 CPU to perform firmware update procedure)
  • Mac OS X 10.11 El Capitan to Mac OS 13 Ventura
  • Windows 7 - 11
