UPod Live

16 bit 48Khz 2-mic input / 1-guitar input, 2-output USB audio interface
Icon’s unique 16 – DSP effect, including echo, reverb, delay, EQ and voice change
2 large encoder knobs for selecting and adjusting DSP settings
Large LCD displays all DSP settings and parameters
Attenuator (Voice-Over) function button equipped to lower music volume automatically when mic signal is present
Monitor signal (dry / wet) control button

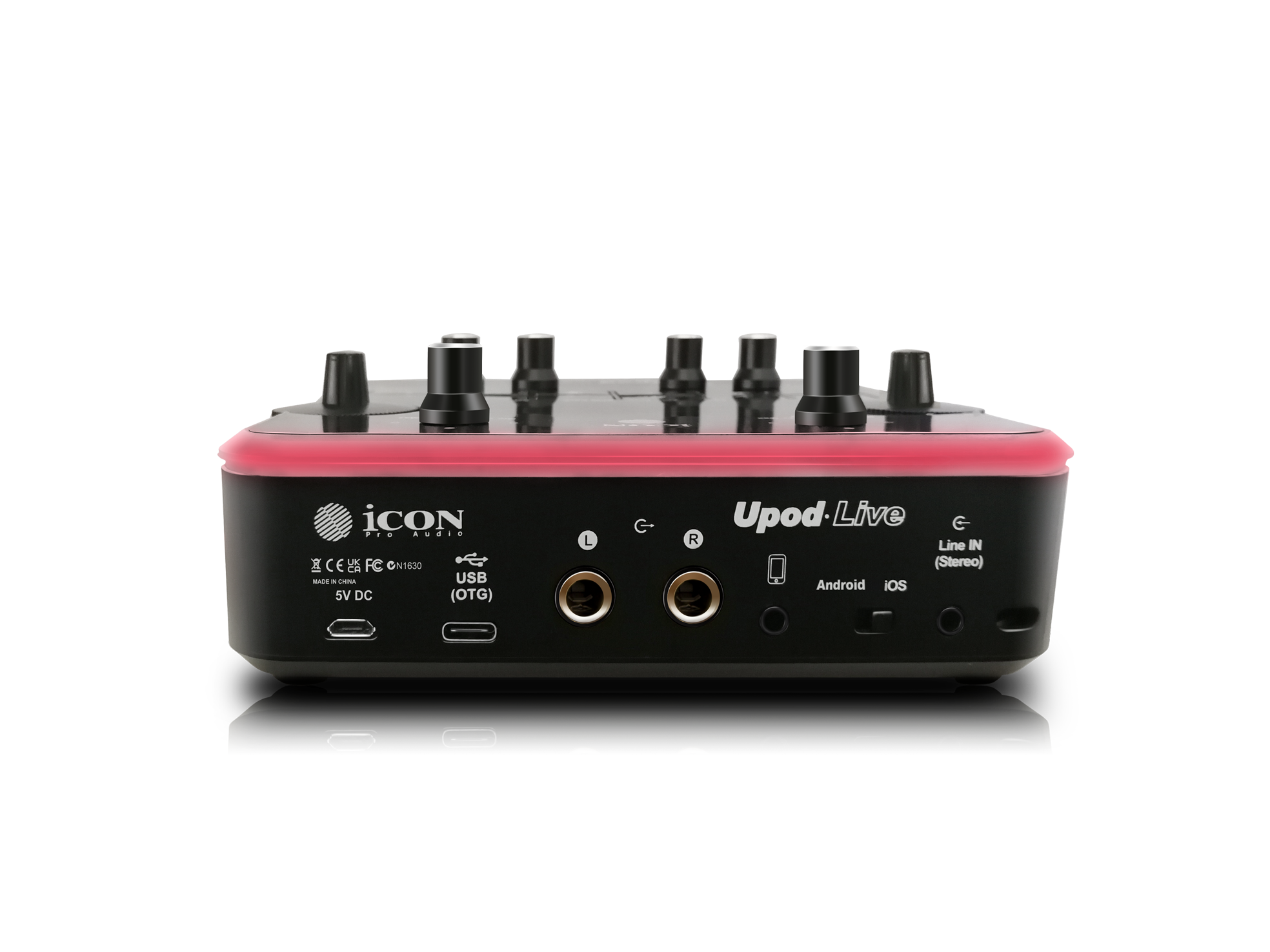

Digital & analog connections are equipped for direct smartphone connection
Plug & play and no driver installation is needed.

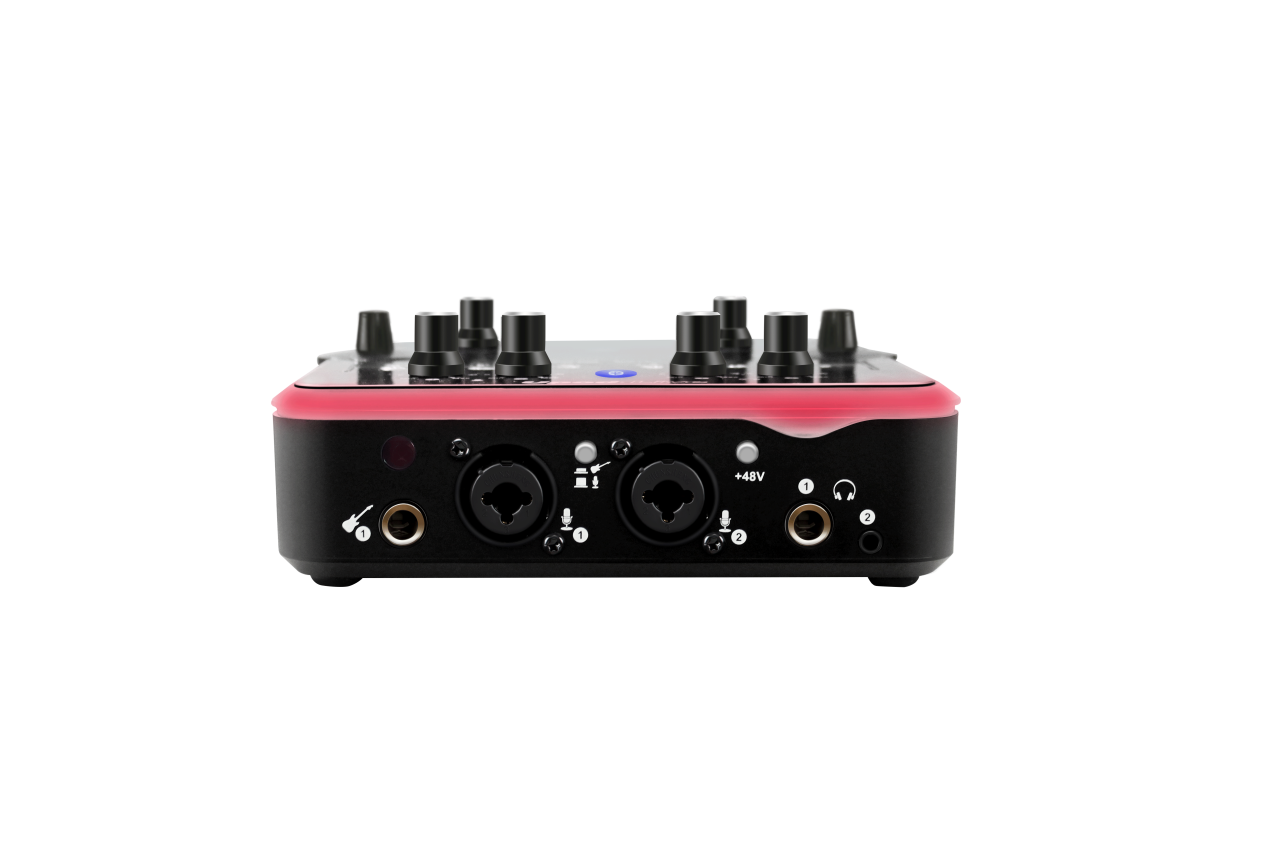

Mic Input
Frequency Response	22Hz to 20kHz (+/-0.2dB)
Dynamic Range	90dB, A-weighted
Signal-to-Noise Ratio	-90dB, A-weighted
THD+N	<0.0061% (-86dB)
Crosstalk	-85dB @ 1kHz
Input Impedance:Mic in	1.8K Ohms, typical
Adjustable Gain	+39dB
Inst Input
Frequency Response	22Hz to 20kHz (+/-0.2dB)
Dynamic Range	90dB, A-weighted
Signal-to-Noise Ratio	-90dB, A-weighted
THD+N	<0.0061% (-86dB)
Crosstalk	-75dB @ 1kHz
Input Impedance: Inst in	500K Ohms, typical;
Total Gain Range	+38dB
Line Inputs (RCA IN, Unbalanced)
Frequency Response	22Hz to 20kHz (+/-0.2dB)
Dynamic Range	90dB, A-weighted
Signal-to-Noise Ratio	-90dB, A-weighted
THD+N	<0.003% (-86dB)
Crosstalk	-90dB @ 1kHz
Input Impedance	10K Ohms, typical
Adjustable Gain	+8dB
Line Outputs 1/2 (Stereo, Unbalanced)
Frequency Response	22Hz to 20kHz (+/-0.2dB)
Dynamic Range	90dB, A-weighted
Signal-to-Noise Ratio	-90dB, A-weighted
THD+N	<0.003% (-86 dB)
Crosstalk	-90dB @ 1kHz
Nominal Output Level	Unbalanced: +2dBV, typical;
Headphone Outputs: (at Maximum Volume; Into 100 Ohm load)
Frequency Response	22Hz to 20kHz (+/-0.2dB)
Power into Ohms	20 mW into 100 Ohms
THD+N	<0.06% (-66dB)
Signal-to-Noise Ratio	-90dB, A-weighted
Max Output Level into 100 Ohms	+2.0dBV, typical
Load Impedance	32 to 600 Ohms
Weight	0.518 KG（1.14lb）
Dimensions	150mm(L)x151mm(W)x56mm(H)
Dimensions	5.9"(L)x5.94"(W)x2.2"(H)
