Mobile R Live
The ICON ProAudio MobileR Live USB recording interface provides an audio input and output module as well as analog & digital connectivity with any smart mobile device for live streaming applications. Main features include:
- 24-Bit 192KHz 1 mic-In/1 inst-In, 2-Out USB Recording Interface
- Professional & Hi-end grade DA/AD provides high dynamic range
- DAC: Dynamic Range: 114dB
- ADC: Dynamic Range: 114dB
- Supports Mac/PC connectivity simultaneously with SmartDevice
- Live session possible with audio signal processing via ProDriver4 virtual plug-in rack
- 2×2 analog I/O full duplex recording and playback
- Compatible with iOS and Android Digital I/O jack (Type C) & Analog I/O jack (3.5mm stereo TRRS)
for direct connection with smartphone, tablet or other device - Mic/Instrument preamps with individual gain control and phantom power switch
- 2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector

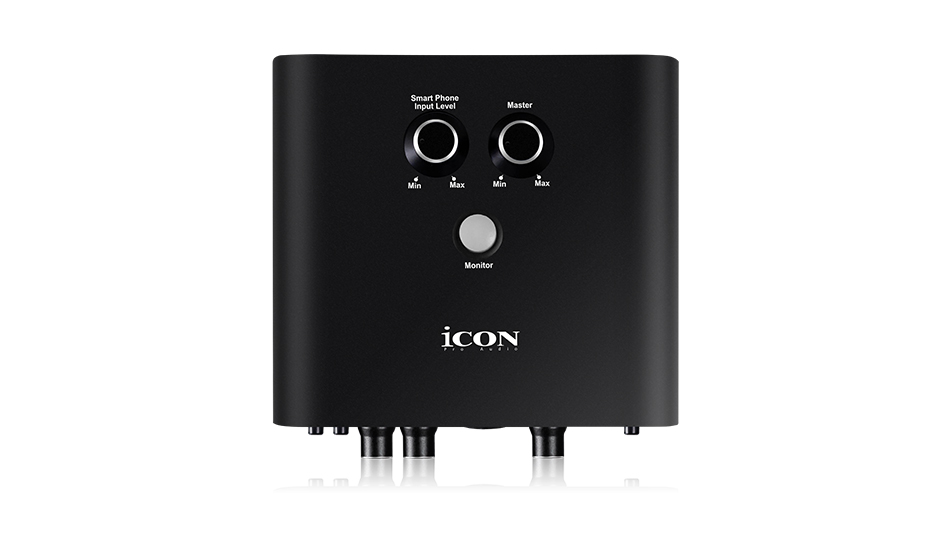

- Smart phone input level control on the top panel
- Direct monitor button control on the top panel
- 1 headphone output with assignable source and individual volume control
- ICON ProAudio innovative and user friendly plug-in hosting rack software is built-in with ProDriver4™
- Flexible channel routing via the ProDriver4 software control panel
- ICON ProAudio developed ultra low latency ProDriver4™driver is provided
- USB2.0 High Speed equipped and USB bus-powered
- Supports DirectSound, WDM and ASIO2.0
- Compatible with mac OS (Intel-Mac) 10.11 and later, iOS 9 or above, Android and Windows 7, 8 & 10 (32-bit/64-bit)
- Full duplex, simultaneous record/playback
- +5VDC power supply connector is equipped for external power supply when using with iOS
- Rugged aluminum construction
- Bitwig 8Track included
- Dotec audio plugins included
- Tracktion DAW Essentials Collection plugins included
- Kilohearts Toolbox plugins included
- Harrison 32c Vocal Intensity Processor plugin included
| Name | Spec |
| Mic Input: | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 112dB, A-weighted |
| Signal-to-Noise Ratio | -112dB, A-weighted |
| THD+N | -98dB |
| Crosstalk | -97dB@1kHz |
| Input Impedance | Mic in: 1.8K Ohms, typical |
| Adjustable Gain | +34dB |
| Inst Input: | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 112dB, A-weighted |
| Signal-to-Noise Ratio | -112dB, A-weighted |
| THD+N | -98dB |
| Crosstalk | -97dB@1kHz |
| Input Impedance | Inst in: 500K Ohms, typical; |
| Adjustable Gain | +31dB |
| Line Outputs 1/2 (Stereo, Unbalanced): | |
| Frequency Response | 22Hz 22kHz (+/-0.1dB) |
| Dynamic Range | 114dB, A-weighted |
| Signal-to-Noise Ratio | -114dB, A-weighted |
| THD+N | -100 dB |
| Crosstalk | -97dB@1kHz |
| Nominal Output Level | Unbalanced: +4dBV, typical; |
| Maximum Output Level | +11dBV, typical; |
| Output Impedance | 150 Ohm |
| Load Impedance | 600 Ohm minimum |
| Headphone Outputs: (at Maximum Volume; Into 100 Ohm load): | |
| Frequency Response | 22Hz to 22kHz (+/-1dB) |
| Power into Ohms | 90 mW into 100 Ohms |
| THD+N | <0.06% (-66dB) |
| Signal-to-Noise Ratio | -100dB, A-weighted |
| Max Output Level into 100 Ohms | +2.0dBV, typical |
| Output Impedance | 75 Ohm |
| Load Impedance | 32 to 600 Ohms |
| Weight | 0.336 KG（0.74lb） |
| Dimensions | 122mmX106mmX37mm |
| Dimensions | 4.8"(L)x4.17"(W)x1.46"(H) |
- Mac OS X 10.11 El Capitan or higher
- Android
- iOS 11 - iOS 14
- Supports Intel, M1, M1 Max, M1 Pro, M1 Ultra, M2 and AMD processors
- Windows 7 - 11
