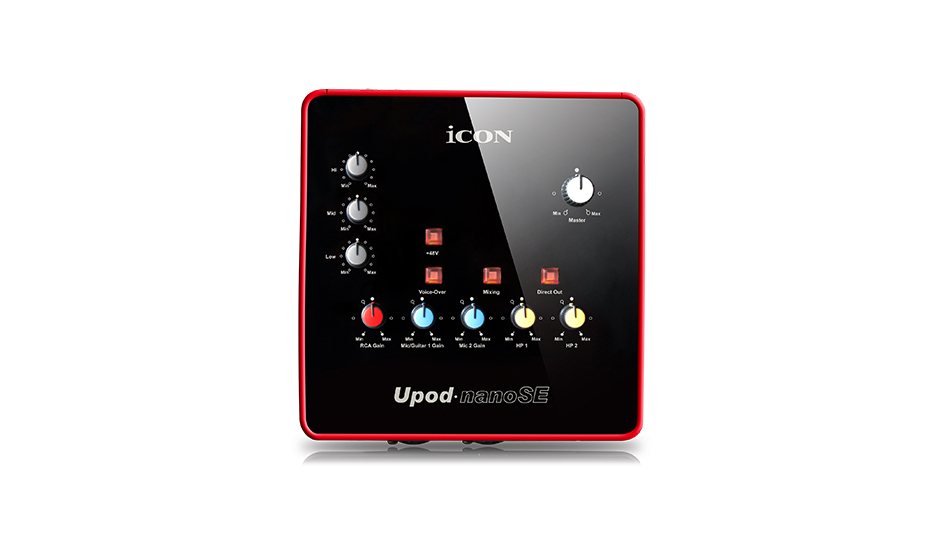

Upod Nano SE
● 16-Bit 48KHz 2 mic-In/1 guitar-In, 2-Out USB Recording Interface
● 2×2 analog I/O full duplex recording and playback
● ICON innovative unique mic preamp with individual gain control
● Equipped with +48V & +5V phantom power
● 2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector
● Built-in stereo RCA input with individual gain control
● Functions as a stand-alone device with RCA input & DSP processing
● Equipped with Hi, Mid & Low EQ adjustment knobs
● Attenuator (Voice-Over) function button equipped for music fade-out automatically
when mic signal is present
● Buttons equipped for controlling mic signal recording to PC
● Buttons equipped for controlling monitoring signal
● Master volume control on the top panel
● 2 headphone outputs on 1/4” TRS jacks with individual volume control
● USB2.0 compatible
● Plug & play and no driver installation is needed.
● Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit),
Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit)
● Full duplex, simultaneous record/playback
Name | Spec |
Mic Input | |
Frequency Response | 22Hz to 20kHz (+/-0.2dB) |
Dynamic Range | 90dB, A-weighted |
Signal-to-Noise Ratio | -90dB, A-weighted |
THD+N | <0.0061% (-86dB) |
Crosstalk | -85dB @ 1kHz |
Input Impedance:Mic in | 1.8K Ohms, typical |
Adjustable Gain | +39dB |
Inst Input | |
Frequency Response | 22Hz to 20kHz (+/-0.2dB) |
Dynamic Range | 90dB, A-weighted |
Signal-to-Noise Ratio | -90dB, A-weighted |
THD+N | <0.0061% (-86dB |
Crosstalk | -75dB @ 1kHz |
Input Impedance | Inst in 500K Ohms, typical; |
Total Gain Range | +38dB |
Line Inputs (RCA IN, Unbalanced) | |
Frequency Response | 22Hz to 20kHz (+/-0.2dB) |
Dynamic Range | 90dB, A-weighted |
Signal-to-Noise Ratio | -90dB, A-weighted |
Crosstalk | -90dB @ 1kHz |
Input Impedance | 10K Ohms, typical |
Adjustable Gain | +8dB |
Line Outputs 1/2 (Stereo, Unbalanced) | |
Frequency Response | 22Hz to 20kHz (+/-0.2dB) |
Dynamic Range | 90dB, A-weighted |
Signal-to-Noise Ratio | -90dB, A-weighted |
THD+N | <0.003% (-86 dB) |
Crosstalk | -90dB @ 1kHz |
Nominal Output Level | -+2dBV, typical |
Headphone Outputs: (at Maximum Volume; Into 100 Ohm load) | |
Frequency Response | 22Hz to 20kHz (+/-0.2dB) |
Power into Ohms | 20 mW into 100 Ohms |
THD+N | <0.06% (-66dB) |
Signal-to-Noise Ratio | -90dB, A-weighted |
Max Output Level into 100 Ohms | +2.0dBV, typical |
Load Impedance | 32 to 600 Ohms |
Weight | 0.502 KG(1.11lb) |
Dimensions | 160mm(L)x160mm(W)x50mm(H) |
Dimensions | 6.3"(L)x6.3"(W)x1.97"(H) |
- Mac OS X 10.11 El Capitan - MacOS 11.1 Big Sur
- iOS 11 - iOS 14
- Windows 7 - Windows 10
