VH6(ProDriveIII)

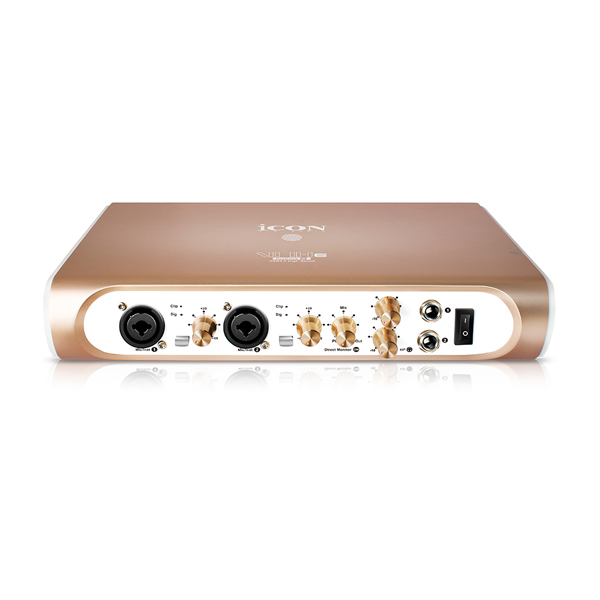

The ICON VH6 (ProDrive III) USB recording interface provides an audio input and output module with USB connectivity. Main features include:
- 24-Bit 192KHz 6-In/6-Out USB Recording Interface
- High dynamic range:
DAC: Dynamic Range: 114dB
ADC: Dynamic Range: 114dB - 4×4 analog I/O full duplex recording and playback
- Dual Mic/Instrument preamps with individual gain control and phantom power switch
- 2 analog inputs on 1/4” TRS jacks
- 4 analog outputs on 1/4” TRS jacks
- S/PDIF I/O on RCA coaxial connectors
- 1 x 1 – 16 channel MIDI I/O
- Master volume control on the front panel
- Direct monitor knob control on the top panel
- 2 headphone output with assignable source and individual volume control
- Flexible channel routing via the software control panel
- ICON’s innovative ProDrive III plug-ins hosting rack is provided
- Different ProDrive III plug-ins are provided
- USB2.0 High Speed equipped and USB bus-powered
- Supports DirectSound, WDM and ASIO2.0
- Compatible with Mac OS (Intel-Mac) 10.11 and later, iOS 9 or above and Windows 7, 8 & 10 (32-bit/64-bit)
- Full duplex, simultaneous record/playback
- +12VDC power supply connector is equipped for external power supply when using with iOS
- Rugged aluminum construction
- Bitwig 8Track included
- Dotec audio plugins included
- Tracktion DAW Essentials Collection plugins included
- Kilohearts Toolbox plugins included
| Name | Spec |
| Mic/Inst Inputs 1-2 (Balanced; at Minimum Gain): | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 114dB, A-weighted |
| Signal-to-Noise Ratio | -114dB, A-weighted |
| THD+N | -100dB |
| Crosstalk | -100dB @ 1kHz |
| Input Impedance | Inst in: 390K Ohms, typical; |
| Input Impedance | Mic in: 1.8K Ohms, typical |
| Adjustable Gain | +53dB |
| Total Gain Range | +56dB |
| Line Inputs 3-4 (balanced): | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 114dB, A-weighted |
| Signal-to-Noise Ratio | -114dB, A-weighted |
| THD+N | -100dB |
| Crosstalk | -100dB@1kHz |
| Nominal Output Level | Balanced: +4dBu; |
| Nominal Output Level | Unbalanced: -10dBV |
| Maximum Output Level | Balanced: +10.2dBu, typical; |
| Maximum Output Level | Unbalanced: +2.0dBV, typical |
| Input Impedance | 10K Ohms, typical |
| Line Outputs 1-4 (balanced): | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 114dB, A-weighted |
| Signal-to-Noise Ratio | -114dB, A-weighted |
| THD+N | -100dB |
| Crosstalk | -100dB@1kHz |
| Nominal Output Level | Balanced: +4dBu; |
| Nominal Output Level | Unbalanced: -10dBV |
| Maximum Output Level | Balanced: +10.2dBu, typical; |
| Maximum Output Level | Unbalanced: +2.0dBV, typical |
| Output Impedance | 150 Ohm |
| Load Impedance | 600 Ohm minimum |
| Headphone Outputs: 1 & 2 (at Maximum Volume; Into 100 Ohm load): | |
| Frequency Response | 22Hz to 22kHz (+/-1dB) |
| Power into Ohms | 90 mW into 100 Ohms |
| THD+N | <0.06% (-66dB) |
| Signal-to-Noise Ratio | -90dB, A-weighted |
| Max Output Level into 100 Ohms | +2.0dBV, typical |
| Output Impedance | 75 Ohm |
| Load Impedance | 32 to 600 Ohms |
| Weight | 1.170 KG（2.58lb） |
| Dimensions | 268mmx164mmx50mm |
| Dimensions | 10.55"(L)x6.46"(W)x1.97"(H) |
- Mac OS X 10.11 El Capitan to Mac OS 13 Ventura
- iOS 11 - iOS 14
- Supports Intel, M1, M1 Max, M1 Pro, M1 Ultra, M2 and AMD processors
- Windows 7 - 11
