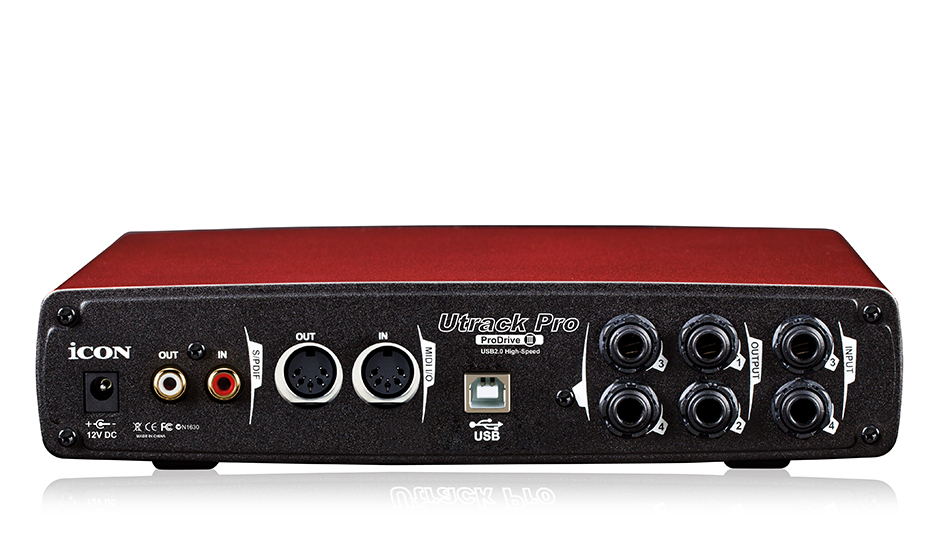

UtrackPro(ProDriveIII)

The ICON UtrackPro (ProDrive III) USB recording interface provides an audio input and output module with USB connectivity. Main features include:

  • 24-Bit 192KHz 6-In/6-Out USB Recording Interface
  • High dynamic range:
    DAC: Dynamic Range: 114dB
    ADC: Dynamic Range: 114dB
  • 4×4 analog I/O full duplex recording and playback
  • Dual Mic/Instrument preamps with individual gain control and phantom power switch
  • 2 analog inputs on 1/4” TRS jacks
  • 4 analog outputs on 1/4” TRS jacks
  • S/PDIF I/O on RCA coaxial connectors
  • 1 x 1 – 16 channel MIDI I/O
  • Master volume control on the front panel
  • Direct monitor knob control on the top panel
  • 2 headphone output with assignable source and individual volume control
  • Flexible channel routing via the software control panel
  • ICON’s innovative ProDrive III plug-ins hosting rack is provided
  • Different  ProDrive III plug-ins are provided
  • USB2.0 High Speed equipped and USB bus-powered
  • Supports DirectSound, WDM and ASIO2.0
  • Compatible with Mac OS (Intel-Mac) 10.11 and later, iOS 9 or above and Windows 7, 8 & 10 (32-bit/64-bit)
  • Full duplex, simultaneous record/playback
  • +12VDC power supply connector is equipped for external power supply when using with iOS
  • Rugged aluminum construction

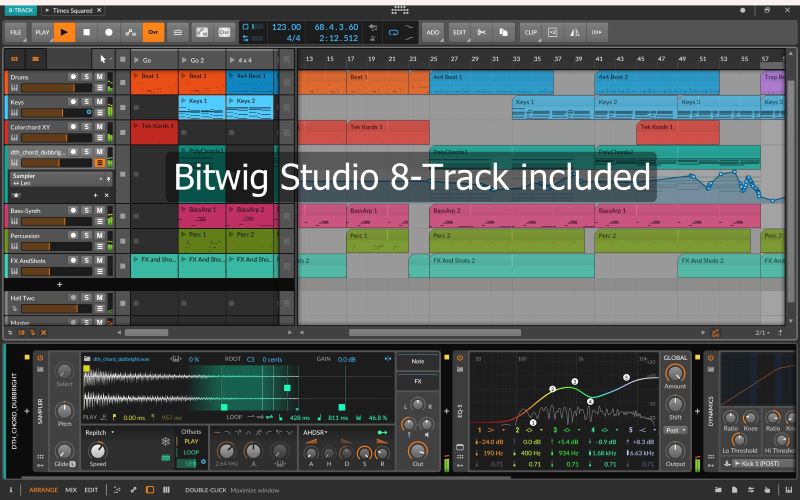

  • Bitwig 8Track included

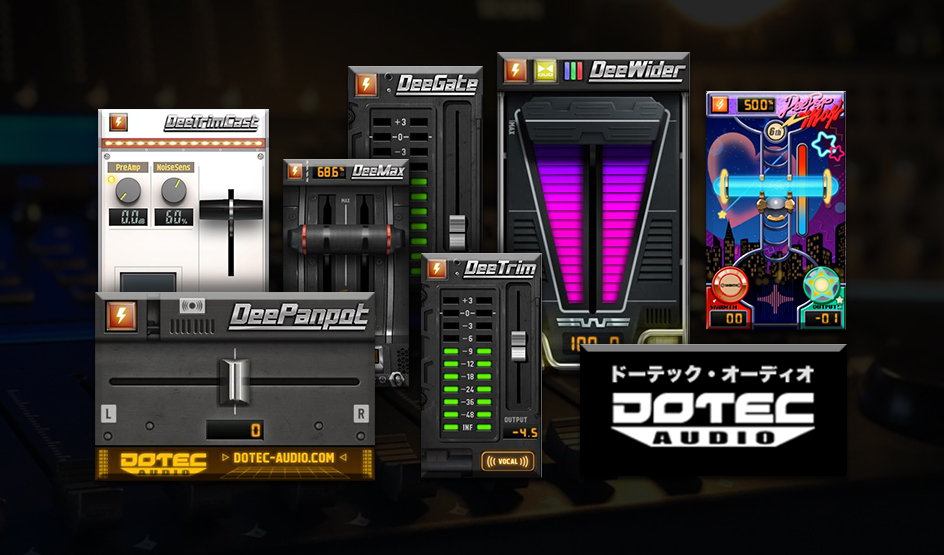

  • Dotec audio plugins included
  • Tracktion DAW Essentials Collection plugins included
  • Kilohearts Toolbox plugins included
  • Harrison 32c Vocal Intensity Processor plugin included

Print

NameSpec
Mic/Inst Inputs 1-2 (Balanced; at Minimum Gain):
Frequency Response22Hz to 22kHz (+/-0.1dB)
Dynamic Range114dB, A-weighted
Signal-to-Noise Ratio-114dB, A-weighted
THD+N-100dB
Crosstalk-100dB@1kHz
Input ImpedanceInst in: 390K Ohms, typical;
Input ImpedanceMic in: 1.8K Ohms, typical
Adjustable Gain+53dB
Total Gain Range+56dB
Line Inputs 3-4 (balanced):
Frequency Response22Hz to 22kHz (+/-0.1dB)
Dynamic Range114dB, A-weighted
Signal-to-Noise Ratio-114dB, A-weighted
THD+N-100dB
Crosstalk-100dB @ 1kHz
Nominal Output LevelBalanced: +4dBu;
Nominal Output LevelUnbalanced: -10dBV
Maximum Output LevelBalanced: +10.2dBu, typical;
Maximum Output LevelUnbalanced: +2.0dBV, typical
Input Impedance10K Ohms, typica
Line Outputs 1-4 (balanced):
Frequency Response22Hz to 22kHz (+/-0.1dB)
Dynamic Range114dB, A-weighted
Signal-to-Noise Ratio-114dB, A-weighted
THD+N-100dB
Crosstalk-100dB@1kHz
Nominal Output LevelBalanced: +4dBu;
Nominal Output LevelUnbalanced: -10dBV
Maximum Output LevelBalanced: +10.2dBu, typical;
Maximum Output LevelUnbalanced: +2.0dBV, typical
Output Impedance150 Ohm
Load Impedance600 Ohm minimum
Headphone Outputs: 1 & 2 (at Maximum Volume; Into 100 Ohm load):
Frequency Response22Hz to 22kHz (+/-1dB)
Power into Ohms90 mW into 100 Ohms
THD+N<0.06% (-66dB)
Signal-to-Noise Ratio-90dB, A-weighted
Max Output Level into 100 Ohms+2.0dBV, typical
Output Impedance75 Ohm
Load Impedance32 to 600 Ohms
Weight1.58 KG(2.48lb)
Dimensions225mmx200mmx55mm
Dimensions8.86"(L)x7.87"(W)x2.17"(H)
  • Mac OS X 10.11 El Capitan to Mac OS 13 Ventura
  • iOS 11 - iOS 14
  • Supports Intel, M1, M1 Max, M1 Pro, M1 Ultra, M2 and AMD processors
  • Windows 7 - 11
