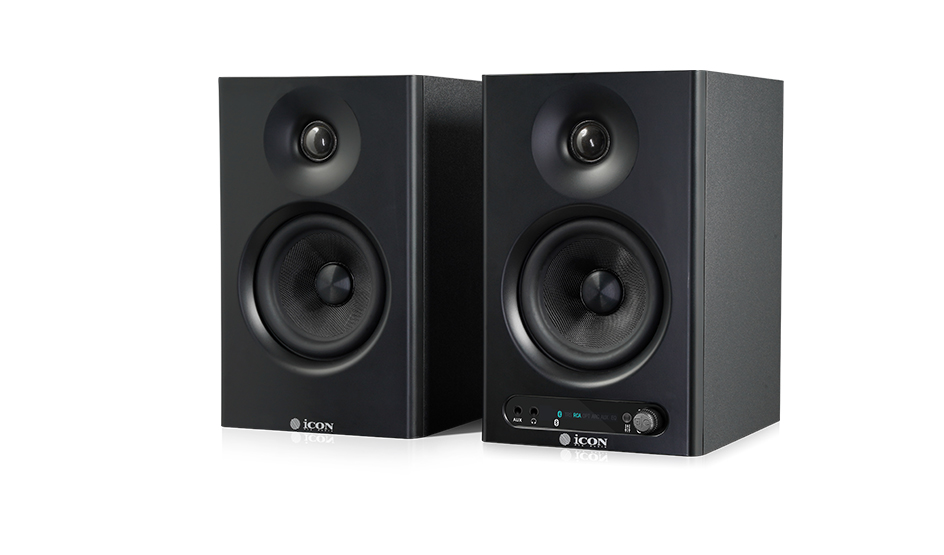

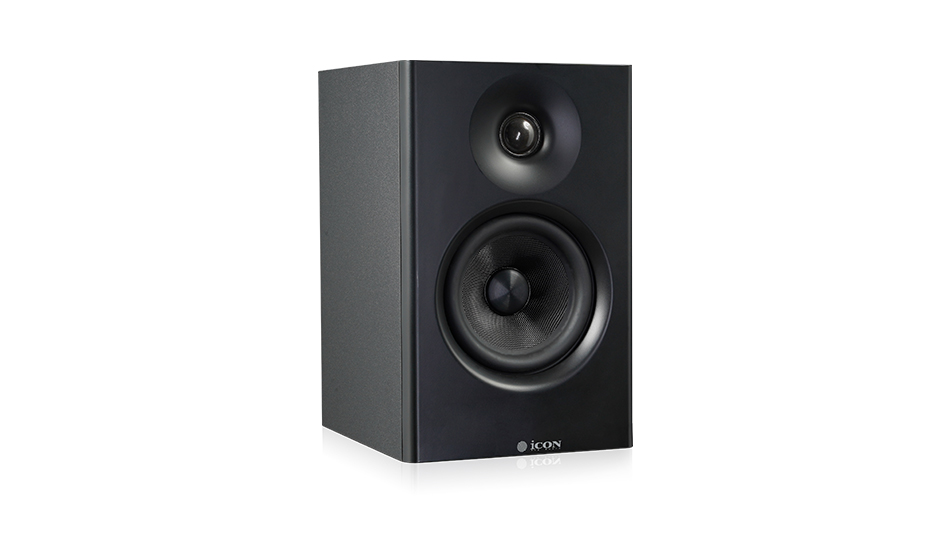

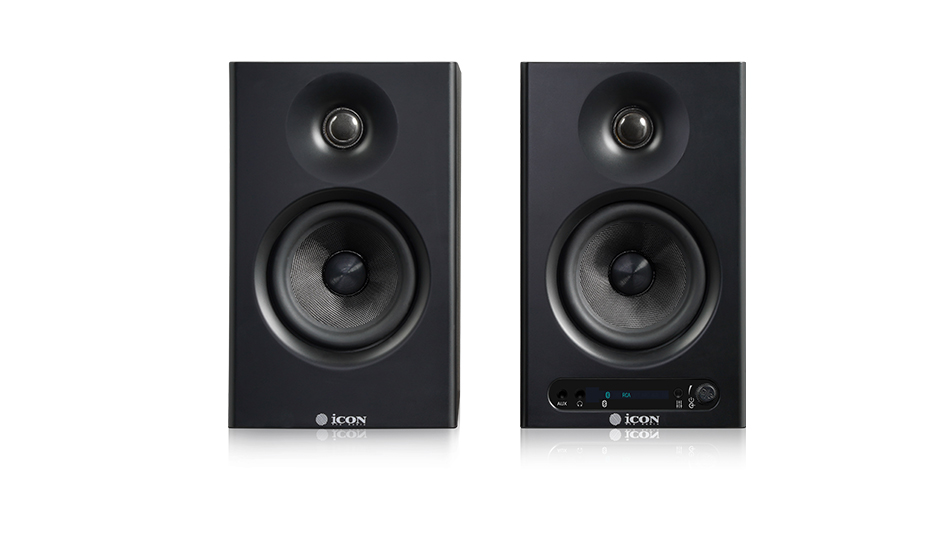

SX-3A
● Compact but powerful with very precise sound reproduction
● Active two-way monitor system with active cross over design
● Extended bass reflex type
● 3.5” NRSC paper cone and CU-cap on pole piece
● 1” silk dome tweeter with neodymium magnet, plus heat sink and
ferrofluid cooling provide smooth and sweet high frequency response.
● Bi-amped: 15W (LF), 10W(HF) for individual monitor

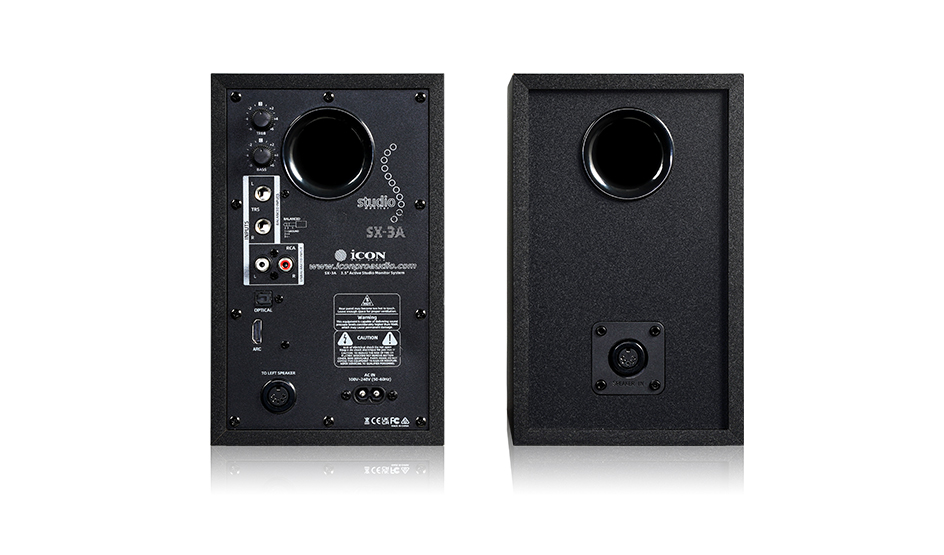

● Unbalanced RCA input connector
● “Bass Boost” switch equipped
● MDF cabinet with extended bass reflex port design, ideal for recording and
multi-media applications.
| Name | Spec |
| System | Two-way active nearfield monitor |
| Frequency Response (+/-3dB) | 75 Hz - 21 kHz |
| Bass Principle | Bass reflex |
| Tuning Frequency | 90 Hz |
| Tweeter | 1" wide dispersion silk dome |
| Woofer | 3.5" NRSC paper cone |
| Magnetically shielded/compensated | Shielded and Compensated |
| Cross over frequency | 4.5 kHz |
| Cross over slope | 12 dB/oct (LP and HP) |
| Input level for 86dB SPL @ 500-2000 Hz avg @ 1 m | -15 dBu RMS @ 0 dB level setting |
| Input connectors | Balanced 6.35mm TRS connectors |
| Input connectors | Unbalanced RCA connectors |
| Power consumption | Idle: 10W / Max: 40W (per unit) |
| Amplifier power | Tweeter: 10W / Woofer: 15W |
| Internal cabinet volume | 3.0 liters |
| Weight | Main Cabinet:5.0 kg (11.0lbs) |
| Weight | Sub-Cabinet:2.8 kg (6.2lbs) |
| Dimensions | 141 x 200 x 230 mm |
| Dimensions | 5.6“ x 7.9”x 9.0” |
