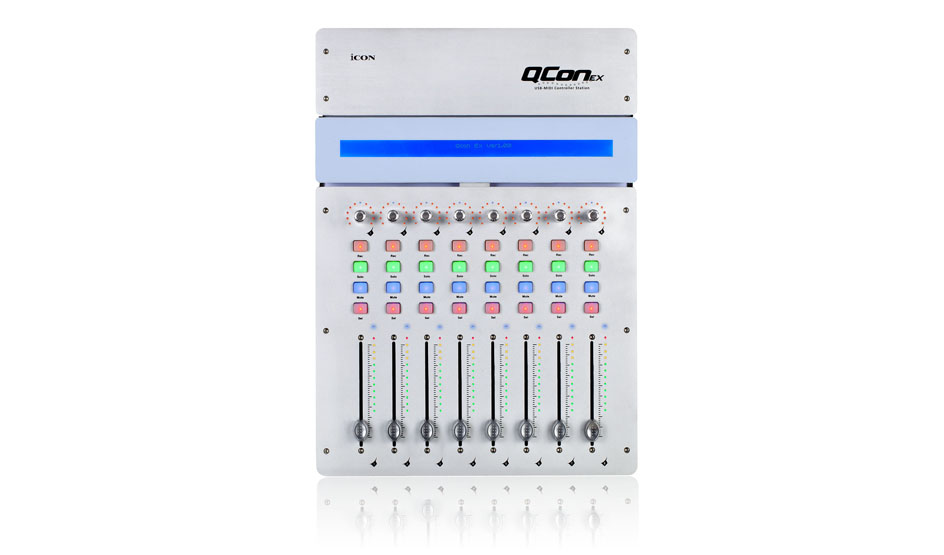

Qcon Ex

●  8 touch-sensitive motorized channel faders
●  12-segments LED channels level metering
●  8 x dual function encoder knobs (Enter & rotate)
●  11-segments LED surrounding the encoders to indicate the rotating position.
●  Large backlit LCD to display channel name, control values etc. for each channel
●  Illuminated buttons for each channel including Rec-enable, Solo, Mute, Select and Monitor
●  Expandable to 32-channels control surface with 3units of Qcon EX and a Qcon Pro.
●  User A & User B RCA connectors for connecting with pedals
●  Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit),Windows 8 (32-bit & 64-bit), Windows 10 (32-bit & 64-bit), and Mac OS X (IntelMac)
●  USB 2.0 high speed connectivity
●  Mackie control built-in for Cubase, Nuendo, Samplitude, Logic Pro and Ableton Live.
●  Mackie HUI protocol built-in for Pro Tool.
●  User self-define mode (MIDI Learn) for other DAW such as Sonar.
●  Firmware upgrade available simply via USB connection and iMap software.
●  Robust aluminum and metal casing with Kensington lock port.
NameSpec
ConnectorUSB connector (standard type)
Power supply12V/6A DC
Current consumption3A or less
Weight4.7kg (10.3lb)
Dimensions342(L) X 475(W) X 82(H)
Dimensions13.5”(L) x 18.7”(W) x 3.2”(H)
  • Supports Intel, M1, M1 Max, M1 Pro, M1 Ultra, M2 and AMD processors
  • (Firmware is recognized on M1 Max, M1 Pro, M1 Ultra and M2 and AMD CPUs, however, you can only use Intel or M1 CPU to perform firmware update procedure)
  • Mac OS X 10.11 El Capitan to Mac OS 13 Ventura
  • Windows 7 - 11
