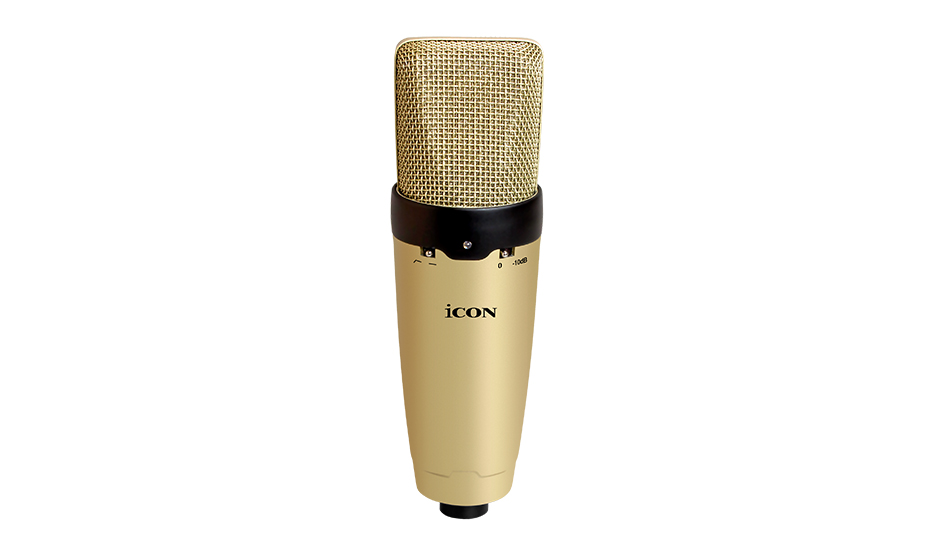

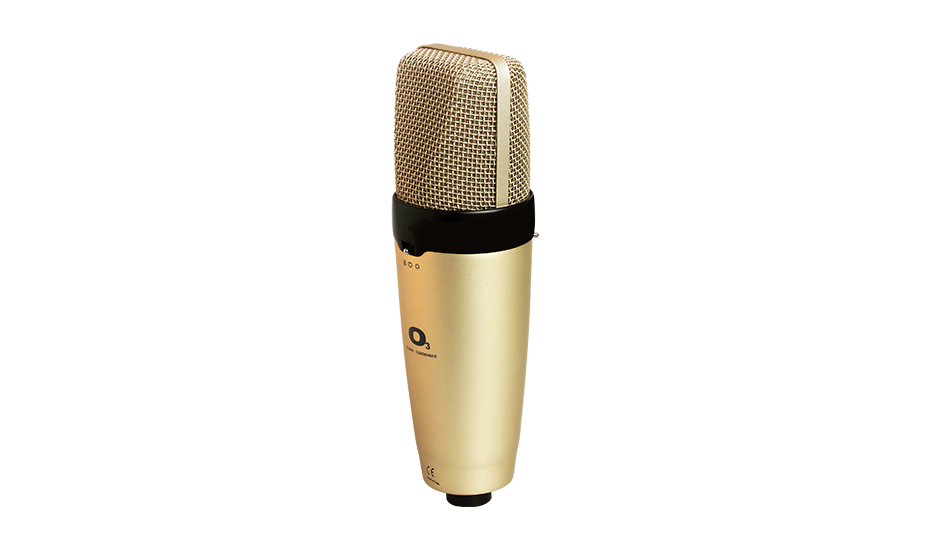

O3
- Dual golden painted 19mm capsule
- Cardioids, omni and figure 8 patterns
- True 20Hz to 20KHz frequency response with pronounced presence boost
- Switch able high-pass filter and 10dB pad
- Low cut
- Very low self-noise
- Exceptional low-frequency reproduction
- High output level
- High input SPL capability
- Extremely uniform polar response
- Classic character and rugged construction
- Optional swivel mount
| Name | Spec |
| Acoustical element | Dual back condenser capsule |
| Directional pattern | Omni directional / Cardioid / Figure-8 |
| Frequency range | 40Hz to 18kHz |
| Sensitivity | |
| Omni | -36dBV/Pa |
| Cardioid | -33dBV/Pa |
| Figure-8 | -36dBV/Pa |
| Rated Impedance | 200 Ohms |
| Min. load impedance | 1000 Ohms |
| SPL | |
| Omni | 139dB |
| Cardioid | 136dB |
| Figure-8 | 139dB |
| S/N ratio | 78dB |
| Dynamic range | 128dB |
| Power supply | 36-52V |
| Current consumption | 4mA |
| Weight | 0.6kg (1.3lbs) |
| Dimensions | 53mm(dia.) x 193mm(L) |
| Dimensions | 2.3”(dia.) x 7.6”(L) |
