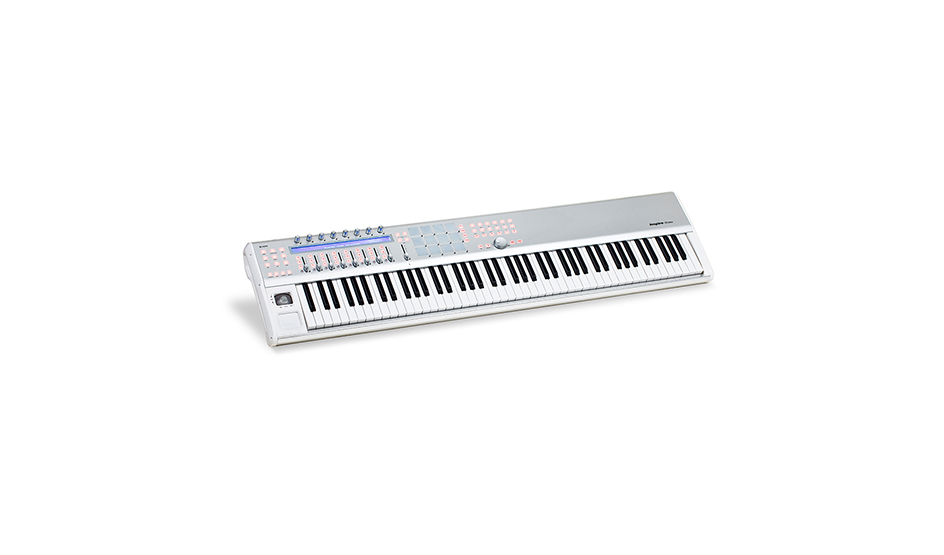

InSpire 8 G2

● ICON innovative “VirtualPort TM” matrix technology provides 4 independent USB output for Multi-software operation simultaneously

● Key switch and pads allow multi-assignment & simultaneous operation on multi- software

● The powerful controller is equipped and easily set up with Mackie Control and HUI protocol

● Semi-weighted velocity-sensitive piano style keyboard

● Combined pitch/modulation joystick

● 8 x dual function encoder knobs (Enter & rotate)

● 8+1 assignable faders

● 12 integrated velocity-sensitive trigger pads send MIDI notes or control data

● X/Y touchpad

● “Hold”, “Pad Roll” & “Key Roll” feature buttons are equipped for Pad & Key rolling effect when using with the touchpad

● Large backlit LCD to display channel name, control values etc. for each channel

● 62 assignable buttons

● Jog wheel shuttle for fast search and control

● Illuminated buttons for each channel including Rec-enable, Solo, Mute and Select

● 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast forward and Loop

● Illuminated zoom key with 4 direction keys

● Single Transpose button use combines with key switch to shift pitch effectively

● Multi velocity curves available for selection (Key and Pads)

● 1 x 1 16-channels MIDI I/O

● Expression & sustain pedal TRS connectors

● Expansion slot for ICON’s “Synth” series synthesizer module card

● Expansion slot for ICON’s “Satellite” series USB audio interface card

● Mounting holes equipped for an optional iPad holder

● Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit), and Mac OSX (IntelMac)

● USB 2.0 high speed connectivity

● Mackie control built-in for Cubase, Nuendo, Samplitude, Logic Pro and Ableton Live

● Mackie HUI protocol built-in for Pro Tool

● User self-define mode (MIDI Learn) for other DAW such as Sonar

● Firmware upgrade available simply via USB connection and iMap software

● Template labels are included for different popular DAWs such as Cubase, Nuendo, Samplitude, Logic Pro and Ableton Live

● Robust aluminum and metal casing with Kensington lock port

● Harrison 32c Vocal Intensity Processor plugin included

Name	Spec
Connector
USB	USB connector (standard type)
Sustain & Expression	2x1/4” TS connectors
MIDI I/O	5-pin Din connector
General
Power supply	12V/100mA DC (Outside negative inside positive)
Current consumption	100mA or less
Weight	12kg (26.4lb)
Dimensions	1248(L) x 282(W) x 62.7(H)mm
Dimensions	49.1”(L) x 11.1”(W) x 2.5”(H)
