PX-T6A G2

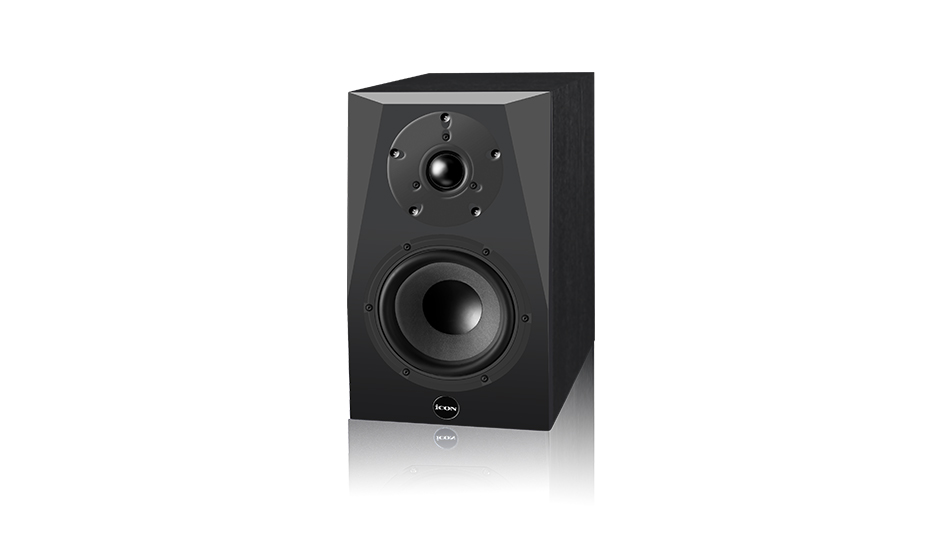

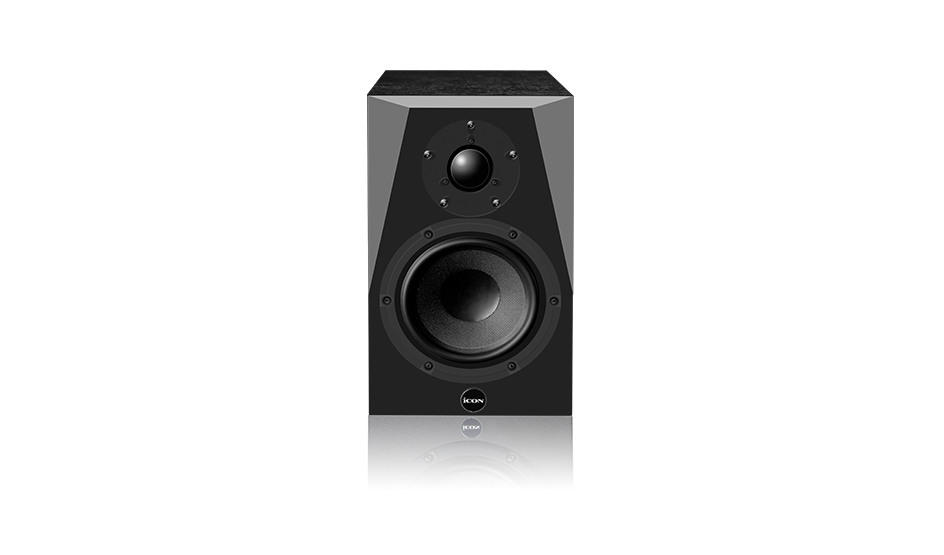

  • Compact high performance active studio monitor
  • R-Type Transformer for super clean output
  • Active 2-Way Monitor System with complex Active Crossover design
  • High, Mid and Low range contour control
  • High-Pass Filter – Flat, 60Hz & 80Hz selectable
  • The ideal solution for near-field monitoring in any recording or broadcasting facility
  • Designed for use in stereo as well as multichannel setups
  • Tuned by top-skilled acoustic engineer’s ear to fulfill any requirements in real recording studio environments
  • ICON’s “Vasorb TM” monitor stands are  included
  • Build-in Bi-Amp power module: 80W (LF), 30W(HF)
  • ICON 6.5″ polypropylene with paper dustcap
  • Low loss SBR surround with low creep and long time reliability
  • Progressive spider to achieve soft clipping and low distortion even under extreme load
  • Dual magnet ferrite magnet system with extended height for superb bass reproduction
  • Aluminum short circuiting ring
  • Very rigid die-cast aluminum chassis with very open geometry for optimized air-flow to eliminate compression
  • High-end 1″ dome tweeter
  • Soft fabric dome and surround with wide-dispersion optimized geometry
  • Big surround to reduce distortion
  • Low loss ferrofluid-free magnet system for open and detailed sound
  • Robust and very rigid design
  • Diffraction optimized smooth front baffle design
  • Extended front baffle dimensions to eliminate any vibration or sound radiation from the enclosur
  • Robust and very rigid design
  • Diffraction optimized smooth front baffle design
  • Extended front baffle dimensions to eliminate any vibration or sound radiation from the enclosure
  • Premium absorbing material for long life high performance bass reproduction
NameSpec
SystemTwo-way active nearfield monitor
Frequency Response (+/-3dB)40 Hz - 21 kHz
Bass PrincipleBass reflex
Tuning Frequency40 Hz
Tweeter1" wide dispersion silk dome
Woofer6.5" PPB cone with aluminum short circuiting ring and rigid aluminum basket
Magnetically shielded/compensatedShielded and Compensated
Cross over frequency2.2 kHz
Cross over slope18 dB/oct (LP and HP)
Input level for 86dB SPL @ 500-2000 Hz avg @ 1 m-15 dBu RMS @ 0 dB level setting

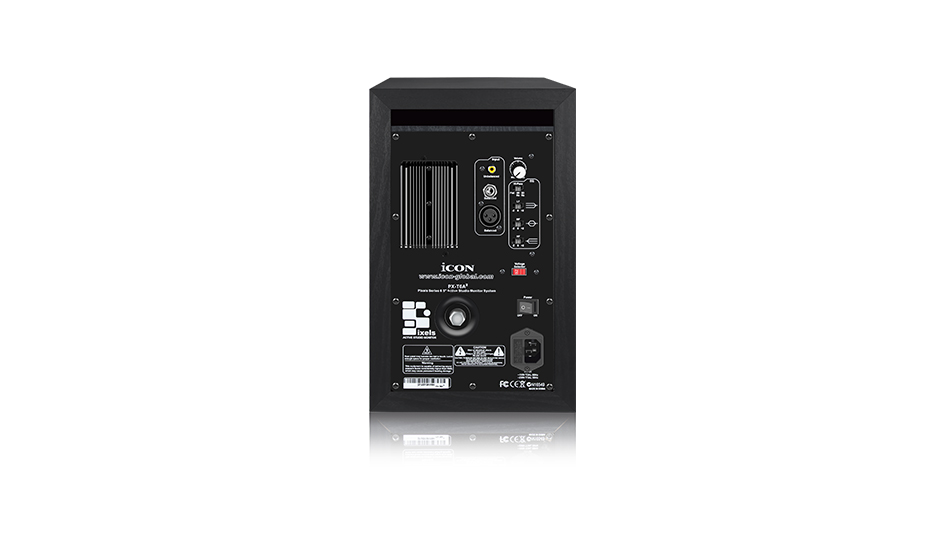

Input connectorsBalanced XLR/6.35mm TRS connectors
Input connectorsUnbalanced RCA connectors
Power consumptionIdle: 10W / Max: 110W
Amplifier powerTweeter: 30W / Woofer: 80W
Internal cabinet volume15.0 liters
Weight11.0 kg (24.2lbs)
Dimensions(WxHxD) 208 x 334 x 323 mm
