M4

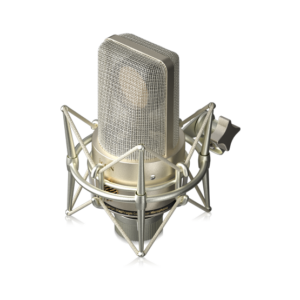

Studio condenser microphone (5V & 48V)

  • Large 25mm diaphragm condenser microphone specially tuned for present, clear, powerful vocals
  • Cardioid pickup pattern for outstanding sound source separation and feedback rejection
  • Equipped with 5V or 48V phantom power selection switch for operation
  • Heavy-duty suspension mount and wooden transport case included
  • Ultra-rugged construction with metal die-cast body



NameSpec
Transducer typeElectrostatic condenser
Operating principlePressure Gradient
Active Diaphragm Diameter25 mm
Frequency range20 Hz to 20 kHz
Polar patternunidirectional, cardioid
Output impedance50 Ω
Rated load impedance600 Ω
Suggested load impedance>500 Ω
Maximum SPL for 0,5% THD at 1000 Ω load130 dB
S/N Ratio DIN/IEC 651 A-weighten80 dB
Equivalent noise level DIN/IEC A-weighten7 dB
Dynamic range of the microphone preamplifier123 dB
A. Phantom powering voltage on pin 2&3 of XLR+48V (+/-4V)
B. Phantom powering voltage on pin 2 of XLR+5V (+/-2V)
Current consumption≤5 mA
Output connector3-pin XLR male
Dimension44mm X 44mm X 161mm
Dimension1.73"(L)x1.73"(W)x6.34"(H)
Weight0.253 kg(0.56lb)
