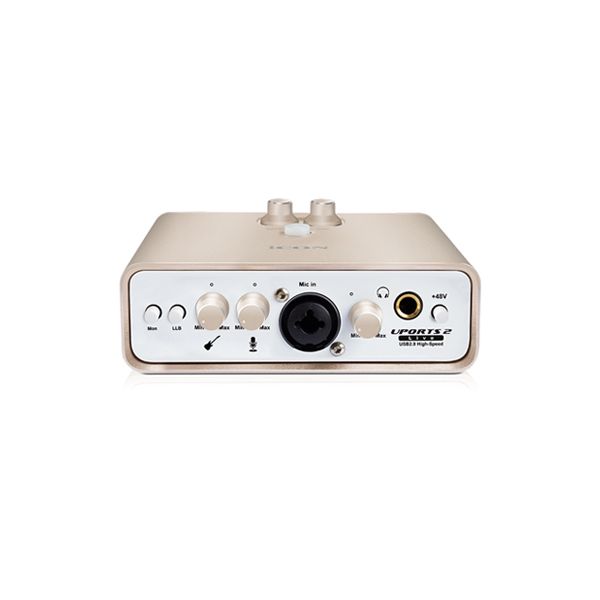

Uports2 Live

The ICON ProAudio Uports2 Live USB recording interface provides an audio input and output module as well as analog & digital connectivity with any smart mobile device for live streaming applications. Main features include:

  • 24-Bit 192KHz 1 mic-In/1 inst-In, 2-Out USB Recording Interface
  • Professional & Hi-end grade DA/AD provides high dynamic range
    • DAC: Dynamic Range: 114dB
    • ADC: Dynamic Range: 114dB
  • Supports Mac/PC connectivity simultaneously with SmartDevice
  • Live session possible with audio signal processing via ProDriver4 virtual plug-in rack
  • 2×2 analog I/O full duplex recording and playback
  • Compatible with iOS and Android Digital I/O jack (Type C) & Analog I/O jack (3.5mm stereo TRRS)
    for direct connection with smartphone, tablet or other device
  • Mic/Instrument preamps with individual gain control and phantom power switch
  • 2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector
  • Smart phone input level control on the top panel
  • Direct monitor button control on the top panel
  • 1 headphone output with assignable source and individual volume control
  • ICON ProAudio innovative and user friendly plug-in hosting rack software is built-in with ProDriver4™
  • Flexible channel routing via the ProDriver4 software control panel
  • ICON ProAudio developed ultra low latency ProDriver4™driver is provided
  • USB2.0 High Speed equipped and USB bus-powered
  • Supports DirectSound, WDM and ASIO2.0
  • Compatible with mac OS (Intel-Mac) 10.11 and later, iOS 9 or above, Android  and Windows 7, 8 & 10 (32-bit/64-bit)
  • Full duplex, simultaneous record/playback
  • +5VDC power supply connector is equipped for external power supply when using with iOS
  • Rugged aluminum construction
  • Bitwig 8Track included
  • Dotec audio plugins included
  • Tracktion DAW Essentials Collection plugins included
  • Kilohearts Toolbox plugins included
  • Harrison 32c Vocal Intensity Processor plugin included
NameSpec
Mic Input:
Frequency Response22Hz to 22kHz (+/-0.1dB)
Dynamic Range112dB, A-weighted
Signal-to-Noise Ratio-112dB, A-weighted
THD+N-98dB
Crosstalk-97dB@1kHz
Input ImpedanceMic in: 1.8K Ohms, typical
Adjustable Gain+34dB
Inst Input:
Frequency Response22Hz to 22kHz (+/-0.1dB)
Dynamic Range112dB, A-weighted
Signal-to-Noise Ratio-112dB, A-weighted
THD+N-98dB
Crosstalk-97dB@1kHz
Input ImpedanceInst in: 500K Ohms, typical;
Adjustable Gain+31dB
Line Outputs 1/2 (Stereo, Unbanced):
Frequency Response22Hz 22kHz (+/-0.1dB)
Dynamic Range114dB, A-weighted
Signal-to-Noise Ratio-114dB, A-weighted
THD+N-100 dB
Crosstalk-97dB@1kHz
Nominal Output LevelUnbalanced: +4dBV, typical;
Maximum Output Level+11dBV, typical;
Output Impedance150 Ohm
Load Impedance600 Ohm minimum
Headphone Outputs: (at Maximum Volume; Into 100 Ohm load):
Frequency Response22Hz to 22kHz (+/-1dB)
Power into Ohms90 mW into 100 Ohms
THD+N<0.06% (-66dB)
Signal-to-Noise Ratio-100dB, A-weighted
Max Output Level into 100 Ohms+2.0dBV, typical
Output Impedance75 Ohm
Load Impedance32 to 600 Ohms
Weight0.443 KG(0.98lb)
Dimensions125mmx127mmx41mm
Dimensions4.92"(L)x5"(W)x1.61"(H)
  • Mac OS X 10.11 El Capitan to Mac OS 13 Ventura
  • Android
  • iOS 11 - iOS 14
  • Supports Intel, M1, M1 Max, M1 Pro, M1 Ultra, M2 and AMD processors
  • Windows 7 - 11
