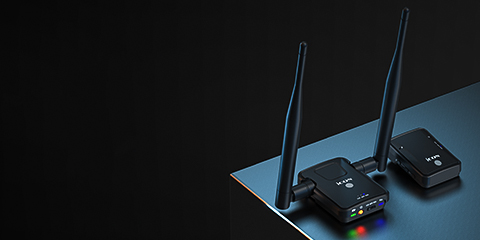

AirMon Pro

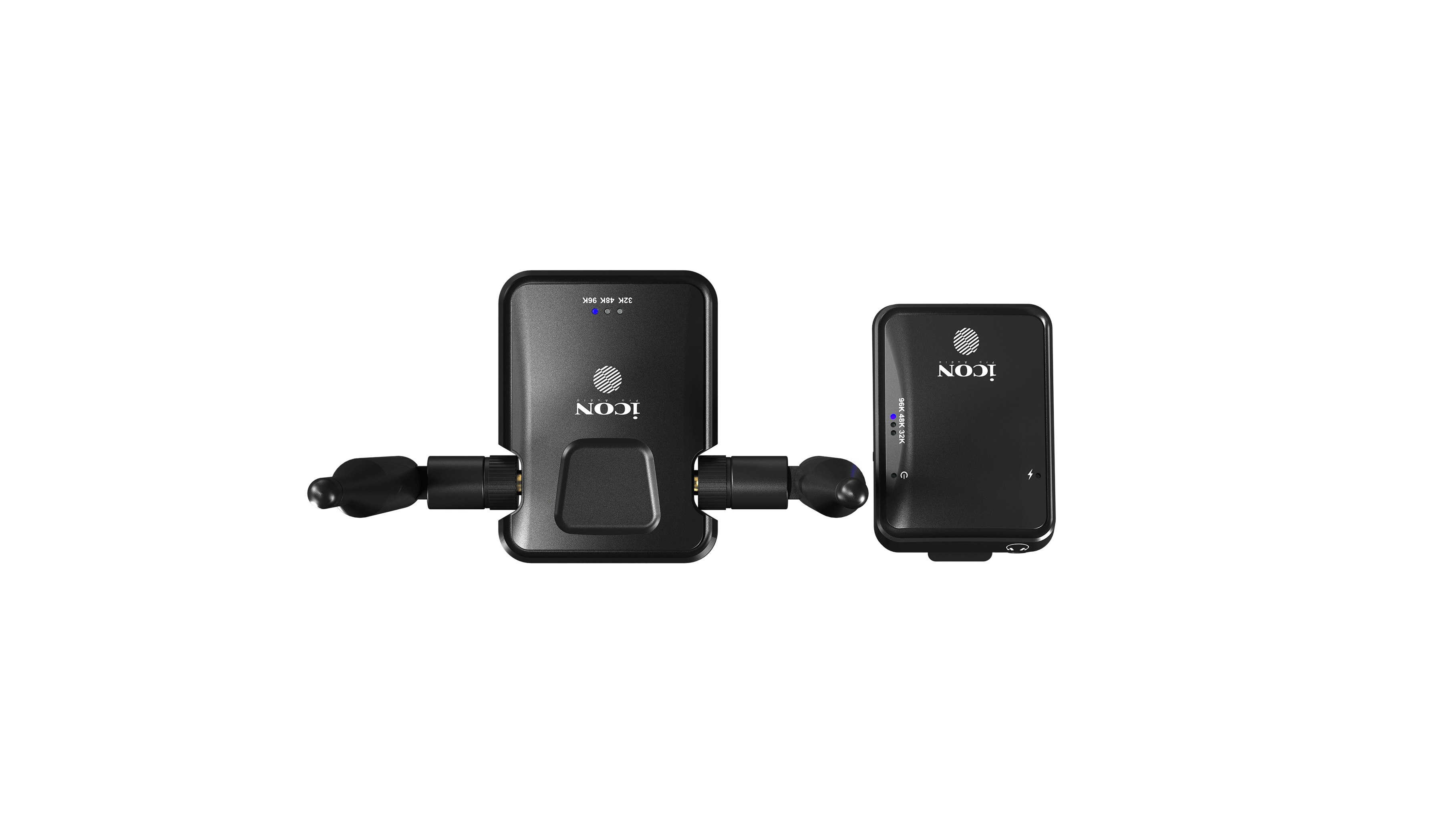

The AirMon Pro is a wireless monitoring system consisting of two modules; a transmitter and a receiver. The system is expandable with limitless receivers per transmitter and up to three transmitters per immediate area, depending on Wi-Fi strength.

Super low latency was at the top of the agenda in the design brief, as was the highest possible audio quality. The signal is transmitted digitally via 2.4 GHz. The available sample rates are 32K, 48K (16 bit mono) or 96K, the latter offering extremely high audio quality, 24 bit stereo signal. This represents unsurpassed audio quality for products of the AirMon Pro’s type and class.

Ideal for podcasters and performers who demand not only professional, but exemplary standards in audio quality, this uniquely advanced system offers robust, intelligent build quality, coupled with a stylish, sleek design.

  • Sleek, super compact and stylish design
  • Uncompressed digital transmission up to 24-bit/96KHz sampling rate
  • 2.4GHz proprietary encryption technology for ultra-low latency for wireless transmission (less than 1.58ms)
  • Infinitely expandable – use unlimited receivers per one transmitter
  • 16 different selectable channels for multiple, individual transmissions simultaneously (use up to three transmitters in one location, depending on Wi-Fi signal)
  • Uniquely innovative technology allows the user to select transmission sample rate from 32K, 48K MONO or 96K STEREO
  • Headphone output port (3.5mm)
  • Simple one button pairing technology

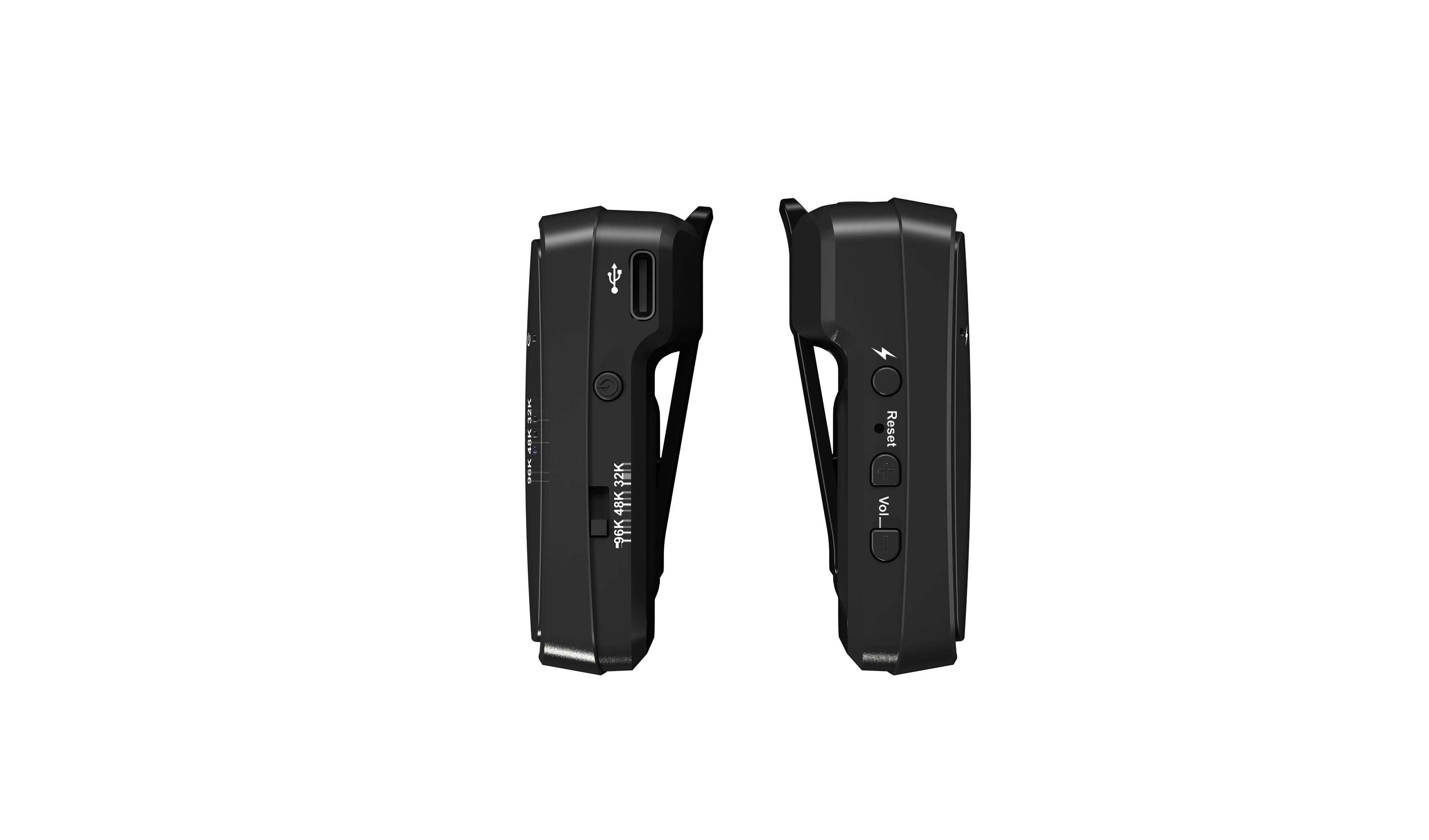

  • Type C USB connector for charging
  • Included USB C Y cable for convenient charging (both units at the same time)
  • Rechargeable battery for both transmitter and receiver
  • Belt clip fixture (receiver)
  • Approximately six hours use on a full battery charge
NameSpec
Audio - Transmitter
Sampling bit rate
96KHz24bit
48KHz16bit
32KHz16bit
Channel Mode
96KHzSTEREO
48KHzMONO
32KHzMONO
Input Level-3dBV
Input Impedance10K ohm
Audio - Receiver
Sampling bit rate
96KHz24bit
48KHz16bit
32KHz16bit
Channel Mode
96KHzSTEREO
48KHzMONO
32KHzMONO
Output Level16mW
Output Impedance32 ohm
Radio Frequency - Transmitter
Operating Frequency2400MHz-2483MHz
Digital Modulation GFSK
Occupied Bandwidth4MHz +4MHz
Transmission output10mW
Selectable Channel16 channel
Radio Frequency - Receiver
Operating Frequency2400MHz-2483MHz
Digital ModulationGFSK
Occupied Bandwidth4MHz +4MHz
Receiving Sensitivity-85dBm
Selectable Channel16 channel
Power - Transmitter
Current consumption140mA
Power RequirementsBuilt-in rechargeable LiPo battery charged via USB 5V, 0.5A
Battery Operating Time6 hours for 1000 mA use
Power - Receiver
Current consumption90mA
Power RequirementsBuilt-in rechargeable LiPo battery charged via USB 5V, 0.5A
Battery Operating Time11 hours for 1000 mA use.
Dimensions and Weights - Transmitter
Dimensions (WxDxH)53mm x 71mm x 21mm (2.1"x2.8"x0.8")
Weight82g

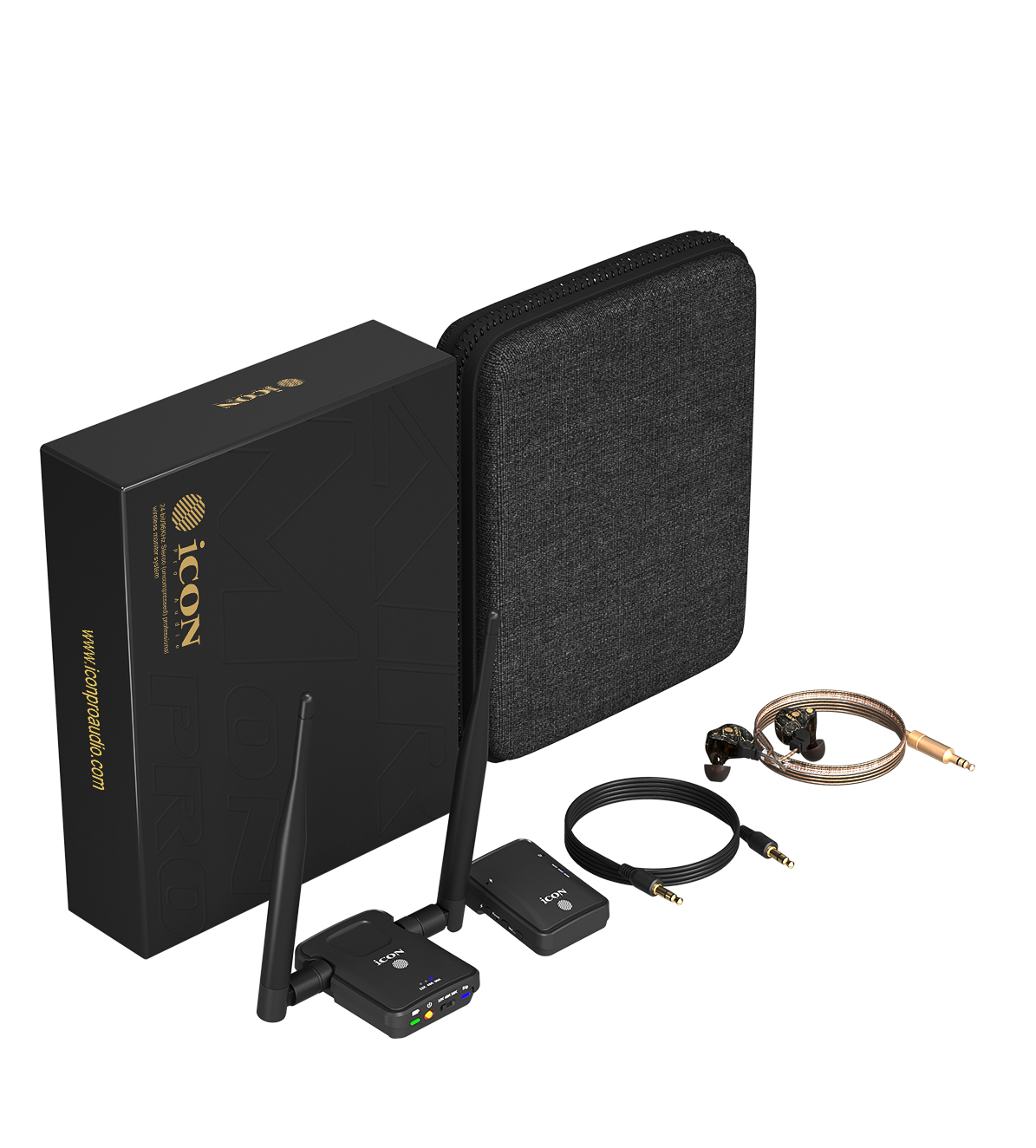

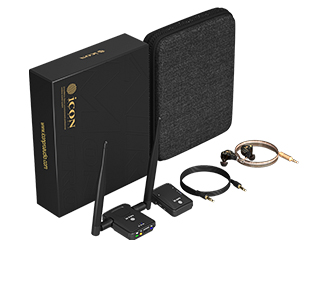

AccessoryUSB Recharing cable and storage pouch
Dimensions and Weights - Receiver
Dimensions (WxDxH)44mm x 61mm x 21mm (1.7"x2.4"x0.8")
Weight40g
AccessoryUSB Recharing cable and storage pouch
