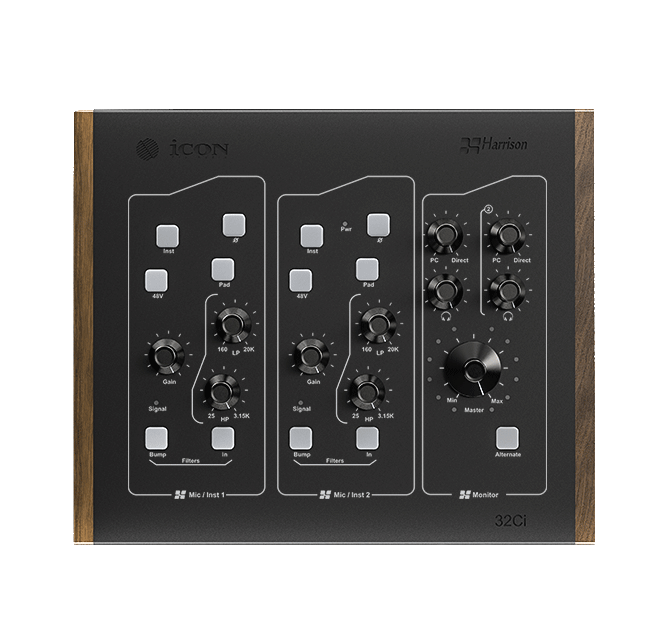

32Ci
The Harrison/iCON 32Ci Analog
MicPreamps with Audio Interface – Your
Gateway to Legendary Sound
FEATURES:
- Two 32C console grade analog mic preamps and console grade 32C filters, (as used by Michael Jackson, Paul Simon, Genesis, AC/DC on the original 32C console)
- 32C Mic/Instrument preamps complimented by individual gain control & phantom power
- ‘Bump’ control for retaining presence, while cutting low frequencies as featured on later modifications to the original 32C analog desk
- Pad switch for 20dB signal attenuation
- 24-Bit 192KHz 2 mic-In/2 inst-In + ADAT connectivity = 12 In x 12 Out capability
- 4×4 analog I/O full duplex simultaneous recording and playback
- High end studio grade AD/DA providing a super high dynamic range of 129 dB
- Supports Mac/PC connectivity simultaneously with Smart Devices
- Live sessions possible with audio signal processing via ProDriver virtual plug-in rack
- Compatible with iOS and Android Digital I/O jack (Type C) & Analog I/O jack (3.5mm
- stereo TRS) for direct connection with SmartPhones, tablets and other devices

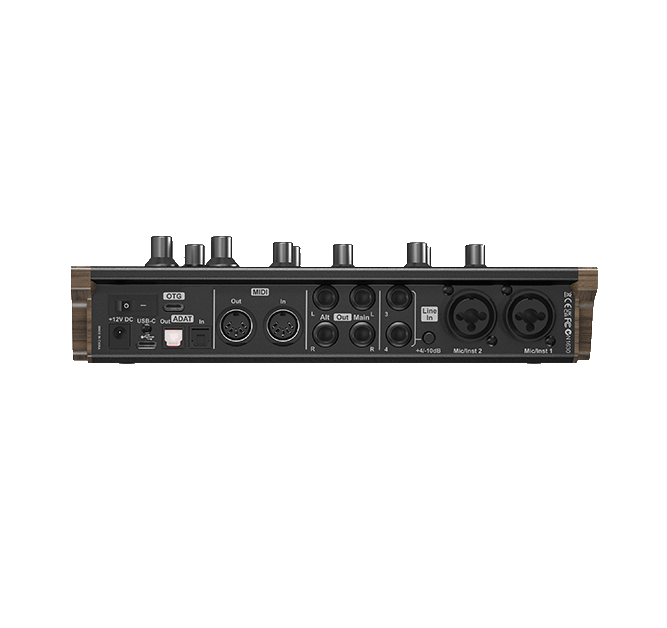

- Four analog outputs on 1/4” TRS jacks
- 2x MIDI IN/OUT 5 pin DIN connectors
- Monitor volume control knob
- ‘Alternate’ button for switching between different monitoring set ups
- Extremely well built and robust switch gear and surfaces

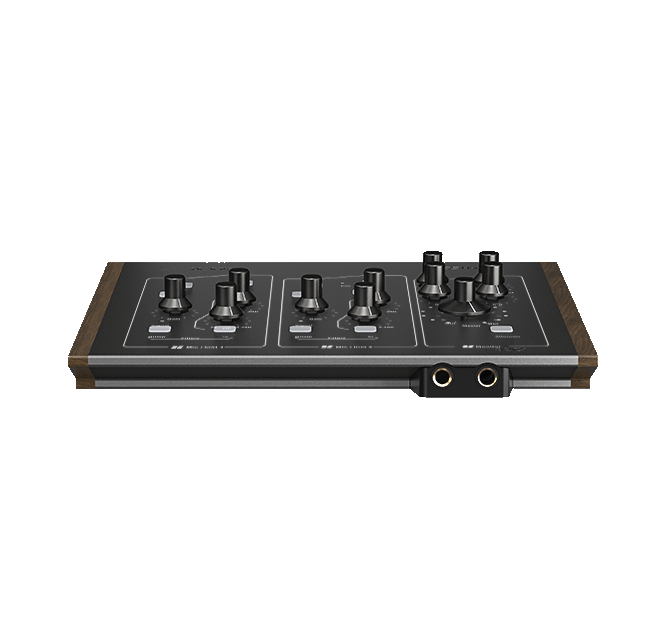

- Two headphone outputs with individual volume controls
- Flexible channel routing via the ProDriver software control panel
- ICON Pro Audio developed ultra low latency ProDriverTM driver included
- ICON Pro Audio’s innovative and user friendly plug-in hosting rack software built-in with ProDriverTM(Windows and Mac)
- ARM-M7/500MHz processing power and technology for super fast and extremely stable signal processing – two instances of the chip are used, one for the USB connection and one for mobile devices via the independent Type-C connector at the rear
- +4/-10 button for inputs 3+4
- Supports Direct Sound, WDM and ASIO 2.0
- Loop Back function is possible with ProDriver TM for both Mac and Windows platforms
- Class-compliant with MacOS 10.15 or above & Windows 10 or above
- +12 V DC power supply
- Rugged, high quality construction
| Name | Spec |
| ADC | |
| Dynamic Range: | 125dB, A-weighted |
| Signal-to-Noise Ratio: | -125dB, A-weighted |
| THD+N Ratio: | -117dB, -1dBFS |
| DAC | |
| Dynamic Range: | 129dB, A-weighted |
| Signal-to-Noise Ratio: | -129dB, A-weighted |
| THD+N Ratio: | -120dB, 0dBFS |
| Mic1/2 Inputs (XLR, Balanced) | |
| Frequency Response: | 20Hz to 20kHz (+/-0.1dB) |
| Minimum voltage gain 0dB (fader @ unity, -20dB pad) | |
| Maximum voltage gain 70dB (fader @ unity, no pad) | |
| Nominal input level -16dBu through -66dBu (fader @ unity, no pad, @ +4dBu output) | |
| Maximum input level +18dBu (fader @ unity, -20dB pad) | |
| Expected source impedance 150 to 200 Ohms | |
| Actual load impedance 1200 Ohms | |
| Instrument 1/2 Inputs (6.35mm TS, Unbalanced) | |
| Frequency Response: | 20Hz to 20kHz (+/-0.1dB) |
| Input Impedance: | 1M Ohms, typical |
| Maximum input level +18dBu (fader @ unity, -20dB pad) | |
| Line Inputs 3/4 (6.35mm TRS, Balanced) | |
| Frequency Response: | 20Hz to 20kHz (+/-0.1dB) Maximum level +24dBu |
| Nominal input level +4dBu | |
| Expected source impedance 1000 Ohms or less Actual load impedance 10 kOhms | |
| Line Outputs 1/2 (6.35mm TRS, Balanced) | |
| Frequency Response: | 20Hz to 20kHz (+/-0.1dB); Maximum level +24dBu |
| Nominal input level +4dBu | |
| Minimum load impedance 600 Ohms | |
| Headphone Outputs: (Stereo, Unbalanced) | |
| Frequency Response: | 20Hz to 20kHz (+/-1dB) |
| Load Impedance: | 16 to 600 Ohms |
| Maximum Output Level: | +21dBu, no load; +21dBu, 600Ohms (11.4Vrms) |
| +20dBu, 100 Ohms (10Vrms) | |
| +14.6dBu, 32 Ohms (5.4Vrms) | |
| +8.6dBu, 16 Ohms (2.7Vrms) |
