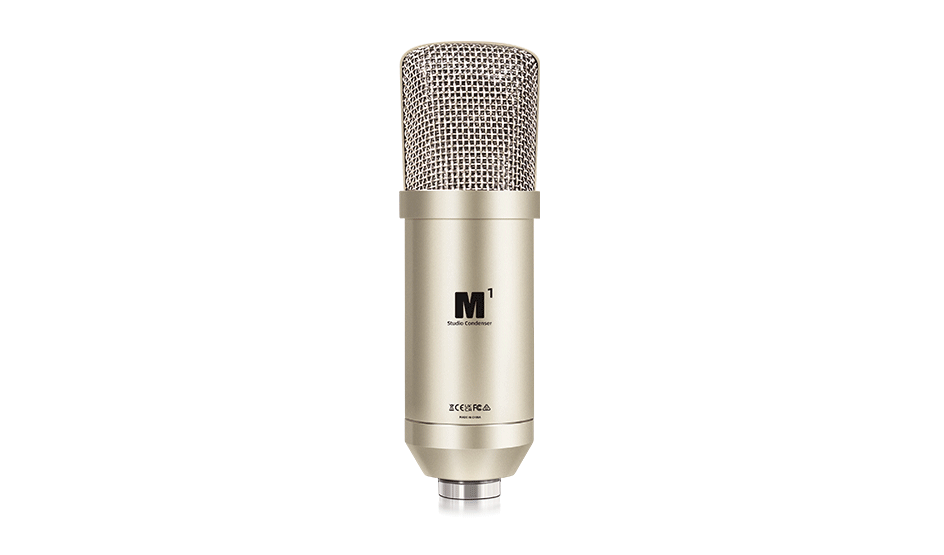

M1

●  Professional Large-diaphragm condenser microphone for unsurpassed audio quality
●  Ideal as main and support microphone for most differing recording situations
●  Cardioid pickup pattern for outstanding sound source separation and feedback rejection
●  Pressure-gradient transducer with shock-mounted capsule
●  Prefect vocals and acoustic instruments
●  External 36-52 Volt phantom power operation
●  Heavy-duty suspension mount and aluminum transport case included
●  Ultra-rugged construction with metal die-cast body
●  High-quality components and exceptionally rugged construction ensure long lift.

NameSpec
Acoustical operating principlePressure gradient transducer
Directional patternCardioid
Frequency range20Hz – 20KHz
Sensitivity-37dBV/Pa
Rated Impedance200 Ohms
Min. load impedance1000 Ohms
SPL144dB
S/N ratio78dB
Dynamic range128dB
Power supply voltage48V +/-3V
Current consumption4mA
Weight
(Microphone only)0.25Kg (0.55lb)
(with suspension mount)0.43Kg (0.95lb)
Dimensions46mm (dia.) x 157mm (L)
Dimensions1.8” (dia.) x 6.2” (L)
