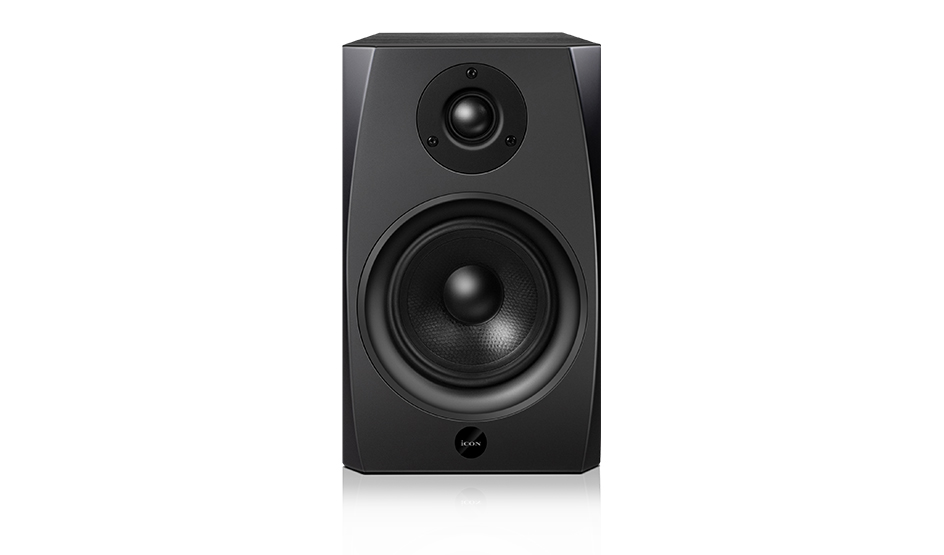

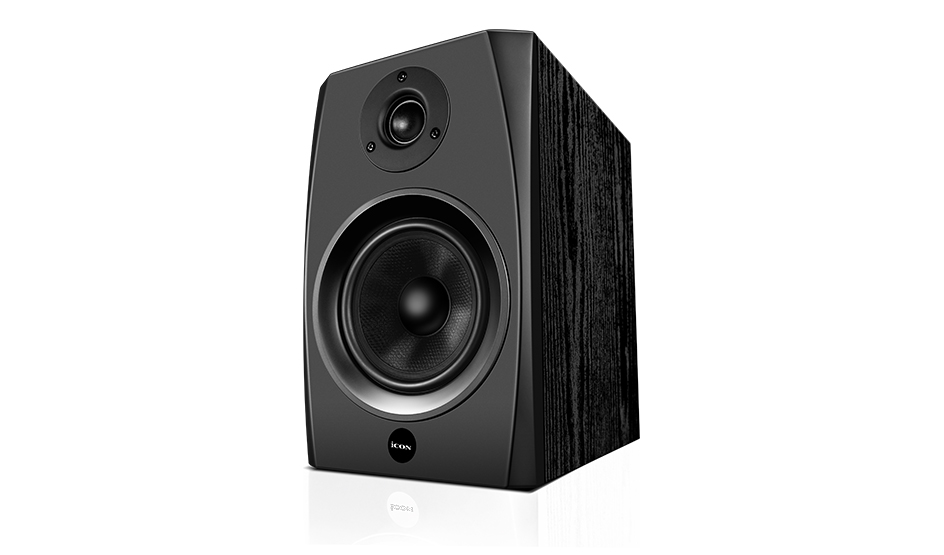

SX-8A

The ICON SX-8A series active studio monitor system provide a smooth response that is accurate and pleasant to listen to. Here are some of their main features:



  • Two-way active studio reference monitor with ported tuned enclosure providing extremely accurate monitoring for recording studio, post-production and multi-media applications.
  • Compact and powerful with very precise sound reproduction.
  • 1”silk dome tweeter with neodymium magnet, plus heat sink and ferrofluid cooling provide smooth and sweet high frequency response.
  • 8” copolymer butyl surround woofer provides tight and controlled low frequency response.
  • Build-in Bi-Amp power module for low and high frequency drivers HF: 60W / LF: 120W
  • Active crossover uses a multi-pole design for linear response from bottom to top.
  • XLR balanced input as well as unbalanced RCA input make connecting to most -10 dBV or +4dB signal source quick and easy.
  • A/V shielded for multimedia applications providing clean operation near computer CRT monitors.
  • Solid MDF construction
  • “Vasorb TM” monitor rubber feet included
NameSpec
SystemTwo-way active nearfield monitor
Frequency Response (+/-3dB)35 Hz - 21 kHz
Bass PrincipleBass reflex
Tuning Frequency35 Hz
Tweeter1" wide dispersion silk dome
Woofer8.5" PPB cone with aluminum short circuiting ring and rigid aluminum basket
Magnetically shielded/compensatedShielded and Compensated
Cross over frequency2.5 kHz
Cross over slope24 dB/oct (LP and HP)
Input level for 85dB SPL @ 500-2000 Hz avg @ 1 m-15 dBu RMS @ 0 dB level setting
Input connectorsBalanced XLR connector
Input connectorsUnbalanced RCA connectors
Power consumptionIdle: 10W / Max: 180W
Amplifier powerTweeter: 60W / Woofer: 120W
Internal cabinet volume18.0 liters
Weight13.0 kg (28.6lbs)
Dimensions (WxHxD)250 x 370 x 340 mm
Dimensions (WxHxD)9.8“ x 14.6”x 13.4”
