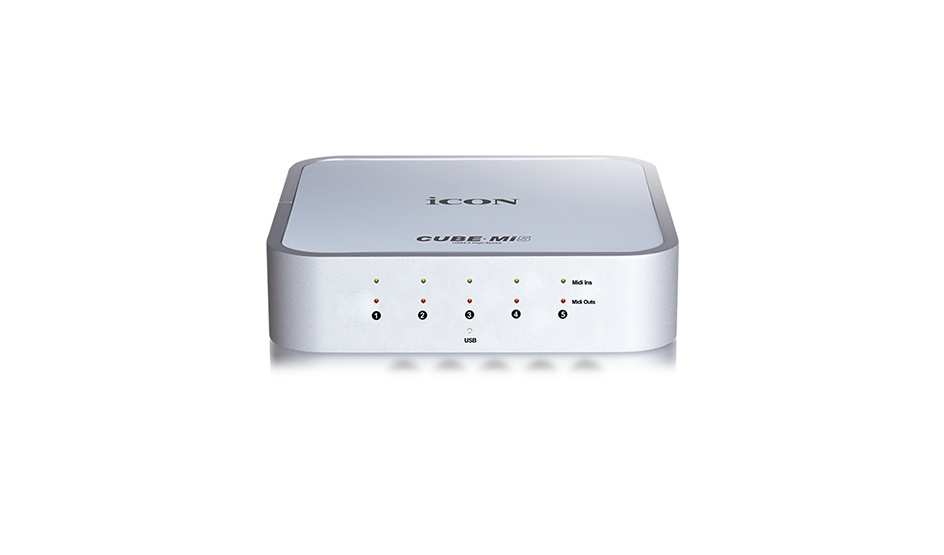

Cube Mi5
FEATURES:
*Bitwig Studio 8-Track included
- 5-in / 5-out MIDI interface (80×80 MIDI channels)
- Supports multiple platforms with MultiPlatTM driver (Windows only)
- MultiPlatTM driver available for 32-bit and 64-bit Windows platforms
- USB 2.0 for high-speed connection
- Plug & play for Mac and Window platforms
- Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit/64-bit) and Mac OS X
- No IRQ, I/O address or DMA channel setup
- Perfect MIDI timing
- MIDI-in and MIDI-out activity indicators for each port
- USB bus powered, no external power supply required
- Bitwig 8Track included
- Dotec audio plugins included
- Tracktion DAW Essentials Collection plugins included
- Kilohearts Toolbox plugins included
- Harrison 32c Vocal Intensity Processor plugin included
| Name | Spec |
| Connector | |
| USB | USB 2.0 connector (standard type) |
| MIDI Inputs | 5 x Din 5 female MIDI connectors |
| MIDI Outputs | 5 x Din 5 female MIDI connectors |
| Signal Indicator | |
| USB signal | 1 x White color LEDs |
| MIDI Inputs | 5 x Green color LEDs |
| MIDI Outputs | 5 x Red color LEDs |
| General | |
| Power supply | USB bus-powered |
| Current consumption | 150mA or less |
| Weight | 0.94kg (2.1lbs) |
| Dimensions | 165 x 165 x 50 mm |
| Dimensions | 6.5” x 6.5” x 2.0” |
- Supports Intel, M1, M1 Max, M1 Pro, M1 Ultra, M2 and AMD processors
- Mac OS X 10.11 El Capitan to Mac OS 13 Ventura
- Windows 7 - 11
