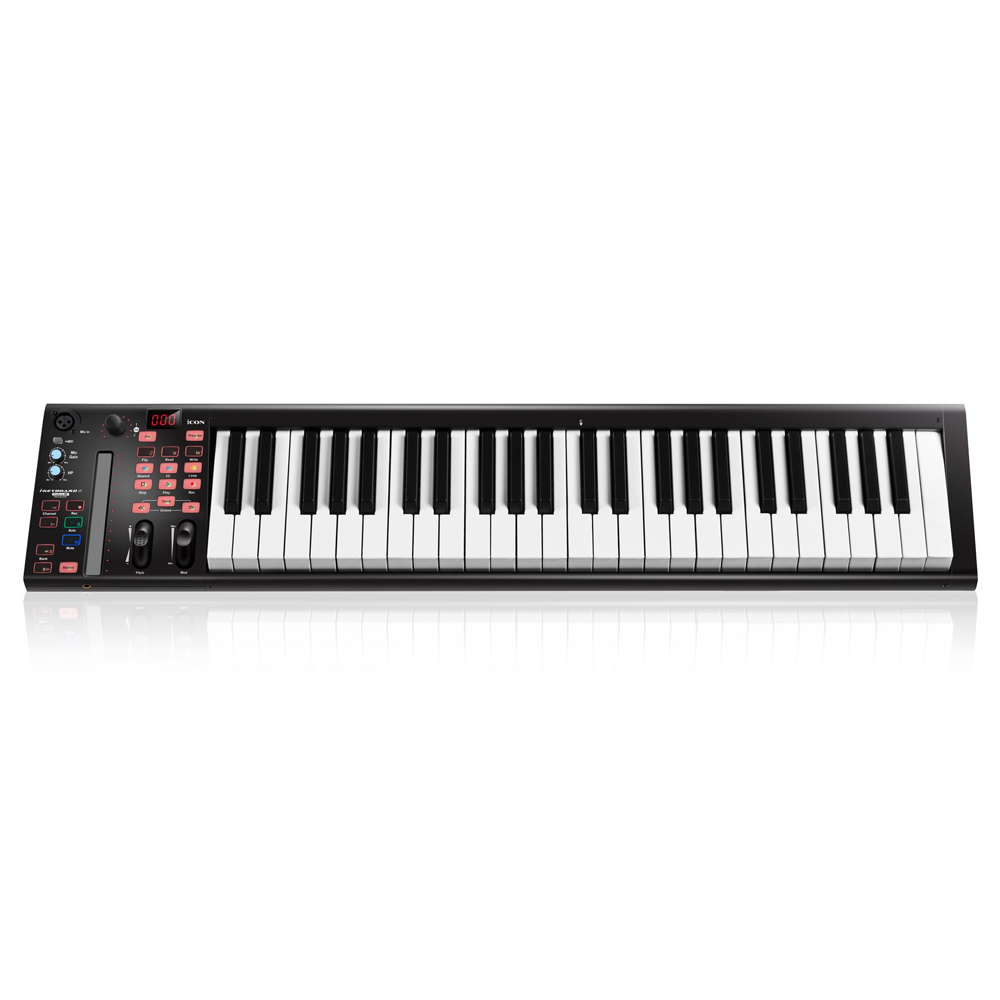

iKeyboard 5S (PDIII)

The iKeyboard S (ProDrive III) is a powerful MIDI keyboard controller equipped with a high quality 24-bit 96/192khz 2-In/2-Out USB audio interface, Mackie Control and HUI protocol to control your DAW software. The flexible, functional and effortless setup lets you get right down to business.

  • 49 semi-weighted keys
  • 24-Bit 96/192KHz 2-In/2-Out USB Recording Interface
  • S/N ratio:
    DAC: THD+N: -100dB; Dynamic Range, S/N: 114dB
    ADC: THD+N: -98dB;   Dynamic Range, S/N: 112dB
  • 2×2 analog I/O full duplex recording and playback
  • 1 mic input with individual gain control
  • 2 analog inputs and 2 analog outputs on 1/4” TRS jacks
  • Backlit LED touch fader reacts in real-time with DAW. Synchronize automatically with different channel value when switching between channels
  • Dual function encoder knob (Enter & rotate)
  • 11-segment LED surrounding the encoder to indicate the rotating position
  • Velocity-sensitive piano style keyboard
  • Modulation and Pitch jog-wheel
  • 3-segment LED screen
  • 18 assignable LED backlit buttons
  • Illuminated channel buttons including Rec-enable, Solo and Mute
  • 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast forward and Loop
  • Single Transpose button use combine with keyswitch to shift pitch effectively.
  • Octave up/down buttons
  • Multi velocity curves available for selection (Key and Pads)
  • Midi output jack
  • 1 headphone output with assignable source and individual volume control
  • Expression & sustain pedal TRS connectors
  • Flexible channel routing via ICON ProDrive III provided with internal virtual routing for inputs and outputs
  • Powerful ProDrive III hosting rack built in
  • A selection of ProDrive III plug-ins are included
  • Supports DirectSound, WDM and ASIO2.0
  • Full duplex, simultaneous record/playback
  • Mackie control built-in for Cubase, Nuendo, Samplitude, Logic Pro, Bitwig, Reason, Reaper, Studio One and Ableton Live
  • Mackie HUI protocol built-in for Pro Tool
  • Driver built-in for Cubase, Nuendo, Bitwig and Reason for plug and play
  • iMapTM software included for easy mapping of MIDI functions
  • Firmware upgrade available simply via USB connection and iMap software
  • Compatible with Mac OS (Intel-Mac) and Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit),Windows 10 (32-bit & 64-bit)
  • USB 2.0 high speed connectivity
  • Robust metal casing with Kensington lock port
  • Bitwig 8Track included
  • Dotec audio plugins included
  • Tracktion DAW Essentials Collection included
  • Kilohearts Toolbox plugins included
  • Harrison 32c Vocal Intensity Processor plugin included
NameSpec
USBUSB connector (standard type)
Sustain & Expression2x1/4” TS connectors
MIDI I/O5-pin Din connector
Line in (L/R)2x1/4” TS connectors
Line Out (L/R)2x1/4” TS connectors
Mic inXLR balanced connector
Headphone out1/4” stereo connector
Power supply7V/1A DC (Outside negative inside positive)
Current consumption500mA or less
Weight4.05kg (8.93lb)
Dimensions860(L)x189(W)x77(H)mm
Dimensions33.9"(L)x7.44"(W)x3"(H)
  • Mac OSX 10.11 El Capitan to Mac OS 13 Ventura
  • iOS 11 - iOS 14
  • Supports Intel, M1, M1 Max, M1 Pro, M1 Ultra, M2 and AMD processors
  • (Firmware is recognized on M1 Max, M1 Pro, M1 Ultra and M2 and AMD CPUs, however, you can only use Intel or M1 CPU to perform firmware update procedure)
  • Windows 7 - 11
