Mobile U Live

MSRP

The ICON ProAudio MobileU Live USB recording interface provides an audio input and output module as well as analog & digital connectivity with any Smart mobile device for live streaming applications. Main features include:

24-Bit 192KHz 2 mic-In/2 inst-In, 2-Out USB Recording Interface
Professional & Hi-end grade DA/AD provides high dynamic range
- DAC: Dynamic Range: 114dB
- ADC: Dynamic Range: 114dB
Supports Mac/PC connectivity simultaneously with SmartDevice
Live session possible with audio signal processing via ProDriver4 virtual plug-in rack
4×4 analog I/O full duplex simultaneous recording and playback

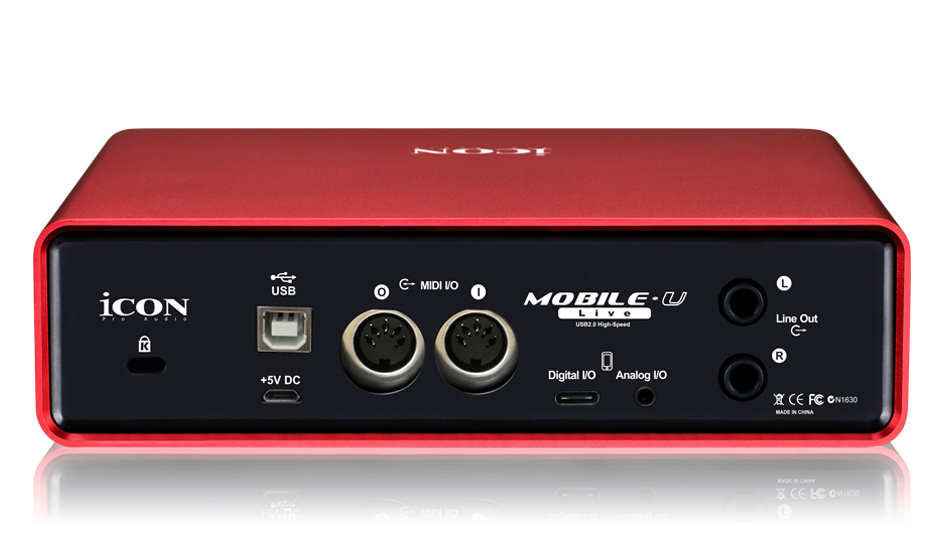

Compatible with iOS and Android Digital I/O jack (Type C) & Analog I/O jack (3.5mm stereo TRRS) for direct connection with smartphone, tablet or other device

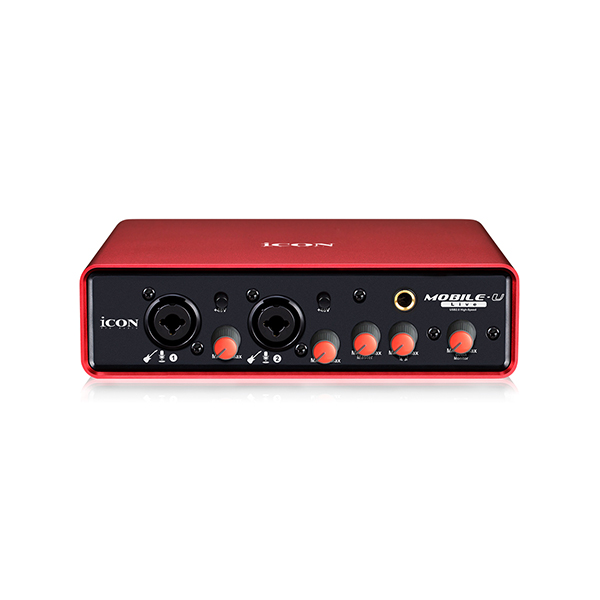

Mic/Instrument preamps with individual gain control and phantom power switch
2 analog outputs on 1/4” TRS jacks
Monitor volume control knob on the top panel
Direct monitor button control on the top panel
1 headphone output with assignable source and individual volume control
Flexible channel routing via the ProDriver4 software control panel
ICON ProAudio developed ultra low latency ProDriver4™driver is provided
ICON ProAudio innovative and user friendly plug-in hosting rack software is built-in with ProDriver4™
USB2.0 High Speed equipped and USB bus-powered
Supports DirectSound, WDM and ASIO2.0
Compatible with mac OS (Intel-Mac) 10.11 and later, iOS 9 or above, Andriod and Windows 7, 8 & 10 (32-bit/64-bit)
+5VDC power supply connector is equipped for external power supply when using with iOS
Rugged aluminum construction
Bitwig 8Track included
Dotec audio plugins included
Tracktion DAW Essentials Collection plugins included
Kilohearts Toolbox plugins included
Harrison 32c Vocal Intensity Processor plugin included

Name	Spec
Mic/Inst Inputs 1/2 (Balanced; at Minimum Gain):
Frequency Response	22Hz to 22kHz (+/-0.1dB)
Dynamic Range	114dB, A-weighted
Signal-to-Noise Ratio	-114dB, A-weighted
THD+N	-100dB
Crosstalk	-100dB @ 1kHz
Maximum Input level	-3.8dBu, typical
Input Impedance	Inst in: 500K Ohms, typical;
Input Impedance	Mic in: 1.8K Ohms, typical
Adjustable Gain	>50dB
Total Gain Range	+54dB
Line Outputs 1-2 (balanced):
Frequency Response	22Hz to 22kHz (+/-0.1dB)
Dynamic Range	114dB, A-weighted
Signal-to-Noise Ratio	-114dB, A-weighted
THD+N	-100dB
Crosstalk	-100dB @ 1kHz
Nominal Output Level	Balanced: +4dBu, typical;
Maximum Output Level	+10.2dBu;
Output Impedance	150 Ohm
Load Impedance	600 Ohm minimum
Headphone Outputs: (at Maximum Volume; Into 100 Ohm load):
Frequency Response	22Hz to 22kHz (+/-0.1dB)
Power into Ohms	90 mW into 100 Ohms
THD+N	<0.06% (-66dB)
Signal-to-Noise Ratio	-90dB, A-weighted
Max Output Level into 100 Ohms	+2.0dBV, typical
Output Impedance	75 Ohm
Load Impedance	32 to 600 Ohms
Weight	1.044 KG（2.3lb）
Dimensions	185mmX170mmX50mm
Dimensions	7.28"(L)x6.69"(W)x1.97"(H)
