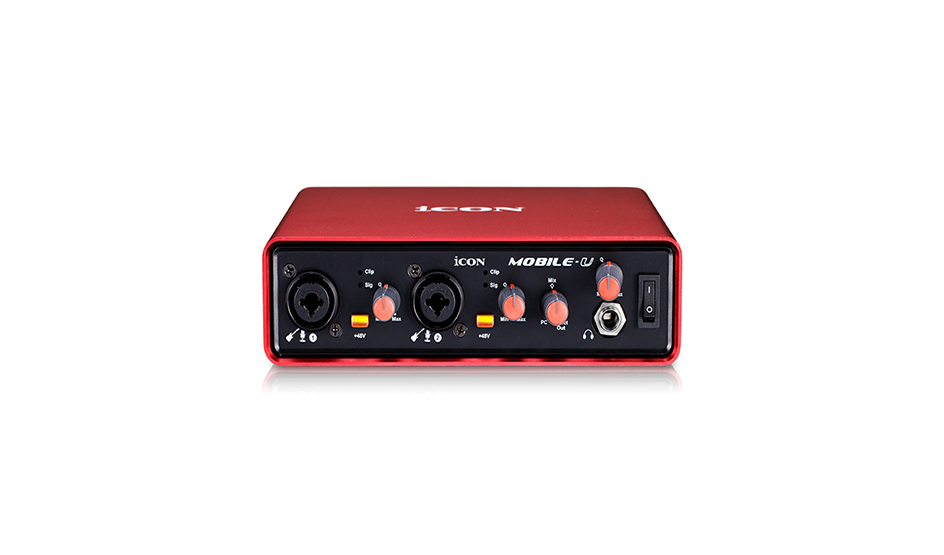

Mobile U

● 24-Bit 96/192KHz 4-In/4-Out USB Recording Interface
● 2×2 analog I/O full duplex recording and playback
● Dual MIC/Instrument preamps with individual gain control and phantom power switch
● 2 analog outputs on 1/4” TRS jacks
● S/PDIF I/O on RCA coaxial connectors
● 1 x 1 – 16 channel MIDI I/O
● PC – Direct monitoring adjustment knob.
● 1 headphone output with assignable source and individual volume control
● Flexible channel routing via the software control panel
● USB2.0 High Speed equipped and USB bus-powered
● Supports DirectSound, WDM and ASIO2.0
● Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit)
● Full duplex, simultaneous record/playback
● Rugged aluminum construction

Print

NameSpec
Mic/Inst Inputs 1/2 (Balanced; at Minimum Gain)
Frequency Response22Hz to 22kHz (+/-0.1dB)
Dynamic Range100dB, A-weighted
Signal-to-Noise Ratio-100dB, A-weighted
THD+N<0.0061% (-90dB)
Crosstalk-100dB @ 1kHz
Maximum Input level-3.8dBu, typical
Input ImpedanceInst in: 500K Ohms, typical
Input ImpedanceMic in: 1.8K Ohms, typical
Adjustable Gain> 50dB
Total Gain Range+54dB
Line Outputs 1-2 (TRS)
Frequency Response22Hz to 22kHz (+/-0.1dB)
Dynamic Range102dB, A-weighted
Signal-to-Noise Ratio-102dB, A-weighted
THD+N<0.003% (-90 dB)
Crosstalk-100dB @ 1kHz
Nominal Output LevelBalanced: +4dBu
Nominal Output LevelUnbalanced: -10dBV
Maximum Output LevelBalanced: +10.2dBu, typical
Maximum Output LevelUnbalanced: +2.0dBV, typical
Output Impedance150 Ohm
Load Impedance600 Ohm minimum
Headphone Output 1 (at Maximum Volume; Into 100 Ohm load)
Frequency Response22Hz to 22kHz (+/-1dB)
Power into Ohms90 mW into 100 Ohms
THD+N<0.06% (-66dB)
Signal-to-Noise Ratio-90dB, A-weighted
Max Output Level into 100 Ohms+2.0dBV, typical
Output Impedance75 Ohm
Load Impedance32 to 600 Ohms
  • Mac OS 10.8 - Mac OS 10.10
  • Windows XP - Windows 10
