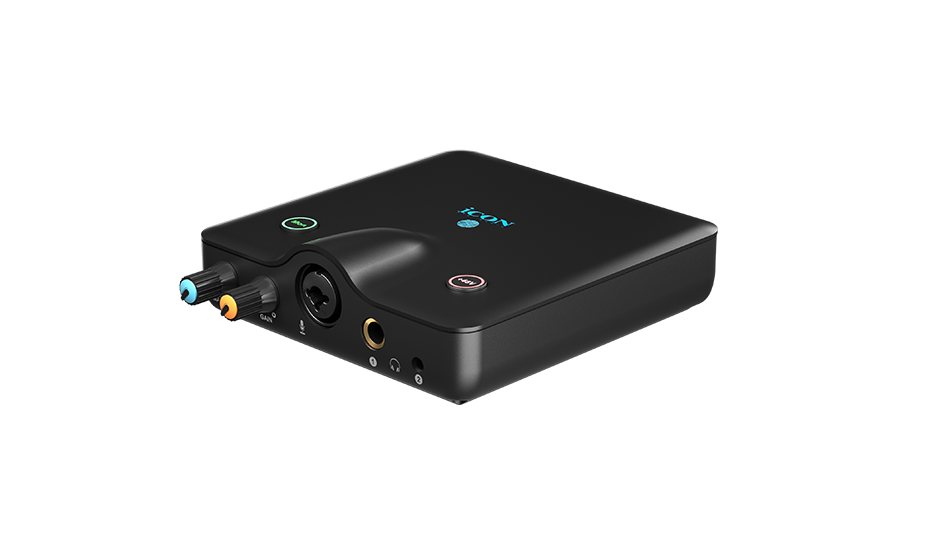

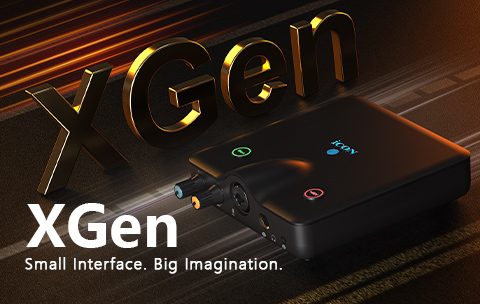

XGen

Small in size, powerful in performance.

  • High-gain mic preamp for rich, detailed sound
  • Self-developed UNI OTG technology for true plug-and-play with phones, tablets, and computers
  • Dual headphone outputs — 6.35mm and 3.5mm — for easy collaboration
  • Supports sample rates up to 24-bit / 192kHz
  • Balanced TRS line outputs for clean, professional signal
  • Compact, durable, and ready for any creative setup
  • 1 × Combo Input
  • 2 × Line Output (6.35mm TRS, Balanced)
  • 1 × Headphone Output (6.35mm, Unbalanced)
  • 1 × Headphone Output (3.5mm, Unbalanced)
  • 1 × USB Type-C (USB 2.0)
  • 1 × USB Type-C OTG
  • 1 × USB Type-C 5V External Power Supply

NameSpec
ADC:
Dynamic Range: 114dB (A-Weighted)
Total Harmonic Distortion + Noise (THD+N):-100dB
DAC:
Dynamic Range:114dB (A-Weighted)
Total Harmonic Distortion + Noise (THD+N):-100dB
Microphone Input 1-2 (Combo XLR, Balanced)
Frequency Response: 20Hz-20kHz ±0.1dB
Dynamic Range: 112dB (A-Weighted) @ +4dB
Total Harmonic Distortion + Noise (THD+N):-104dB @ +4dB Gain
Input Impedance:3kΩ
Maximum Input Level:+8dBu
Maximum Input Gain:65dB
Line Output 1/2 (L/R 6.35mm TRS, Balanced)
Frequency Response: 20Hz-20kHz ±0.1dB
Dynamic Range: 110dB (A-Weighted)
Total Harmonic Distortion + Noise (THD+N):-101dB
Output Impedance:150Ω
Maximum Output Level: +16dBu @ 600Ω
Headphone Output 1/2 (6.35mm Stereo, Unbalanced)
Frequency Response: 20Hz-20kHz ±0.1dB @ 600Ω
Dynamic Range: 111dB @ 600Ω (A-Weighted)
Total Harmonic Distortion + Noise (THD+N):-103dB
Output Impedance: 100Ω
Maximum Output Level: +10dBu @ 64Ω; +13dBu @ 600Ω
Maximum Output Power:100mW @ 64Ω; 21mW @ 600Ω
Headphone Output 1/2 (3.5mm Stereo, Unbalanced)
Frequency Response: 20Hz-20kHz ±0.1dB @ 600Ω
Dynamic Range: 111dB @ 600Ω (A-Weighted)
Total Harmonic Distortion + Noise (THD+N):-103dB
Output Impedance:0.1Ω
Maximum Output Level: +7.4dBu @ 64Ω; +7.4dBu @ 600Ω
Maximum Output Power:51mW @ 64Ω; 5.5mW @ 600Ω
UNI OTG:
Interface: USB Type-C/USB 2.0 (480Mbps)
Dynamic Range:131dB
Crosstalk: -140dB
Total Harmonic Distortion + Noise (THD+N): -131dB
Power Supply Requirements
Interface Type:USB Type-C
Power Supply Recommendations:Prioritize power supply via USB 3.0 interface (to ensure sufficient current); recommend using an external 5V/2A power supply for optimal sound quality

  • OS X 10.11 El Capitan, macOS 10.12 Sierra, macOS 10.13 High Sierra, macOS 10.14 Mojave, macOS 10.15 Catalina, macOS 11 Big Sur, macOS 12 Monterey, macOS 13 Ventura, macOS 14 Sonoma, macOS 15 Sequoia and macOS 26 Tahoe, Intel and M1 to M4
  • Windows 10 (64bit) and Windows 11, Intel and AMD
  • iOS 11 and above (including latest iOS 26)

XGen

Small in size, powerful in performance.

  • High-gain mic preamp for rich, detailed sound
  • Self-developed UNI OTG technology for true plug-and-play with phones, tablets, and computers
  • Dual headphone outputs — 6.35mm and 3.5mm — for easy collaboration
  • Supports sample rates up to 24-bit / 192kHz
  • Balanced TRS line outputs for clean, professional signal
  • Compact, durable, and ready for any creative setup
  • 1 × Combo Input
  • 2 × Line Output (6.35mm TRS, Balanced)
  • 1 × Headphone Output (6.35mm, Unbalanced)
  • 1 × Headphone Output (3.5mm, Unbalanced)
  • 1 × USB Type-C (USB 2.0)
  • 1 × USB Type-C OTG
  • 1 × USB Type-C 5V External Power Supply

NameSpec
ADC:
Dynamic Range: 114dB (A-Weighted)
Total Harmonic Distortion + Noise (THD+N):-100dB
DAC:
Dynamic Range:114dB (A-Weighted)
Total Harmonic Distortion + Noise (THD+N):-100dB
Microphone Input 1-2 (Combo XLR, Balanced)
Frequency Response: 20Hz-20kHz ±0.1dB
Dynamic Range: 112dB (A-Weighted) @ +4dB
Total Harmonic Distortion + Noise (THD+N):-104dB @ +4dB Gain
Input Impedance:3kΩ
Maximum Input Level:+8dBu
Maximum Input Gain:65dB
Line Output 1/2 (L/R 6.35mm TRS, Balanced)
Frequency Response: 20Hz-20kHz ±0.1dB
Dynamic Range: 110dB (A-Weighted)
Total Harmonic Distortion + Noise (THD+N):-101dB
Output Impedance:150Ω
Maximum Output Level: +16dBu @ 600Ω
Headphone Output 1/2 (6.35mm Stereo, Unbalanced)
Frequency Response: 20Hz-20kHz ±0.1dB @ 600Ω
Dynamic Range: 111dB @ 600Ω (A-Weighted)
Total Harmonic Distortion + Noise (THD+N):-103dB
Output Impedance: 100Ω
Maximum Output Level: +10dBu @ 64Ω; +13dBu @ 600Ω
Maximum Output Power:100mW @ 64Ω; 21mW @ 600Ω
Headphone Output 1/2 (3.5mm Stereo, Unbalanced)
Frequency Response: 20Hz-20kHz ±0.1dB @ 600Ω
Dynamic Range: 111dB @ 600Ω (A-Weighted)
Total Harmonic Distortion + Noise (THD+N):-103dB
Output Impedance:0.1Ω
Maximum Output Level: +7.4dBu @ 64Ω; +7.4dBu @ 600Ω
Maximum Output Power:51mW @ 64Ω; 5.5mW @ 600Ω
UNI OTG:
Interface: USB Type-C/USB 2.0 (480Mbps)
Dynamic Range:131dB
Crosstalk: -140dB
Total Harmonic Distortion + Noise (THD+N): -131dB
Power Supply Requirements
Interface Type:USB Type-C
Power Supply Recommendations:Prioritize power supply via USB 3.0 interface (to ensure sufficient current); recommend using an external 5V/2A power supply for optimal sound quality

  • OS X 10.11 El Capitan, macOS 10.12 Sierra, macOS 10.13 High Sierra, macOS 10.14 Mojave, macOS 10.15 Catalina, macOS 11 Big Sur, macOS 12 Monterey, macOS 13 Ventura, macOS 14 Sonoma, macOS 15 Sequoia and macOS 26 Tahoe, Intel and M1 to M4
  • Windows 10 (64bit) and Windows 11, Intel and AMD
  • iOS 11 and above (including latest iOS 26)

XGen

Meet the iCON XGen, the audio interface designed for creators who want studio-quality sound without studio complexity. Just connect your mic, headphones, and device — and you’re ready to record vocals, podcasts, or live streams with clarity and confidence.

The XGen combines iCON’s years of audio innovation with a new generation of flexibility. Its high-gain preamp captures every whisper and shout with natural tone, while our UNI OTG technology makes it easier than ever to record on the go. From laptops to tablets and even smartphones, XGen keeps your creative flow uninterrupted.

With support for sample rates up to 24-bit / 192kHz, every detail of your voice comes through clean, clear, and full of life. Whether you’re tracking a new song, streaming live, or producing a short video, XGen delivers the precision you need to sound professional every time.

Two independent headphone outputs make collaboration effortless. Share your mix with a friend, co-host, or engineer without needing a splitter or extra gear. Compact and solidly built, XGen fits perfectly on your desk or in your backpack, always ready to capture your next idea.


XGen

Meet the iCON XGen, the audio interface designed for creators who want studio-quality sound without studio complexity. Just connect your mic, headphones, and device — and you’re ready to record vocals, podcasts, or live streams with clarity and confidence.

The XGen combines iCON’s years of audio innovation with a new generation of flexibility. Its high-gain preamp captures every whisper and shout with natural tone, while our UNI OTG technology makes it easier than ever to record on the go. From laptops to tablets and even smartphones, XGen keeps your creative flow uninterrupted.

With support for sample rates up to 24-bit / 192kHz, every detail of your voice comes through clean, clear, and full of life. Whether you’re tracking a new song, streaming live, or producing a short video, XGen delivers the precision you need to sound professional every time.

Two independent headphone outputs make collaboration effortless. Share your mix with a friend, co-host, or engineer without needing a splitter or extra gear. Compact and solidly built, XGen fits perfectly on your desk or in your backpack, always ready to capture your next idea.

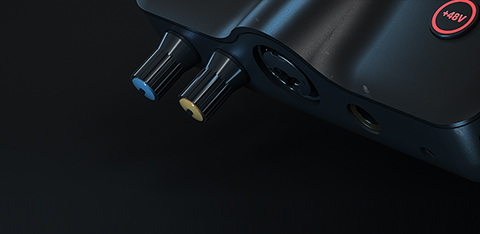

High-Gain Mic Preamplifier

Hear every nuance. The XGen’s high-gain preamp
gives your microphone the power it needs to capture
detail, warmth, and emotion, whether you’re
singing or speaking

High-Gain Mic Preamplifier

Hear every nuance. The XGen’s high-gain preamp
gives your microphone the power it needs to capture
detail, warmth, and emotion, whether you’re
singing or speaking

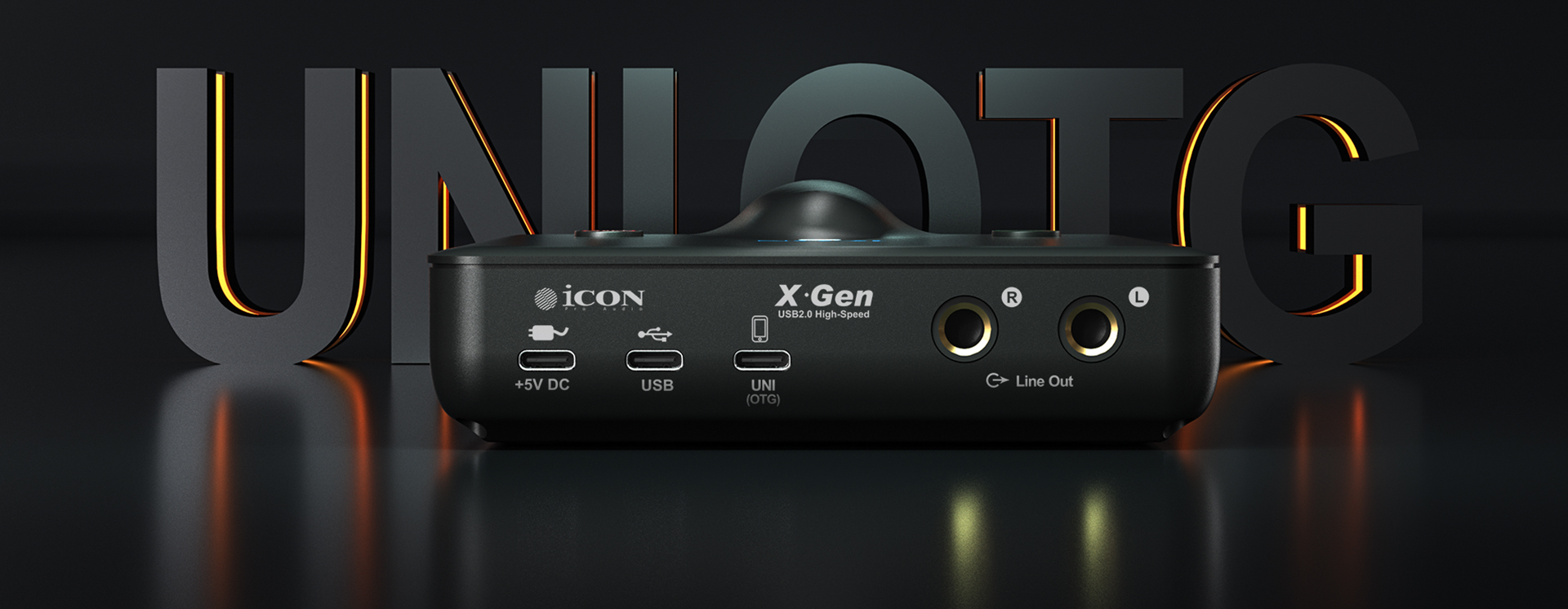

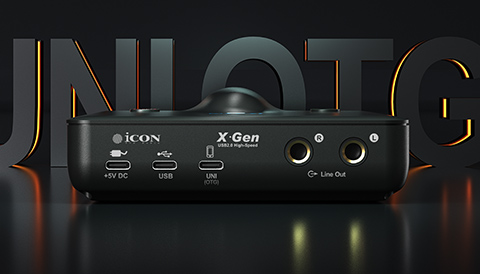

UNI OTG Technology

Connect and create instantly. Our self-developed UNI OTG system lets you record
directly to phones, tablets, or computers with no barriers between you and your sound.



UNI OTG Technology

Connect and create instantly. Our self-developed
UNI OTG system lets you record directly to
phones, tablets, or computers with no barriers
between you and your sound.

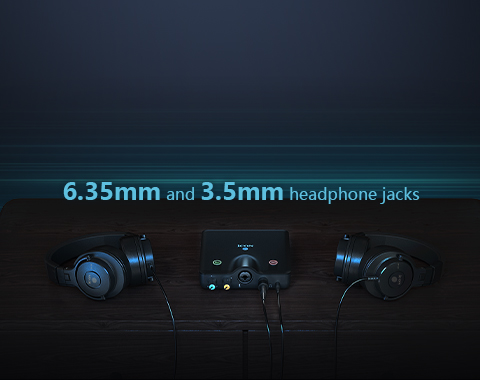

Dual Headphone Outputs

One for you, one for your collaborator. The XGen includes both 6.35mm and 3.5mm headphone jacks,
so you can monitor with studio headphones or everyday earbuds, or share the session with a friend.



Dual Headphone Outputs

One for you, one for your collaborator. The XGen
includes both 6.35mm and 3.5mm headphone jacks,
so you can monitor with studio headphones
or everyday earbuds, or share the session with a friend.

Precision Conversion

With a 114dB dynamic range and ultra-low distortion, XGen keeps your recordings transparent
and natural. Every layer of your mix remains clear and balanced, even at high volumes.



Precision Conversion

With a 114dB dynamic range and ultra-low distortion,
XGen keeps your recordings transparent and natural. Every
layer of your mix remains clear and balanced, even at
high volumes.

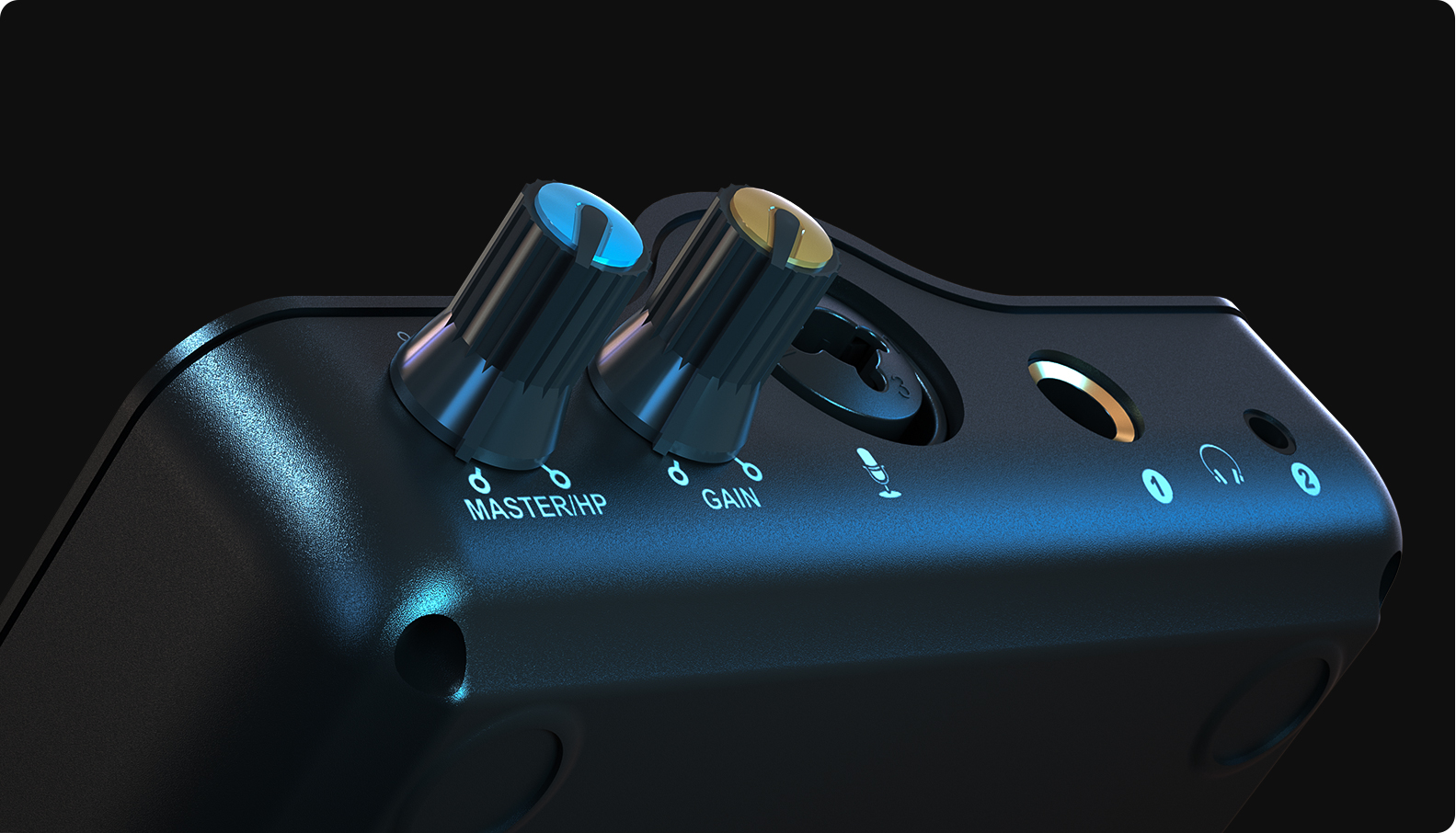

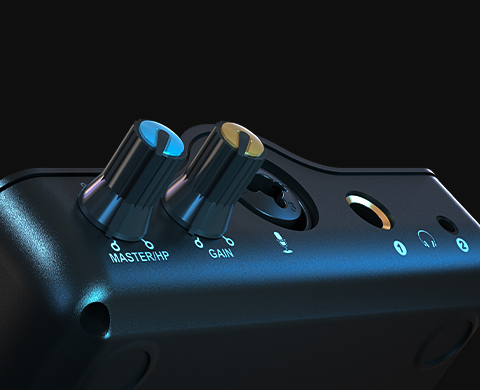

Simple, Streamlined Control

Just two knobs: one for mic gain and one for output volume. No distractions, no menu diving.
Just hands-on control that lets you stay focused on performance and creativity.



Simple, Streamlined Control

Just two knobs: one for mic gain and one for output volume.
No distractions, no menu diving. Just hands-on control
that lets you stay focused on performance and creativity.

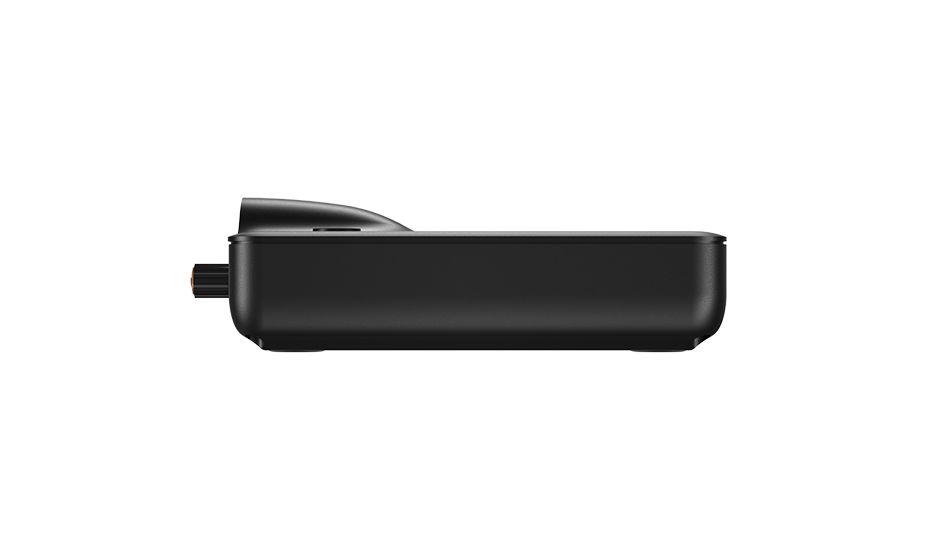

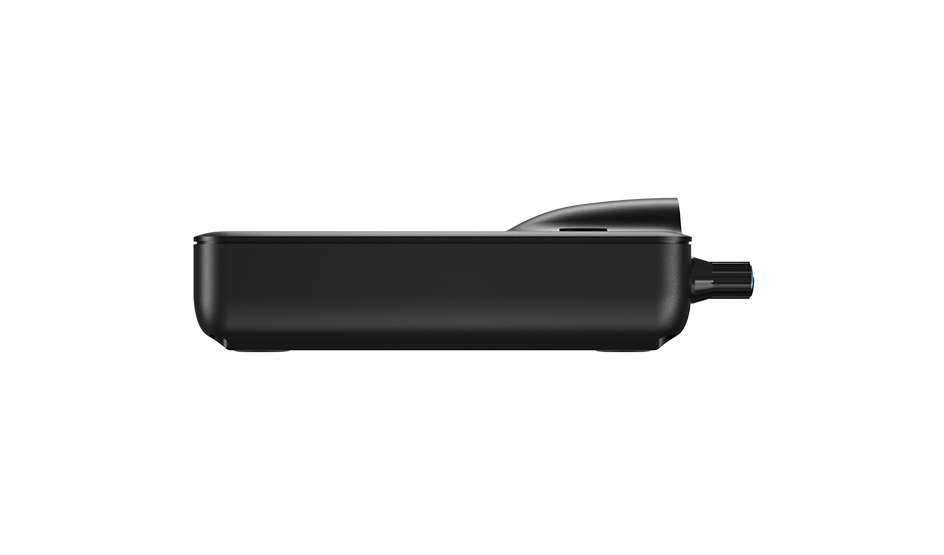

Compact, Reliable Design

Built from the ground up for creators who move fast. XGen’s sturdy build and travel-ready
form make it the perfect audio companion for your desk, studio bag, or livestream setup.


Compact, Reliable Design

Built from the ground up for creators who move fast.
XGen’s sturdy build and travel-ready form make it
the perfect audio companion for your desk, studio bag,
or livestream setup.


DIFFERENT APPLICATIONS

Podcasters & Streamers
Simple setup, professional clarity.
Singers
Record vocals with detailed tone.
Content Creators
Plug in and capture your story anywhere: home, studio, or on the move.
Educators & Communicators
High-quality voice for online classes or video calls.


Different Applications

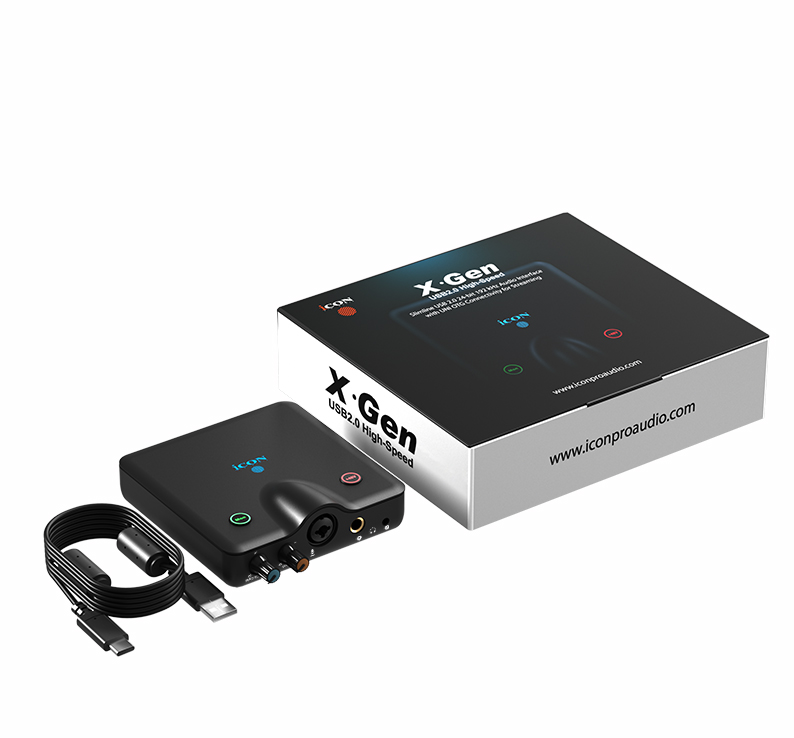

WHAT’S IN THE BOX

  • XGen Audio Interface
  • USB Type-C Cable

WHAT’S IN THE BOX

  • XGen Audio Interface
  • USB Type-C Cable
