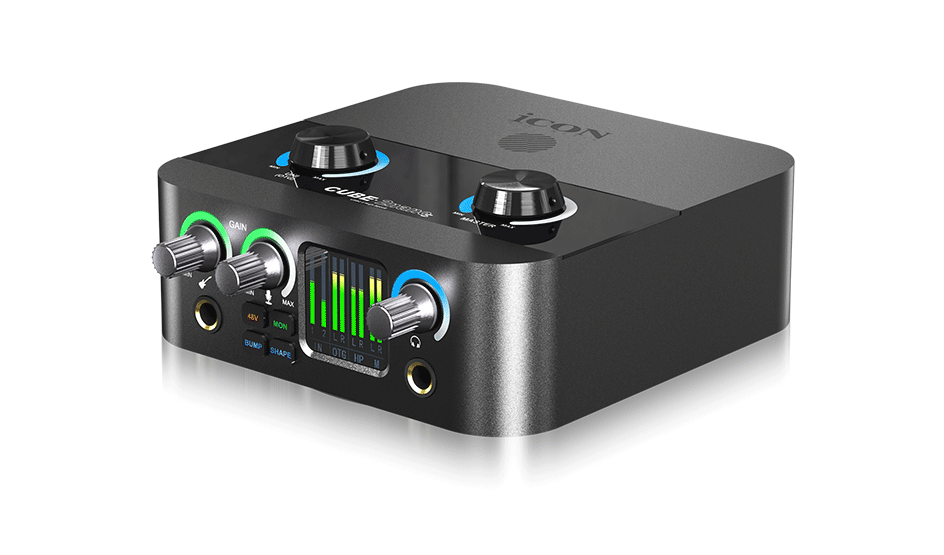

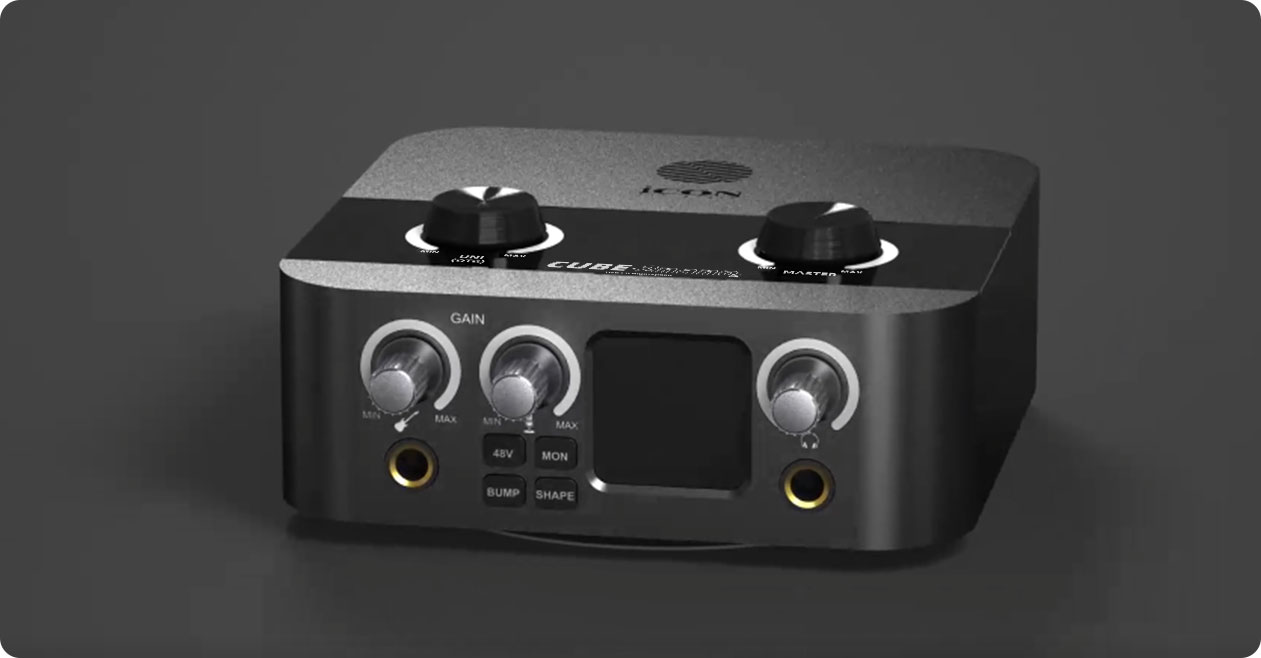

Cube 2 Nano S

Outstanding Audio Quality in a Small
Sturdy Package

  • 24-Bit 192KHz 2×2 analog I/O full duplex simultaneous recording and playback
  • USB 2.0 powered
  • Extremely strong and durable aluminium die cast chassis
  • Extremely high audio quality  (125dB Analog to Digital conversion – 130dB Digital to Analog conversion)
  • High-resolution analog mic preamps with 60dB of gain
  • 1.3 inch full color TFT screen displays show LED level meters for inputs, outputs and OTG
  • Semi-circular, brightly colored LED indicators show input gain (red), headphone, OTG and master levels (blue)
  • Digital potentiometers allow users to control parameters such as gain via physical controls or via iCON’s iO Pro software
  • Ability to use plugins in a live context whilst streaming/live via iCON iO Pro software
  • +48V Phantom Power
  • BUMP and SHAPE buttons enhance low and high end (respectively)
  • Ability to connect to streaming services via iCON’s super stable, high audio quality UNI OTG output
  • Rock solid reliability with ARM M7 500MHz technology
  • 1x high quality Combo XLR with ¼ inch/6.35mm TRS jacks for mic, line or instruments
  • 1x 1/4inch 6.35mm instrument input
  • 1x headphone outputs
  • 2x line out 1/4 inch/6.35mm balanced outputs
  • Class-compliant with MacOS 10.15 or above & Windows 10 or above
  • Direct monitoring available via illuminated button
  • Power input port for instances when the PC does not supply sufficient power
  • Sturdy rubber base for enhanced stability

NameSpec
I/O
Microphone Inputs (XLR - balanced)One
High Impedance (Hi-Z) Instrument InputsOne
Analog Line InputsTwo
Analog Monitor Outputs (DC coupled)Two
Digital Output PortUSB (UNI OTG)
Audio to Digital Conversion
Dynamic Range125dB, A-weighted
Signal-to-Noise Ratio-125dB, A-weighted
THD+N Ratio-117dB, -1dBFS
Digital to Audio Conversion
Dynamic Range130dB, A-weighted
Signal-to-Noise Ratio-130dB, A-weighted
THD+N Ratio -115dB, 0dBFS Mic Input (XLR,-115dB, 0dBFS
Mic Input (XLR, Balanced)
Frequency Response20Hz to 20kHz (+/-0.5dB)
Noise EIN<-120dB Input
Input Impedance500~2K Ohms
Gain Range0dB~+60dB
Maximum Input Level+18 dBu
Instrument Input (6.35mmTRS, Unbalanced)
Frequency Response20Hz to 20kHz (+/-0.5dB)
Input Impedance390K Ohms
Typical Gain Range+6dB~+45dB
Maximum Input Level+10dBu
Line Outputs 1/2 (Stereo, Unbalanced)
Frequency Response20Hz to 20kHz (+/-0.5dB)
Nominal Output Level+4dBu, typical
Maximum Output Level+10dBu
Output Impedance220 Ohm
Load Impedance600 Ohm minimum
Headphone Outputs(Stereo, Unbalanced)
Frequency Response20Hz to 20kHz (+/-1.5 dB)
Maximum Output Level+20dBu typical
Typical Output Impedance10 Ohms
Impedance16 to 600 Ohms
Dimensions and Weights
Dimensions (WxDxH)135mmx152mmx60mm (5.31"x5.98"x2.36")
Weight688g

  • macOS: OS X 10.11 El Capitan to macOS 26 Tahoe
  • Mac processors: Intel and Apple Silicon, including M1 series, M2 series, M3 series, M4, M4 Pro, and M5
  • Windows: Windows 10 - Windows 11
  • PC processors: Intel and AMD
  • iOS / iPadOS: iOS 11 or later, including iOS 26


Cube 2 Nano S
Outstanding Audio Quality
in a Small Sturdy Package

  • 24-Bit 192KHz 2×2 analog I/O full duplex simultaneous recording and playback
  • USB 2.0 powered
  • Extremely strong and durable aluminium die cast chassis
  • Extremely high audio quality  (125dB Analog to Digital conversion – 130dB Digital to Analog conversion)
  • High-resolution analog mic preamps with 60dB of gain
  • 1.3 inch full color TFT screen displays show LED level meters for inputs, outputs and OTG
  • Semi-circular, brightly colored LED indicators show input gain (red), headphone, OTG and master levels (blue)
  • Digital potentiometers allow users to control parameters such as gain via physical controls or via iCON’s iO Pro software
  • Ability to use plugins in a live context whilst streaming/live via iCON iO Pro software
  • +48V Phantom Power
  • BUMP and SHAPE buttons enhance low and high end (respectively)
  • Ability to connect to streaming services via iCON’s super stable, high audio quality UNI OTG output
  • Rock solid reliability with ARM M7 500MHz technology
  • 1x high quality Combo XLR with ¼ inch/6.35mm TRS jacks for mic, line or instruments
  • 1x 1/4inch 6.35mm instrument input
  • 1x headphone outputs
  • 2x line out 1/4 inch/6.35mm balanced outputs
  • Class-compliant with MacOS 10.15 or above & Windows 10 or above
  • Direct monitoring available via illuminated button
  • Power input port for instances when the PC does not supply sufficient power
  • Sturdy rubber base for enhanced stability

NameSpec
I/O
Microphone Inputs (XLR - balanced)One
High Impedance (Hi-Z) Instrument InputsOne
Analog Line InputsTwo
Analog Monitor Outputs (DC coupled)Two
Digital Output PortUSB (UNI OTG)
Audio to Digital Conversion
Dynamic Range125dB, A-weighted
Signal-to-Noise Ratio-125dB, A-weighted
THD+N Ratio-117dB, -1dBFS
Digital to Audio Conversion
Dynamic Range130dB, A-weighted
Signal-to-Noise Ratio-130dB, A-weighted
THD+N Ratio -115dB, 0dBFS Mic Input (XLR,-115dB, 0dBFS
Mic Input (XLR, Balanced)
Frequency Response20Hz to 20kHz (+/-0.5dB)
Noise EIN<-120dB Input
Input Impedance500~2K Ohms
Gain Range0dB~+60dB
Maximum Input Level+18 dBu
Instrument Input (6.35mmTRS, Unbalanced)
Frequency Response20Hz to 20kHz (+/-0.5dB)
Input Impedance390K Ohms
Typical Gain Range+6dB~+45dB
Maximum Input Level+10dBu
Line Outputs 1/2 (Stereo, Unbalanced)
Frequency Response20Hz to 20kHz (+/-0.5dB)
Nominal Output Level+4dBu, typical
Maximum Output Level+10dBu
Output Impedance220 Ohm
Load Impedance600 Ohm minimum
Headphone Outputs(Stereo, Unbalanced)
Frequency Response20Hz to 20kHz (+/-1.5 dB)
Maximum Output Level+20dBu typical
Typical Output Impedance10 Ohms
Impedance16 to 600 Ohms
Dimensions and Weights
Dimensions (WxDxH)135mmx152mmx60mm (5.31"x5.98"x2.36")
Weight688g

  • macOS: OS X 10.11 El Capitan to macOS 26 Tahoe
  • Mac processors: Intel and Apple Silicon, including M1 series, M2 series, M3 series, M4, M4 Pro, and M5
  • Windows: Windows 10 - Windows 11
  • PC processors: Intel and AMD
  • iOS / iPadOS: iOS 11 or later, including iOS 26

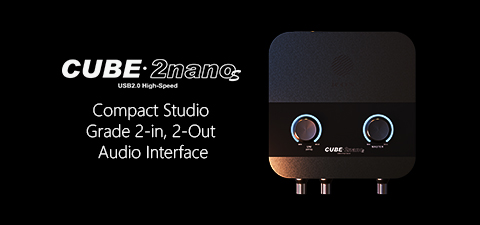

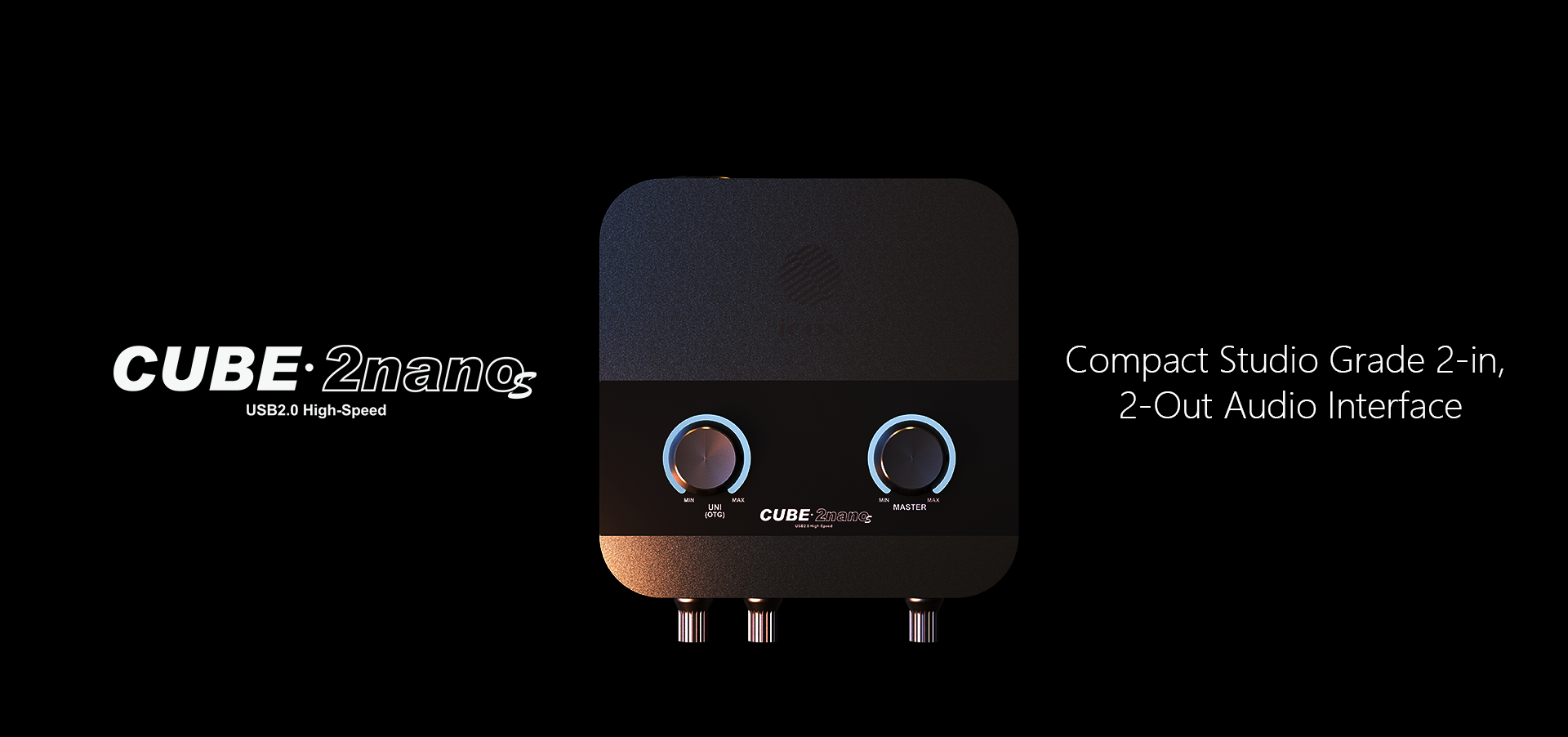

Cube 2 Nano S

The Cube 2 Nano S is a high-performance 2-in, 2-out full duplex audio interface, designed to
meet the needs of musicians, podcasters, and content creators. This device offers a host of
features that will elevate your sound production to professional levels.

Experience extreme high audio quality with 125dB Analog to Digital conversion and 130dB
Digital to Analog conversion, ensuring every detail of your sound is captured with pristine
clarity. High-resolution analog mic preamps deliver 60dB of gain, providing crystal-clear
recordings with minimal noise. Enjoy stable and reliable streaming with UNI OTG technology,
along with direct monitoring capabilities for seamless audio production. The 2-inch full-color
TFT screen can display the level status of input, output, and OTG, allowing you to clearly and
accurately monitor the audio levels. Refine your audio’s bottom and top ends with the intuitive
BUMP and SHAPE buttons, allowing for easy sound customization.

Digital potentiometers enable precise parameter adjustments, whether through the unit’s physical
controls or via iCON’s iO Pro software. With its attractive and professional layout, super stable
ARM M7 500MHz technology, and an array of advanced features, the Cube 2 Nano S will take
your sound and user experience to new heights. Unleash the power of your creativity with the
Cube 2 Nano S.


Cube 2 Nano S

The Cube 2 Nano S is a high-performance 2-in, 2-out full duplex audio interface, designed to meet the needs of musicians, podcasters, and content creators. This device offers a host of features that will elevate your sound production to professional levels.

Experience extreme high audio quality with 125dB Analog to Digital conversion and 130dB Digital to Analog conversion, ensuring every detail of your sound is captured with pristine clarity. High-resolution analog mic preamps deliver 60dB of gain, providing crystal-clear recordings with minimal noise. Enjoy stable and reliable streaming with UNI OTG technology, along with direct monitoring capabilities for seamless audio production. The 2-inch full-color TFT screen can display the level status of input, output, and OTG, allowing you to clearly and accurately monitor the audio levels. Refine your audio’s bottom and top ends with the intuitive BUMP and SHAPE buttons, allowing for easy sound customization.

Digital potentiometers enable precise parameter adjustments, whether through the unit’s physical controls or via iCON’s iO Pro software. With its attractive and professional layout, super stable ARM M7 500MHz technology, and an array of advanced features, the Cube 2 Nano S will take your sound and user experience to new heights. Unleash the power of your creativity with the Cube 2 Nano S.

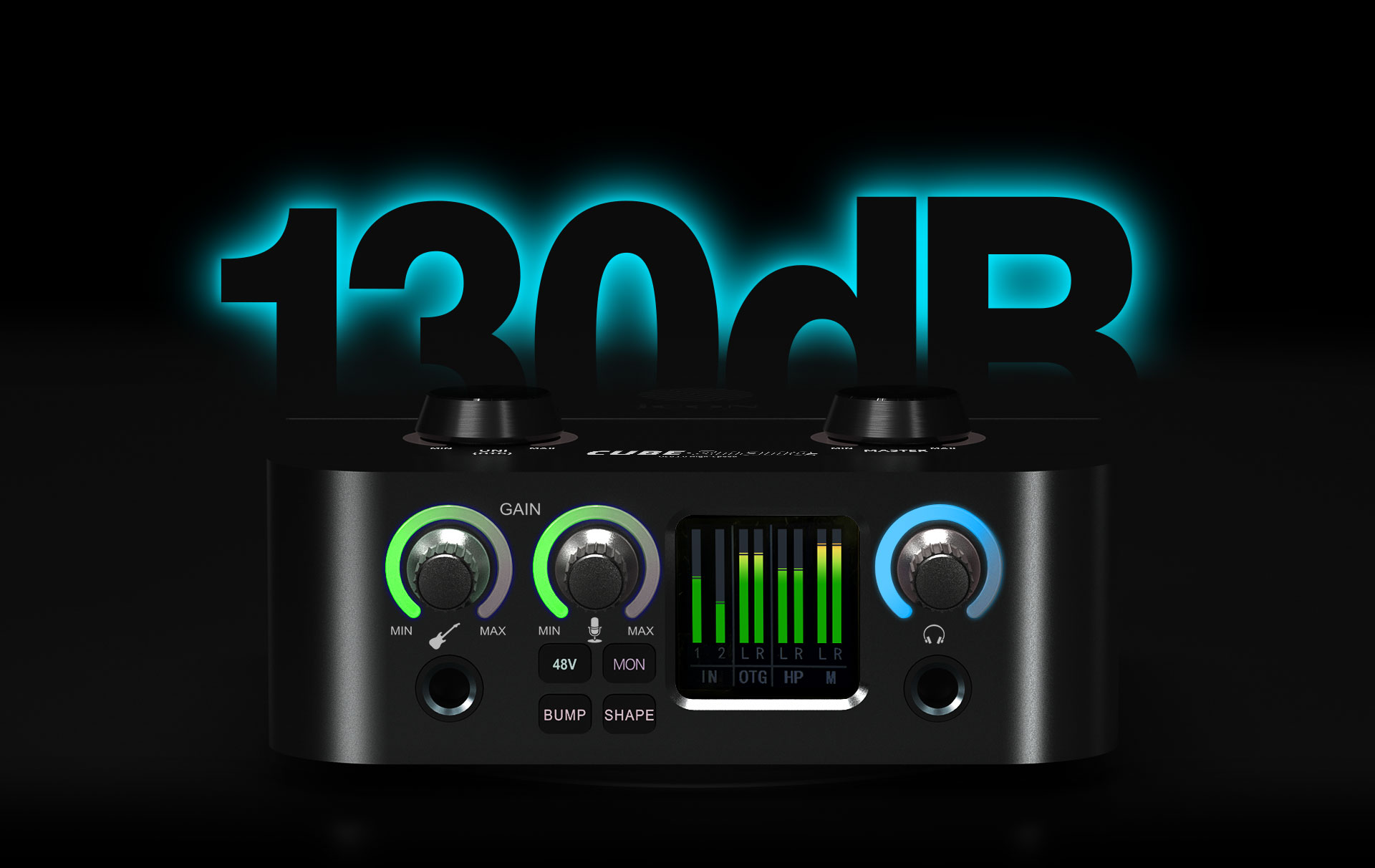

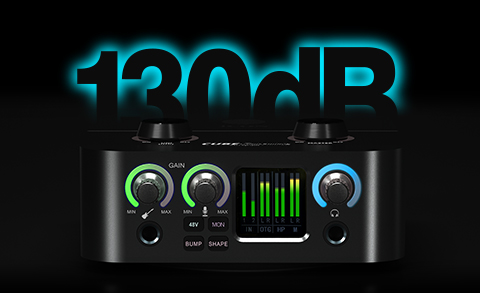

UNMATCHED SOUND PRECISION

Immerse yourself in exceptional sound clarity with the Cube 2 Nano S. Featuring 125dB Analog
to Digital conversion and 130dB Digital to Analog conversion, this device ensures every note
and nuance is reproduced with stunning accuracy and detail.


UNMATCHED SOUND PRECISION

Immerse yourself in exceptional sound clarity with
the Cube 2 Nano S. Featuring 125dB Analog to Digital
conversion and 130dB Digital to Analog conversion,
this device ensures every note and nuance is reproduced
with stunning accuracy and detail.


PROFESSIONAL-GRADE MIC PREAMPS

apture pristine recordings with the high-resolution analog
mic preamps, providing 60dB of gain. Whether you’re
recording vocals or instruments, these preamps deliver a
clean, noise-free sound that meets professional standards.

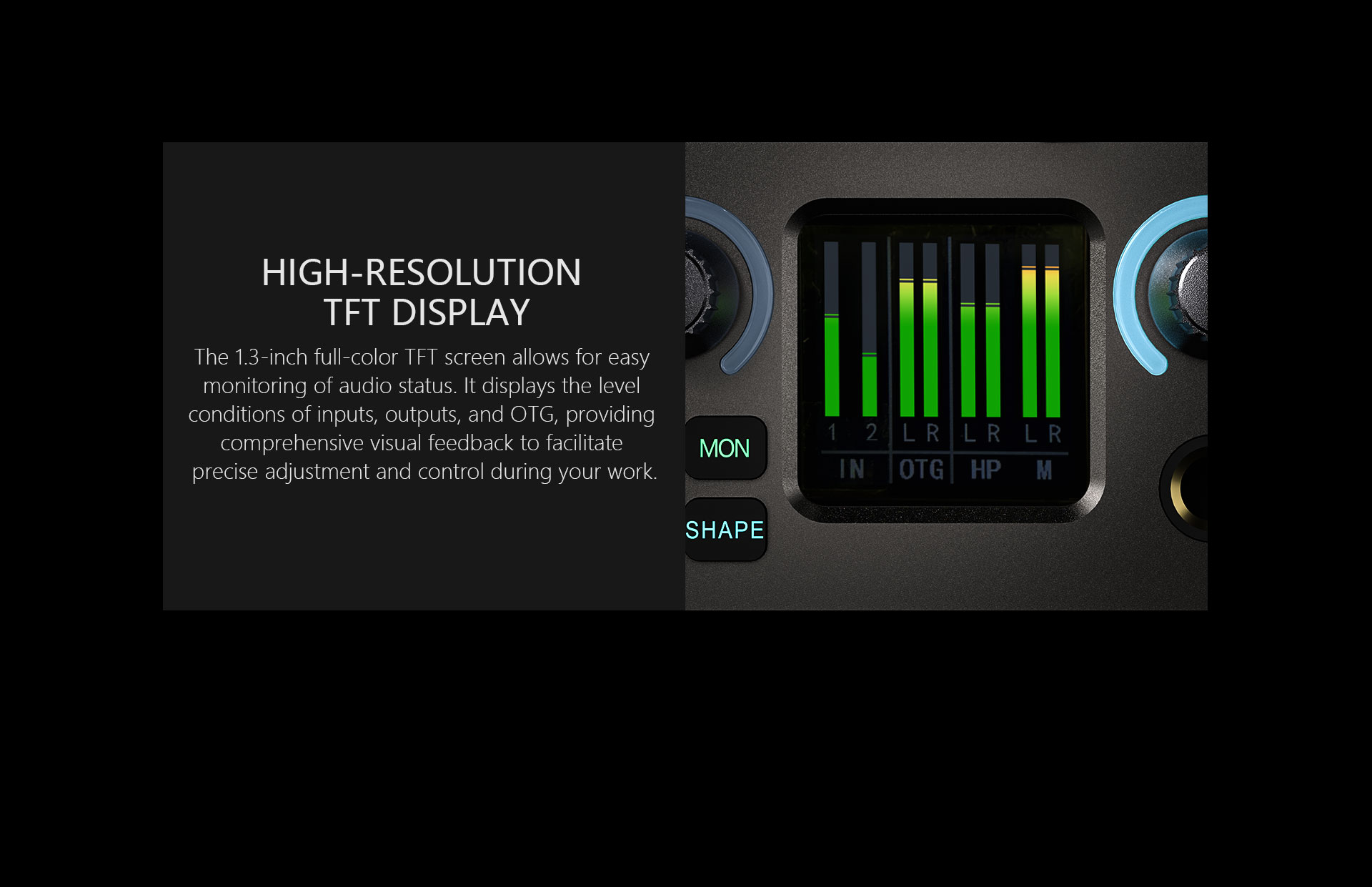

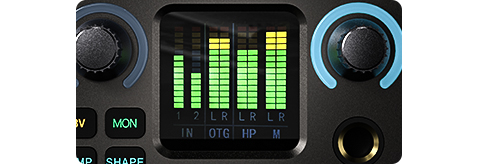

HIGH-RESOLUTION TFT DISPLAY

The 1.3-inch full-color TFT screen allows for easy
monitoring of audio status. It displays the level
conditions of inputs, outputs, and OTG, providing
comprehensive visual feedback to facilitate
precise adjustment and control during your work.

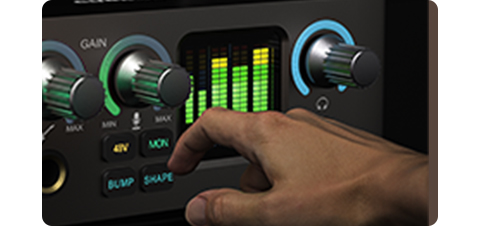

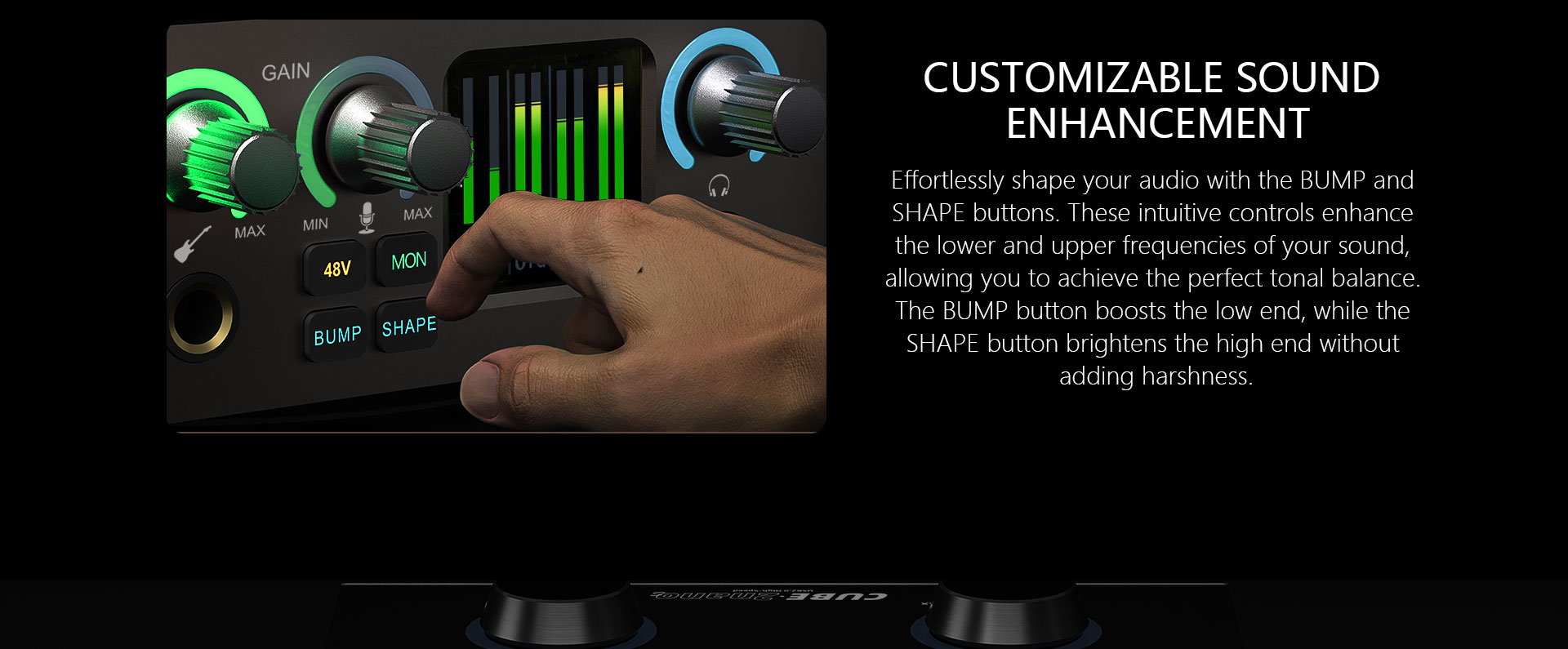

CUSTOMIZABLE SOUND ENHANCEMENT

Effortlessly shape your audio with the BUMP and
SHAPE buttons. These intuitive controls enhance
the lower and upper frequencies of your sound,
allowing you to achieve the perfect tonal balance.
The BUMP button boosts the low end, while the
SHAPE button brightens the high end without
adding harshness.

STABLE AND RELIABLE STREAMING

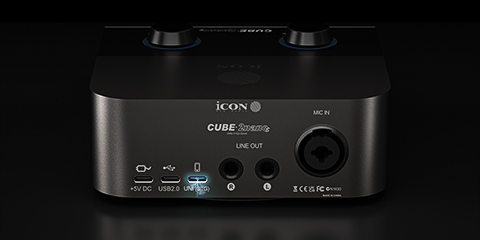

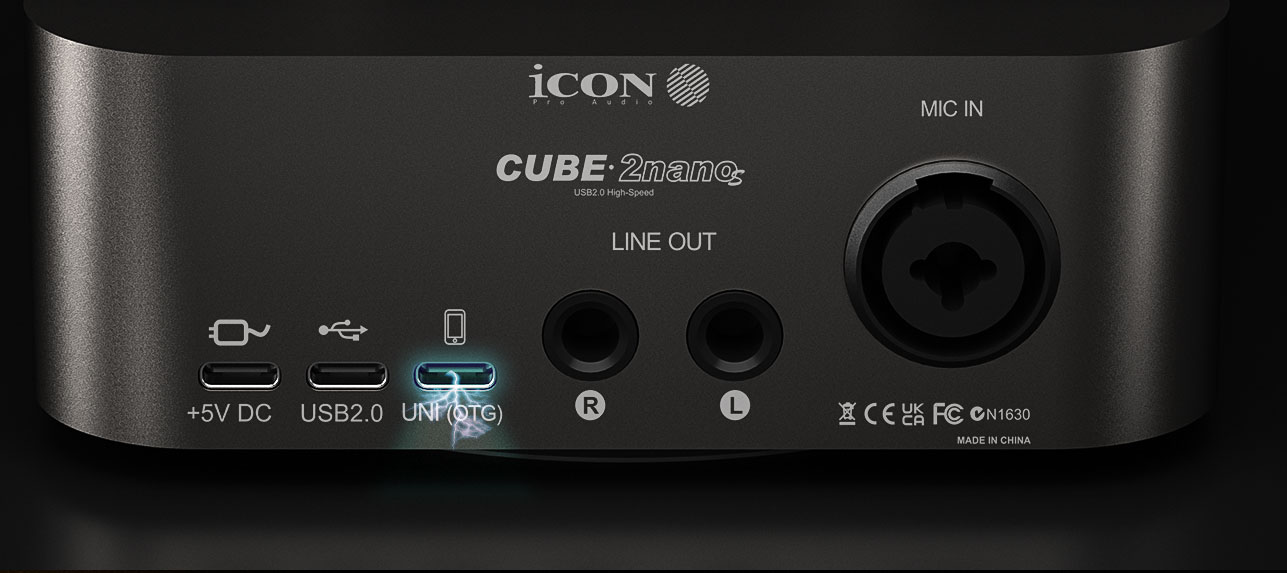

Experience uninterrupted streaming with iCON’s UNI OTG technology. Ideal for live performances
and online broadcasts, this technology guarantees stable and high-quality audio transmission,
ensuring your stream sounds as good as your original recording.


STABLE AND RELIABLE STREAMING

Experience uninterrupted streaming with iCON’s UNI OTG technology. Ideal for live performances and online broadcasts, this technology guarantees stable and high-quality audio transmission, ensuring your stream sounds as good as your original recording.

COMPREHENSIVE PRODUCTION CONTROL

Optimize your production workflow with iCON’s iO Pro software. This robust
application provides precise and flexible control over all your audio parameters,
allowing you to fine-tune every detail of your sound effortlessly.


COMPREHENSIVE PRODUCTION CONTROL

Optimize your production workflow with iCON’s iO Pro
software. This robust application provides precise and
flexible control over all your audio parameters, allowing
you to fine-tune every detail of your sound effortlessly.

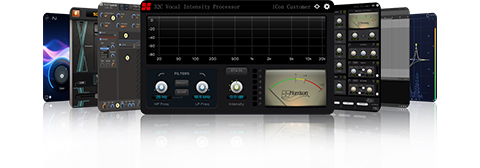

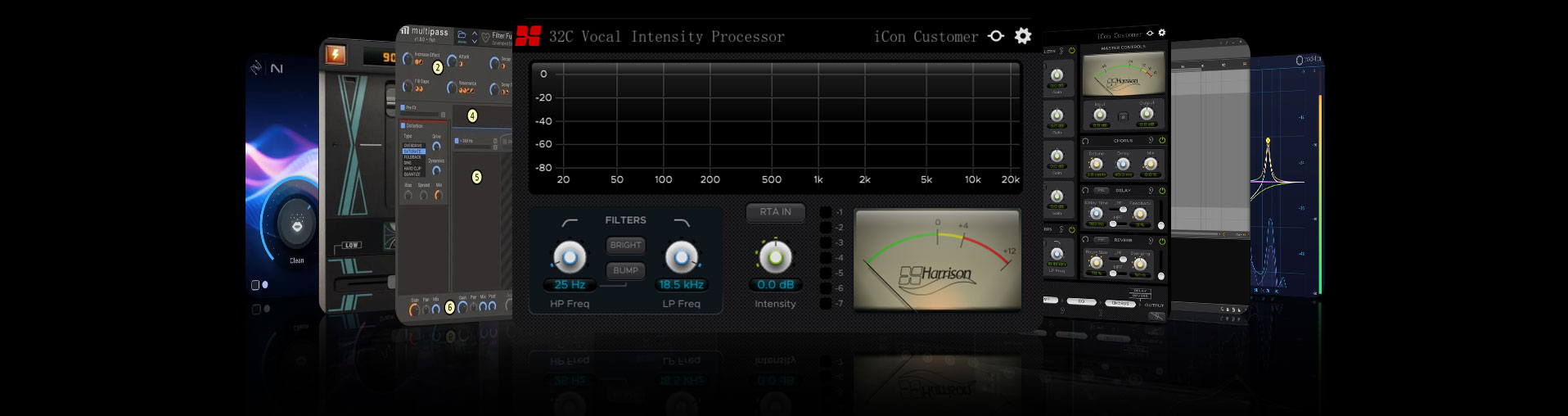

PREMIUM SOFTWARE BUNDLE

Expand your creative capabilities with an exceptional suite of bundled software, including:
– iZotope VEA (Voice Enhancement Assistant): AI-enhanced tool for shaping your voice recordings.
– Harrison AVA Live: Real-time channel strip with ultra-low latency.
– Harrison VIP (Vocal Intensity Processor): Enhance vocal clarity and presence.
– Bitwig 8-Track Studio DAW: A versatile digital audio workstation for comprehensive production needs.
– Tracktion DAW Essentials: A collection of essential tools and plugins for audio editing.
– Kilohearts Toolbox: Creative sound design plugins to spark your imagination.
– Dotec Audio Plugins: High-quality effects and processors to elevate your sound.


PREMIUM SOFTWARE BUNDLE

Expand your creative capabilities with an
exceptional suite of bundled software,
including:
– iZotope VEA (Voice Enhancement Assistant):
AI-enhanced tool for shaping your voice recordings.
– Harrison AVA Live: Real-time channel strip with
ultra-low latency.
– Harrison VIP (Vocal Intensity Processor): Enhance vocal
clarity and presence.
– Bitwig 8-Track Studio DAW: A versatile digital audio
workstation for comprehensive production needs.
– Tracktion DAW Essentials: A collection of essential tools
and plugins for audio editing.
– Kilohearts Toolbox: Creative sound design plugins
to spark your imagination.
– Dotec Audio Plugins: High-quality effects and processors
to elevate your sound.

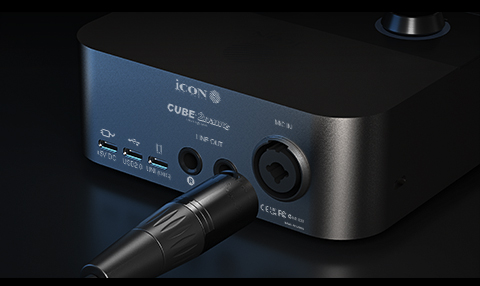

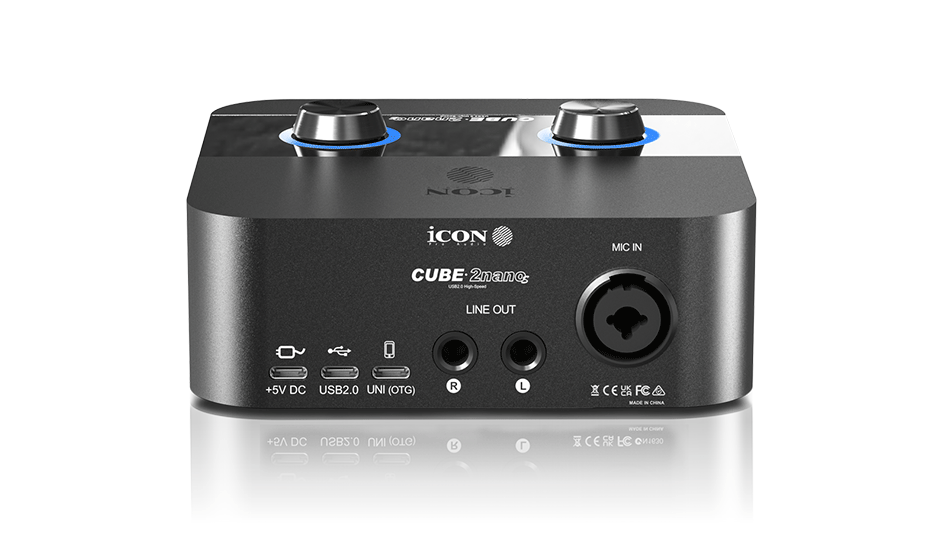

DURABLE AND RELIABLE CONSTRUCTION

Designed for longevity, the Cube 2 Nano S features high-quality inputs, two balanced
outputs, and two headphone outputs, all encased in a rugged aluminum die-cast chassis.
This durable build ensures reliable performance, whether you’re in the studio or on the go.

DURABLE AND RELIABLE CONSTRUCTION

Designed for longevity, the Cube 2 Nano S features high-quality Neutrik inputs, two balanced outputs, and two headphone outputs, all encased in a rugged aluminum die-cast chassis. This durable build ensures reliable performance, whether you’re in the studio or on the go.

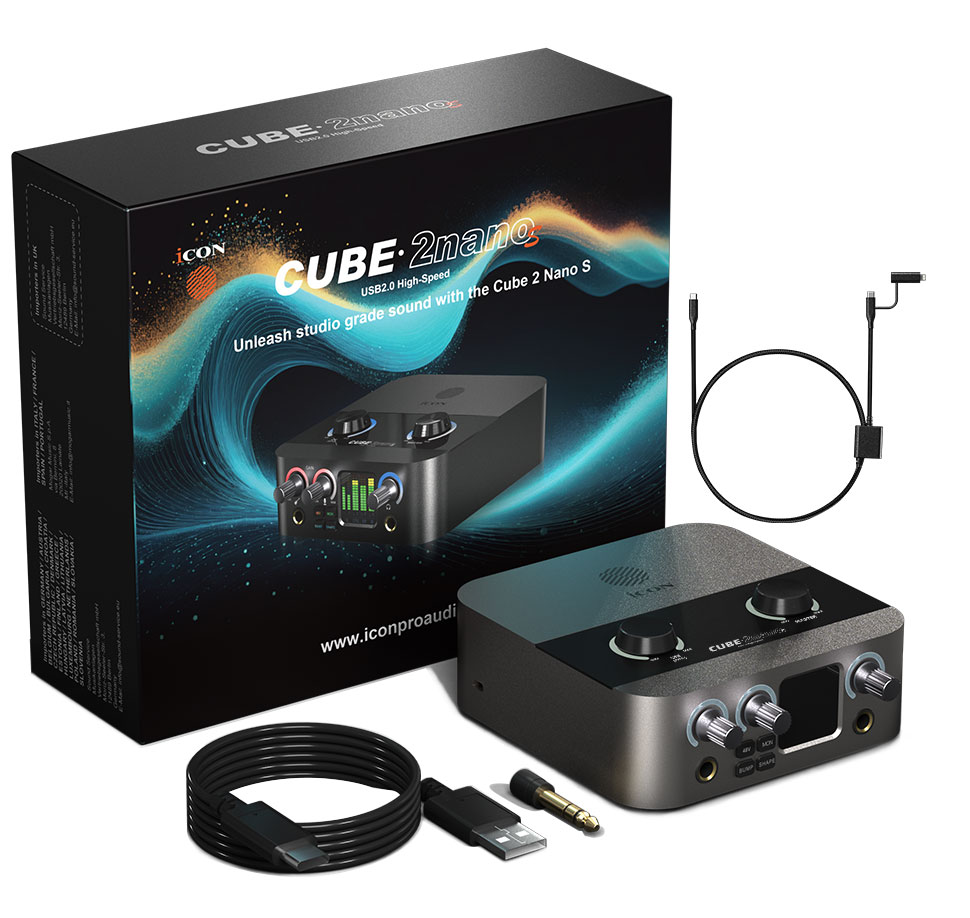

WHAT’S IN THE BOX

  • Cube 2 Nano S

  • USB Cable

  • 6.35mm to 3.5mm Stereo adapter

  • OTG Data Cable

WHAT’S IN THE BOX

  • Cube 2 Nano S

  • USB Cable

  • 6.35mm to 3.5mm Stereo adapter

  • OTG Data Cable
