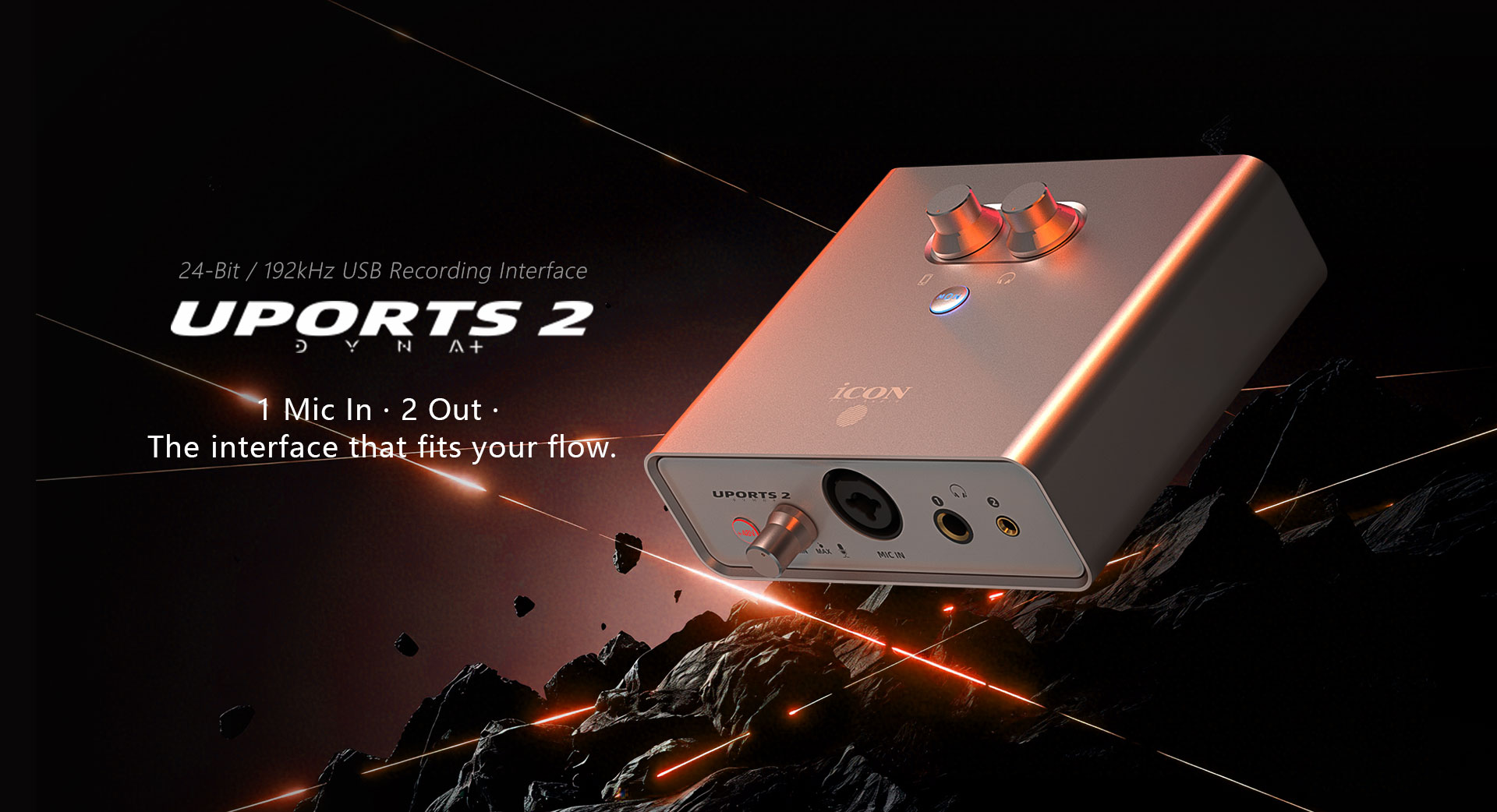

Designed for Everyday Creation
24-Bit / 192kHz
USB-C and USB OTG · Desktop and Mobile Ready iO Pro Powered

  • 24-bit / 192kHz high-resolution audio for recording and playback
  • High dynamic range conversion with 121dB A-weighted ADC and 127dB A-weighted DAC for clean capture and confident monitoring

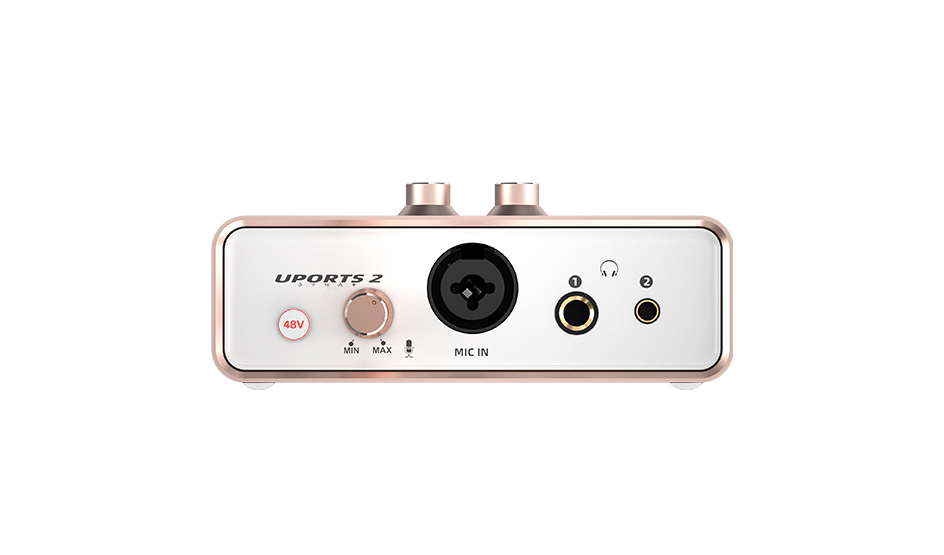

  • Balanced combo mic input (XLR / 6.35mm TRS) for a stable, noise-resistant signal path
  • Wide mic gain range from 0dB to +64dB for quiet speech, strong vocals, and everything between
  • Phantom power support for condenser microphones
  • Two headphone outputs for creator and guest monitoring
  • Strong headphone drive across 16 to 600Ω loads with multiple power ratings for real-world headphones

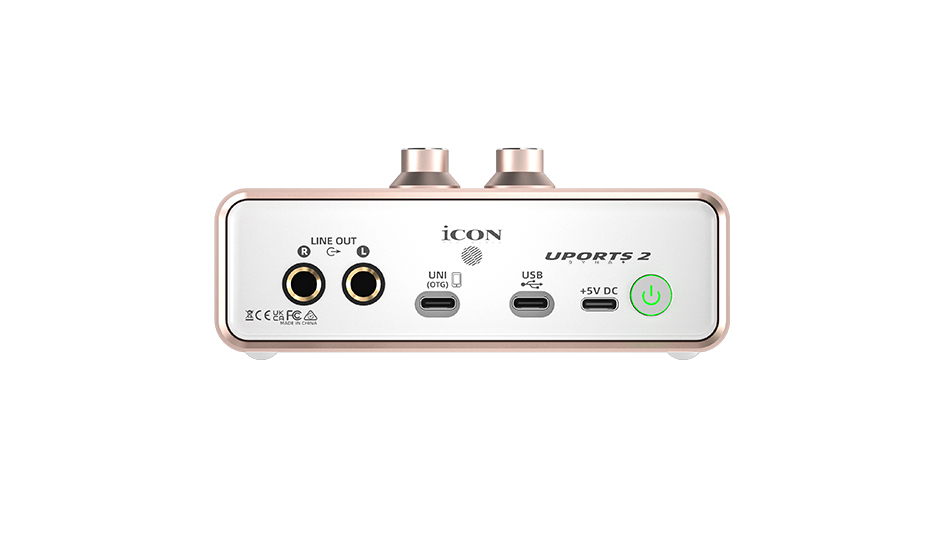

  • USB and USB OTG connectivity for desktop and mobile workflows
  • iO Pro virtual plug-in host and mixer for real-time processing during live sessions and streaming
  • LoopBack support for podcasts, tutorials, streaming, and online collaboration

NameSpec
I/O1 In 2 Out
Microphone Inputs (XLR/6.35mm TRS, balanced)1
Headphone Outputs (Stereo, Unbalanced)2
Digital Input/Output Port2 (USB\USB OTG)
Audio to Digital Conversion (ADC)
Dynamic Range121dB(A-weighted)
Signal-to-Noise Ratio-121dB(A-weighted)
Total Harmonic Distortion(THD+N)-112dB(@ -1dBFS)
Digital to Audio Conversion (DAC)
Dynamic Range127dB(A-weighted)
Signal-to-Noise Ratio-127dB(A-weighted)
Total Harmonic Distortion(THD+N)-120dB(@ -1dBFS)
Mic Inputs (XLR/6.35mm TRS, balanced)
Frequency Response20Hz – 20kHz(+/- 0.11dB)
Gain Range0dB – +64dB
Nominal Input Level +8.8dBu – -52dBu
Expected Source Impedance150 – 2400Ω
Input Impedance 2400Ω
Phantom Power (XLR)+48V±4V,10mA per channel
Headphone Outputs (Stereo, Unbalanced)
Frequency Response 20Hz – 20kHz(+/- 0.1dB)
Load Impedance16Ω – 600Ω
Impedance4.4Ω
Maximum Output Power239mW+239mW, @64Ω
156mW+156mW, @100Ω
28mW+28mW, @600Ω

  • macOS: OS X 10.11 El Capitan to macOS 26 Tahoe
  • Mac processors: Intel and Apple Silicon (M1 series, M2 series, M3 series, M4)
  • Windows: Windows 10 (64-bit), Windows 11
  • PC processors: Intel and AMD
  • iOS / iPadOS: iOS 11 or later, including iOS 26



Designed for Everyday Creation
24-Bit / 192kHzUSB-C and USB
OTG · Desktop and Mobile
ReadyiO Pro Powered

  • 24-bit / 192kHz high-resolution audio for recording and playback
  • High dynamic range conversion with 121dB A-weighted ADC and 127dB A-weighted DAC for clean capture and confident monitoring
  • Balanced combo mic input (XLR / 6.35mm TRS) for a stable, noise-resistant signal path
  • Wide mic gain range from 0dB to +64dB for quiet speech, strong vocals, and everything between
  • Phantom power support for condenser microphones
  • Two headphone outputs for creator and guest monitoring
  • Strong headphone drive across 16 to 600Ω loads with multiple power ratings for real-world headphones
  • USB and USB OTG connectivity for desktop and mobile workflows
  • iO Pro virtual plug-in host and mixer for real-time processing during live sessions and streaming
  • LoopBack support for podcasts, tutorials, streaming, and online collaboration

NameSpec
I/O1 In 2 Out
Microphone Inputs (XLR/6.35mm TRS, balanced)1
Headphone Outputs (Stereo, Unbalanced)2
Digital Input/Output Port2 (USB\USB OTG)
Audio to Digital Conversion (ADC)
Dynamic Range121dB(A-weighted)
Signal-to-Noise Ratio-121dB(A-weighted)
Total Harmonic Distortion(THD+N)-112dB(@ -1dBFS)
Digital to Audio Conversion (DAC)
Dynamic Range127dB(A-weighted)
Signal-to-Noise Ratio-127dB(A-weighted)
Total Harmonic Distortion(THD+N)-120dB(@ -1dBFS)
Mic Inputs (XLR/6.35mm TRS, balanced)
Frequency Response20Hz – 20kHz(+/- 0.11dB)
Gain Range0dB – +64dB
Nominal Input Level +8.8dBu – -52dBu
Expected Source Impedance150 – 2400Ω
Input Impedance 2400Ω
Phantom Power (XLR)+48V±4V,10mA per channel
Headphone Outputs (Stereo, Unbalanced)
Frequency Response 20Hz – 20kHz(+/- 0.1dB)
Load Impedance16Ω – 600Ω
Impedance4.4Ω
Maximum Output Power239mW+239mW, @64Ω
156mW+156mW, @100Ω
28mW+28mW, @600Ω

  • macOS: OS X 10.11 El Capitan to macOS 26 Tahoe
  • Mac processors: Intel and Apple Silicon (M1 series, M2 series, M3 series, M4)
  • Windows: Windows 10 (64-bit), Windows 11
  • PC processors: Intel and AMD
  • iOS / iPadOS: iOS 11 or later, including iOS 26

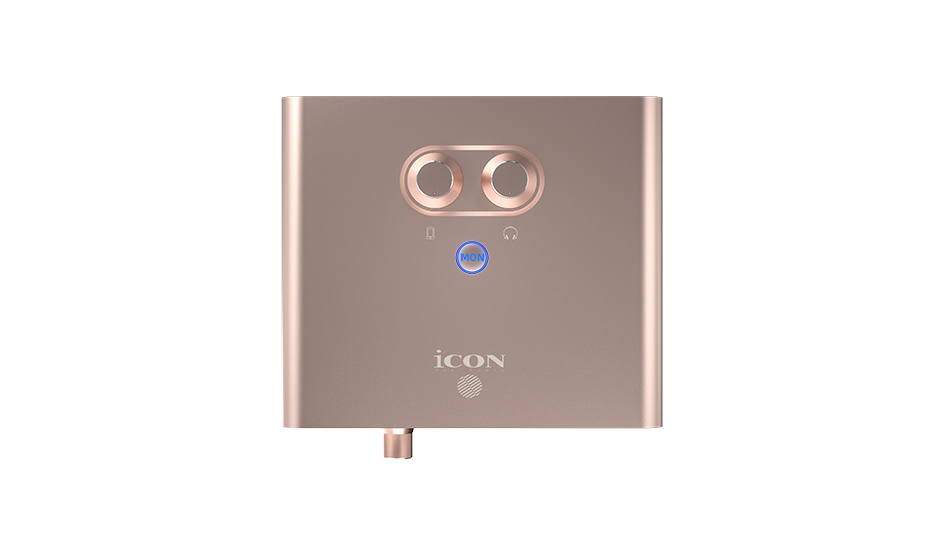

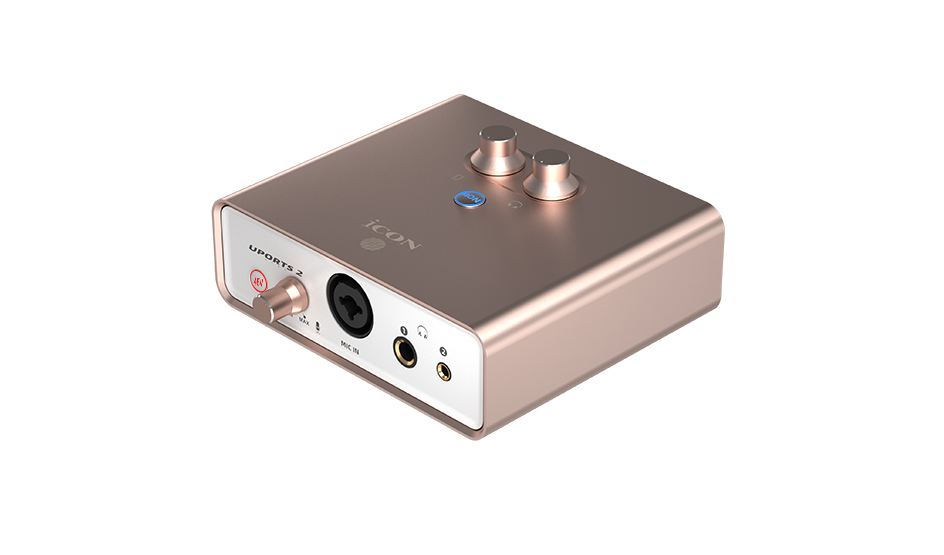

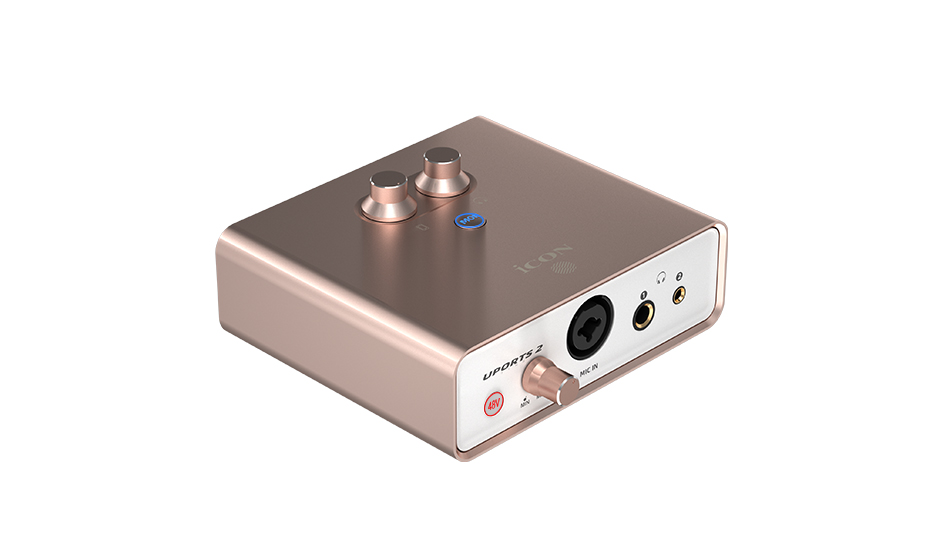

UPorts2 Dyna+

UPorts2 Dyna+ is built for creators who want great sound without getting lost in settings. It is quick to learn, quick to set, and easy to trust, whether you are building a home setup, a streaming corner, or a mobile kit. Set your level, hit record, and stay focused on the moment.

With high-performance conversion, real-time processing via iO Pro, and seamless compatibility with desktop and mobile devices, UPorts2 Dyna+ keeps your workflow smooth, portable, and reliable so your ideas stay front and center.

The sound quality is not a marketing promise, it is built into the numbers. With 121dB A-weighted dynamic range on the ADC and 127dB A-weighted dynamic range on the DAC, UPorts2 Dyna+ is designed to keep noise low and detail intact. Your mic signal comes through clean, and your monitoring stays clear so you can make confident choices while you record or stream.

When you want more polish, iO Pro gives you real-time processing through a virtual plug-in host and mixer. Add LoopBack and you have a practical setup for modern content, including tutorials, podcasts, and livestreams where you need mic plus system audio working together.



UPorts2 Dyna+

UPorts2 Dyna+ is built for creators who want great sound without getting lost in settings. It is quick to learn, quick to set, and easy to trust, whether you are building a home setup, a streaming corner, or a mobile kit. Set your level, hit record, and stay focused on the moment.

With high-performance conversion, real-time processing via iO Pro, and seamless compatibility with desktop and mobile devices, UPorts2 Dyna+ keeps your workflow smooth, portable, and reliable so your ideas stay front and center.

The sound quality is not a marketing promise, it is built into the numbers. With 121dB A-weighted dynamic range on the ADC and 127dB A-weighted dynamic range on the DAC, UPorts2 Dyna+ is designed to keep noise low and detail intact. Your mic signal comes through clean, and your monitoring stays clear so you can make confident choices while you record or stream.

When you want more polish, iO Pro gives you real-time processing through a virtual plug-in host and mixer. Add LoopBack and you have a practical setup for modern content, including tutorials, podcasts, and livestreams where you need mic plus system audio working together.

High dynamic range
capture and monitoring

A strong ADC and DAC stage helps your audio

stay clear, low-noise, and detailed in real sessions.

High dynamic range

capture and monitoring

A strong ADC and DAC stage helps your audio

stay clear, low-noise, and detailed in real sessions.

Wide gain range

0dB to +64dB gain makes it easier to set levels

for different voices and mic types.

Wide gain range

0dB to +64dB gain makes it easier to set

levels for different voices and mic types.

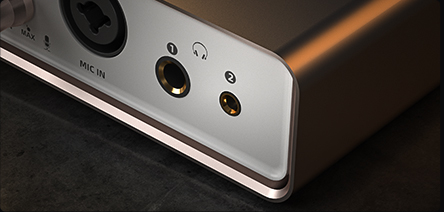

Two headphone outputs

Simple shared monitoring for interviews,

collaboration, and content review.

Two headphone outputs

Simple shared monitoring for interviews,

collaboration, and content review.

USB and USB
OTG connectivity

One interface that fits desktop
workflows and mobile creator setups.

USB and USB

OTG connectivity

One interface that fits desktop

workflows and mobile creator setups.

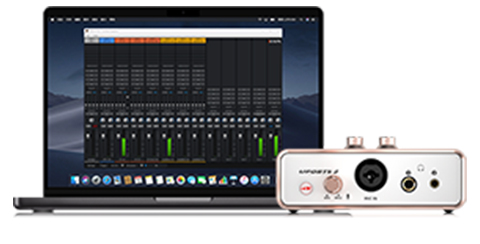

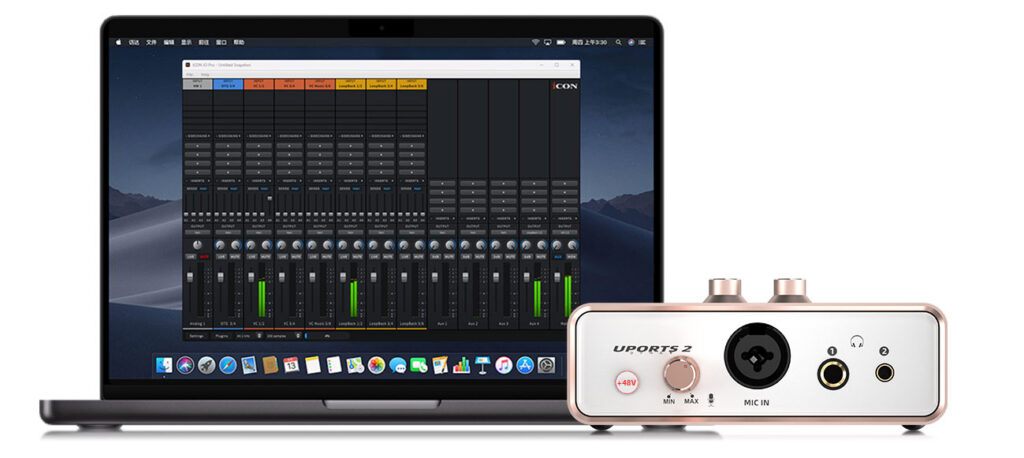

iO Pro plus LoopBack workflows

Real-time processing and system audio capture for streaming

and content creation.

iO Pro plus LoopBack workflows

Real-time processing and system audio

capture for streaming and content creation.

Included Software

Bitwig Studio 8-Track

Dotec Audio Plug-Ins

Tracktion DAW Essentials Collection

Kilohearts Toolbox

Vocal Intensity Processor Plug-In AVA Live Plug-In

Included Software

Bitwig Studio 8-Track

Dotec Audio Plug-Ins

Tracktion DAW Essentials Collection

Kilohearts Toolbox

Vocal Intensity Processor Plug-In

AVA Live Plug-In

Different Applications

Vocal recording for music, podcasting, and voiceover

Livestreaming with real-time processing via iO Pro

Interviews, co-writing, and lessons using two headphone outputs

Tutorials and reaction content using LoopBack for system audio

Different Applications

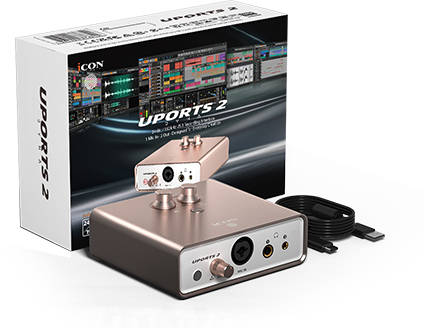

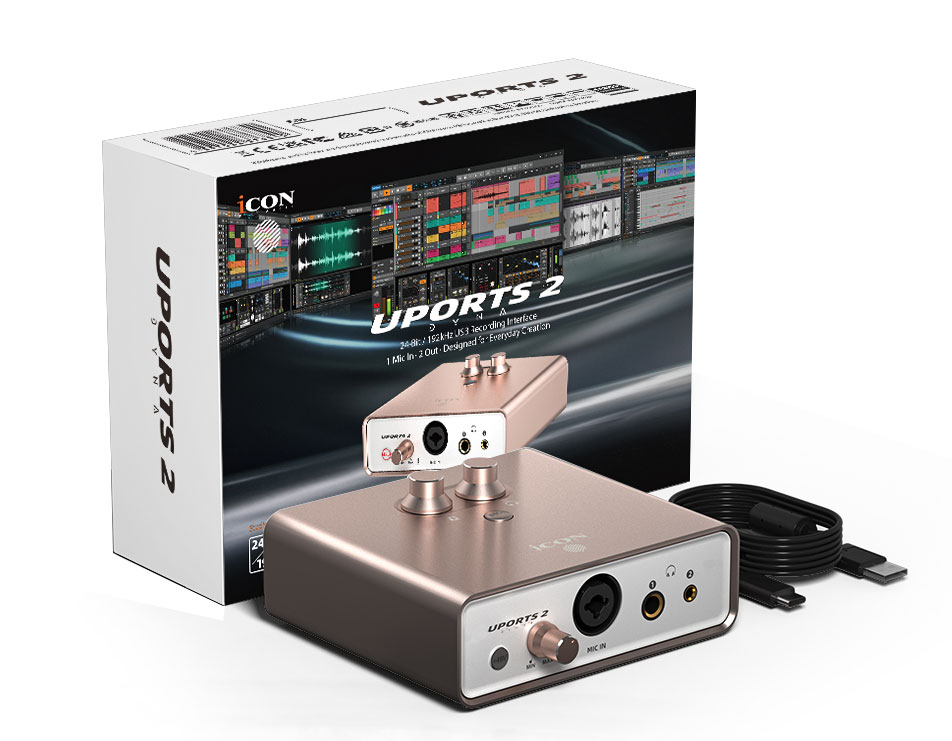

What’s In the Box

  • UPorts2 Dyna+ USBRecording Interface
  • USB cable

What’s In the Box

・UPorts2 Dyna+ USB Recording Interface

・USB cable
