U22
A sleek, display-led audio interface for
creators who demand simplicity with
no knobs, and no clutter. Just control.
A sleek, display-led audio interface for
creators who demand simplicity with
no knobs, and no clutter. Just control.
| Name | Spec |
| I/O | 2 In 2 Out |
| Microphone Inputs(XLR/6.35mm TRS, -balanced) | 2 |
| Instrument Inputs (6.35mm,Unbalanced) | 1 |

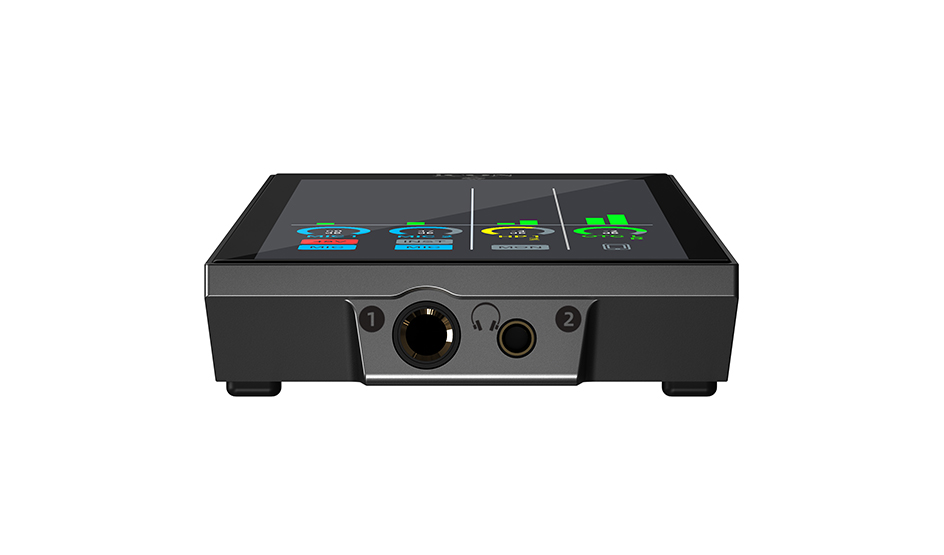

| Headphone Outputs: (Stereo, Unbalanced) | 2 |
| Digital Input/Output Port | 2(USB\USB OTG) |
| Audio to Digital Conversion | |
| Dynamic Range | 121dB, A-weighted |
| Signal-to-Noise Ratio | -121dB, A-weighted |
| Total Harmonic Distortion | -112dB, -1dBFS |
| Digital to Audio Conversion | |
| Dynamic Range | 130dB, A-weighted |
| Signal-to-Noise Ratio | -130dB, A-weighted |
| Total Harmonic Distortion | -120dB, -1dBFS |
| Mic Inputs(XLR/6.35mm TRS, balanced) | |
| Frequency Response | 20Hz~20kHz(±0.05dB) |
| Gain Range | 0dB~+60dB |
| Nominal input level | +9dBu ~ -52dBu |
| Expected source impedance | 15Ω~2400Ω |
| Actual load impedance | 2400Ω |
| Instrument Inputs 1/4 | |
| Frequency Response | 20Hz~20kHz(±0.3dB) |
| Gain Range | 0dB~+33dB |
| Nominal input level | +9dBu ~ -32dBu |
| Expected source impedance | 2400Ω |
| Actual load impedance | 390kΩ |
| Headphone Outputs(Stereo,Unbalanced) | |
| Frequency Response | 20Hz~20kHz(±0.1dB) |
| Load Impedance | 16~600Ω |
| Impedance | 4.4Ω |
| Maximum Output Level | 460mW+460mW, @32Ω |
| 400mW+400mW, @64Ω | |
| 280mW+280mW, @100Ω | |
| 55mW+55mW, @600Ω |
A sleek, display-led audio interface for
creators who demand simplicity with
no knobs, and no clutter. Just control.
| Name | Spec |
| I/O | 2 In 2 Out |
| Microphone Inputs(XLR/6.35mm TRS, -balanced) | 2 |
| Instrument Inputs (6.35mm,Unbalanced) | 1 |
| Headphone Outputs: (Stereo, Unbalanced) | 2 |
| Digital Input/Output Port | 2(USB\USB OTG) |
| Audio to Digital Conversion | |
| Dynamic Range | 121dB, A-weighted |
| Signal-to-Noise Ratio | -121dB, A-weighted |
| Total Harmonic Distortion | -112dB, -1dBFS |
| Digital to Audio Conversion | |
| Dynamic Range | 130dB, A-weighted |
| Signal-to-Noise Ratio | -130dB, A-weighted |
| Total Harmonic Distortion | -120dB, -1dBFS |
| Mic Inputs(XLR/6.35mm TRS, balanced) | |
| Frequency Response | 20Hz~20kHz(±0.05dB) |
| Gain Range | 0dB~+60dB |
| Nominal input level | +9dBu ~ -52dBu |
| Expected source impedance | 15Ω~2400Ω |
| Actual load impedance | 2400Ω |
| Instrument Inputs 1/4 | |
| Frequency Response | 20Hz~20kHz(±0.3dB) |
| Gain Range | 0dB~+33dB |
| Nominal input level | +9dBu ~ -32dBu |
| Expected source impedance | 2400Ω |
| Actual load impedance | 390kΩ |
| Headphone Outputs(Stereo,Unbalanced) | |
| Frequency Response | 20Hz~20kHz(±0.1dB) |
| Load Impedance | 16~600Ω |
| Impedance | 4.4Ω |
| Maximum Output Level | 460mW+460mW, @32Ω |
| 400mW+400mW, @64Ω | |
| 280mW+280mW, @100Ω | |
| 55mW+55mW, @600Ω |

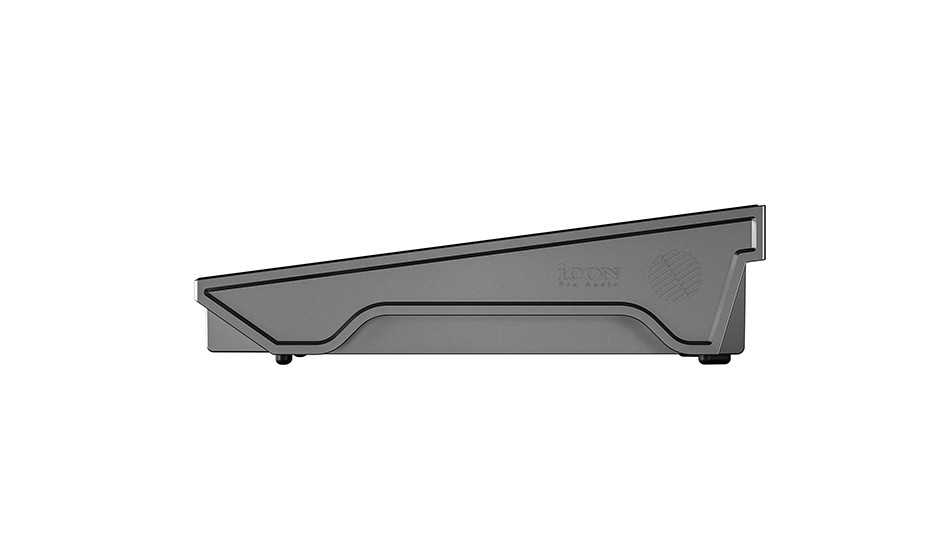

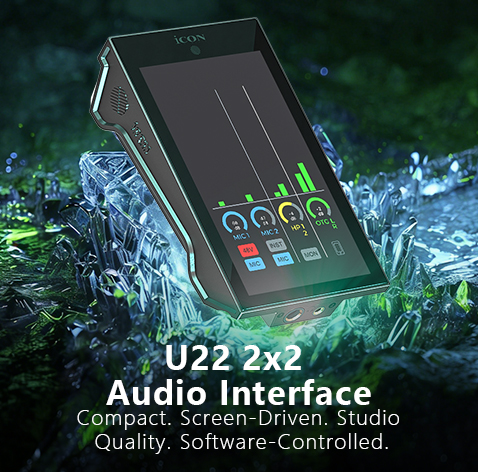

Meet the U22 Audio Interface, the smallest and smartest member of the U-Series. It’s a compact, screen-first interface designed for creators who want professional sound without the traditional hardware clutter. No knobs. No switches. No second-guessing your levels in the dark.

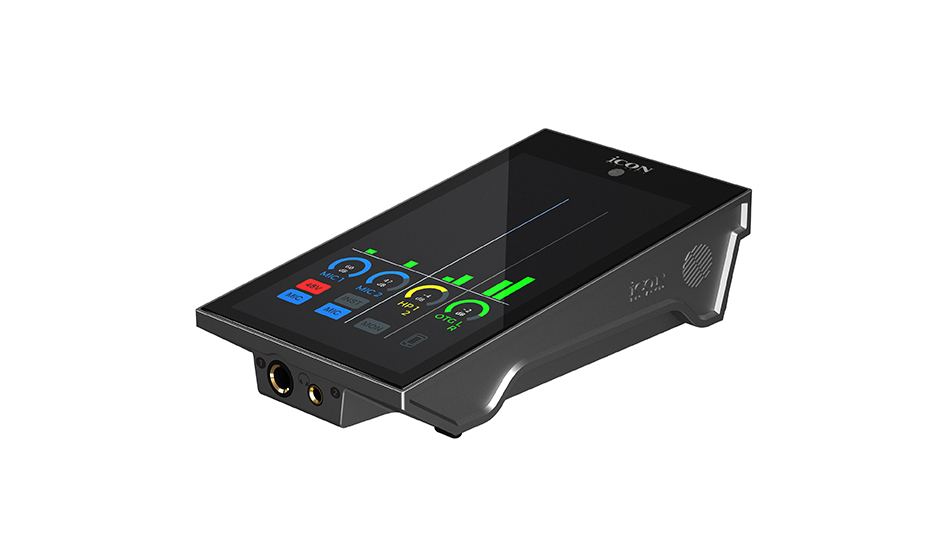

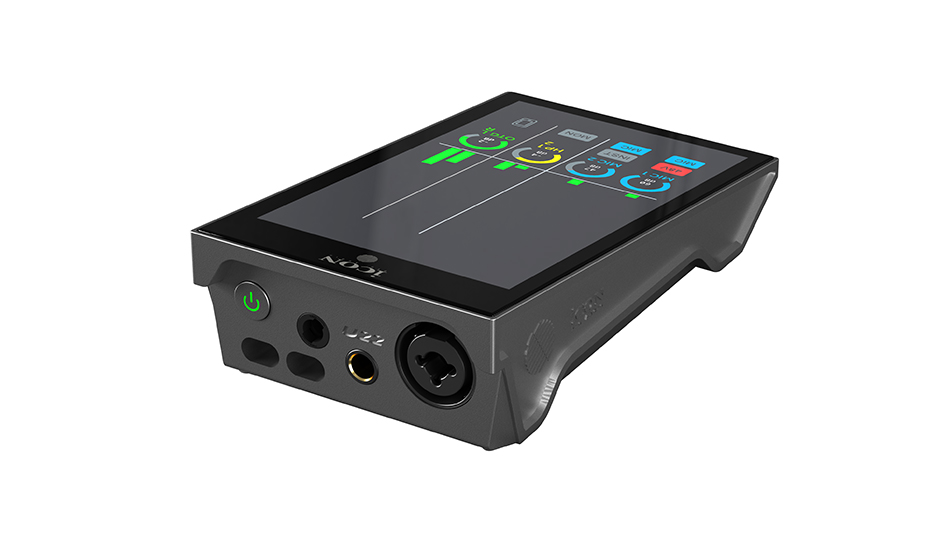

Everything flows through the crisp 5.5″ TFT display and iO Pro, our intuitive control environment for desktop. Metering, routing, gain staging, device switching—every adjustment lives inside the software, giving you a clean, modern workflow that’s easy for beginners and fast for pros.
With high-dynamic-range converters, mobile-friendly USB-C/OTG support, simultaneous device charging, and a rugged die-cast chassis, the U22 is built for creators who move effortlessly between studio, stage, and live streaming.
Control your gain, routing, loopback, and monitoring straight from iO Pro while charging your phone and streaming simultaneously. Perfect for creators who want a minimal footprint but maximum clarity. Zero noise, high headroom, and detailed conversion. Use the iO Pro software for routing, loopback audio, and voice monitoring without a DAW. Mount the U22 on any stand with the magnetic ring, dial in your mix with iO Pro, and focus on performing—not fiddling with knobs.
Meet the U22 Audio Interface, the smallest and smartest member of the U-Series. It’s a compact, screen-first interface designed for creators who want professional sound without the traditional hardware clutter. No knobs. No switches. No second-guessing your levels in the dark.
Everything flows through the crisp 5.5″ TFT display and iO Pro, our intuitive control environment for desktop. Metering, routing, gain staging, device switching—every adjustment lives inside the software, giving you a clean, modern workflow that’s easy for beginners and fast for pros.
With high-dynamic-range converters, mobile-friendly USB-C/OTG support, simultaneous device charging, and a rugged die-cast chassis, the U22 is built for creators who move effortlessly between studio, stage, and live streaming.
Control your gain, routing, loopback, and monitoring straight from iO Pro while charging your phone and streaming simultaneously. Perfect for creators who want a minimal footprint but maximum clarity. Zero noise, high headroom, and detailed conversion. Use the iO Pro software for routing, loopback audio, and voice monitoring without a DAW. Mount the U22 on any stand with the magnetic ring, dial in your mix with iO Pro, and focus on performing—not fiddling with knobs.

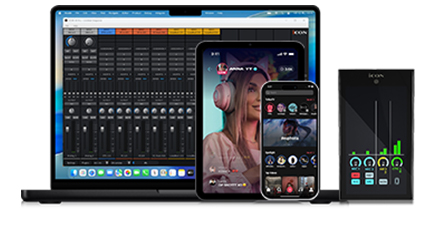

Powered by iO Pro, the U22 gives you total
control with zero physical knobs. Perfect
for clean desks and high quality sound.
Powered by iO Pro, the U22 gives you total control with
zero physical knobs. Perfect for clean desks and high
quality sound.

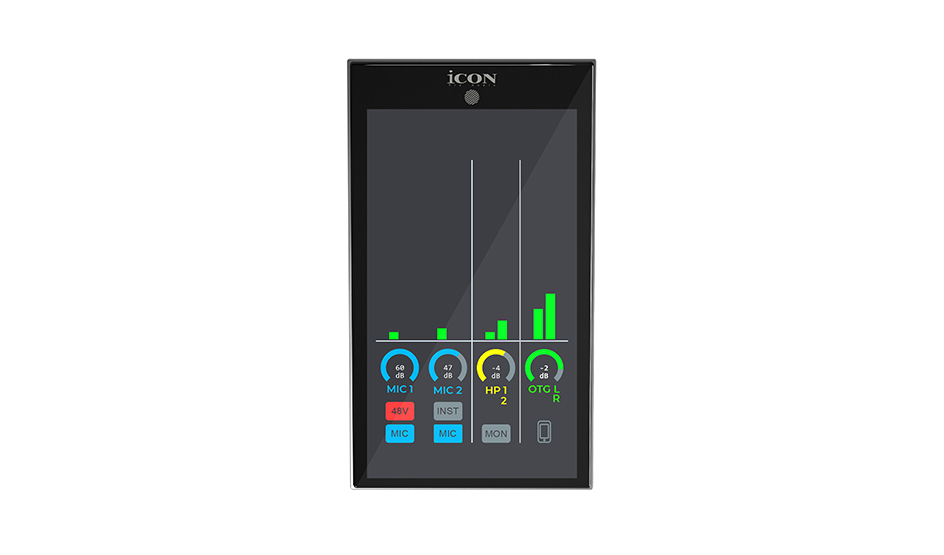

Instant metering, quick visual
feedback, and software controlled
navigation through your mix.
Instant metering, quick visual feedback, and software
controlled navigation through your mix.
Premium converters deliver detailed,
transparent audio for recording,
streaming, and monitoring.
Premium converters deliver detailed, transparent
audio for recording, streaming, and monitoring.

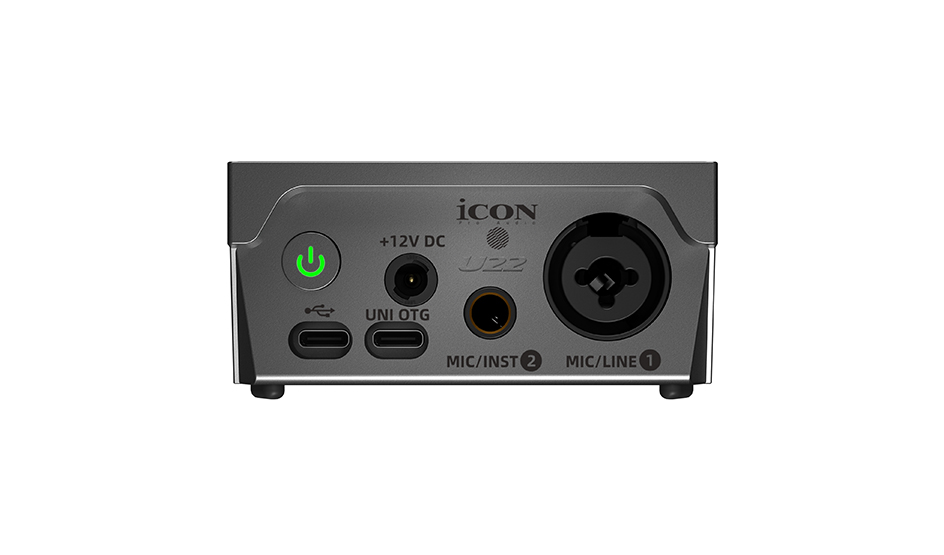

USB-C and OTG support connect directly to your phone or tablet
—with simultaneous charging making the U22 ideal for livestreams.
USB-C and OTG support connect directly to your
phone or tablet—with simultaneous charging making
the U22 ideal for livestreams.

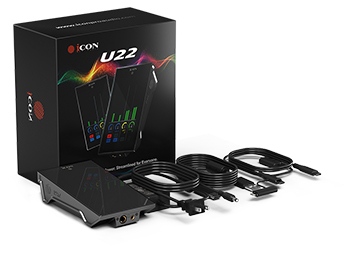

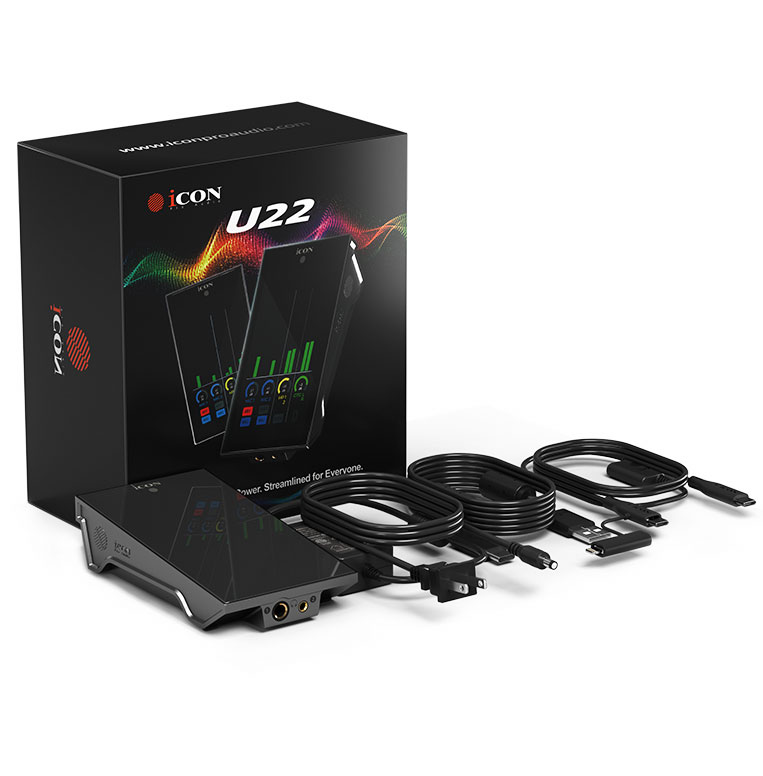

● U22 Audio Hub
● USB-C to USB-C cable
● OTG cable for mobile devices
● 12V DC power adapter
● Magnetic ring mounting kit
● U22 Audio Hub
● USB-C to USB-C cable
● OTG cable for mobile devices
● 12V DC power adapter
● Magnetic ring mounting kit
