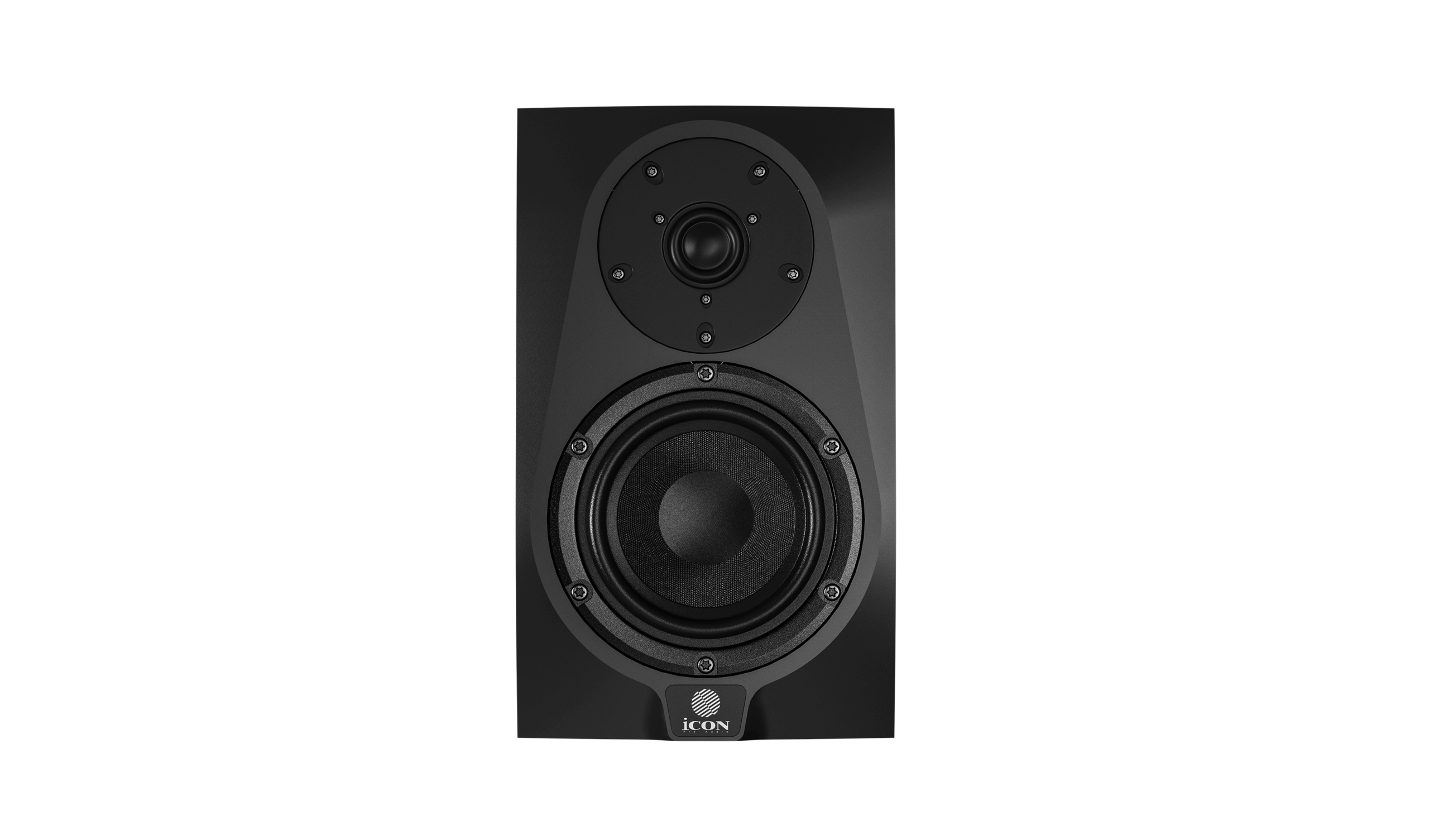

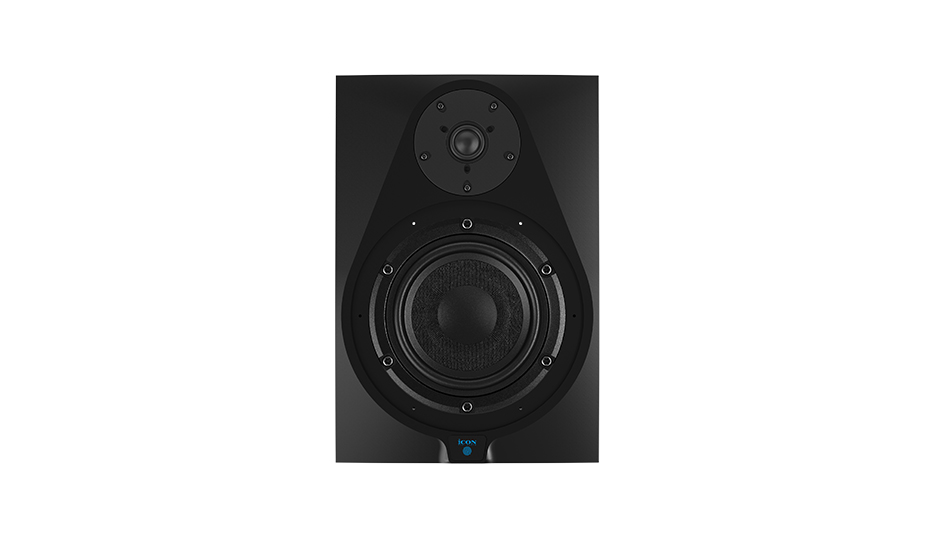

DT-S

Definition Series speakers offer
exceptional accuracy, consistency,
and detail for audio professionals
and artists who demand the best.

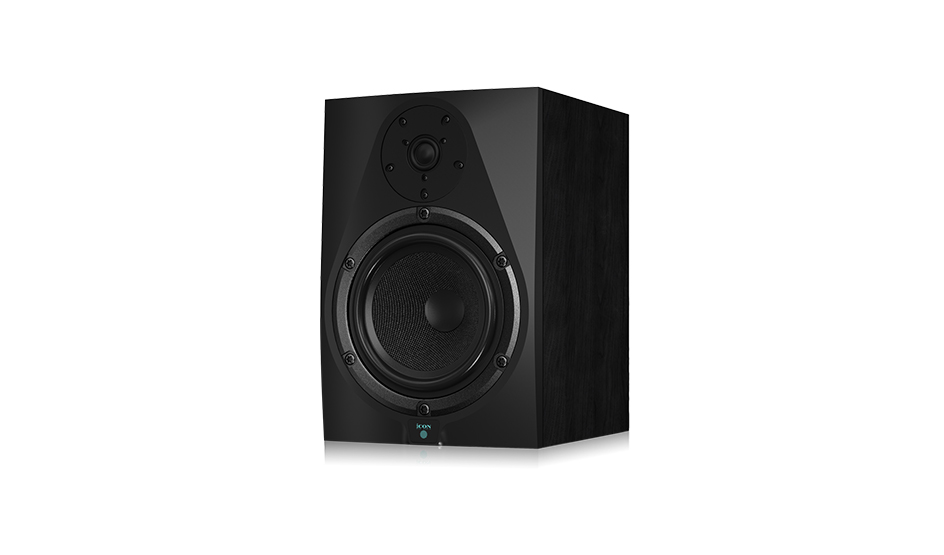

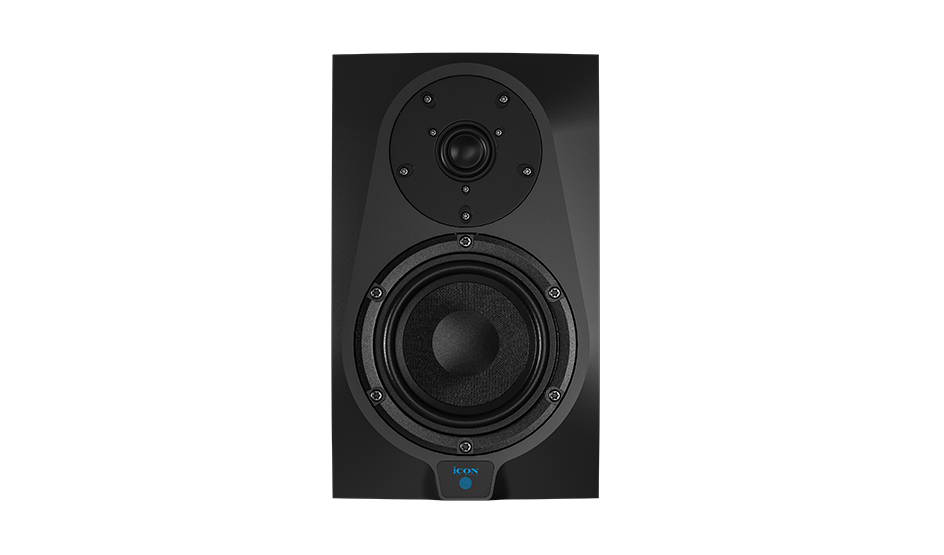

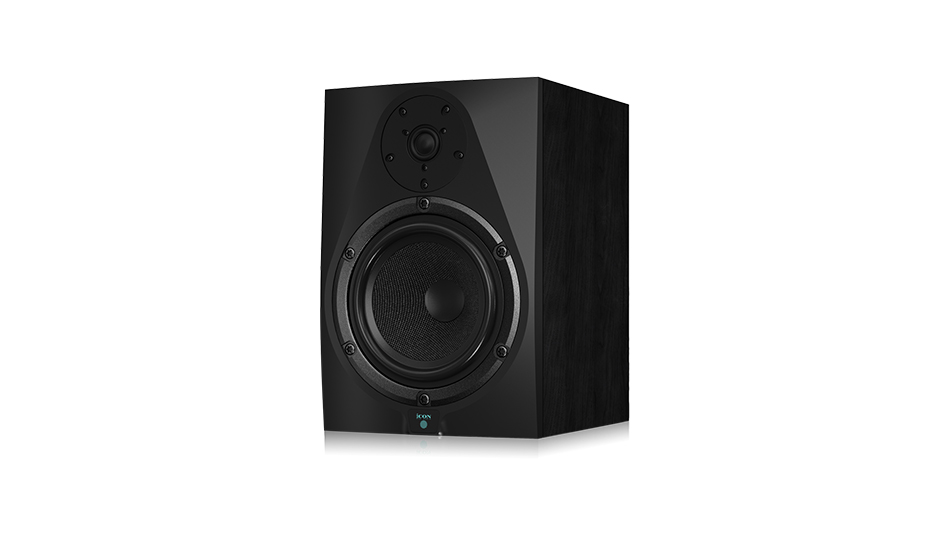

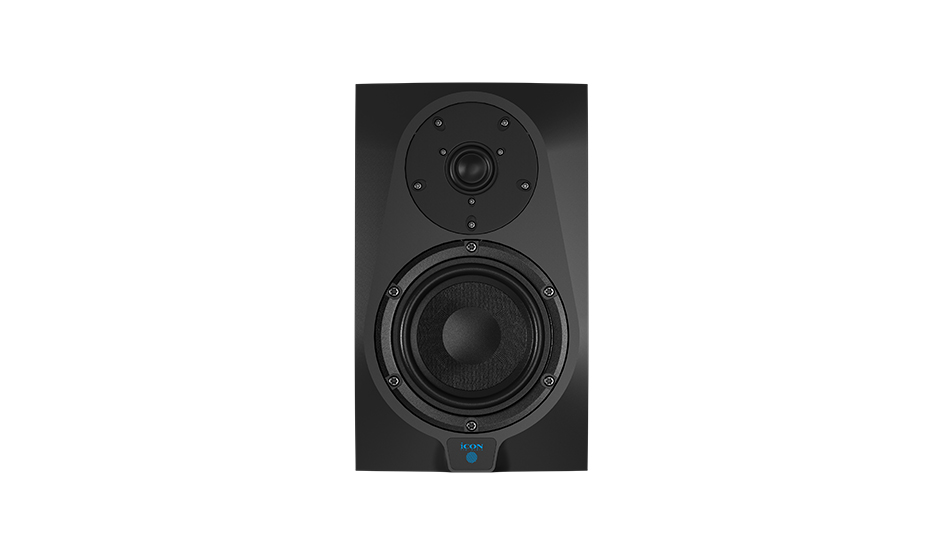

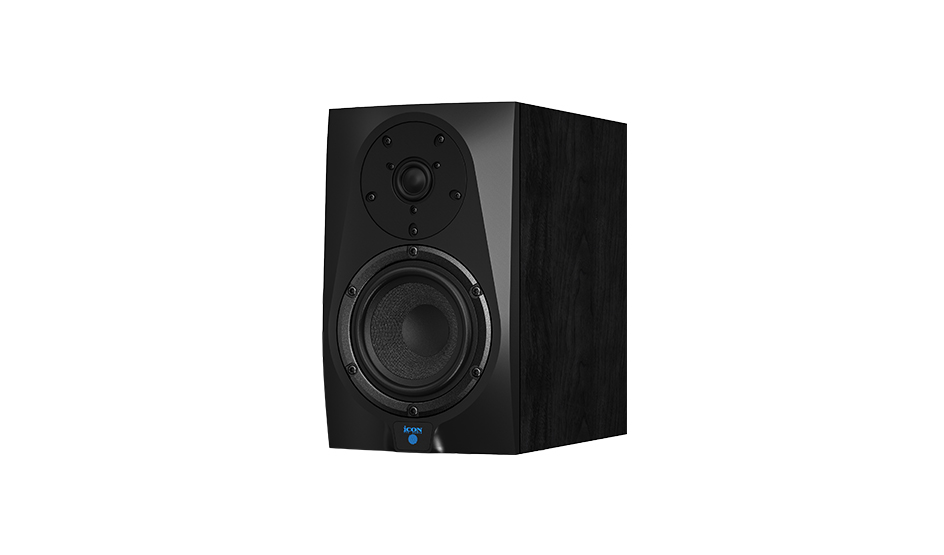

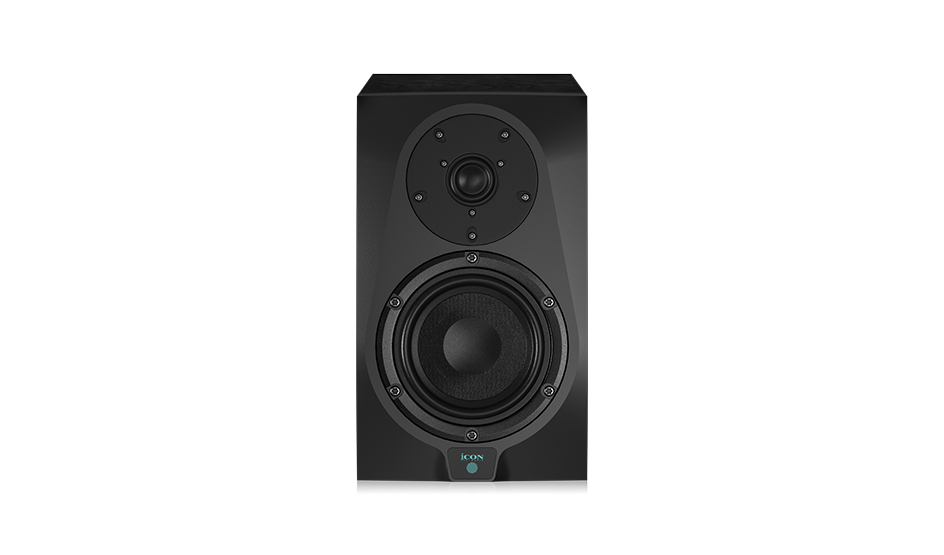

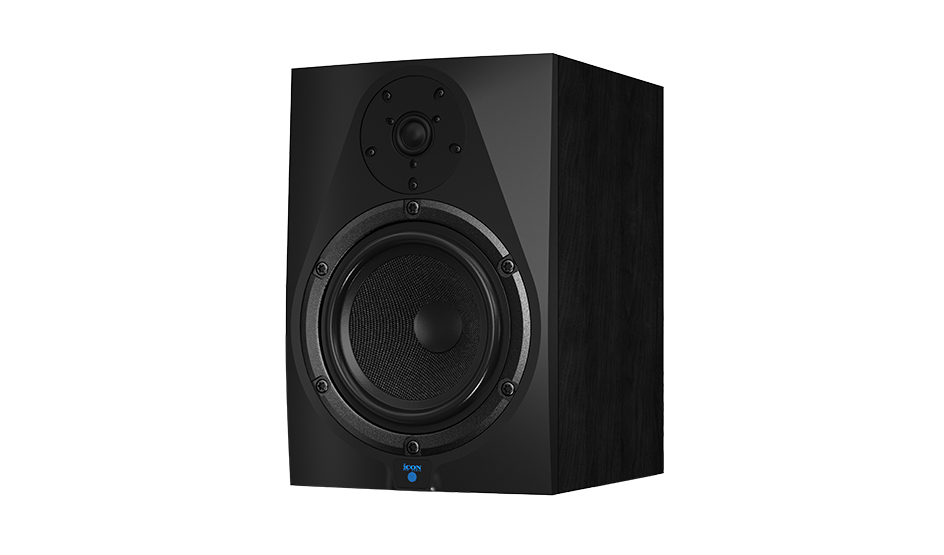

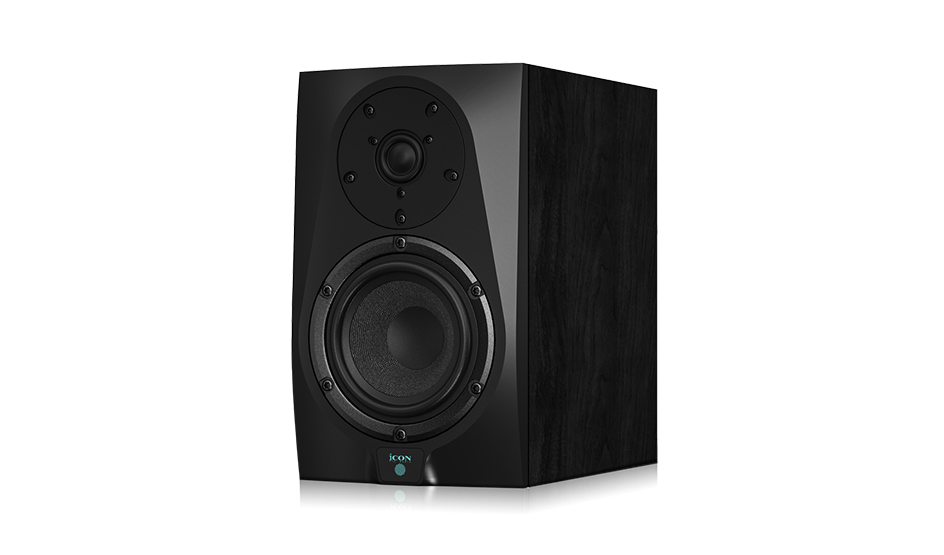

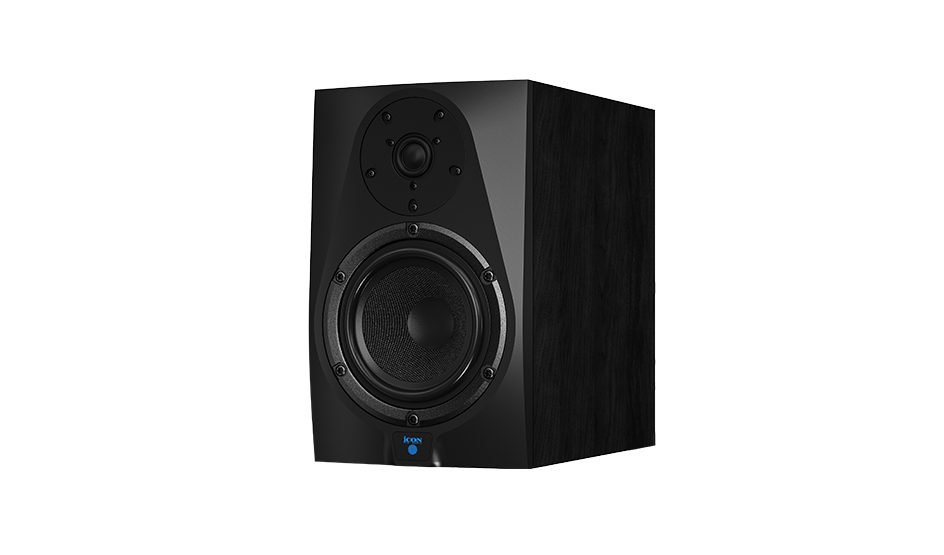

The iCON DT-S Active Studio Monitor System provides a smooth and accurateresponse which makes the system pleasant to listen to. Here are some of its mainfeatures:

Compact high performance active studio monitor
Active 2-Way monitor system with professional crossover design
The ideal solution for near-field monitoring in any recording or broadcasting facility
Designed for use in stereo as well as multichannel setups
Tuned by top acoustic engineers to fulfill any requirements in real recording studio environments

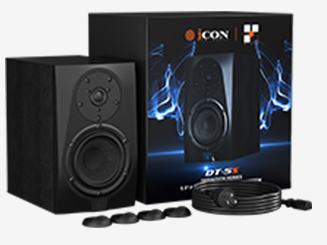

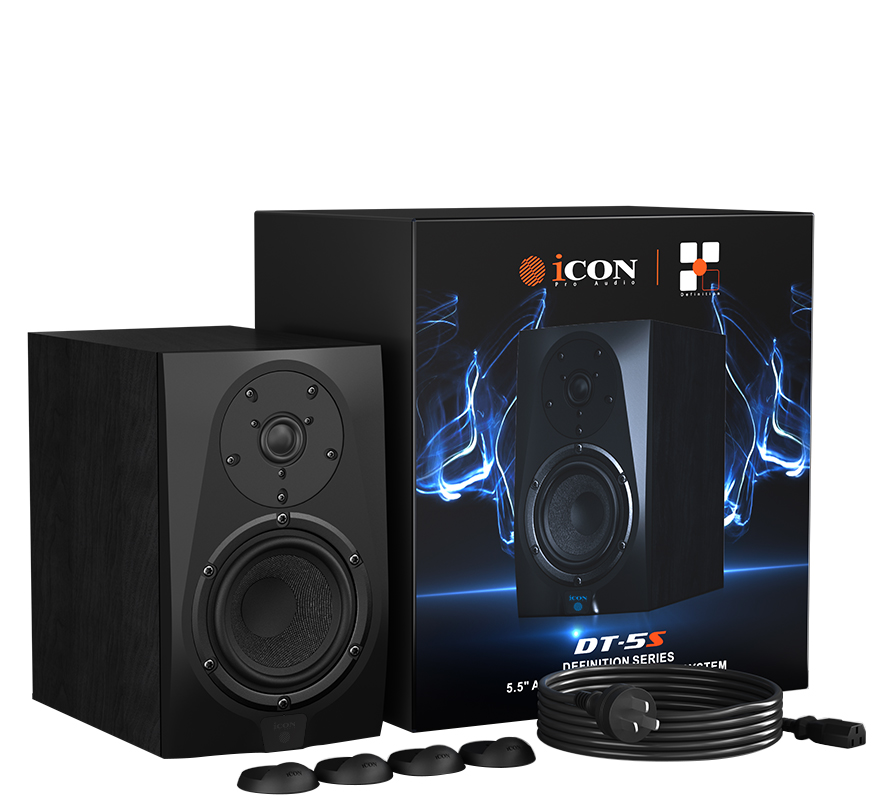

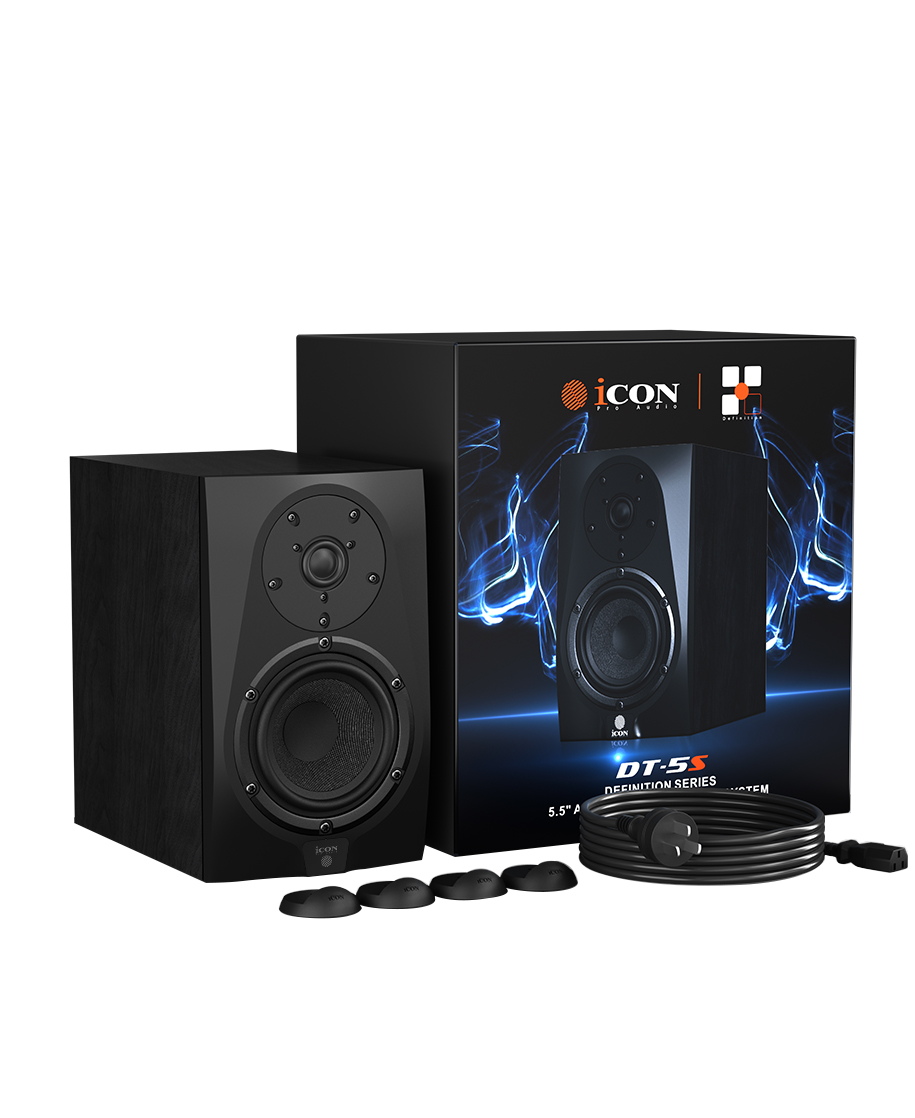

ICON’s “Vasorb TM” monitor rubber feet are included
Build-in Bi-Amp power module for low and high frequency drivers
DT-5S : 80-watts on LF and 20-watts on HF
DT-6S : 120-watts on LF and 20-watts on HF
DT-8S : 150-watts on LF and 20-watts on HF

Mid/Woofer

ICON Custom designed 5.5”/6.5”/8.0” woofer
Nomex reinforced paper cone for crisp, clean and very open reproduction
Low loss SBR surround with low creep and long time reliability
Progressive spider to achieve soft clipping and low distortion even under extreme load
Heavy dual magnet ferrite magnet system with extended height for superb bass reproduction
Aluminum short circuiting ring and cupper cap in magnet system that practically eliminates motor distortion
Very rigid die-cast aluminum chassis with very open geometry for optimized air-flow to eliminate compression

Tweeter

High-end 1″ dome tweeter
Soft fabric dome and surround with wide-dispersion optimized geometry
Big surround to reduce distortion
Low loss ferrofluid-free magnet system for open and detailed sound
Heavy ferrite under-hung dual magnet system for high sensitivity and low distortion
Extended and air-flow optimized back cavity to ensure low compression and low resonance frequency
Rugged die-cast aluminum faceplate with wide-dispersion optimized geometry

Cabinet

Robust and very rigid design
Diffraction optimized smooth front baffle design
Extended front baffle dimensions to eliminate any vibration or sound radiation from the enclosure
Premium absorbing material for long-life high-performance bass reproduction
High, Mid and Low range contour control
High-Pass Filter – Flat, 60Hz & 80Hz selectable

Name	Spec
DT-5S
System	Two-way active nearfield monitor
Frequency Response (+/-3dB)	45 Hz - 25 kHz
Max SPL 2 m, pair in listening room (IEC Short Term)	113 dB peak
Bass Principle	50 Hz
Tuning Frequency	50 Hz
Tweeter	1" wide dispersion silk dome
Woofer	5.25" Nomex paper cone
Magnetically shielded/compensated	Shielded and Compensated
Cross over frequency	2.8 kHz
Cross over slope	24 dB/oct (LP and HP)
Input level for 100dB SPL @ 500-2000 Hz avg @ 1 m	0 dBu RMS @ 0 dB level setting
Input connectors	Balanced XLR
User settings (on the rear panel)
Power	2 pos switch (On/Off)
Input sensitivity	20 pos encoder (0 dB to mute)
High Pass Control	3 pos switch (Flat / 60 Hz / 80 Hz)
(remote controlled)
Bass control	3 pos switch (-2 dB / 0 dB / +2 dB)
Midrange control	3 pos switch (-2 dB / 0 dB / +2 dB)
Treble control	3 pos switch (-2 dB / 0 dB / +2 dB)
Power consumption	Idle: 15 W / Max: 120 W
Amplifier power	Tweeter: 40 W / Woofer: 80 W
Weight	7.8 kg
Dimensions(LxWxH)	285 x 182 x 304 mm
DT-6S
System	Two-way active nearfield monitor
Frequency Response (+/-3dB)	45 Hz - 25 kHz
Max SPL 2 m, pair in listening room (IEC Short Term)	116 dB peak
Bass Principle	Bass reflex
Tuning Frequency	45 Hz
Tweeter	1" wide dispersion silk dome
Woofer	6.5" Nomex paper cone
Magnetically shielded/compensated	Shielded and Compensated
Cross over frequency	2.5 kHz
Cross over slope	24 dB/oct (LP and HP)
Input level for 100dB SPL @ 500-2000 Hz avg @ 1 m	0 dBu RMS @ 0 dB level setting
Input connectors	Balanced XLR
User settings (on the rear panel)
Power	2 pos switch (On/Off)
Input sensitivity	21 pos encoder (0 dB to mute)
High Pass Control	3 pos switch (Flat / 60 Hz / 80 Hz)
(remote controlled)
Bass control	3 pos switch (-2 dB / 0 dB / +2 dB
Midrange control	3 pos switch (-2 dB / 0 dB / +2 dB)
Treble control	3 pos switch (-2 dB / 0 dB / +2 dB)
Power consumption	Idle: 15 W / Max: 180 W
Amplifier power	Tweeter: 40 W / Woofer: 80 W
Weight	10.72 kg
Dimensions(LxWxH)	330 x 208 x 334 mm
DT-8S
System	Two-way active nearfield monitor
Frequency Response (+/-3dB)	35 Hz - 25 kHz
Max SPL 2 m, pair in listening room (IEC Short Term)	120 dB peak
Bass Principle	Bass reflex
Tuning Frequency	40 Hz
Tweeter	1" wide dispersion silk dome
Magnetically shielded/compensated	Shielded and Compensated
Cross over frequency	2.2 kHz
Cross over slope	24 dB/oct (LP and HP)
Input level for 100dB SPL @ 500-2000 Hz avg @ 1 m	0 dBu RMS @ 0 dB level setting
Input connectors	Balanced XLR
User settings (on the rear panel)
Power	2 pos switch (On/Off)
Input sensitivity	22 pos encoder (0 dB to mute)
High Pass Control	3 pos switch (Flat / 60 Hz / 80 Hz)
(remote controlled)
Bass control	3 pos switch (-2 dB / 0 dB / +2 dB
Midrange control	3 pos switch (-2 dB / 0 dB / +2 dB)
Treble control	3 pos switch (-2 dB / 0 dB / +2 dB)
Power consumption	Idle: 15 W / Max: 230 W
Amplifier power	Tweeter: 80 W / Woofer: 150 W 14.5 liters
Weight	14.49 kg
Dimensions(LxWxH)	295 x 255 x 376 mm

DT-S

Definition Series speakers offer
exceptional accuracy, consistency,
and detail for audio professionals
and artists who demand the best.

The iCON DT-S Active Studio Monitor System provides a smooth and accurateresponse which makes the system pleasant to listen to. Here are some of its mainfeatures:

Compact high performance active studio monitor
Active 2-Way monitor system with professional crossover design
The ideal solution for near-field monitoring in any recording or broadcasting facility
Designed for use in stereo as well as multichannel setups
Tuned by top acoustic engineers to fulfill any requirements in real recording studio environments
ICON’s “Vasorb TM” monitor rubber feet are included
Build-in Bi-Amp power module for low and high frequency drivers
DT-5S : 80-watts on LF and 20-watts on HF
DT-6S : 120-watts on LF and 20-watts on HF
DT-8S : 150-watts on LF and 20-watts on HF

Mid/Woofer

ICON Custom designed 5.5”/6.5”/8.0” woofer
Nomex reinforced paper cone for crisp, clean and very open reproduction
Low loss SBR surround with low creep and long time reliability
Progressive spider to achieve soft clipping and low distortion even under extreme load
Heavy dual magnet ferrite magnet system with extended height for superb bass reproduction
Aluminum short circuiting ring and cupper cap in magnet system that practically eliminates motor distortion
Very rigid die-cast aluminum chassis with very open geometry for optimized air-flow to eliminate compression

Tweeter

High-end 1″ dome tweeter
Soft fabric dome and surround with wide-dispersion optimized geometry
Big surround to reduce distortion
Low loss ferrofluid-free magnet system for open and detailed sound
Heavy ferrite under-hung dual magnet system for high sensitivity and low distortion
Extended and air-flow optimized back cavity to ensure low compression and low resonance frequency
Rugged die-cast aluminum faceplate with wide-dispersion optimized geometry

Cabinet

Robust and very rigid design
Diffraction optimized smooth front baffle design
Extended front baffle dimensions to eliminate any vibration or sound radiation from the enclosure
Premium absorbing material for long-life high-performance bass reproduction
High, Mid and Low range contour control
High-Pass Filter – Flat, 60Hz & 80Hz selectable

Name	Spec
DT-5S
System	Two-way active nearfield monitor
Frequency Response (+/-3dB)	45 Hz - 25 kHz
Max SPL 2 m, pair in listening room (IEC Short Term)	113 dB peak
Bass Principle	50 Hz
Tuning Frequency	50 Hz
Tweeter	1" wide dispersion silk dome
Woofer	5.25" Nomex paper cone
Magnetically shielded/compensated	Shielded and Compensated
Cross over frequency	2.8 kHz
Cross over slope	24 dB/oct (LP and HP)
Input level for 100dB SPL @ 500-2000 Hz avg @ 1 m	0 dBu RMS @ 0 dB level setting
Input connectors	Balanced XLR
User settings (on the rear panel)
Power	2 pos switch (On/Off)
Input sensitivity	20 pos encoder (0 dB to mute)
High Pass Control	3 pos switch (Flat / 60 Hz / 80 Hz)
(remote controlled)
Bass control	3 pos switch (-2 dB / 0 dB / +2 dB)
Midrange control	3 pos switch (-2 dB / 0 dB / +2 dB)
Treble control	3 pos switch (-2 dB / 0 dB / +2 dB)
Power consumption	Idle: 15 W / Max: 120 W
Amplifier power	Tweeter: 40 W / Woofer: 80 W
Weight	7.8 kg
Dimensions(LxWxH)	285 x 182 x 304 mm
DT-6S
System	Two-way active nearfield monitor
Frequency Response (+/-3dB)	45 Hz - 25 kHz
Max SPL 2 m, pair in listening room (IEC Short Term)	116 dB peak
Bass Principle	Bass reflex
Tuning Frequency	45 Hz
Tweeter	1" wide dispersion silk dome
Woofer	6.5" Nomex paper cone
Magnetically shielded/compensated	Shielded and Compensated
Cross over frequency	2.5 kHz
Cross over slope	24 dB/oct (LP and HP)
Input level for 100dB SPL @ 500-2000 Hz avg @ 1 m	0 dBu RMS @ 0 dB level setting
Input connectors	Balanced XLR
User settings (on the rear panel)
Power	2 pos switch (On/Off)
Input sensitivity	21 pos encoder (0 dB to mute)
High Pass Control	3 pos switch (Flat / 60 Hz / 80 Hz)
(remote controlled)
Bass control	3 pos switch (-2 dB / 0 dB / +2 dB
Midrange control	3 pos switch (-2 dB / 0 dB / +2 dB)
Treble control	3 pos switch (-2 dB / 0 dB / +2 dB)
Power consumption	Idle: 15 W / Max: 180 W
Amplifier power	Tweeter: 40 W / Woofer: 80 W
Weight	10.72 kg
Dimensions(LxWxH)	330 x 208 x 334 mm
DT-8S
System	Two-way active nearfield monitor
Frequency Response (+/-3dB)	35 Hz - 25 kHz
Max SPL 2 m, pair in listening room (IEC Short Term)	120 dB peak
Bass Principle	Bass reflex
Tuning Frequency	40 Hz
Tweeter	1" wide dispersion silk dome
Magnetically shielded/compensated	Shielded and Compensated
Cross over frequency	2.2 kHz
Cross over slope	24 dB/oct (LP and HP)
Input level for 100dB SPL @ 500-2000 Hz avg @ 1 m	0 dBu RMS @ 0 dB level setting
Input connectors	Balanced XLR
User settings (on the rear panel)
Power	2 pos switch (On/Off)
Input sensitivity	22 pos encoder (0 dB to mute)
High Pass Control	3 pos switch (Flat / 60 Hz / 80 Hz)
(remote controlled)
Bass control	3 pos switch (-2 dB / 0 dB / +2 dB
Midrange control	3 pos switch (-2 dB / 0 dB / +2 dB)
Treble control	3 pos switch (-2 dB / 0 dB / +2 dB)
Power consumption	Idle: 15 W / Max: 230 W
Amplifier power	Tweeter: 80 W / Woofer: 150 W 14.5 liters
Weight	14.49 kg
Dimensions(LxWxH)	295 x 255 x 376 mm

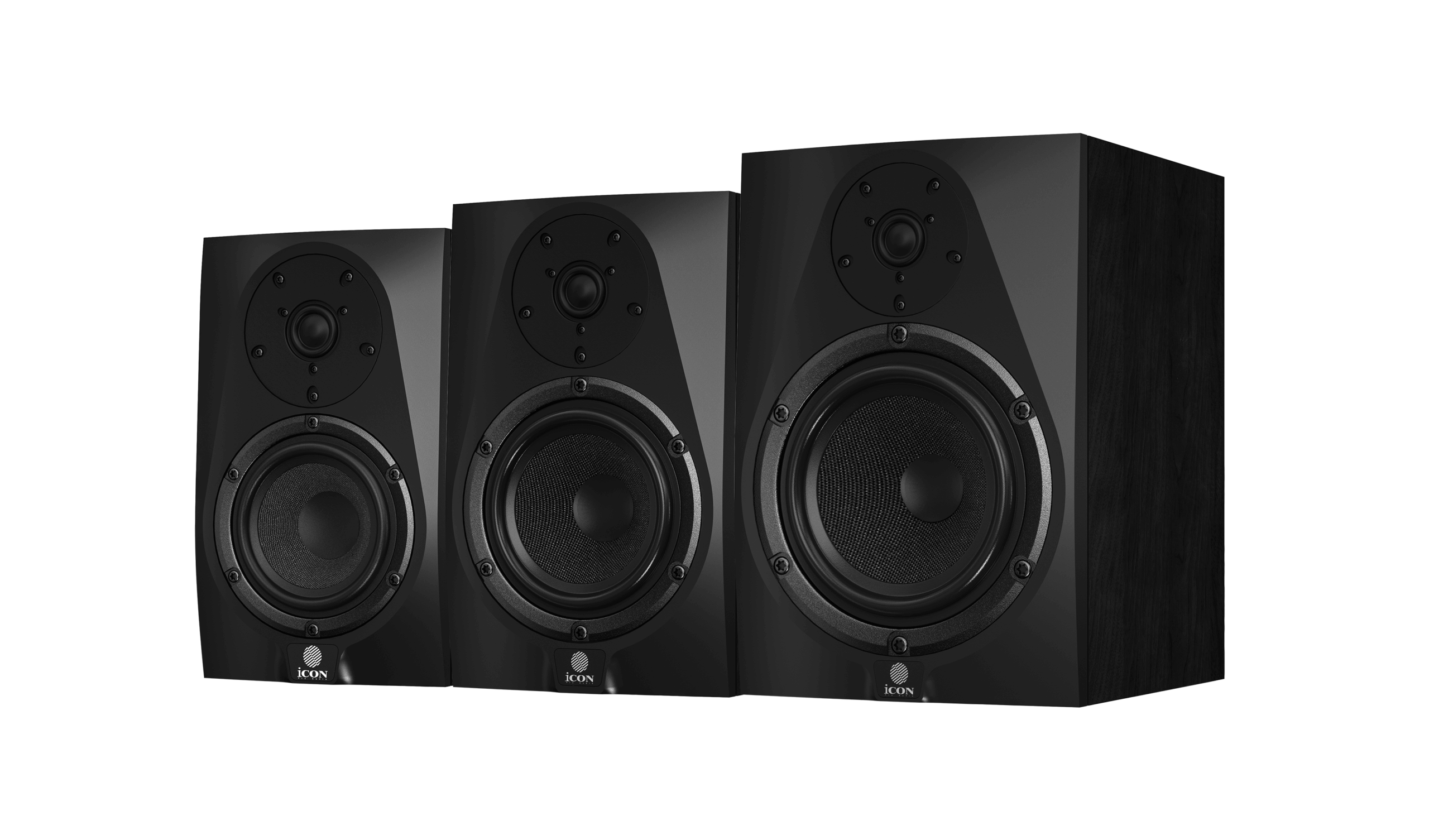

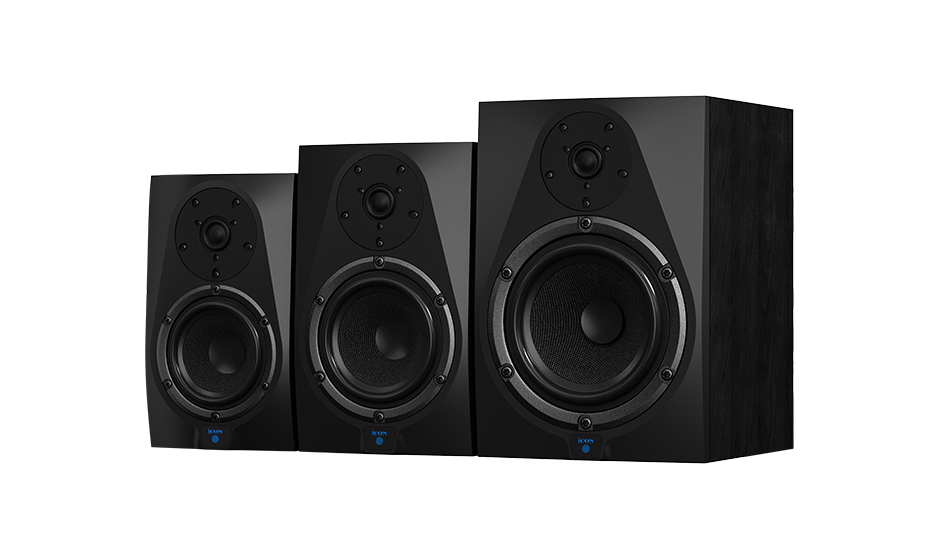

DT-5S /DT-6S /DT-8S

The DT-S studio monitor is designed to deliver precise, flat sound for
accurate monitoring, while offering the flexibility to adjust the sound
to match other popular near-field monitors. Whether you’re mixing,
mastering, or listening critically, the DT-S allows you to customize the
sound to fit your needs.

Built with a custom 5.5”/6.5”/8.0” Nomex® reinforced paper cone woofer
and a 1″ soft fabric dome tweeter, the DT-S delivers clear highs and powerful
lows. The high-quality components in the monitor’s crossover ensure smooth
and consistent frequency response, while the MDF enclosure with a tuned
vent port enhances the low-end performance with minimal turbulence.

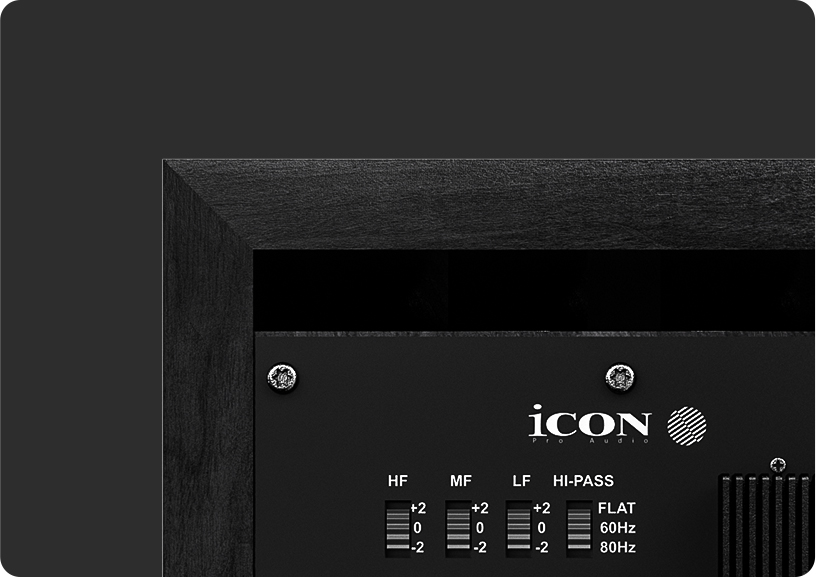

The rear panel features an XLR input that connects to the internal Bi-Amp
power module, providing dedicated power to both the woofer and tweeter.
You’ll also find an easy-to-use pre-amp section, including a volume encoder,
as well as Hi, Mid, and Low presence switches. These innovative controls let
you shape the sound and tune the monitors to suit your room or your
preference—from traditional hi-fi sound to a flat, accurate response, with two
additional levels for a more aggressive sound profile.

Designed for professionals who need accurate, adaptable monitoring, the DT-S
is the ideal choice for any studio setup.

DT-5S /DT-6S /DT-8S

The DT-S studio monitor is designed to deliver precise, flat sound for accurate monitoring, while offering the flexibility to adjust the sound to match other popular near-field monitors. Whether you’re mixing, mastering, or listening critically, the DT-S allows you to customize the sound to fit your needs.

Built with a custom 5.5”/6.5”/8.0” Nomex® reinforced paper cone woofer and a 1″ soft fabric dome tweeter, the DT-S delivers clear highs and powerful lows. The high-quality components in the monitor’s crossover ensure smooth and consistent frequency response, while the MDF enclosure with a tuned vent port enhances the low-end performance with minimal turbulence.

The rear panel features an XLR input that connects to the internal Bi-Amp power module, providing dedicated power to both the woofer and tweeter. You’ll also find an easy-to-use pre-amp section, including a volume encoder, as well as Hi, Mid, and Low presence switches. These innovative controls let you shape the sound and tune the monitors to suit your room or your preference—from traditional hi-fi sound to a flat, accurate response, with two additional levels for a more aggressive sound profile.

Designed for professionals who need accurate, adaptable monitoring, the DT-S is the ideal choice for any studio setup.

Available in three sizes—5.5-inch, 6.5-inch, and 8-inch—each monitor is specifically
designed to deliver optimal performance for its size and near-field listening requirements.

Available in three sizes—5.5-inch, 6.5-inch, and 8-inch
—each monitor is specifically designed to deliver optimal
performance for its size and near-field listening requirements.

The DT-S features a custom Nomex® reinforced paper cone woofer paired with
a 1″ soft fabric dome tweeter, delivering crisp highs and deep lows. Its high-quality
crossover components ensure a smooth and consistent frequency response for
accurate sound.

The DT-S features a custom Nomex® reinforced paper cone woofer
paired with a 1″ soft fabric dome tweeter, delivering crisp highs and
deep lows. Its high-quality crossover components ensure a smooth
and consistent frequency response for accurate sound.

The MDF enclosure, equipped with
a tuned vent port, boosts
low-end performance while minimizing
turbulence for cleaner sound.

The MDF enclosure, equipped
with a tuned vent port, boosts
low-end performance while
minimizing turbulence for
cleaner sound.

The DT-S features intuitive preamp
controls, including volume and Hi, Mid,
and Low presence switches. These controls
allow you to adjust the sound to your
preference, from traditional hi-fi to a flat,
accurate response, with two additional
settings for a more dynamic sound
profile.

The DT-S features intuitive preamp
controls, including volume and Hi, Mid,
and Low presence switches. These controls
allow you to adjust the sound to your
preference, from traditional hi-fi to a flat,
accurate response, with two additional
settings for a more dynamic sound
profile.

DIFFERENT APPLICATIONS

BROADCASTING

CRITICAL LISTENING

MASTERING

DIFFERENT APPLICATIONS

RECORDING AND MIXING

MASTERING

CRITICAL LISTENING

BROADCASTING

WHAT’S IN THE BOX

DT-5S / DT-6S or DT-8S
Active Studio Monitor System
“VasorbTM” monitor
rubber feet x 4pcs.
Power Cable
Quickstart Guide

WHAT’S IN THE BOX

DT-5S / DT-6S /DT-8S Active Studio Monitor System
“VasorbTM” monitor rubber feet x 4pcs.
Power Cable
Quickstart Guide

DT-S

DT-S
