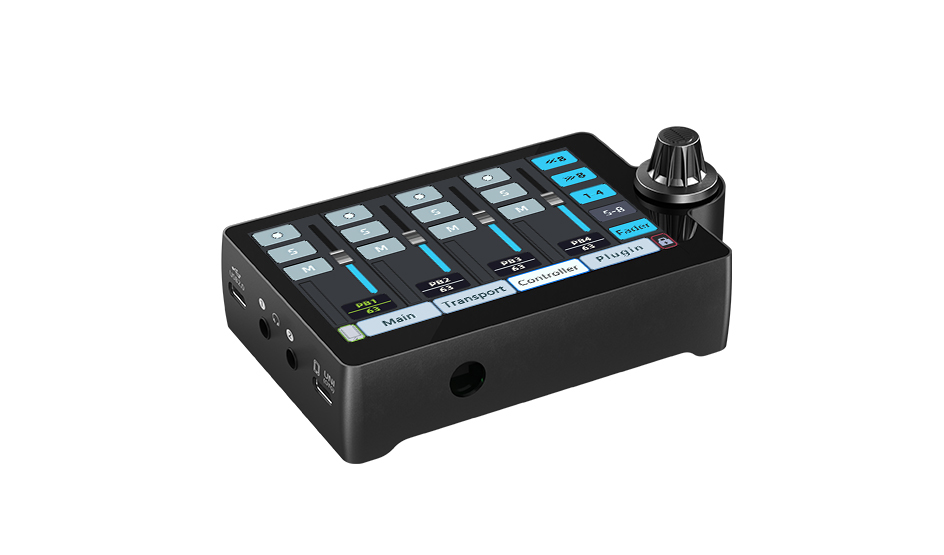

Small Screen. Big Control. Pure Sound.

aio2 is designed for creators who want real studio sound
without a desk full of gear. The compact touch screen gives
you fast visual control, while high-resolution audio keeps
every detail clean, present, and alive.

3.98 inch TFT Full-Touch Interface with smartphone-like operation
Precision Digital Encoder for tactile control, enabling ultra-fine adjustment of gain, levels, effects, and plug-in parameters in a hybrid touch workflow
Real-time control of mic, instrument, OTG, and headphone gain
Up to 116dB Dynamic Range for detailed, lifelike sound
83dB Microphone Gain for strong, clear vocal capture
24-bit / up to 192kHz audio (44.1/48/88.2/96/176.4/192kHz selectable)
116dB Signal-to-Noise Ratio for low noise
THD+N as low as -108dB for extremely low distortion
Headphone output up to +14dBu for loud, clean monitoring
UNI OTG lossless digital transmission for stable device-to-device audio
Palm-sized design with magnetic ring + mounting holes for compatibility with various stands and mounts
Durable metal casing

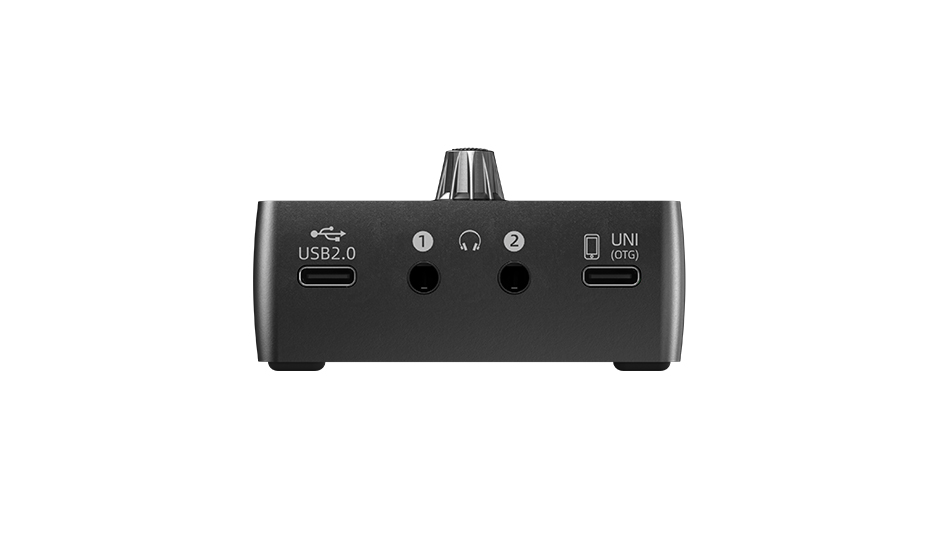

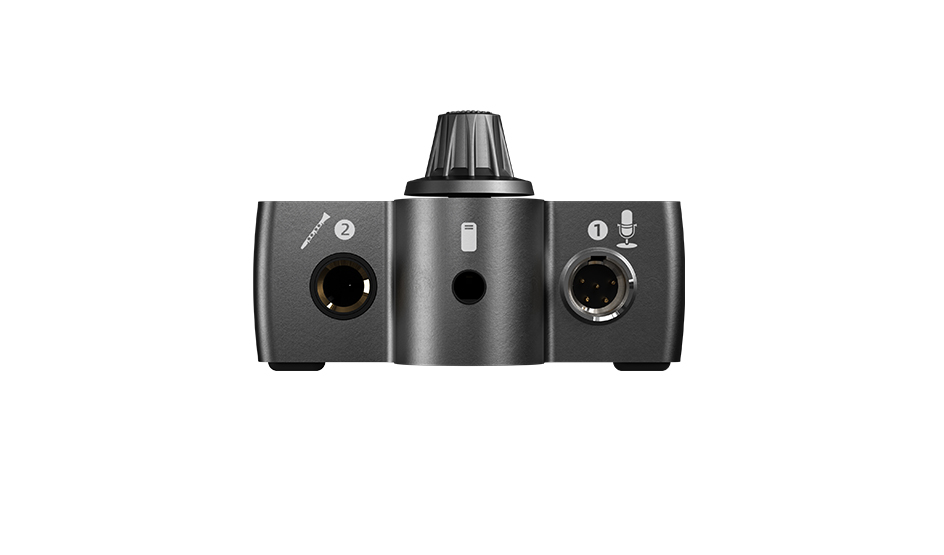

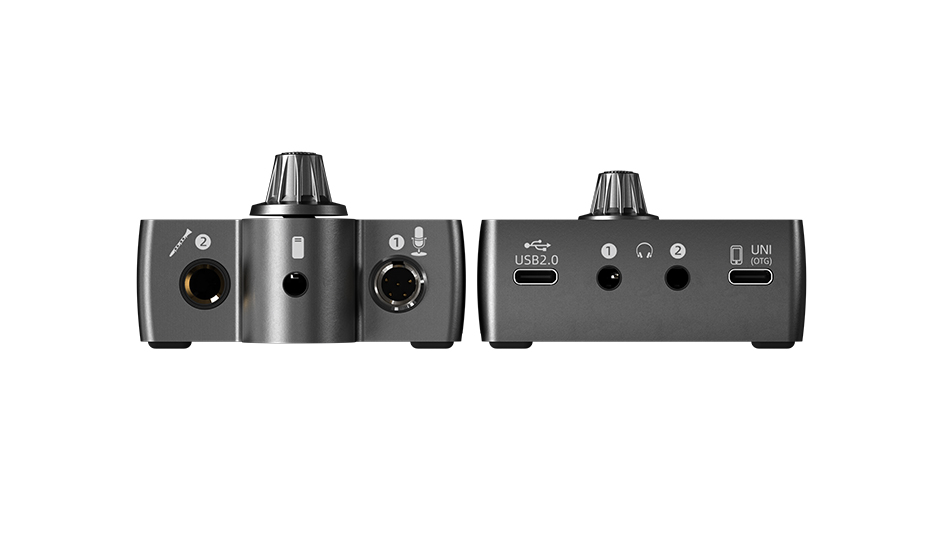

Name	Spec
I/O	2 inputs 2 outputs
Mic Input (Mini XLR balanced, with +48V phantom power)	1
Analog Line Input (6.35 mm + 3.5 mm)	2
Wireless Lavalier Mic Input (shared 3.5 mm port)	1
Headphone Monitoring Output (3.5 mm, DC-coupled)	2
Digital Output Port	1(USB OTG)
Audio to Digital Conversion（ADC specifications）
Dynamic Range	116dB(A-weighted)
Signal-to-Noise Ratio	-116dB(A-weighted)
Total Harmonic Distortion(THD+N)	-108dB(@ -1dBFS)
Digital to Audio Conversion（ADC specifications）
Dynamic Range	116dB(A-weighted)
Signal-to-Noise Ratio	-116dB(A-weighted)
Total Harmonic Distortion(THD+N)	-110dB(@ -1dBFS)
Mic Inputs(XLR balanced)
Frequency Response	20Hz – 20kHz(+/-0.1dB)
Gain Range(Analog)	0dB-63dB, 3dB step
Gain Range(Digital)	0dB-20dB, 1dB step
Maximum Gain	83dB
Nominal Input Level	-57dBu – +5.45dBu
Maximum Input Level	+5.45dBu
Expected Source Impedance	150Ω – 2000Ω
Headphone Output 1/2 (6.35mm Stereo, Unbalanced)	3000Ω
3.5mm and 1/4" Line Inputs
Frequency Response	20Hz – 20kHz(+/-1dB)
Maximum Level	+9.64dBu
Nominal Input Level	+0dBu
Expected Source Impedance	100kΩ
Actual Load Impedance	100kΩ
Headphone Outputs(Stereo,Unbalanced)
Frequency Response	20Hz – 20kHz(+/-1dB)
Load Impedance	16Ω – 600Ω
Output Impedance	10Ω
Maximum Output Level	198mW+198mW，@ 64Ω
	140mW+140mW，@ 100Ω
	17mW+17mW，@ 600Ω
Dimensions	67.6 mm × 115.6 mm × 39.7 mm
Weight	0.221 kg

macOS: OS X 10.11 El Capitan to macOS 26 Tahoe
Mac processors: Intel and Apple Silicon, including M1 series, M2 series, M3 series, M4, M4 Pro, and M5
Windows: Windows 10 (64-bit), Windows 11
PC processors: Intel and AMD
iOS / iPadOS: iOS 11 or later, including iOS 26

Small Screen. Big Control. Pure Sound.

3.98 inch TFT Full-Touch Interface with smartphone-like operation
Precision Digital Encoder for tactile control, enabling ultra-fine adjustment of gain, levels, effects, and plug-in parameters in a hybrid touch workflow
Real-time control of mic, instrument, OTG, and headphone gain
Up to 116dB Dynamic Range for detailed, lifelike sound
83dB Microphone Gain for strong, clear vocal capture
24-bit / up to 192kHz audio (44.1/48/88.2/96/176.4/192kHz selectable)
116dB Signal-to-Noise Ratio for low noise
THD+N as low as -108dB for extremely low distortion
Headphone output up to +14dBu for loud, clean monitoring
UNI OTG lossless digital transmission for stable device-to-device audio
Palm-sized design with magnetic ring + mounting holes for compatibility with various stands and mounts
Durable metal casing

Name	Spec
I/O	2 inputs 2 outputs
Mic Input (Mini XLR balanced, with +48V phantom power)	1
Analog Line Input (6.35 mm + 3.5 mm)	2
Wireless Lavalier Mic Input (shared 3.5 mm port)	1
Headphone Monitoring Output (3.5 mm, DC-coupled)	2
Digital Output Port	1(USB OTG)
Audio to Digital Conversion（ADC specifications）
Dynamic Range	116dB(A-weighted)
Signal-to-Noise Ratio	-116dB(A-weighted)
Total Harmonic Distortion(THD+N)	-108dB(@ -1dBFS)
Digital to Audio Conversion（ADC specifications）
Dynamic Range	116dB(A-weighted)
Signal-to-Noise Ratio	-116dB(A-weighted)
Total Harmonic Distortion(THD+N)	-110dB(@ -1dBFS)
Mic Inputs(XLR balanced)
Frequency Response	20Hz – 20kHz(+/-0.1dB)
Gain Range(Analog)	0dB-63dB, 3dB step
Gain Range(Digital)	0dB-20dB, 1dB step
Maximum Gain	83dB
Nominal Input Level	-57dBu – +5.45dBu
Maximum Input Level	+5.45dBu
Expected Source Impedance	150Ω – 2000Ω
Headphone Output 1/2 (6.35mm Stereo, Unbalanced)	3000Ω
3.5mm and 1/4" Line Inputs
Frequency Response	20Hz – 20kHz(+/-1dB)
Maximum Level	+9.64dBu
Nominal Input Level	+0dBu
Expected Source Impedance	100kΩ
Actual Load Impedance	100kΩ
Headphone Outputs(Stereo,Unbalanced)
Frequency Response	20Hz – 20kHz(+/-1dB)
Load Impedance	16Ω – 600Ω
Output Impedance	10Ω
Maximum Output Level	198mW+198mW，@ 64Ω
	140mW+140mW，@ 100Ω
	17mW+17mW，@ 600Ω
Dimensions	67.6 mm × 115.6 mm × 39.7 mm
Weight	0.221 kg

macOS: OS X 10.11 El Capitan to macOS 26 Tahoe
Mac processors: Intel and Apple Silicon, including M1 series, M2 series, M3 series, M4, M4 Pro, and M5
Windows: Windows 10 (64-bit), Windows 11
PC processors: Intel and AMD
iOS / iPadOS: iOS 11 or later, including iOS 26

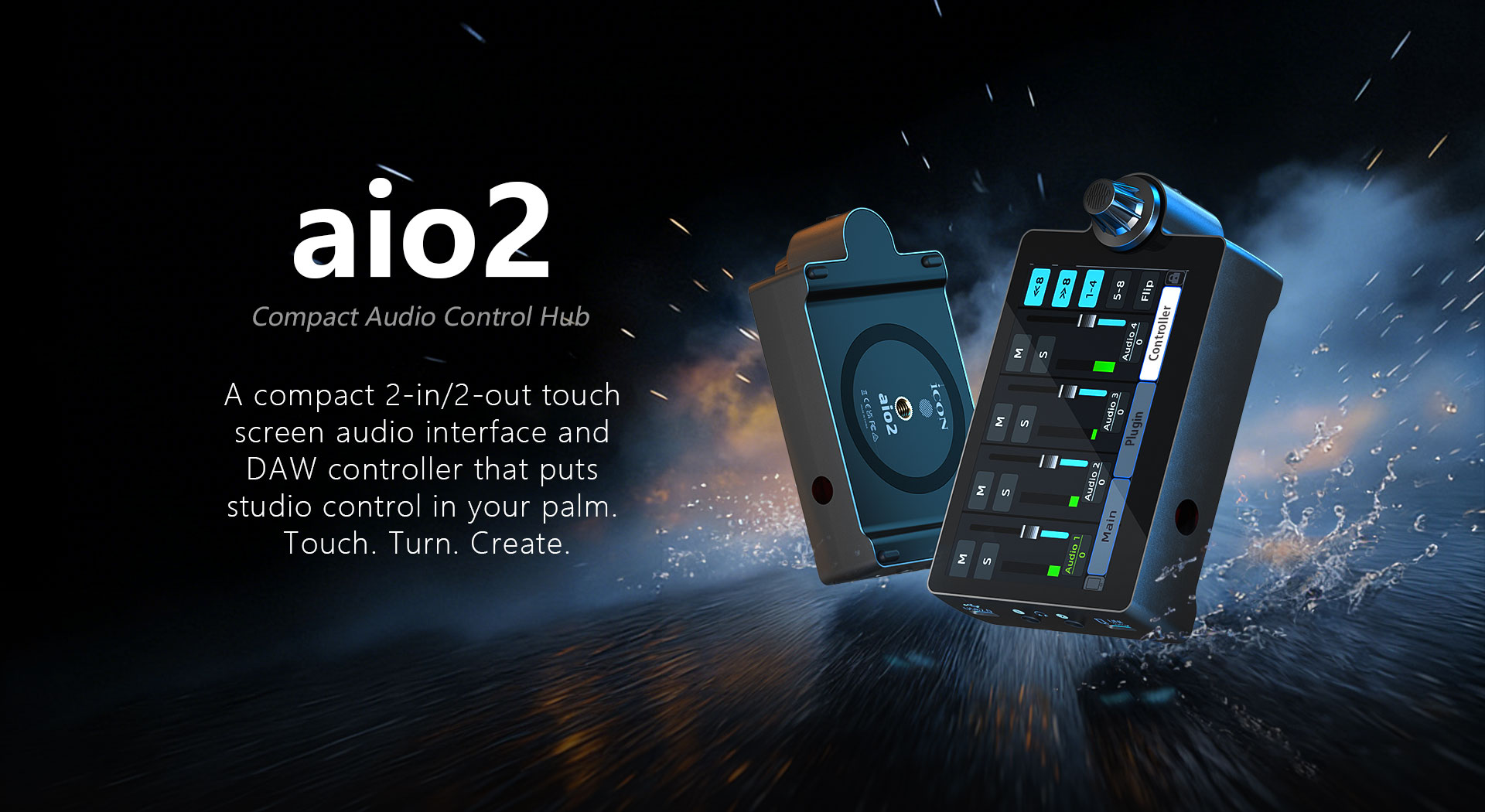

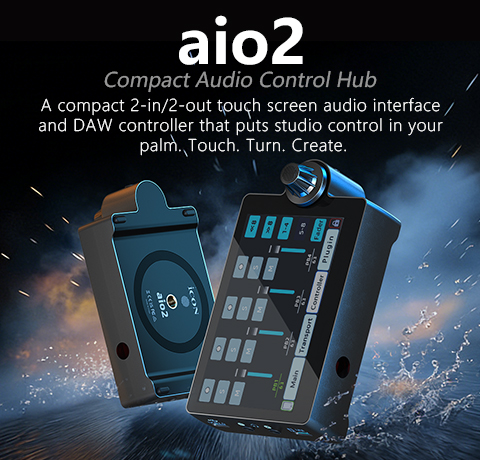

aio2

aio2 is built around one idea: studio-quality audio should feel simple and immediate.

At the center is a compact 3.98-inch full-touch screen that gives you clear, visual control over
your entire signal path. Levels, effects, plug-ins, and mixes are adjusted with your finger tips for
fast, intuitive, and easy to understand control.

For moments when fine tuning is in order, aio2 adds a Precision Digital Encoder. This rotary
control adjusts whatever parameter is selected on the screen, giving you tactile control for fine
moves. Use it alone, or combine it with touch for a smooth hybrid workflow that feels natural
and efficient.

Behind the screen, the sound stays serious. With up to 116dB dynamic range, aio2 captures
quiet details and powerful transients with confidence. 83dB of microphone gain brings weak
signals forward with clarity, while 24-bit audio up to 192kHz delivers clean resolution for
recording, streaming, and broadcast-level work. A 116dB signal-to-noise ratio helps keep your
sound pure and controlled.Compact and touch-driven, aio2 gives you clear, hands-on control for
real audio work.

aio2

aio2 is built around one idea: studio-quality audio should feel simple and immediate.

At the center is a compact 3.98-inch full-touch screen that gives you clear, visual control over your entire signal path. Levels, effects, plug-ins, and mixes are adjusted with your finger tips for fast, intuitive, and easy to understand control.

For moments when fine tuning is in order, aio2 adds a Precision Digital Encoder. This rotary control adjusts whatever parameter is selected on the screen, giving you tactile control for fine moves. Use it alone, or combine it with touch for a smooth hybrid workflow that feels natural and efficient.

Behind the screen, the sound stays serious. With up to 116dB dynamic range, aio2 captures quiet details and powerful transients with confidence. 63dB of microphone gain brings weak signals forward with clarity, while 24-bit audio up to 192kHz delivers clean resolution for recording, streaming, and broadcast-level work. A 116dB signal-to-noise ratio helps keep your sound pure and controlled.Compact and touch-driven, aio2 gives you clear, hands-on control for real audio work.

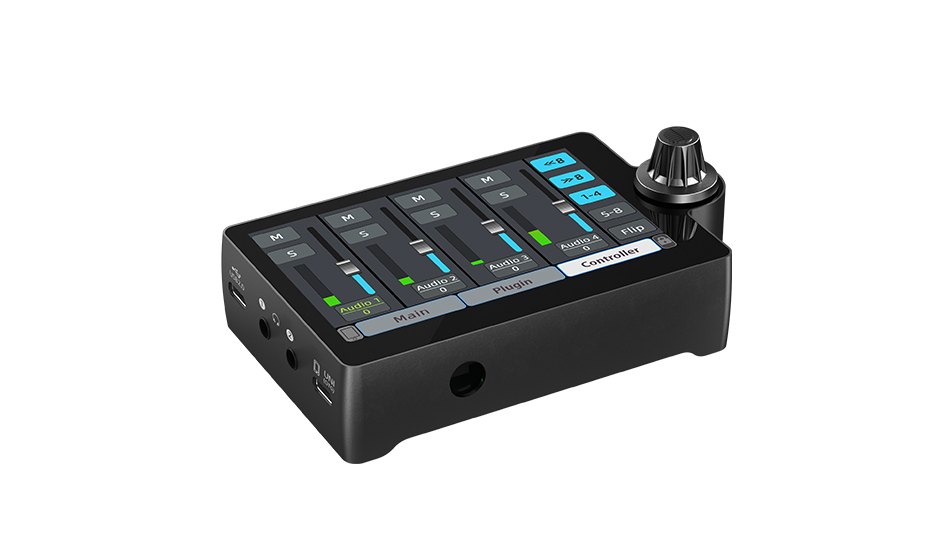

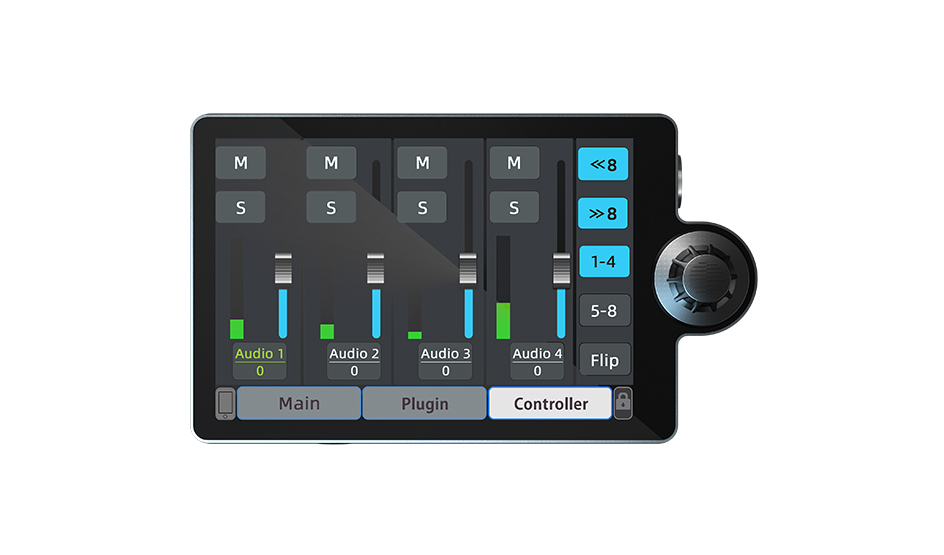

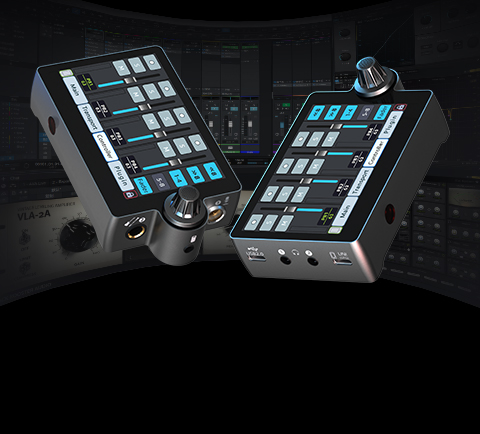

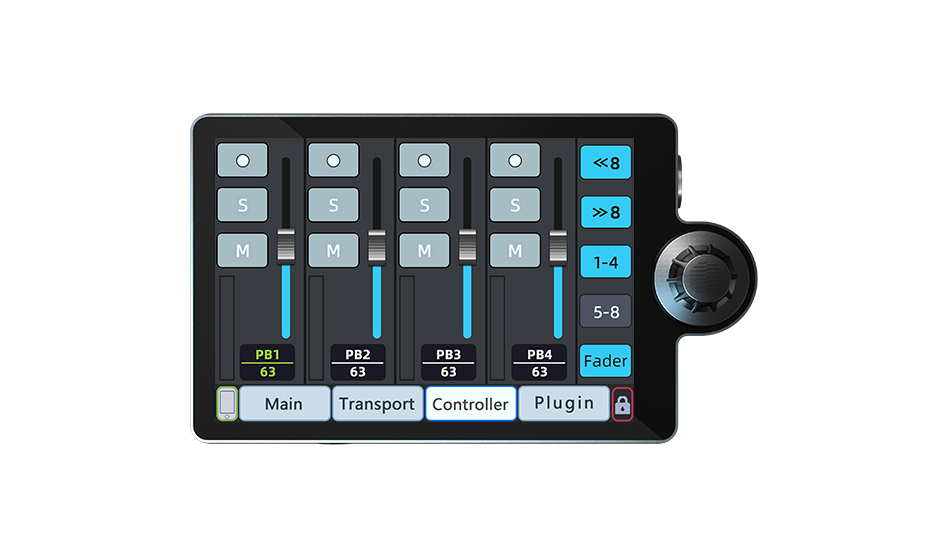

Compact Full-Touch Screen Control

Name: aio2
SKU: IPA-aio2
Price: 159.00 USD
Availability: OutOfStock

The 3.98-inch TFT full-touch display gives you fast, visual access to your audio. It’s small enough
to stay portable, but clear enough to manage complex settings without menus getting in the way.

Compact Full-Touch Screen Control

The 3.98-inch TFT full-touch display gives you fast, visual access to your audio. It’s small enough to stay portable, but clear enough to manage complex settings without menus getting in the way.

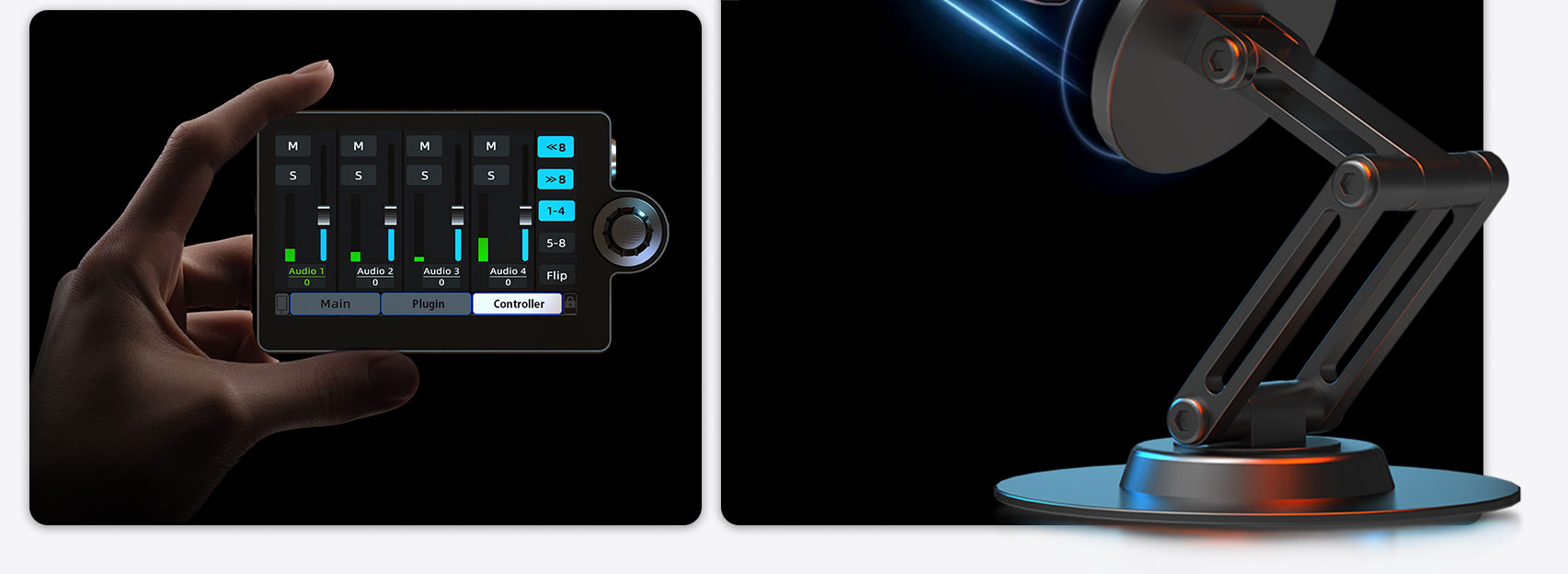

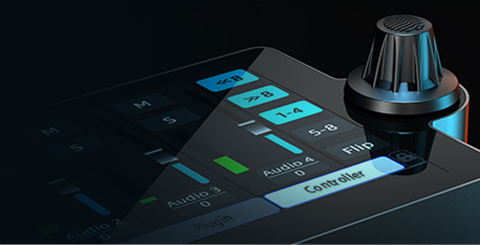

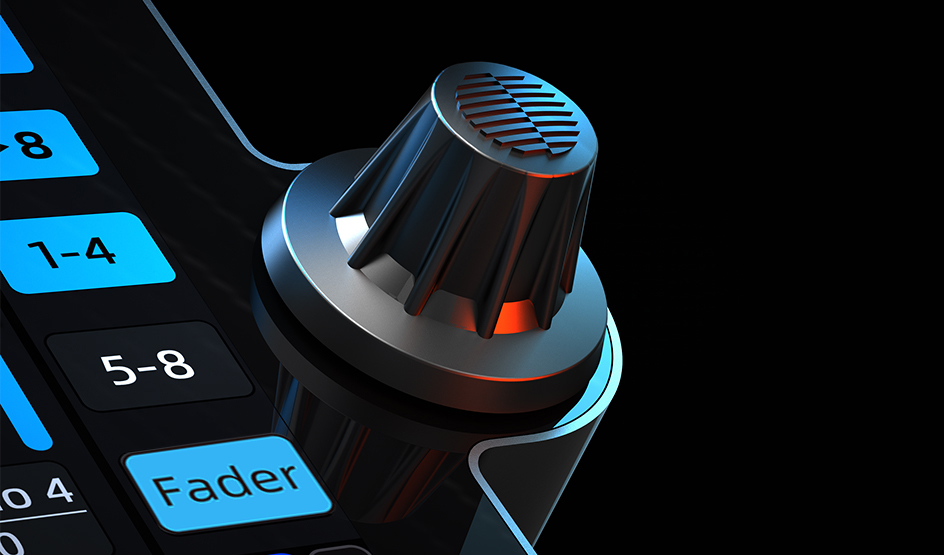

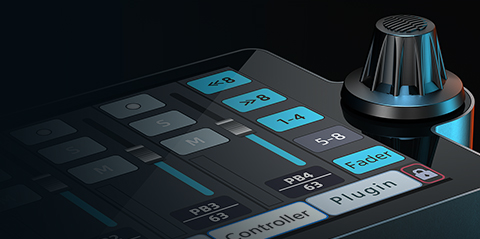

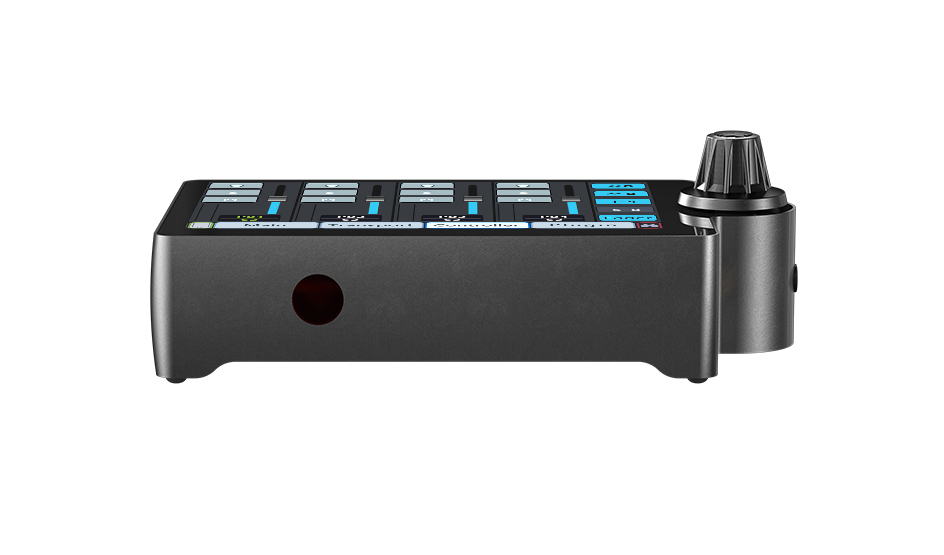

Precision Digital
Encoder (Tactile Control)

The Precision Digital Encoder is a multi-function
rotary control designed for tactile control.
It adjusts whatever parameter is selected on the
touch screen—including gain, volume, effects,
plug-ins, and mixer settings. You can use the
encoder in tandem with touch as part of a fast
hybrid touch workflow. This gives you the speed
of touch with the accuracy of physical control
—ideal for fine tuning without breaking creative focus.

Precision Digital
Encoder (Tactile Control)

The Precision Digital Encoder is a
multi-function rotary control
designed for tactile control. It adjusts
whatever parameter is selected
on the touch screen—including gain,
volume, effects, plug-ins, and mixer
settings. You can use the encoder in
tandem with touch as part of a fast
hybrid touch workflow. This gives
you the speed of touch with the
accuracy of physical control
—ideal for fine tuning without
breaking creative focus.s.

Real-Time Multi-Source Control

Independently control microphone, instrument, OTG, and headphone gain in real time.

Real-Time Multi-Source Control

Independently control microphone, instrument, OTG, and headphone gain in real time.

Studio-Quality
Audio Path

With 116dB dynamic range, 24-bit / 192kHz
resolution, and ultra-low distortion, aio2
delivers sound that stays detailed, open, and
true to the source.

Studio-Quality
Audio Path

With 116dB dynamic range, 24-bit / 192kHz
resolution, and ultra-low distortion, aio2
delivers sound that stays detailed, open, and
true to the source.

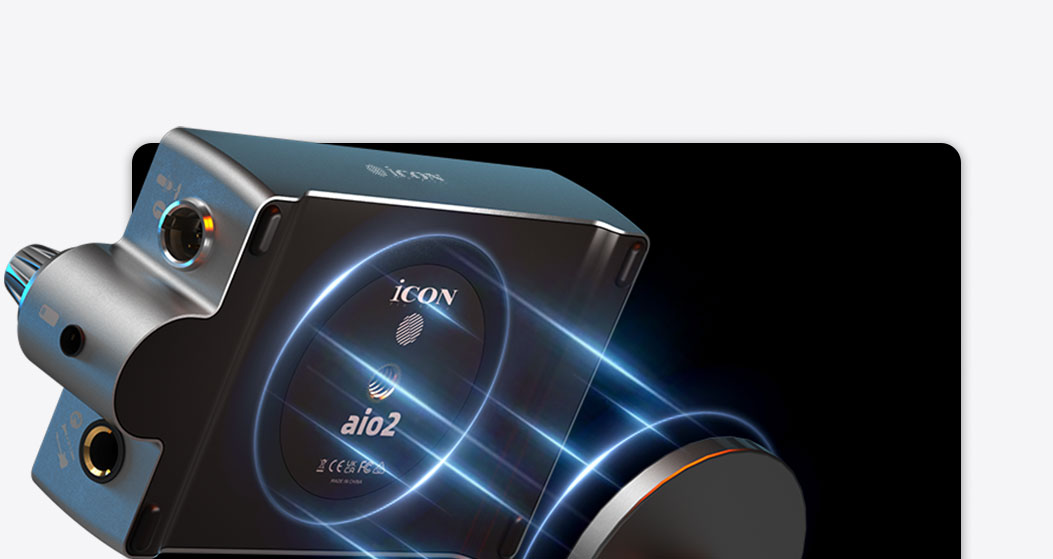

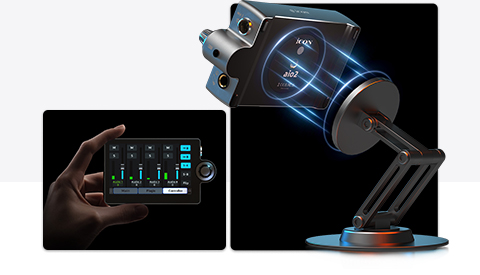

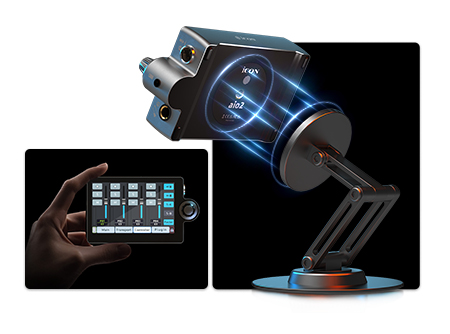

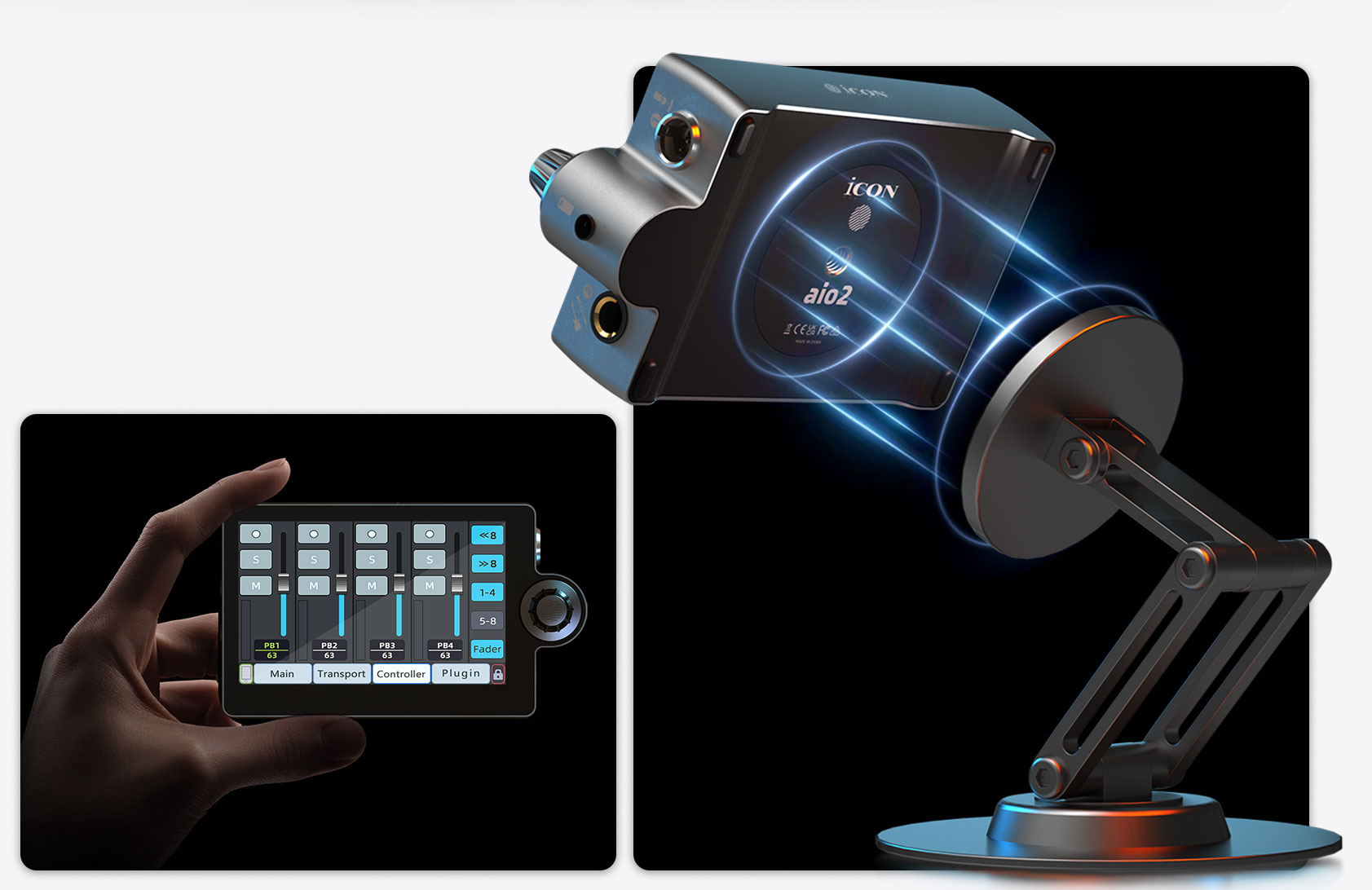

Portable Build
+ Flexible Mounting

Palm-sized and travel-ready, with a metal
casing plus a bottom design that includes a
magnetic ring and mounting holes, compatible
with many common stands and mounts.

Portable Build
+ Flexible Mounting

Palm-sized and travel-ready, with a metal
casing plus a bottom design that includes a
magnetic ring and mounting holes, compatible
with many common stands and mounts.

DIFFERENT APPLICATIONS

Live Streaming

Quick control of multiple sources while you’re on-air
—adapt fast when the energy changes.

Podcasting

Strong mic gain and clean specs for clear voice capture
with low background interference.

Home Studio Recording

Track vocals and instruments
with high-resolution audio and precise gain control.

Mobile / OTG Creator Setup

Use UNI OTG lossless transmission for stable
audio flow between devices in portable workflows.

DIFFERENT APPLICATIONS

Live Streaming

Quick control of multiple sources while you’re on-air
—adapt fast when the energy changes.

Podcasting

Strong mic gain and clean specs for clear voice
capture with low background interference.

Mobile / OTG Creator Setup

Use UNI OTG lossless transmission for stable audio
flow between devices in portable workflows.

Home Studio Recording

Track vocals and instruments with high-resolution
audio and precise gain control.

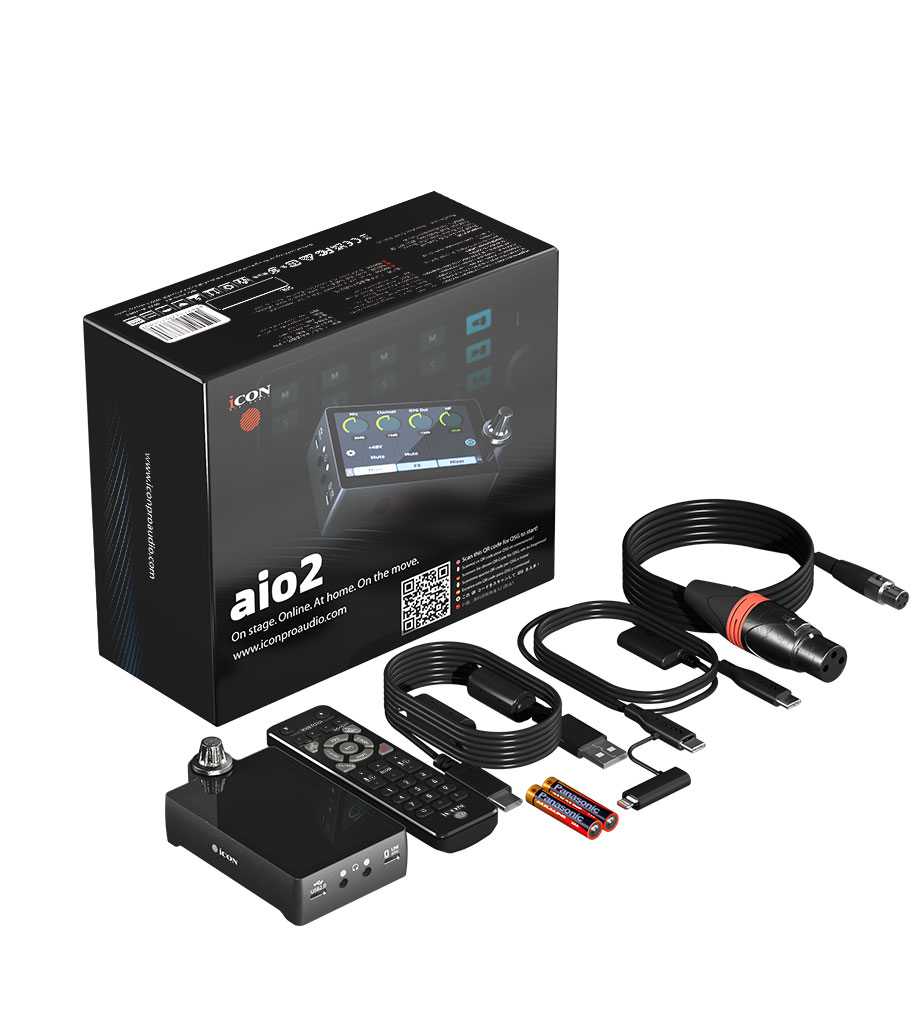

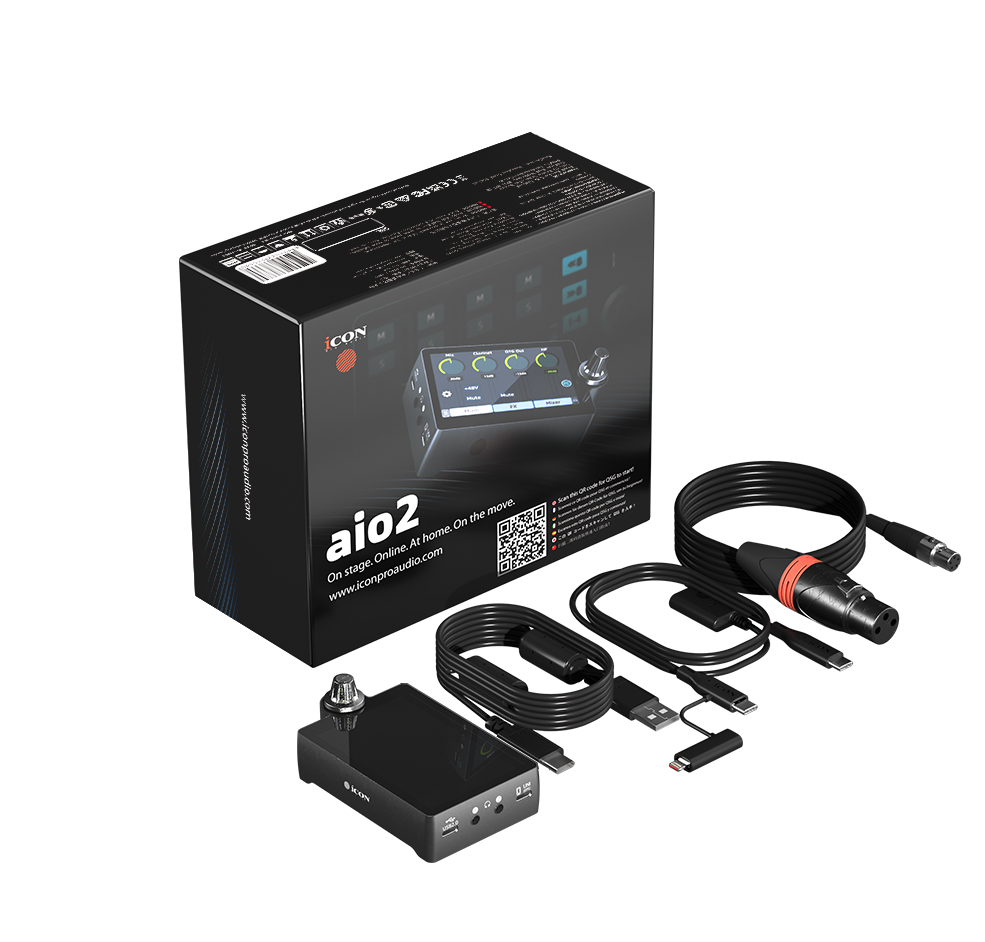

WHAT’S IN THE BOX

iCON Pro Audio aio2 Audio Magic Box
One remote control
Two AAA batteries
One USB-C cable
One OTG cable
One micro XLR female to XLR female audio cable

(Other included accessories may vary by region or bundle.)

WHAT’S IN THE BOX

iCON Pro Audio aio2 Audio Magic Box
One remote control
Two AAA batteries
One USB-C cable
One OTG cable
One micro XLR female to XLR female audio cable

(Other included accessories may vary by region or bundle.)
