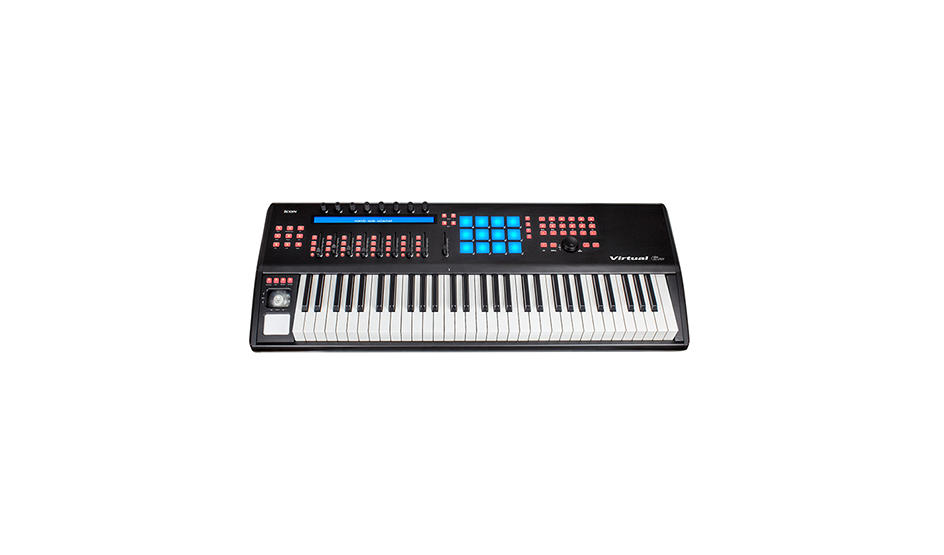

Virtual 6FH

MSRP

Fatar velocity sensitive hammer action piano style keys
Key switch and pads allow multi-assignment & simultaneous operation on multi- software
The powerful controller is equipped and easily set up with Mackie Control and HUI protocol
Full-weighted velocity-sensitive piano style keyboard
Combined pitch/modulation joystick
8 x dual function encoder knobs (Enter & rotate)
8+1 assignable faders
12 integrated velocity-sensitive trigger pads send MIDI notes or control data
X/Y touchpad
“Hold”, “Pad Roll” & “Key Roll” feature buttons are equipped for Pad & Key rolling effect when using with the touchpad
Large backlit LCD to display channel name, control values etc. for each channel
62 assignable buttons
Jog wheel shuttle for fast search and control
Illuminated buttons for each channel including Rec-enable, Solo, Mute and Select
6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast forward and Loop
Illuminated zoom key with 4 direction keys
Single Transpose button use combines with key switch to shift pitch effectively
Multi velocity curves available for selection (Key and Pads)
1 x 1 16-channels MIDI I/O
Expression & sustain pedal TRS connectors
Mounting holes equipped for an optional iPad holder
Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit), Windows 8(32-bit & 64-bit), Windows 10 (32-bit & 64-bit) and Mac OSX (IntelMac)
USB 2.0 high speed connectivity
Mackie control build-in for Cubase, Nuendo, Samplitude, Logic Pro and Ableton Live
Mackie HUI protocol build-in for Pro Tool
User self-define mode (MIDI Learn) for other DAW such as Sonar
Firmware upgrade available simply via USB connection and iMap software
Template labels are included for difference popular DAW such as Cubase, Nuendo,Samplitude, Logic Pro and Ableton Live
Robust aluminum and metal casing with Kensington lock port

Name	Spec
Connector	USB: USB connector (standard type)
Connector	Sustain & Expression: 2x1/4” TS connectors
Connector	MIDI I/O: 5-pin Din connector
Power supply	12V/100mA DC
Current consumption	100mA or less
Weight	14.92KG(32.89lb)
Dimensions	996(L) x 386.5(W) x 120(H)mm
Dimensions	39.2”(L) x 15.2”(W) x 4.7”(H)
