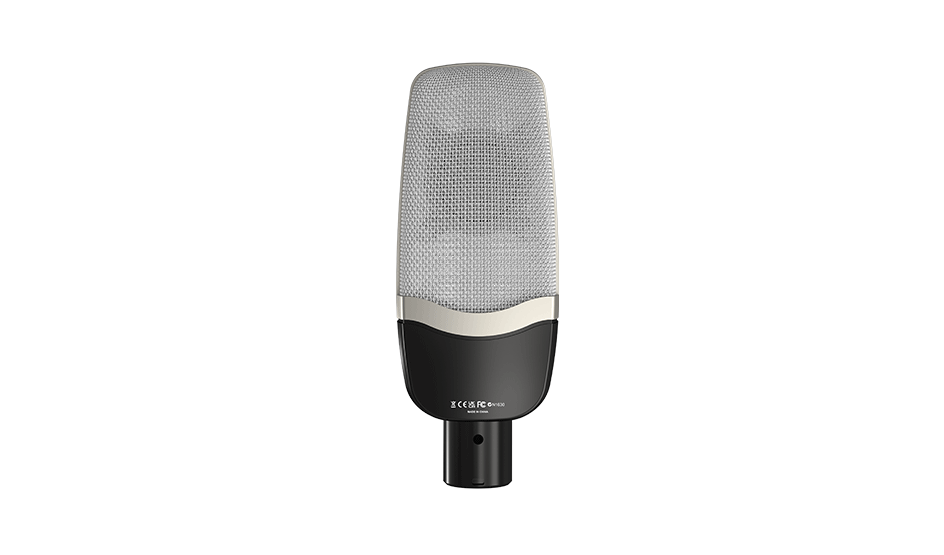

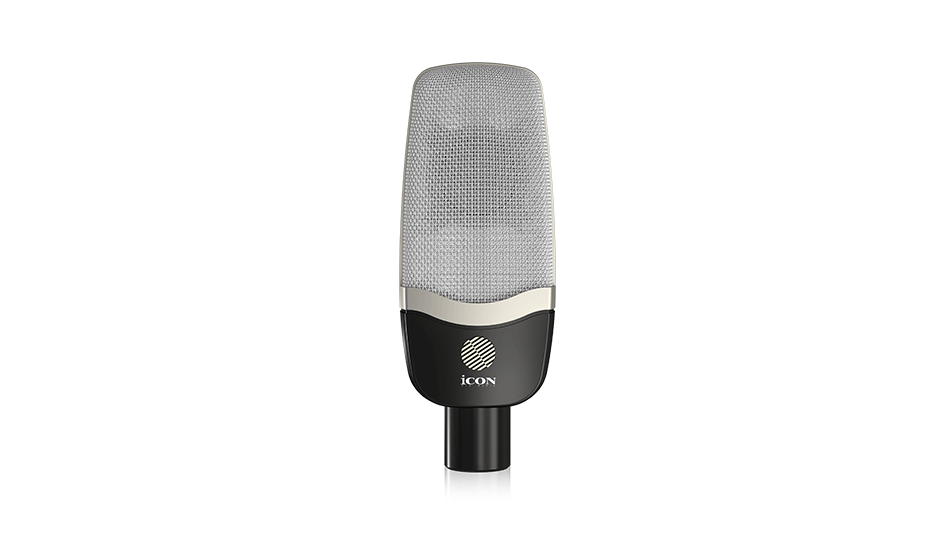

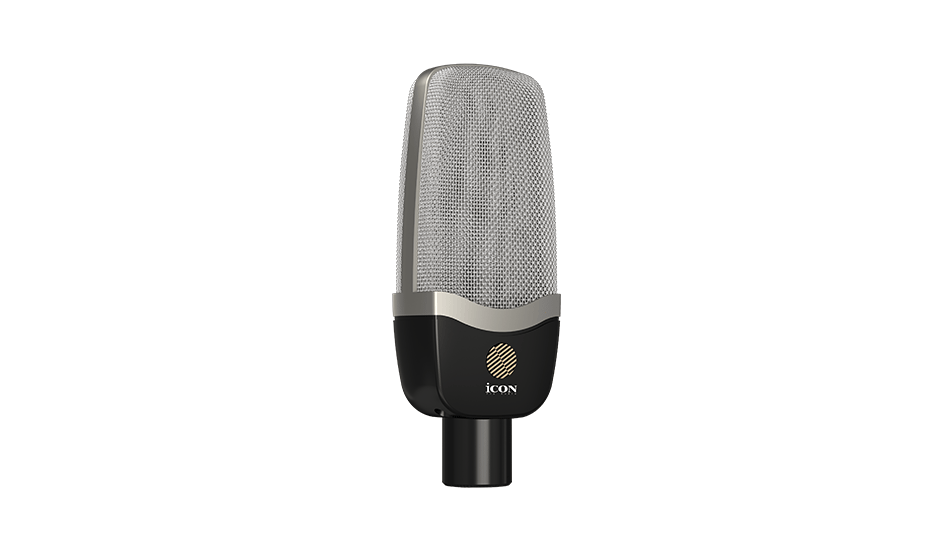

Shield

Unmatched Clarity and Neutral Sound

  • Extended upper clarity with smooth mid-range for any voice or instrument applications
  • Professional hand-build 35mm large-diaphragm capsule for full, open-sound and unsurpassed audio quality
  • Ideal as a primary or support microphone for a variety of recording situations
  • Cardioid pickup pattern for outstanding sound source separation and feedback rejection
  • Pressure-gradient transducer with shock-mounted capsule
  • External 48 Volt phantom power operation
  • Perfect for vocals and acoustic instruments
  • Ultra-rugged construction with metal die-cast body
  • Top-quality components including “Wima” high-bandwidth polystyrene & film capacitors as well as “Fairchild” NOS transistor are being used

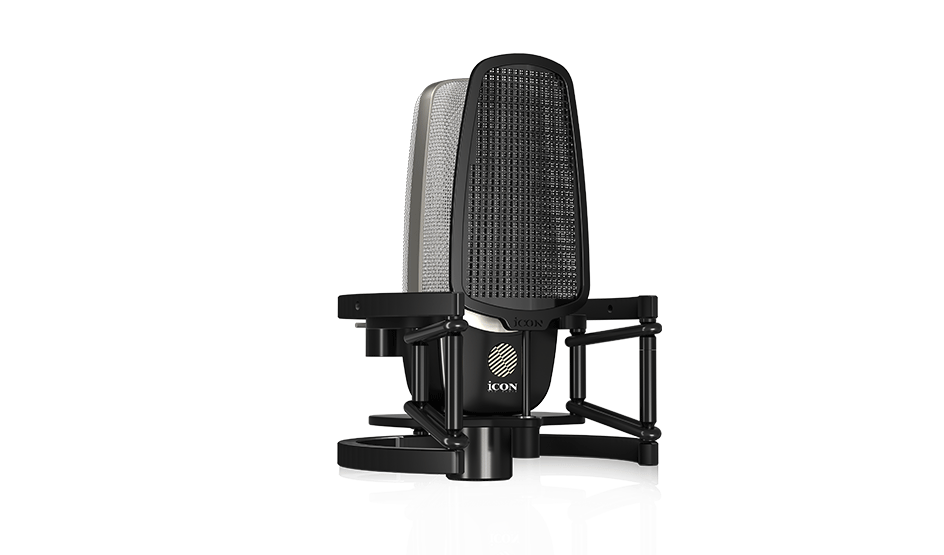

  • Suspension shock mount and innovative zero-hassle “magnet-slip on” pop filter are included
  • Aluminum storage carry case is included

NameSpec
Transducer typeelectrostatic
Operating principlepressure gradient
The diaphragms active diameter34mm
Frequency range20Hz to 20kHz
Polar patternunidirectional,cardioid
Sensitivity at 1 kHz into 1000 Ω load33mV/Pa
Output impedance50 Ω
Rated load impedance1000 Ω
Suggested load impedance>250Ω
Maximum SPL for 0,5% THD at 1000 Ω load138dB
S/N Ratio DIN/IEC 651 A-weighten80dB
Equivalent noise level DIN/IEC A-weighten8dB-A
Dynamic range of the microphone preamplifier130dB
Phantom powering voltage on pin 2&3 of XLR+48V (+/-4V)
Current consumption≤5 mA
Output connector3-pin XLR male
Dimension60mmX25mmX140mm
Weight0.273kg

Shield

Unmatched Clarity and Neutral Sound

  • Extended upper clarity with smooth mid-range for any voice or instrument applications
  • Professional hand-build 35mm large-diaphragm capsule for full, open-sound and unsurpassed audio quality
  • Ideal as a primary or support microphone for a variety of recording situations
  • Cardioid pickup pattern for outstanding sound source separation and feedback rejection
  • Pressure-gradient transducer with shock-mounted capsule
  • External 48 Volt phantom power operation
  • Perfect for vocals and acoustic instruments
  • Ultra-rugged construction with metal die-cast body
  • Top-quality components including “Wima” high-bandwidth polystyrene & film capacitors as well as “Fairchild” NOS transistor are being used
  • Suspension shock mount and innovative zero-hassle “magnet-slip on” pop filter are included
  • Aluminum storage carry case is included

NameSpec
Transducer typeelectrostatic
Operating principlepressure gradient
The diaphragms active diameter34mm
Frequency range20Hz to 20kHz
Polar patternunidirectional,cardioid
Sensitivity at 1 kHz into 1000 Ω load33mV/Pa
Output impedance50 Ω
Rated load impedance1000 Ω
Suggested load impedance>250Ω
Maximum SPL for 0,5% THD at 1000 Ω load138dB
S/N Ratio DIN/IEC 651 A-weighten80dB
Equivalent noise level DIN/IEC A-weighten8dB-A
Dynamic range of the microphone preamplifier130dB
Phantom powering voltage on pin 2&3 of XLR+48V (+/-4V)
Current consumption≤5 mA
Output connector3-pin XLR male
Dimension60mmX25mmX140mm
Weight0.273kg

Shield

Experience audio recording like never before with iCON’s Space Series microphones, where
vintage sound, clarity and warmth meet bold, intergalactic design. Among these, the Shield
large diaphragm condenser microphone stands out, delivering a transparent, neutral sound
that excels in vocal performance, broadcasting, and capturing the nuances of acoustic
instruments and amplifiers.

The Shield microphone offers extended upper clarity and a smooth mid-range, making it ideal
for any voice or instrument application. Its professional hand-built 35mm large-diaphragm
capsule ensures a full, open sound with unsurpassed audio quality. This makes it perfect as
both a primary and support microphone in various recording situations.

Designed with a cardioid pickup pattern, the Shield provides outstanding sound source
separation and feedback rejection. Its pressure-gradient transducer with a shock-mounted
capsule enhances sound fidelity by minimizing unwanted vibrations and handling noise.
Operating with external 48 Volt phantom power, it ensures consistent, high-quality performance.

The Shield microphone is constructed with an ultra-rugged metal die-cast body, ensuring
durability and reliability. Inside, top-quality components like Wima high-bandwidth polystyrene
and film capacitors, as well as Fairchild NOS transistors, are used to achieve superior sound
reproduction.

Included with the Shield microphone is a suspension shock mount and an innovative zero-hassle
“magnet-slip on” pop filter, making setup and use straightforward and efficient. Additionally,
an aluminum storage carry case is provided for secure and convenient transportation.

Whether you’re recording vocals, acoustic instruments, or broadcasting, the Shield large
diaphragm condenser microphone from ICON’s Space Series ensures high-quality, transparent,
and neutral sound that meets the demands of any professional audio environment.

Shield

Experience audio recording like never before with iCON’s Space Series microphones, where vintage sound, clarity and warmth meet bold, intergalactic design. Among these, the Shield large diaphragm condenser microphone stands out, delivering a transparent, neutral sound that excels in vocal performance, broadcasting, and capturing the nuances of acoustic instruments and amplifiers.

The Shield microphone offers extended upper clarity and a smooth mid-range, making it ideal for any voice or instrument application. Its professional hand-built 35mm large-diaphragm capsule ensures a full, open sound with unsurpassed audio quality. This makes it perfect as both a primary and support microphone in various recording situations.

Designed with a cardioid pickup pattern, the Shield provides outstanding sound source separation and feedback rejection. Its pressure-gradient transducer with a shock-mounted capsule enhances sound fidelity by minimizing unwanted vibrations and handling noise.Operating with external 48 Volt phantom power, it ensures consistent, high-quality performance.

The Shield microphone is constructed with an ultra-rugged metal die-cast body, ensuring durability and reliability. Inside, top-quality components like Wima high-bandwidth polystyrene and film capacitors, as well as Fairchild NOS transistors, are used to achieve superior sound reproduction.

Included with the Shield microphone is a suspension shock mount and an innovative zero-hassle “magnet-slip on” pop filter, making setup and use straightforward and efficient. Additionally,an aluminum storage carry case is provided for secure and convenient transportation.

Whether you’re recording vocals, acoustic instruments, or broadcasting, the Shield large diaphragm condenser microphone from ICON’s Space Series ensures high-quality, transparent,and neutral sound that meets the demands of any professional audio environment.

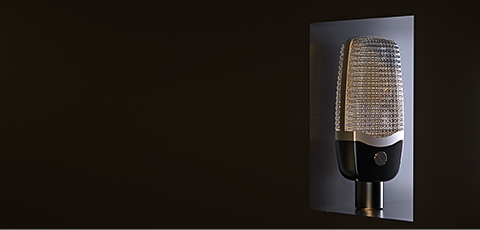

Crystal Clear
Sound Quality


The Shield large diaphragm condenser microphone
offers a transparent, neutral sound that’s perfect for vocal
performances, broadcasting, and capturing the intricate
details of acoustic instruments and amplifiers.


CRYSTAL CLEAR SOUND QUALITY

The Shield large diaphragm condenser microphone
offers a transparent, neutral sound that’s perfect for vocal
performances, broadcasting, and capturing the intricate
details of acoustic instruments and amplifiers.

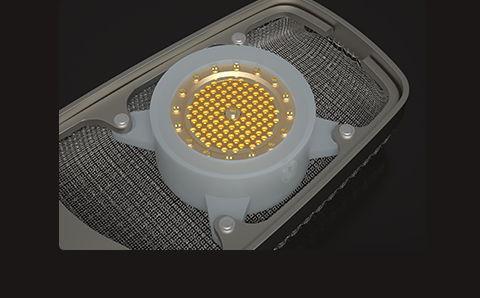

Exceptional Clarity
and Smooth Mid-Range

With extended upper clarity and a smooth mid-range,
the Shield is ideal for any voice or instrument application.
Its hand-built 35mm large-diaphragm capsule delivers
a full, open sound with unmatched audio quality.


EXCEPTIONAL CLARITY
AND SMOOTH MID-RANGE

With extended upper clarity and a smooth mid-range,
the Shield is ideal for any voice or instrument application.
Its hand-built 35mm large-diaphragm capsule delivers
a full, open sound with unmatched audio quality.

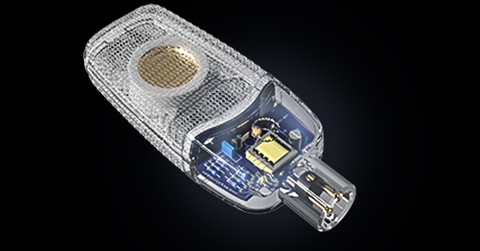

Premium Components
for Superior Sound

Crafted with top-quality components like Wima
high-bandwidth polystyrene and film capacitors,
as well as Fairchild NOS transistors, the Shield
ensures superior sound reproduction.


PREMIUM COMPONENTS
FOR SUPERIOR SOUND

Crafted with top-quality components like Wima high-bandwidth
polystyrene and film capacitors, as well as Fairchild NOS
transistors, the Shield ensures superior sound reproduction.

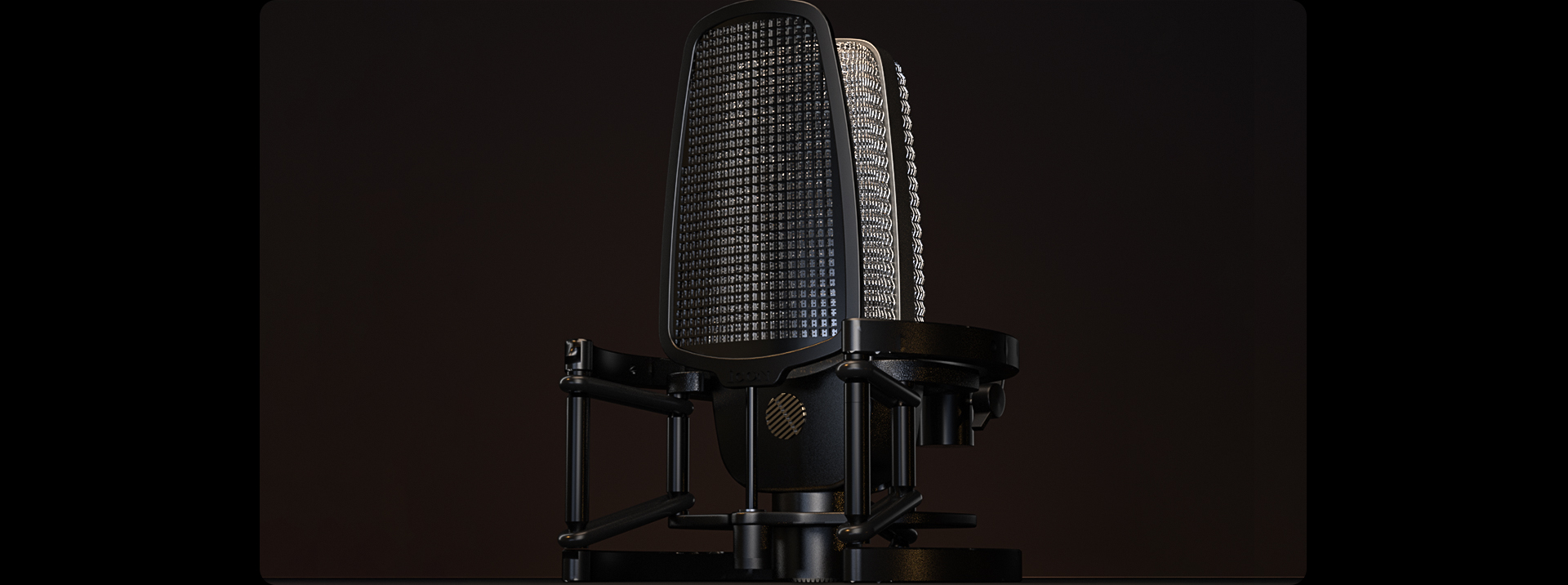

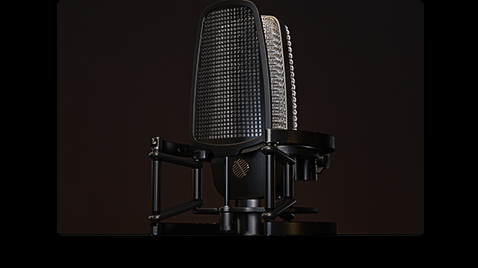

EFFORTLESS SETUP AND USE

The Shield microphone comes with a suspension shock mount and an
innovative zero-hassle magnetic slip-on pop filter, making setup and use a breeze.


EFFORTLESS SETUP AND USE

The Shield microphone comes with a suspension shock
mount and an innovative zero-hassle magnetic
slip-on pop filter, making setup and use a breeze.


DIFFERENT APPLICATIONS

BROADCASTING/PODCASTING
AMPLIFIERS
ACOUSTIC INSTRUMENTS
VOCAL PERFORMANCE


DIFFERENT APPLICATIONS

BROADCASTING/PODCASTING
AMPLIFIERS
ACOUSTIC INSTRUMENTS
VOCAL PERFORMANCE

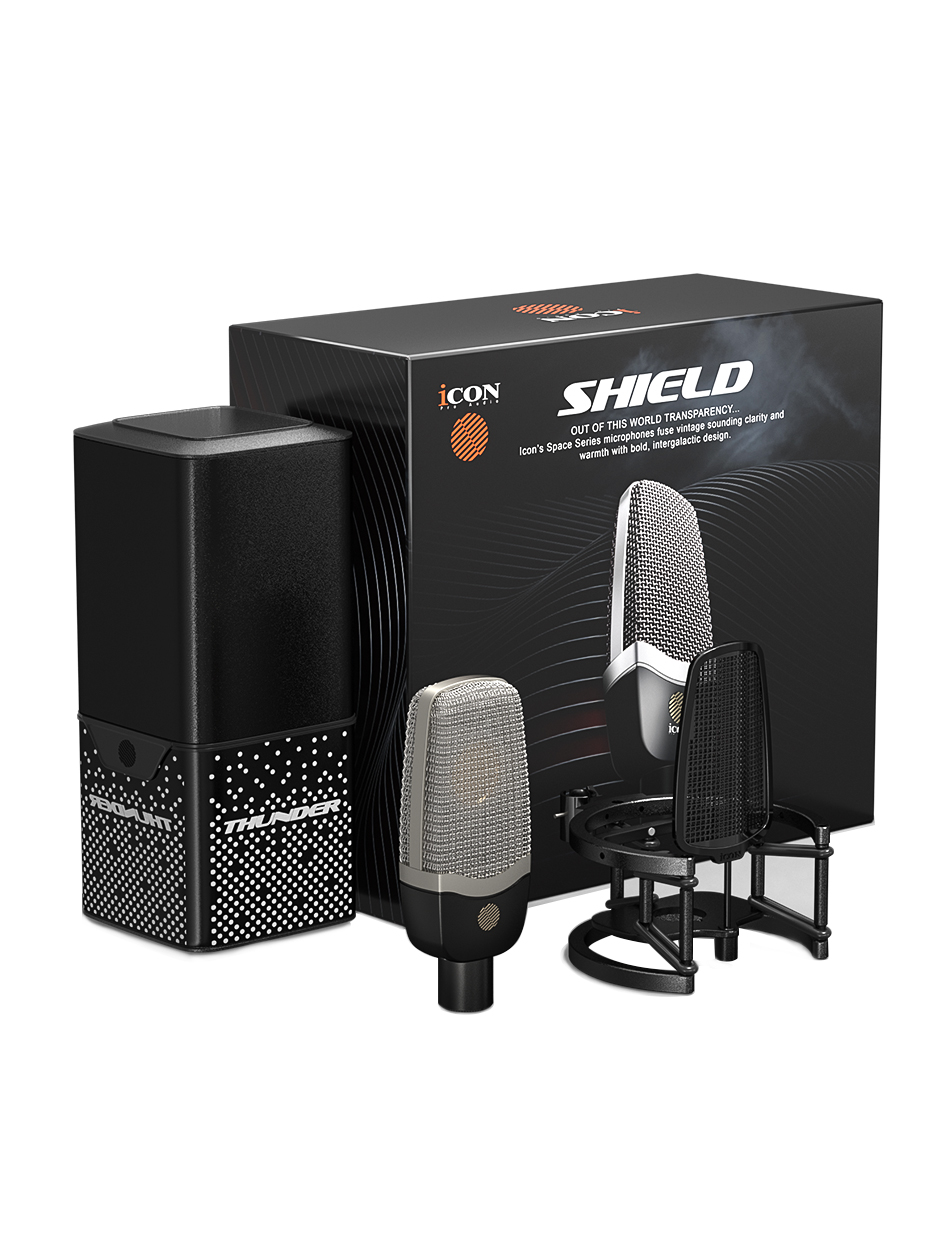

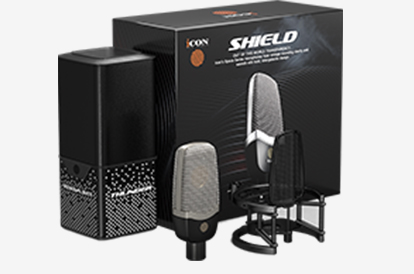

WHAT’S IN THE BOX

  • Shield Microphone
  • Shockmount
  • Magnetic Slip-on pop filter
  • Quickstart Guide

WHAT’S IN THE BOX

  • Shield Microphone
  • Shock mount
  • Magnetic Slip-on pop filter
  • Quickstart Guide
