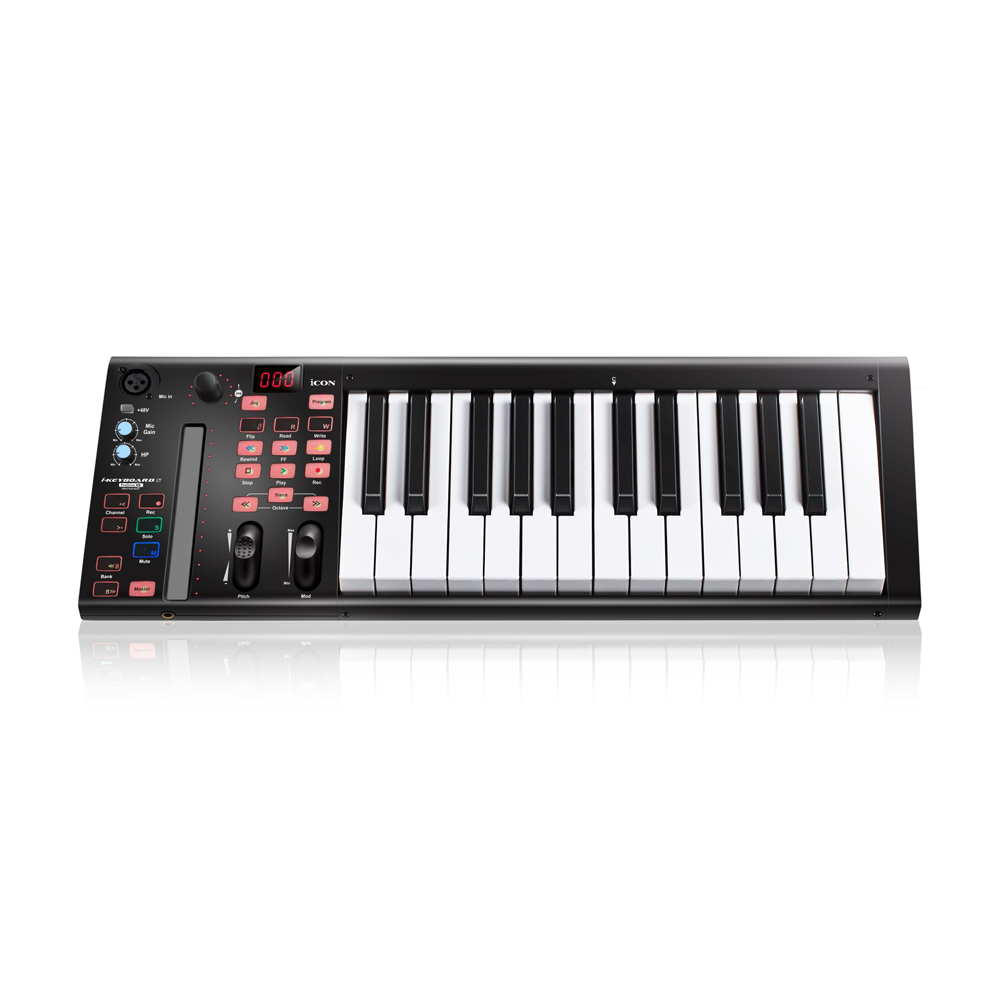

iKeyboard 3S (PDIII)

The iKeyboard S (ProDrive III) is a powerful MIDI keyboard controller equipped with a high quality 24-bit 96/192khz 2-In/2-Out USB audio interface, Mackie Control and HUI protocol to control your DAW software. The flexible, functional and effortless setup lets you get right down to business.

• 25 semi-weighted keys
• 24-Bit 96/192KHz 2-In/2-Out USB Recording Interface
• S/N ratio:
  DAC: THD+N: -100dB; Dynamic Range, S/N: 114dB
  ADC: THD+N: -98dB;   Dynamic Range, S/N: 112dB
• 2×2 analog I/O full duplex recording and playback
• 1 mic input with individual gain control
• 2 analog inputs and 2 analog outputs on 1/4” TRS jacks
• Backlit LED touch fader reacts in real-time with DAW. Synchronize automatically with different channel value when switching between channels
• Dual function encoder knob (Enter & rotate)
• 11-segment LED surrounding the encoder to indicate the rotating position
• Velocity-sensitive piano style keyboard
• Modulation and Pitch jog-wheel
• 3-segment LED screen
• 18 assignable LED backlit buttons
• Illuminated channel buttons including Rec-enable, Solo and Mute
• 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast forward and Loop
• Single Transpose button use combine with keyswitch to shift pitch effectively.
• Octave up/down buttons
• Multi velocity curves available for selection (Key and Pads)
• Midi output jack
• 1 headphone output with assignable source and individual volume control
• Expression & sustain pedal TRS connectors
• Flexible channel routing via ICON ProDrive III provided with internal virtual routing for inputs and outputs
• Powerful ProDrive III hosting rack built in
• A selection of ProDrive III plug-ins are included
• Supports DirectSound, WDM and ASIO2.0
• Full duplex, simultaneous record/playback
• Mackie control built-in for Cubase, Nuendo, Samplitude, Logic Pro, Bitwig, Reason, Reaper, Studio One and Ableton Live
• Mackie HUI protocol built-in for Pro Tool
• Driver built-in for Cubase, Nuendo, Bitwig and Reason for plug and play
• iMapTM software included for easy mapping of MIDI functions
• Firmware upgrade available simply via USB connection and iMap software
• Compatible with Mac OS (Intel-Mac) and Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit),Windows 10 (32-bit & 64-bit)
• USB 2.0 high speed connectivity
• Robust metal casing with Kensington lock port
• Bitwig 8Track included
• Dotec audio plugins included
• Tracktion DAW Essentials Collection included
• Kilohearts Toolbox plugins included
• Harrison 32c Vocal Intensity Processor plugin included
