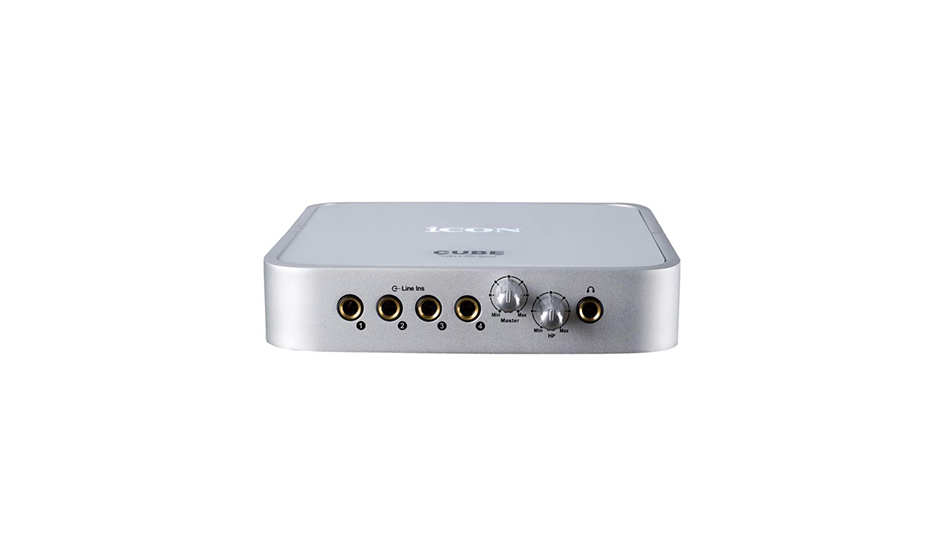

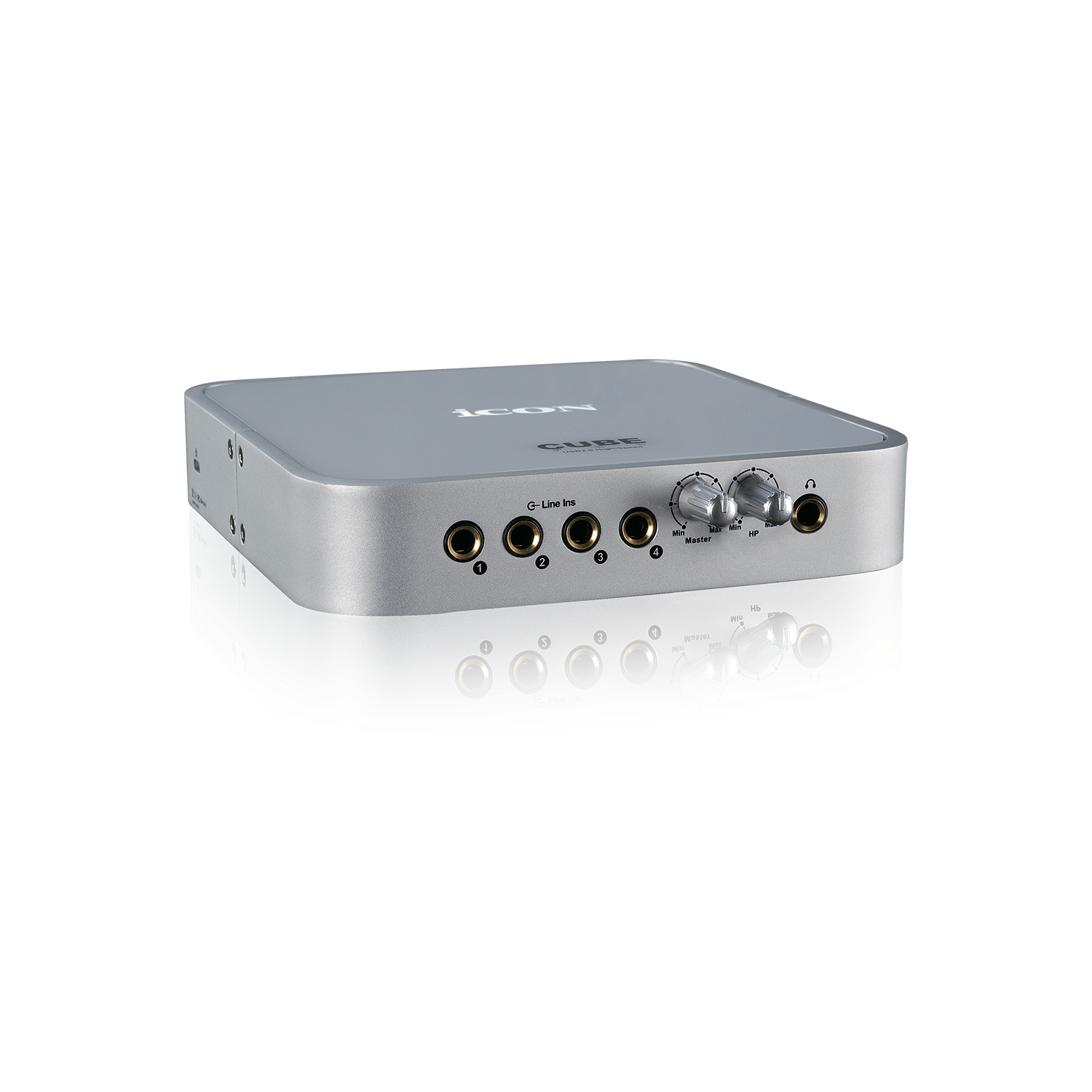

Cube Pro
- 24bit 96/192KHz 4-In/4-Out USB recording audio Interface
- 4×4 analog line I/O full duplex recording and playback
- 4 analog inputs and 4 analog outputs on 1/4″ TRS jacks
- Master volume control on the front panel
- 1 headphone output with individual volume control
- Flexible channel routing via the software control panel
- USB2.0 High Speed equipped and USB bus-powered
- Supports Direct sound, WDM and ASIO2.0
- Compatible with Mac OSX (Intel CPU) and Windows XP, Vista (32bits), Windows 7 (32-bit/64-bit), Windows 8 (32-bit/64-bit)
- Full duplex, simultaneous record/playback
- Rugged aluminum construction
- Bitwig 8Track included
- Dotec audio plugins included
- Tracktion DAW Essentials Collection plugins included
- Kilohearts Toolbox plugins included
- Harrison 32c Vocal Intensity Processor plugin included
Name | Spec |
Line Inputs 1-4(Unbalanced) | |
Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
Dynamic Range | 100dB, A-weighted |
Signal-to-Noise Ratio | -100dB, A-weighted |
THD+N | <0.0061% (-90dB) |
Crosstalk | -100dB @ 1kHz |
Nominal Input Level | Unbalanced: +4dBV, typical |
Maximum Input level | Unbalanced: +11dBV, typical |
Input Impedance | 10K Ohms, typical |
Line Outputs 1-4 (Unbalanced) | |
Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
Dynamic Range | 102dB, A-weighted |
Signal-to-Noise Ratio | -102dB, A-weighted |
THD+N | <0.003% (-90dB) |
Crosstalk | -100dB @ 1kHz |
Nominal Output Level | Unbalanced: +4dBV, typical |
Maximum Output Level | +11dBV, typical |
Output Impedance | 150 Ohm |
Load Impedance | 600 Ohm minimum |
Headphone Outputs: 1 & 2 (at Maximum Volume; Into 100 Ohm load) | |
Frequency Response | 22Hz to 22kHz (+/-1dB) |
Power into Ohms | 90 mW into 100 Ohms |
THD+N | <0.06% (-66dB) |
Signal-to-Noise Ratio | -90dB, A-weighted |
Max Output Level into 100 Ohms | +2.0dBV, typical |
Output Impedance | 75 Ohm |
Load Impedance | 32 to 600 Ohms |
General | |
Weight | 0.94kg (2.07lbs) |
Dimensions | 165 x 185 x 58 mm |
Dimensions | 6.5” x 7.3” x 2.3” |
- Mac OS X 10.10 Yosemite and older
- Windows XP - Windows 10
