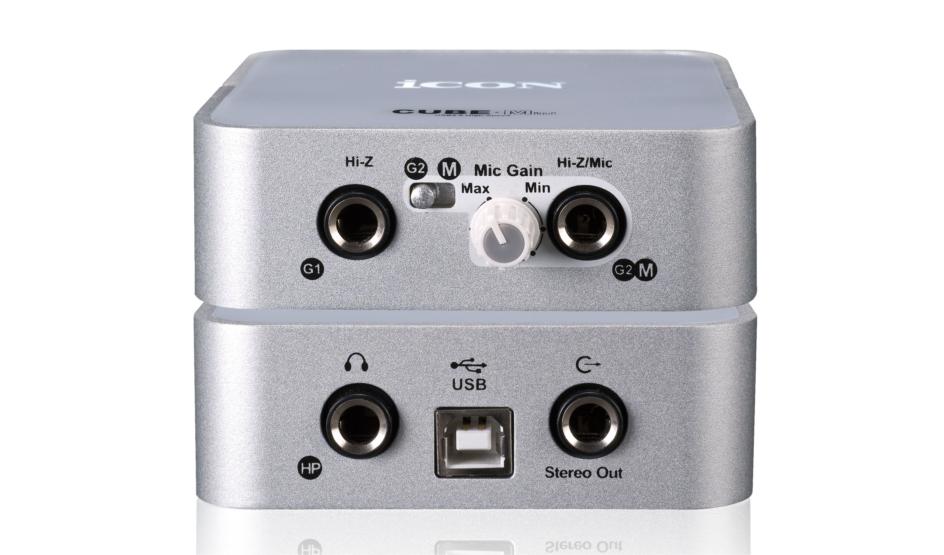

Cube Mini

MSRP

Extremely compact size : around 9cm x 9cm
24bit 96/192KHz 2-In/2-Out USB recording audio Interface
2×2 analog I/O full duplex recording and playback

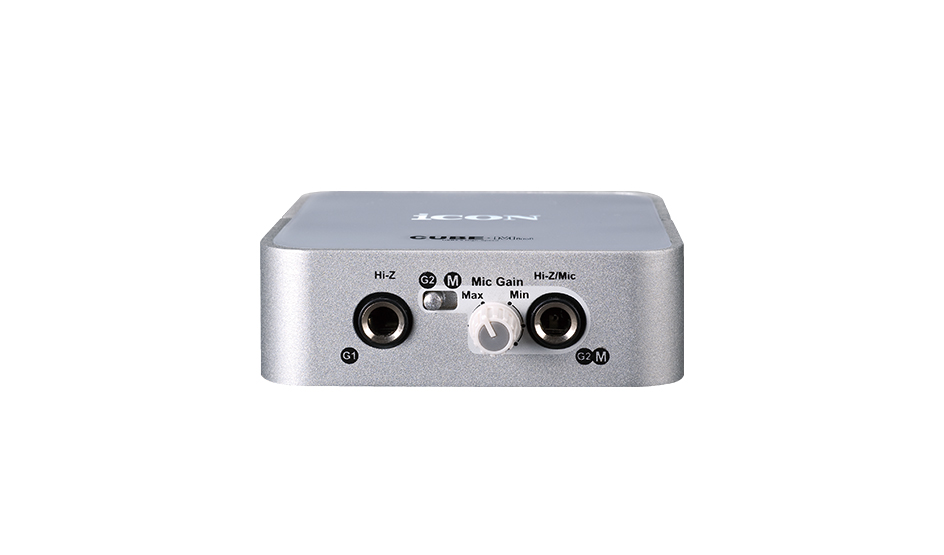

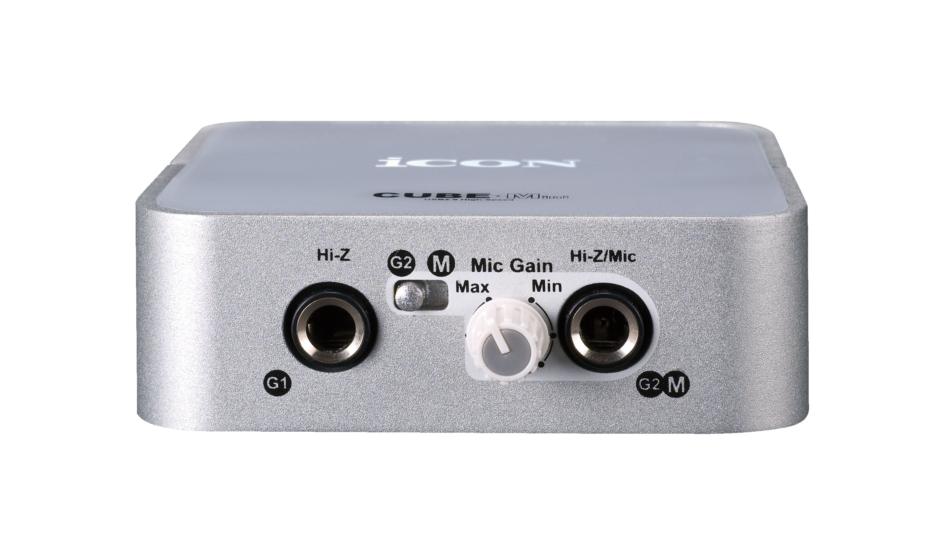

1 Mic in with preamp for dynamic mic, switchable to Hi-Z in for guitar
1 Hi-Z in for guitar

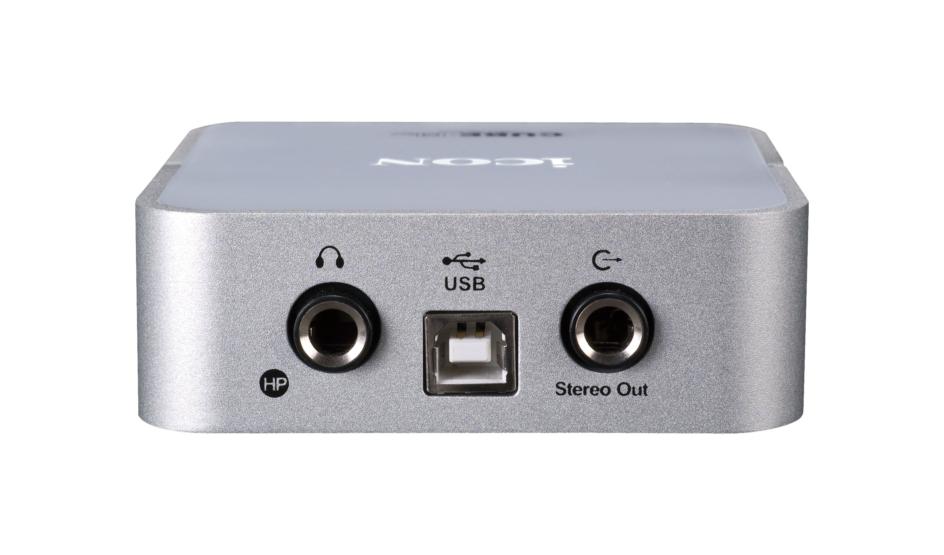

2 line out on a stereo 1/4″ TRS jack
1 headphone output on 1/4″ TRS jack
USB2.0 High Speed equipped and USB bus-powered
Supports Direct sound, WDM and ASIO2.0
Compatible with Mac OSX (Intel CPU) and Windows XP, Vista (32bits), Windows 7 (32-bit/64-bit), Windows 8 (32-bit/64-bit)
Full duplex, simultaneous record/playback
Rugged aluminum construction

Name	Spec
Inst1/2 & Mic2 Inputs
Frequency Response	22Hz to 22kHz (+/-0.1dB)
Dynamic Range	100dB, A-weighted
Signal-to-Noise Ratio	-100dB, A-weighted
THD+N	<0.0061% (-90dB)
Crosstalk	-100dB @ 1kHz
Input Impedance	Inst in: 500K Ohms, typical
Input Impedance	Mic in: 1.8K Ohms, typical
Total Gain Range	+45dB
Line Outputs 1/2 (Stereo, Unbalanced)
Frequency Response	22Hz to 22kHz (+/-0.1dB)
Dynamic Range	102dB, A-weighted
Signal-to-Noise Ratio	-102dB, A-weighted
THD+N	<0.003% (-90dB)
Crosstalk	-100dB @ 1kHz
Nominal Output Level	Unbalanced: +4dBV, typical
Maximum Output Level	+11dBV, typical
Output Impedance	150 Ohm
Load Impedance	600 Ohm minimum
Headphone Outputs: 1 & 2 (at Maximum Volume; Into 100 Ohm load)
Frequency Response	22Hz to 22kHz (+/-1dB)
Power into Ohms	90 mW into 100 Ohms
THD+N	<0.06% (-66dB)
Signal-to-Noise Ratio	-90dB, A-weighted
Max Output Level into 100 Ohms	+2.0dBV, typical
Output Impedance	75 Ohm
Load Impedance	32 to 600 Ohms
General
Weight	0.285kg (0.63lbs)
Dimensions	90 x 100 x 38 mm
Dimensions	3.6” x 3.4” x 1.1”
