● 24bit 96/192KHz 4-In/4-Out USB recording audio Interface
● 2×2 analog I/O full duplex recording and playback
● 1 Mic in with individual gain control
● 1 Hi-Z in for guitar or bass with individual gain control
● 2 analog outputs on 1/4″ TRS jacks

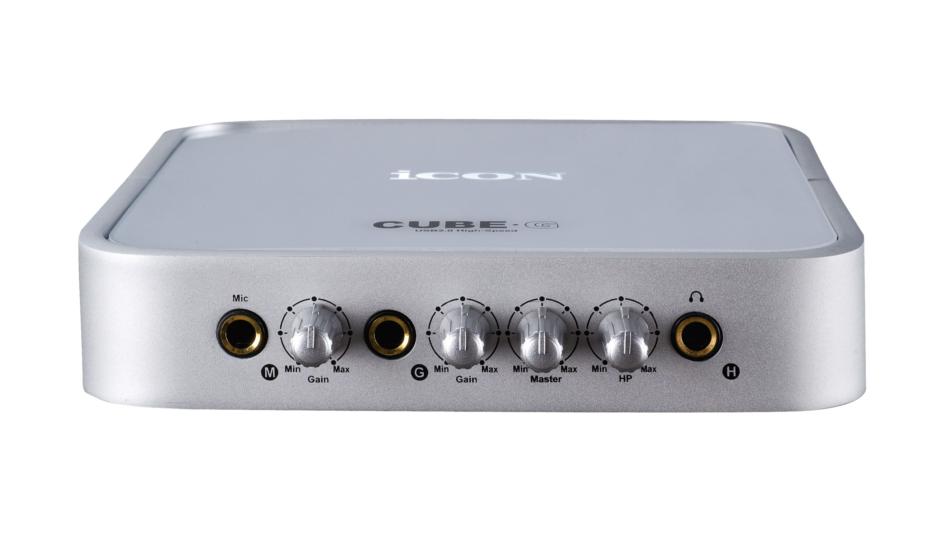

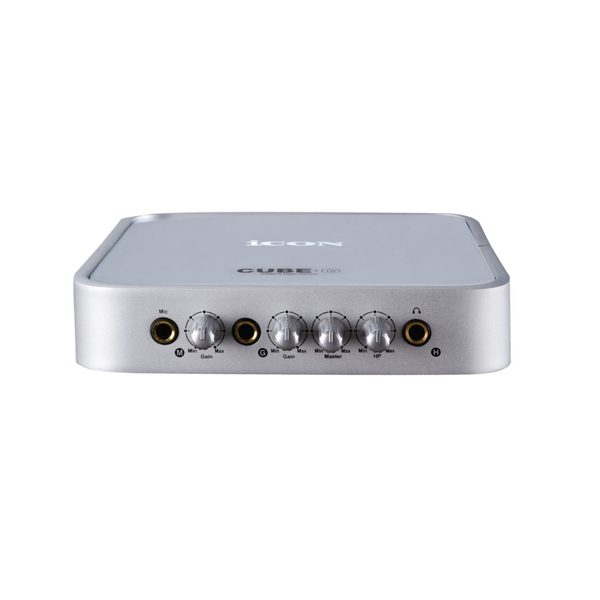

● Master volume control on the front panel
● 1 headphone output with individual volume control

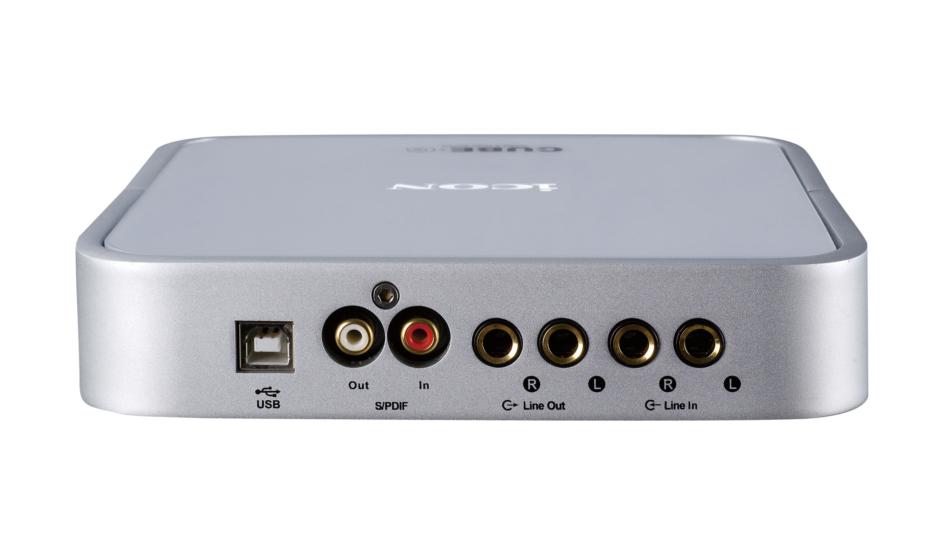

● S/PDIF I/O on RCA coaxial connectors
● 1 x 1 16-channels MIDI I/O
● USB2.0 High Speed equipped and USB bus-powered
● Supports Direct sound, WDM and ASIO2.0
● Compatible with Mac OSX (Intel CPU) and Windows XP, Vista (32bits), Windows 7 (32-bit/64-bit), Windows 8 (32-bit/64-bit)
● Full duplex, simultaneous record/playback

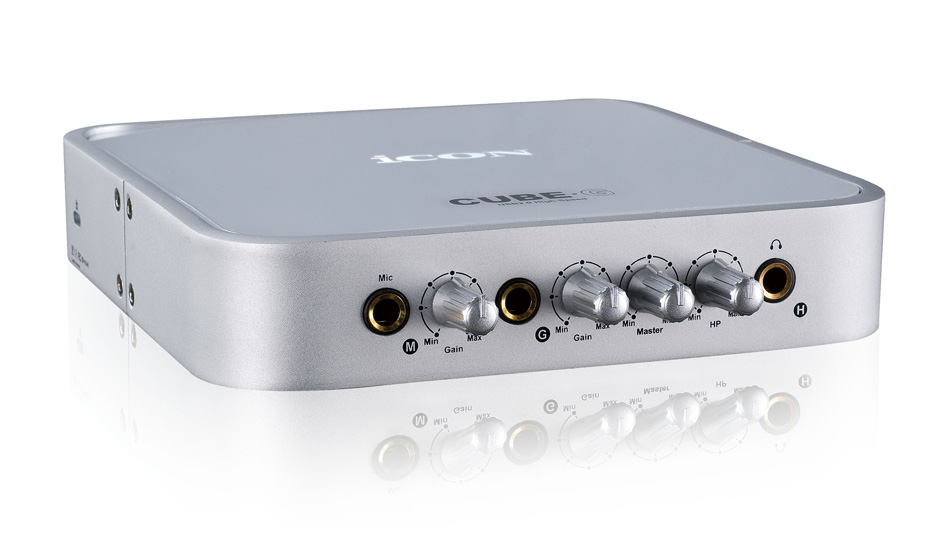

● Rugged aluminum construction
| Name | Spec |
| Mic1 / Inst2 Inputs (at Minimum Gain) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 100dB, A-weighted |
| Signal-to-Noise Ratio | -100dB, A-weighted |
| THD+N | <0.0061% (-90dB) |
| Crosstalk | -100dB @ 1kHz |
| Input Impedance | Inst in: 500K Ohms, typical |
| Input Impedance | Mic in: 1.8K Ohms, typical |
| Adjustable Gain | +34dB |
| Total Gain Range | +50dB |
| Line Inputs 1/2(Unbalanced) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 100dB, A-weighted |
| Signal-to-Noise Ratio | -100dB, A-weighted |
| THD+N | <0.0061% (-90dB) |
| Crosstalk | -100dB @ 1kHz |
| Nominal Output Level | Unbalanced: +4dBV, typical |
| Maximum Output Level | Unbalanced: +11dBV, typical |
| Input Impedance | 10K Ohms, typical |
| Line Outputs 1/2 (Unbalanced) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 102dB, A-weighted |
| Signal-to-Noise Ratio | -102dB, A-weighted |
| THD+N | <0.003% (-90 dB) |
| Crosstalk | -100dB @ 1kHz |
| Nominal Output Level | Unbalanced: +4dBV, typical |
| Maximum Output Level | +11dBV, typical |
| Output Impedance | 150 Ohm |
| Load Impedance | 600 Ohm minimum |
| Headphone Outputs: (at Maximum Volume; Into 100 Ohm load) | |
| Frequency Response | 22Hz to 22kHz (+/-1dB) |
| Power into Ohms | 90 mW into 100 Ohms |
| THD+N | <0.06% (-66dB) |
| Signal-to-Noise Ratio | -90dB, A-weighted |
| Max Output Level into 100 Ohms | +2.0dBV, typical |
| Output Impedance | 75 Ohm |
| Load Impedance | 32 to 600 Ohms |
| General | |
| Weight 0.942kg (2.08lbs) | |
| Dimensions | 165 x 185 x 58 mm |
| Dimensions | 6.5” x 7.3” x 2.3” |
