● 24bit 96/192KHz 4-In/4-Out USB recording audio Interface for DJ
● 4×4 analog line I/O full duplex recording and playback

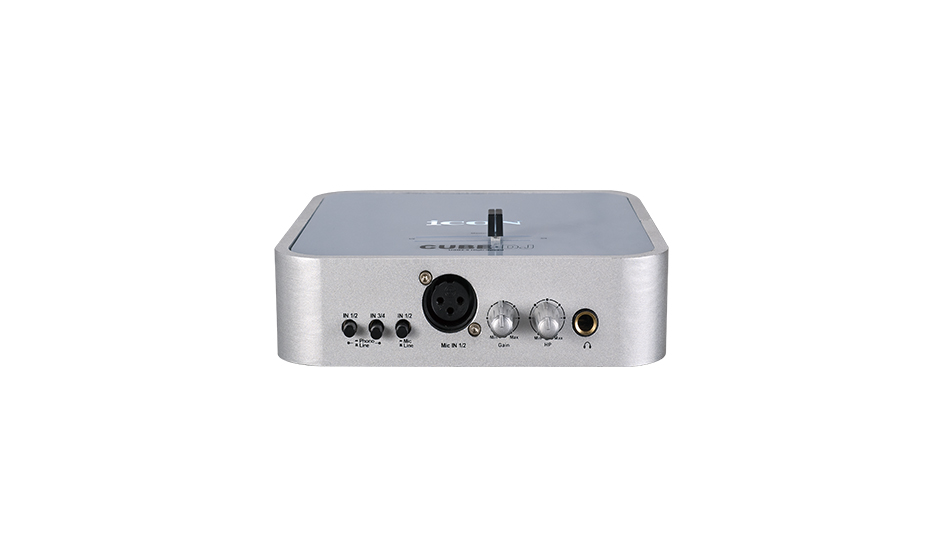

● 4 analog inputs and 4 analog outputs on RCA jacks mic input on XLR connector with gain control
● Individual “Line – Phono ” level switch for input 1 & 2
● “Mic in – Line1/2 in” switch for input 1&2
● Horizontal cross fader for “Master” volume control for output 1/2 or 3/4.
● Cross fader master volume control allow instant switching between output 1/2 or 3/4.
● 1 headphone output with assignable source and individual volume control
● Flexible channel routing via the software control panel
● USB2.0 High Speed equipped and USB bus-powered
● Supports Direct sound, WDM and ASIO2.0
● Compatible with Mac OSX (Intel CPU) and Windows XP, Vista (32bits), Windows 7 (32-bit/64-bit), Windows 8 (32-bit/64-bit)
● Full duplex, simultaneous record/playback
| Name | Spec |
| Mic Inputs (at Minimum Gain) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 100dB, A-weighted |
| Signal-to-Noise Ratio | -100dB, A-weighted |
| THD+N | <0.0061% (-90dB) |
| Crosstalk | -87dB @ 1kHz |
| Input Impedance | Mic in: 1.8K Ohms, typical |
| Adjustable Gain | +34dB |
| Total Gain Range | +50dB |
| Line Inputs 1-4(Unbalanced) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 100dB, A-weighted |
| Signal-to-Noise Ratio | -100dB, A-weighted |
| THD+N | <0.0061% (-90dB) |
| Crosstalk | -87dB @ 1kHz |
| Nominal Output Level | Unbalanced: +4dBV, typical |
| Maximum Output Level | Unbalanced: +11dBV, typical |
| Input Impedance | 10K Ohms, typical |
| Phono Inputs 1-4 | |
| Frequency Response | 22Hz 22kHz (+/-0.1dB) |
| Dynamic Range | 100dB, A-weighted |
| Signal-to-Noise Ratio | -100dB, A-weighted |
| THD+N | <0.0061% (-90dB) |
| Crosstalk | -87dB @ 1kHz |
| Nominal Output Level | Unbalanced: -29dBV, typical |
| Maximum Output Level | Unbalanced: -22dBV, typical |
| Input Impedance | 47K Ohms, typical |
| Line Outputs 1-4 (Unbalanced) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 102dB, A-weighted |
| Signal-to-Noise Rati | -102dB, A-weighted |
| THD+N | <0.003% (-90 dB) |
| Crosstalk | -100dB @ 1kHz |
| Nominal Output Level | Unbalanced:+4dBV, typical |
| Maximum Output Level | +11dBV, typical |
| Output Impedance | 150 Ohm |
| Load Impedance | 600 Ohm minimum |
| Headphone Outputs: | 1 & 2 (at Maximum Volume; Into 100 Ohm load) |
| Frequency Response | 22Hz to 22kHz (+/-1dB) |
| Power into Ohms | 90 mW into 100 Ohms |
| THD+N | <0.06% (-66dB) |
| Signal-to-Noise Ratio | -90dB, A-weighted |
| Max Output Level into 100 Ohms | +2.0dBV, typical |
| Output Impedance | 75 Ohm |
| Load Impedance | 32 to 600 Ohms |
| General | |
| Weight | 0.96kg (2.12lbs) |
| Dimensions | 165 x 185 x 58 mm |
| Dimensions | 6.5” x 7.3” x 2.3” |
