Cube 4 Nano

MSRP

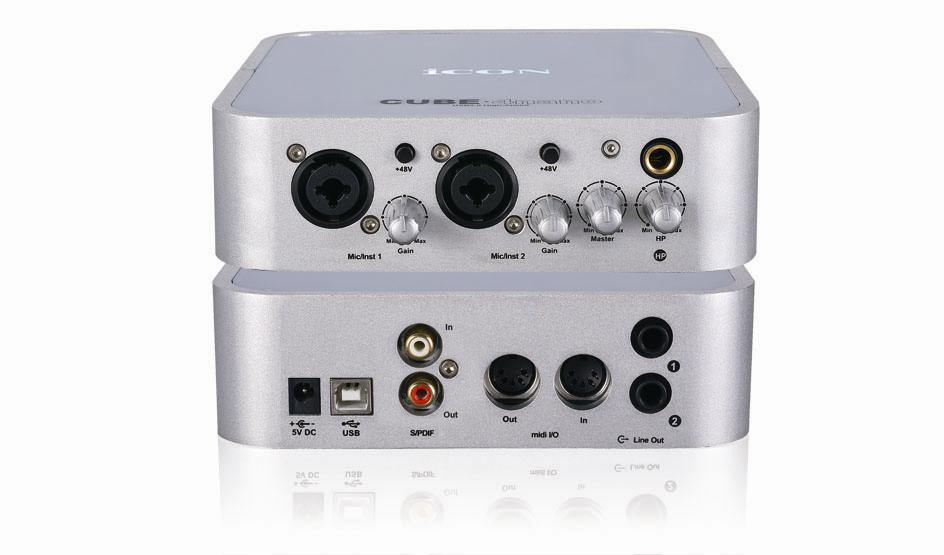

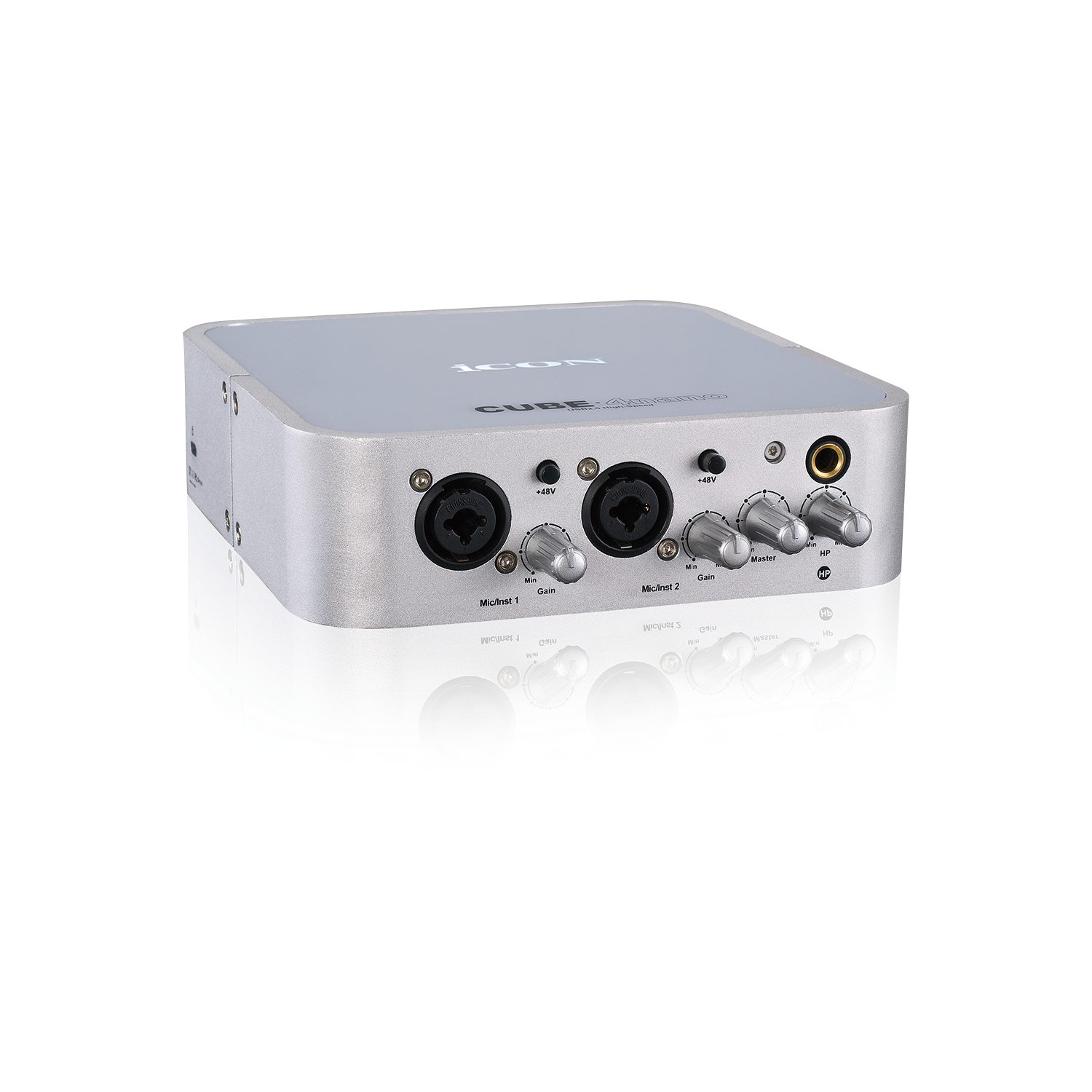

The Cube 4 Nano USB audio interface provides high quality 24-bit 96/192khz analog/digital audio conversion in a compact 4 Input/4 Output unit.

● 24bit 96/192KHz 4-In/4-Out USB recording audio Interface
● 2×2 analog line I/O full duplex recording and playback
● Dual MIC/Instrument Preamps with gain controls
● LED metering, Phantom power and gain
● 2 analog outputs on 1/4” TRS jacks

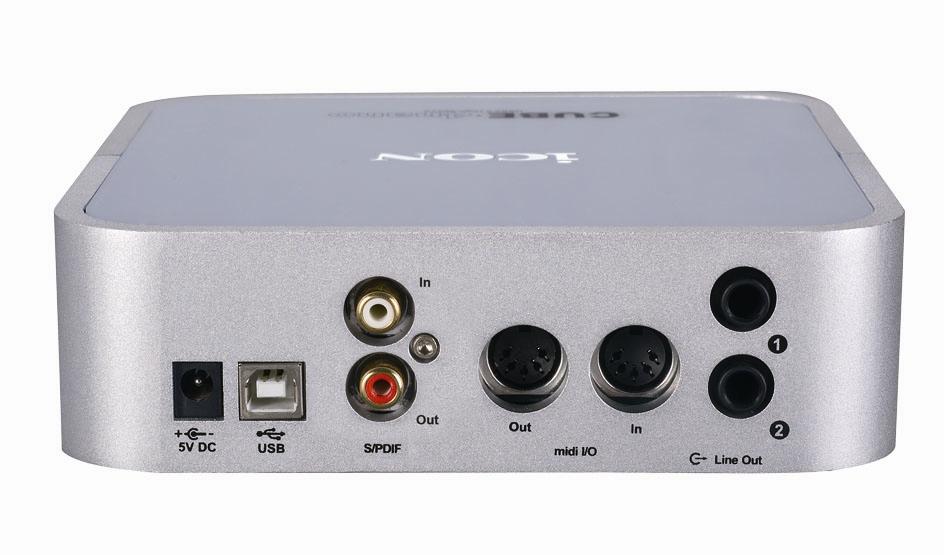

● S/PDIF I/O on RCA coaxial connectors
● 1 x 1 – 16 channel MIDI I/O

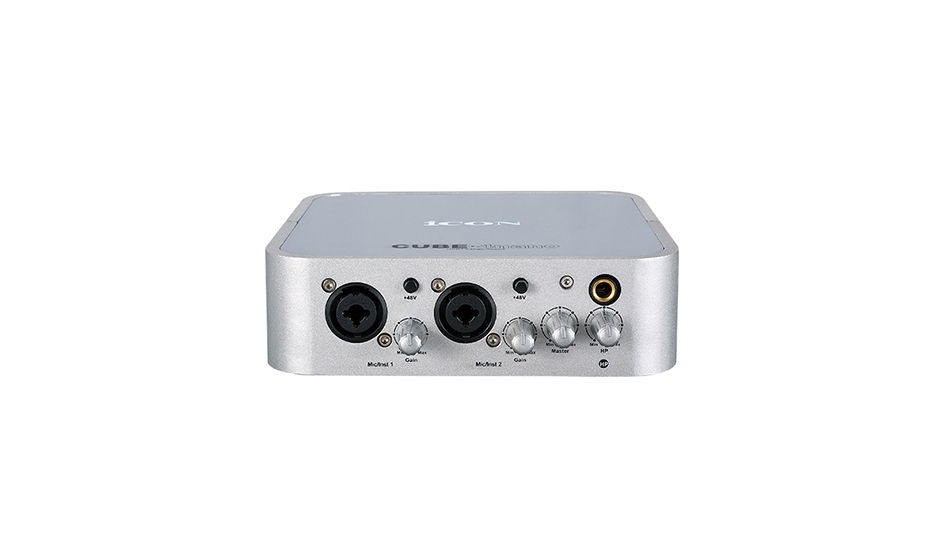

● Master volume control on the front panel
● 1 headphone output with assignable source and individual volume control
● Supports sampling rates from 44.1Hz to 192K Hz
● Flexible channel routing via the software control panel
● USB2.0 High Speed equipped and USB bus-powered
● Supports Direct sound, WDM and ASIO2.0
● Compatible with Mac OSX (Intel CPU) and Windows XP, Vista (32-bit), Windows 7 (32-bit/64-bit),
Windows 8(32-bit/64-bit)
● Full duplex, simultaneous record/playback
● Rugged aluminum construction

Print

NameSpec
Mic1 / 2 Inputs (at Minimum Gain)
Frequency Response22Hz to 22kHz (+/-0.1dB)
Dynamic Range100dB, A-weighted
Signal-to-Noise Ratio-100dB, A-weighted
THD+N<0.0061% (-90dB)
Crosstalk-87dB @ 1kHz
Input ImpedanceInst in: 500K Ohms, typical
Adjustable Gain+39dB
Total Gain Range+39dB
Line Outputs 1/2 (Unbalanced)
Frequency Response22Hz to 22kHz (+/-0.1dB)
Dynamic Range102dB, A-weighted
Signal-to-Noise Ratio-102dB, A-weighted
THD+N<0.003% (-90 dB)
Crosstalk-87dB @ 1kHz
Nominal Output Level Unbalanced+4dBV, typical
Maximum Output Level:+11dBV, typical
Output Impedance150 Ohm
Load Impedance600 Ohm minimum
Headphone Outputs: 1 & 2 (at Maximum Volume; Into 100 Ohm load)
Frequency Response22Hz to 22kHz (+/-1dB)
Power into Ohms90 mW into 100 Ohms
THD+N<0.06% (-66dB)
Signal-to-Noise Ratio-90dB, A-weighted
Max Output Level into 100 Ohms+2.0dBV, typical
Output Impedance75 Ohm
Load Impedance32 to 600 Ohms
General
Weight1.08kg (2.38lbs)
Dimensions165 x 185 x 58 mm
Dimensions165 x 185 x 58 mm
  • Mac OS 10.8 - Mac OS 10.10
  • Windows XP - Windows 10
