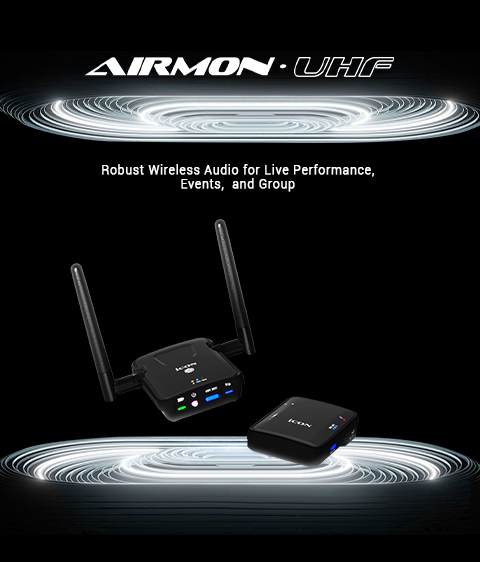

Elegant, Sturdy Design Meets Professional-Grade
Wireless Monitoring with High-Quality Audio.

Uncompressed digital transmission using 48KHz or 96KHz sampling rates
UHF proprietary encryption technology for ultra-low latency for wireless transmission (approx. 9 milliseconds)
Minimal interference
Use unlimited receivers per one transmitter

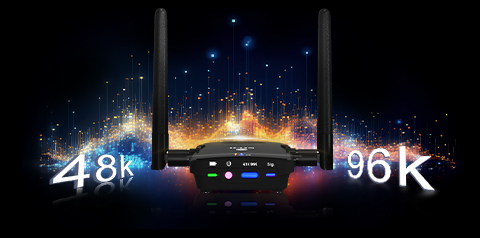

Uniquely innovative technology allows the user to choose a transmission sample rate of 48K stereo or 96K stereo
Switch easily between 48K and 96K sampling rates with an illuminated button

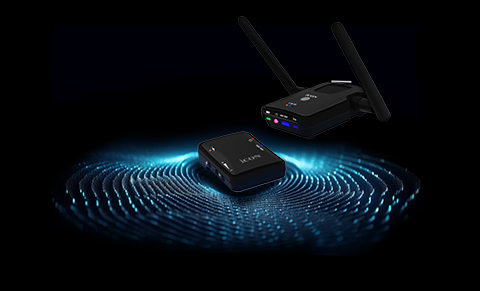

Connects automatically – (extremely easy to ‘pair’ the devices)
Super fast pairing (usually 1-2 seconds)
Rechargeable lithium battery for both transmitter and receiver (long operational use)
Approximately 6 hrs (transmitter) / 6 hrs (receiver) use on a full battery charge
Sleek, super compact and stylish design
Pairing switches (as back up system in case pairing does not occur automatically)
Headphone output port (3.5mm)
Type C USB connector for charging for both units
Included USB-C Y cable for convenient charging (both units at the same time)
Belt clip fixture (receiver)
Detachable antennas (included)

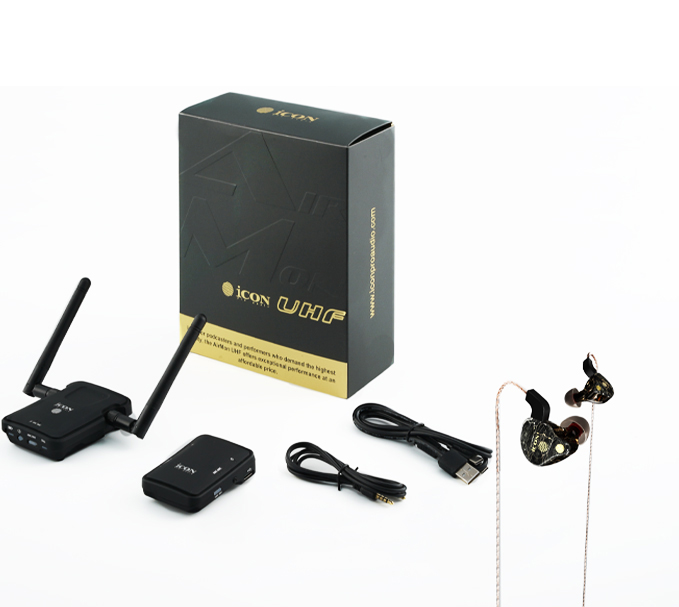

Includes earphones, storage pouch, connection and charging cables

Name	Spec
Audio - Transmitter
Sampling bit rate	24bit
Channel Mode	STEREO
Input Level	0dBV
Input Impedance	10K ohm
Audio - Receiver
Sampling bit rate	24bit
Channel Mode	STEREO
Output Level	792mW
Output Impedance	32 ohm
Radio Frequency - Transmitter
Operating Frequency	627MHz-667MHz
Digital Modulation	GFSK
Occupied Bandwidth	1.5MHz
Transmission output	15dBm
Selectable Channel	40 channel
Radio Frequency - Receiver
Operating Frequency	627MHz-667MHz
Digital Modulation	GFSK
Occupied Bandwidth	1.5MHz
Receiving Sensitivity	-90dBm
Selectable Channel	-90dBm
Power - Transmitter
Current consumption	140mA
Power Requirements	Built-in rechargeable LiPo battery charged via USB 5V, 0.5A
Battery Operating Time	6Hrs(approx)
Power - Receiver
Current consumption	110mA
Power Requirements	Built-in rechargeable LiPo battery charged via USB 5V, 0.5A
Battery Operating Time	6Hrs(approx)
Dimensions and Weights - Transmitter
Dimensions (WxDxH)	53x71x21mm (2.1"x2.8"x0.8")
Weight	78.6g
Accessory	USB Recharging cable and storage pouch
Dimensions and Weights - Receiver
Dimensions (WxDxH)	44x61x21mm (1.7"x2.4"x0.8")
Weight	41g
Accessory	USB Recharging cable and storage pouch

AirMon UHF User Manual(English)

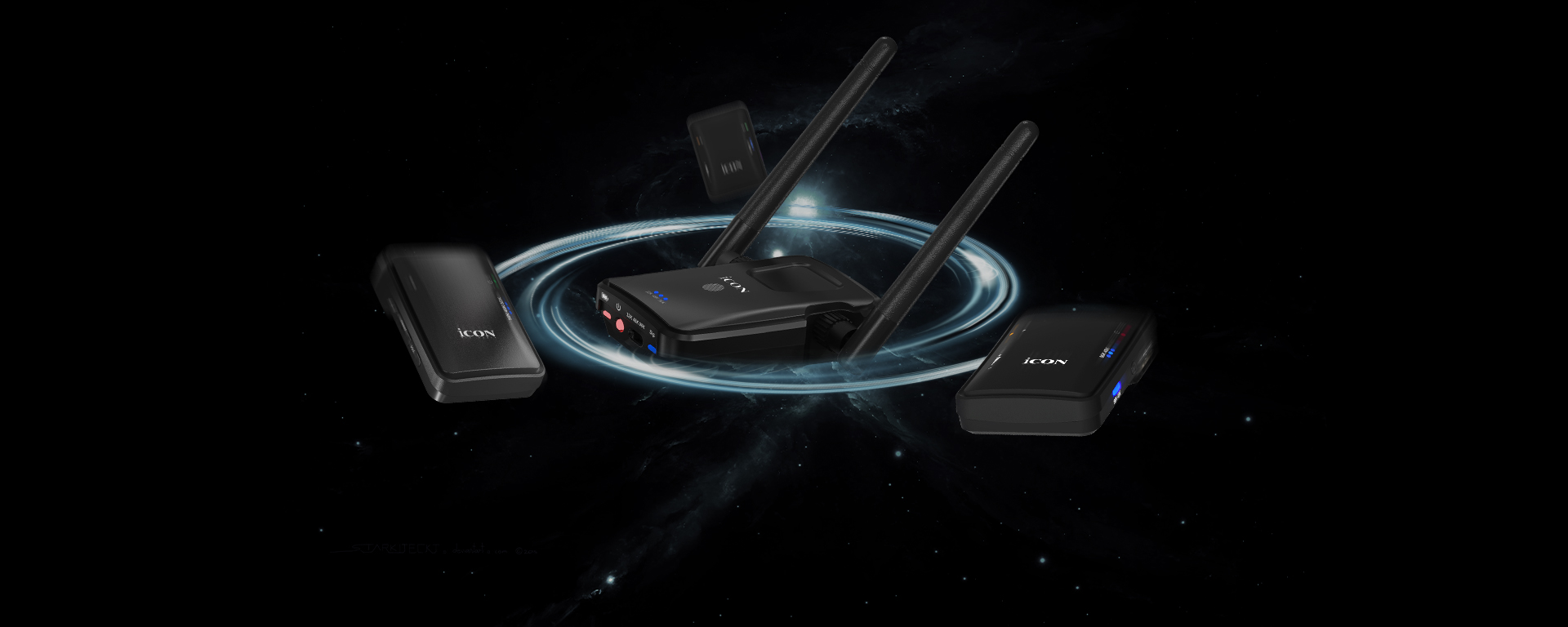

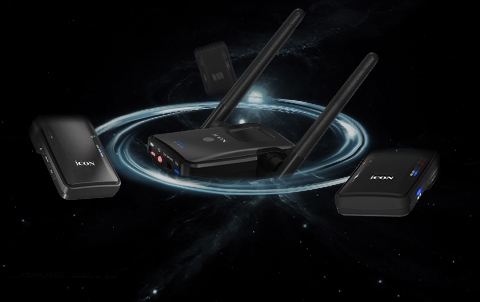

Discover the AirMon UHF, a cutting-edge wireless monitoring solution delivering low latency and high-quality audio in a compact, robust, and stylish design. Experience superior audio transmission with high-quality sampling rates of 48kHz and 96kHz.

Connect an unlimited number of receivers to up to three transmitters within the immediate area, with super-fast automatic device pairing. The AirMon UHF offers exceptionally stable wireless reception with minimal interference

Equipped with rechargeable lithium batteries, both the transmitter and receiver guarantee extended operational use, providing a reliable and efficient monitoring experience.
