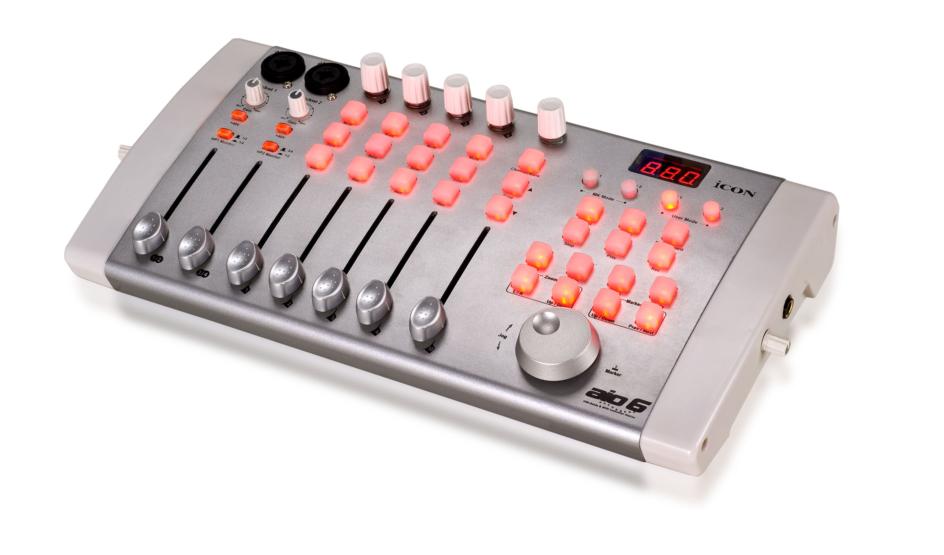

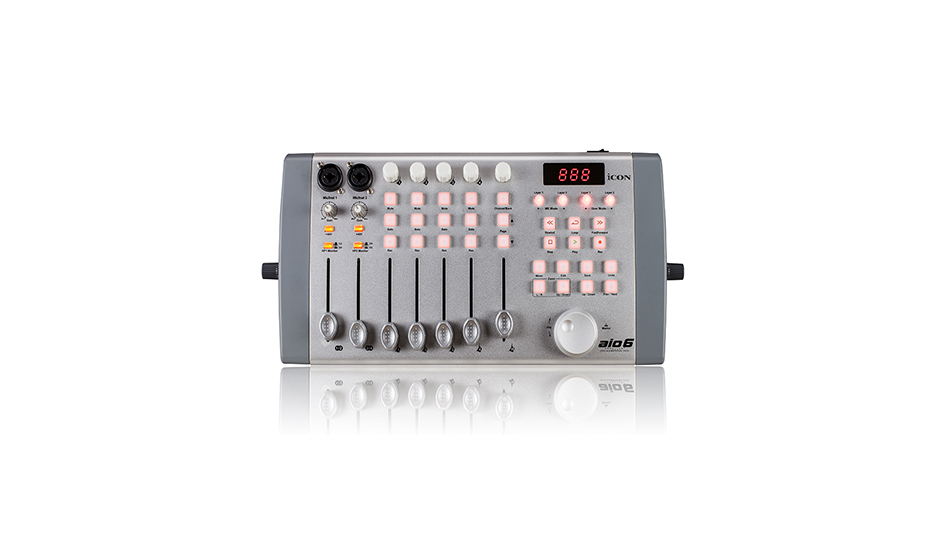

24-Bit 96/192KHz 6-In/6-Out USB Recording Interface
● 4×4 analog I/O full duplex recording and playback
● Dual MIC/Instrument preamps with individual gain control and phantom power switch

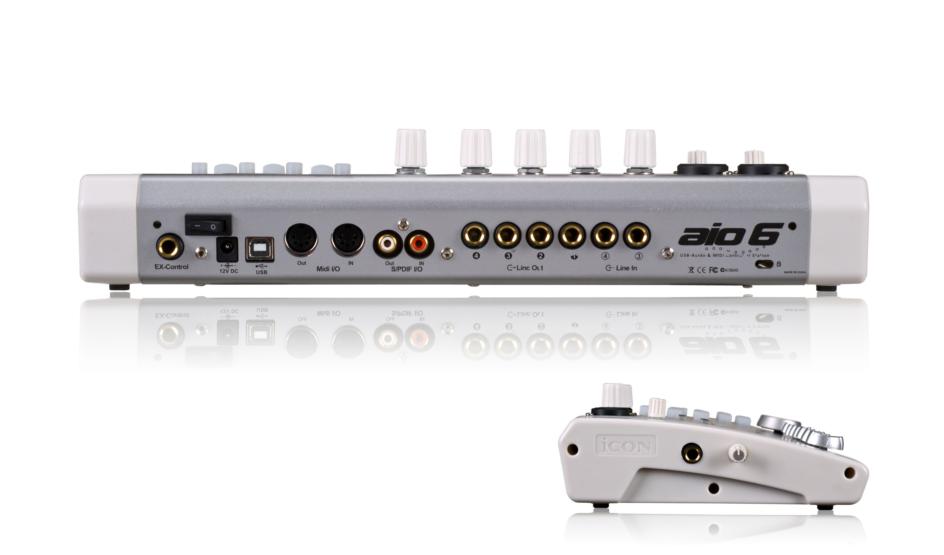

● 2 analogue line inputs on 1/4″ TRS jacks
● 4 analog outputs on 1/4” TRS jacks
● S/PDIF I/O on RCA coaxial connectors
● 1 x 1 – 16 channel MIDI I/O
● 2- faders volume controls on the front panel
● 2 headphone output with channel 1/2 & 3/4 selectable switches and individual volume control
● Flexible channel routing via the software control panel
● 4-channel faders plus one master channel fader
● 5 encoder knobs
● Jog wheel shuttle for fast search and control
● Illuminated buttons for each channel including Rec-enable, Solo and Mute
● Illuminated “Channel/Bank” with “Up/Down” buttons for shifting channel by track or page
● 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast forward and Loop
● 2-Illuminated Zoom keys for L/R & Up/Down
● 2-Illuminated Marker keys for Prev/Next & Up/Down
● 4-illuminated keys for Mixer, Edit, Save and Undo functions
● 2-illuminated “MK mode” buttons for shifting layer 1 & 2 in Mackie Control mode
● 2-illuminated “User mode” buttons for shifting layer 1 & 2 in user self define mode
● Ex-Control connector for connecting up to 3 external control pedals (Optional EC-3 splitter cable and SPD-01 pedal are needed)
● USB 2.0 high speed connectivity
● Supports DirectSound, WDM and ASIO2.0
● Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit), Windows 8 (32-bit & 64-bit),Windows 10 and Mac OS X (IntelMac)
● Full duplex, simultaneous record/playback
● Mackie control built-in for Cubase, Nuendo, Samplitude, Logic Pro and Abelton Live.
● Mackie HUI protocol built-in for Pro Tool.
● Robust aluminum and metal casing with Kensington lock port
| Name | Spec |
| Mic/Inst 1/2 Inputs (Balanced; at Minimum Gain) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 100dB, A-weighted |
| Signal-to-Noise Ratio | -100dB, A-weighted |
| THD+N | <0.0048% (-90dB) |
| Crosstalk | -100dB @ 1kHz |
| Input Impedance | Inst in: 390K Ohms, typical |
| Input Impedance | Mic in: 1.8K Ohms, typical |
| Adjustable Gain | +45dB |
| Total Gain Range | +45dB |
| Line Inputs 3/4(balanced) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 100dB, A-weighted |
| Signal-to-Noise Ratio | -100dB, A-weighted |
| THD+N | <0.0048% (-90dB) |
| Crosstalk | -100dB @ 1kHz |
| Nominal Output Level | Balanced: +4dBu |
| Nominal Output Level | Unbalanced: -10dBV |
| Maximum Output Level | Balanced: +10.2dBu, typical |
| Maximum Output Level | Unbalanced: +2.0dBV, typical |
| Input Impedance | 10K Ohms, typical |
| Line Outputs 1-4 (balanced) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 102dB, A-weighted |
| Signal-to-Noise Ratio | -102dB, A-weighted |
| THD+N | <0.003% (-90dB) |
| Crosstalk | -100dB @ 1kHz |
| Nominal Output Level | Balanced: +4dBu |
| Nominal Output Level | Unbalanced: -10dBV |
| Maximum Output Level | Balanced: +10.2dBu, typical |
| Maximum Output Level | Unbalanced: +2.0dBV, typical |
| Output Impedance | 150 Ohm |
| Load Impedance | 600 Ohm minimum |
| Headphone Outputs: 1 & 2 (at Maximum Volume; Into 100 Ohm load) | |
| Frequency Response | 22Hz to 22kHz (+/-1dB) |
| Power into Ohms | 90 mW into 100 Ohms |
| THD+N | <0.06% (-66dB) |
| Signal-to-Noise Ratio | -90dB, A-weighted |
| Max Output Level into 100 Ohms | +2.0dBV, typical |
| Output Impedance | 75 Ohm |
| Load Impedance | 32 to 600 Ohms |
| General | |
| Power supply | 12V/DC (1A) |
| Current consumption | 100mA or less |
| Weight | 1.8kg (3.96lb) |
| Dimensions | 382(L) X 180(W) X 53(H) |
| Dimensions | 15.0”(L) x 7.1”(W) x 2.1”(H) |
