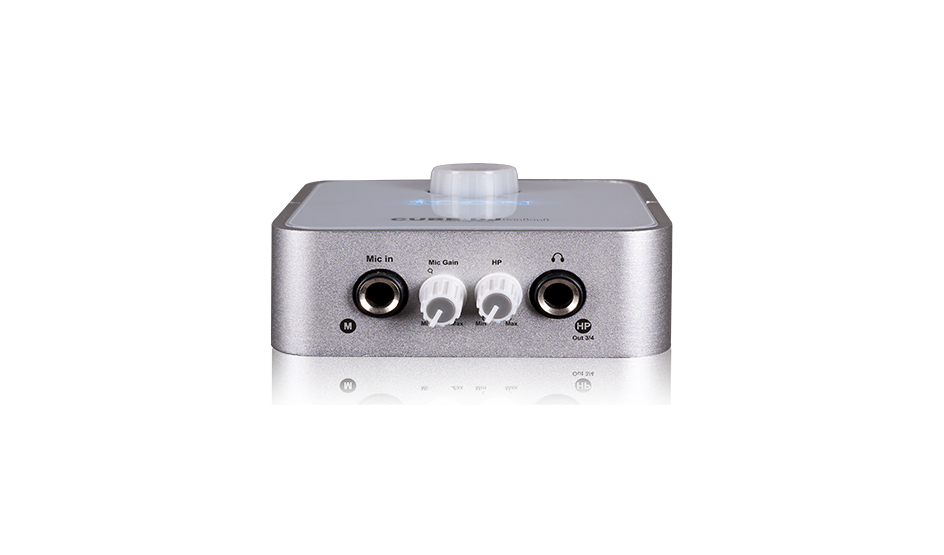

Cube DJ Mini
● 24 Bit 96/192KHz 2-In/4-Out USB Recording Interface for DJ
● 2×4 analog I/O full duplex recording and playback
● 1 mic input (Ch.1 &2) on 1/4” connector with gain control
● Master volume control on the top panel. (Ch.1 & 2）
● 1 headphone output (Ch.3 & 4) with assignable source and individual volume control
● Flexible channel routing via the software control panel
● USB2.0 High Speed equipped and USB bus-powered
● Supports DirectSound, WDM and ASIO2.0
● Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit) , Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit)
● Full duplex, simultaneous record/playback
● Rugged aluminum construction
| Name | Spec |
| Mic Inputs | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 100dB, A-weighted |
| Signal-to-Noise Ratio | -100dB, A-weighted |
| THD+N | <0.0061% (-90dB) |
| Crosstalk | -100dB @ 1kHz |
| Input Impedance | 1.8K Ohms, typical |
| Total Gain Range | +45dB |
| Line Outputs 1/2 (Stereo, Unbanced) | |
| Frequency Response | 22Hz to 22kHz (+/-0.1dB) |
| Dynamic Range | 102dB, A-weighted |
| Signal-to-Noise Ratio | -102dB, A-weighted |
| THD+N | <0.003% (-90dB) |
| Crosstalk | -100dB @ 1kHz |
| Nominal Output Level | Unbalanced: +4dBV, typical |
| Maximum Output Level | +11dBV, typical |
| Output Impedance | 150 Ohm |
| Load Impedance | 600 Ohm minimum |
| Headphone Outputs: 3 & 4 (at Maximum Volume; Into 100 Ohm load) | |
| Frequency Response | 22Hz to 22kHz (+/-1dB) |
| Power into Ohms | 90 mW into 100 Ohms |
| THD+N | <0.06% (-66dB) |
| Signal-to-Noise Ratio | -90dB, A-weighted |
| Max Output Level into 100 Ohms | +2.0dBV, typical |
| Output Impedance | 75 Ohm |
| Load Impedance | 32 to 600 Ohms |
- Mac OS 10.8 -Mac OS 10.10
- Windows XP - Windows 10
