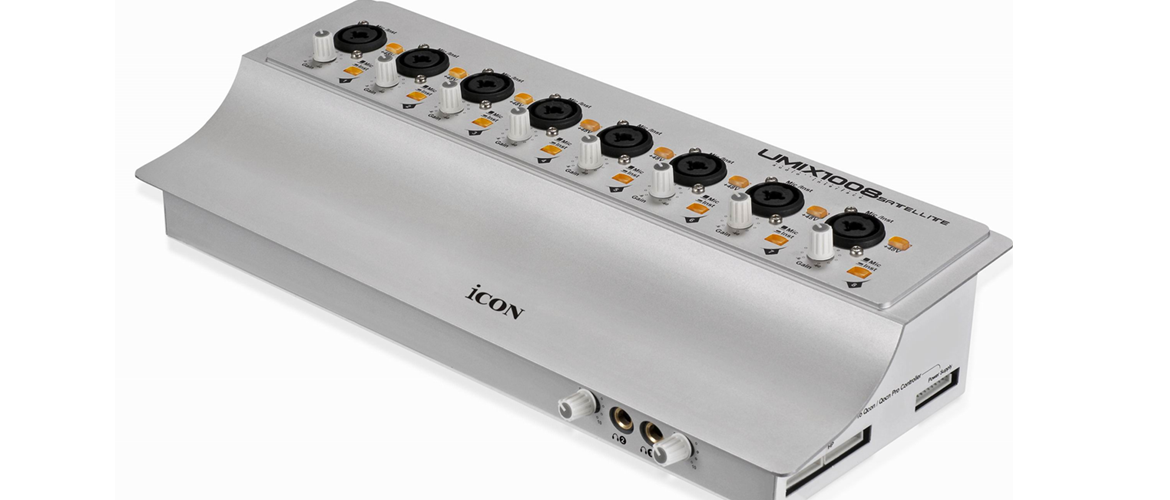

UMIX1008 Satellite

● 24-Bit 96/192KHz 10-In/8-Out USB Recording Interface

● 8×6 analog I/O full duplex recording and playback

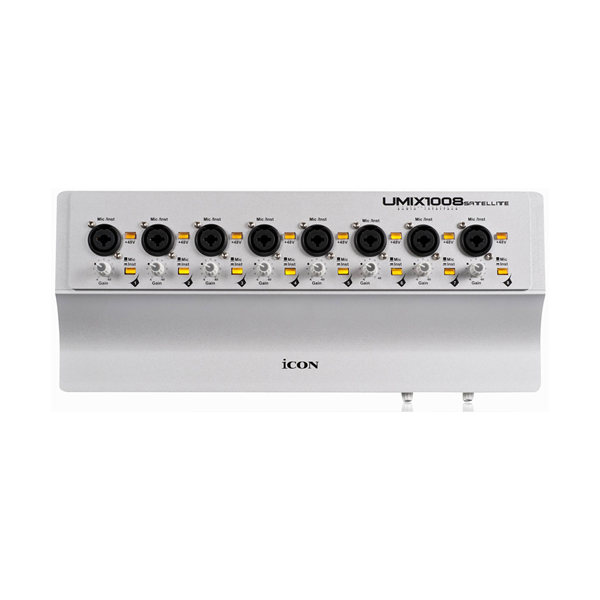

● 8 x MIC/Instrument preamps with individual gain control and phantom power switch

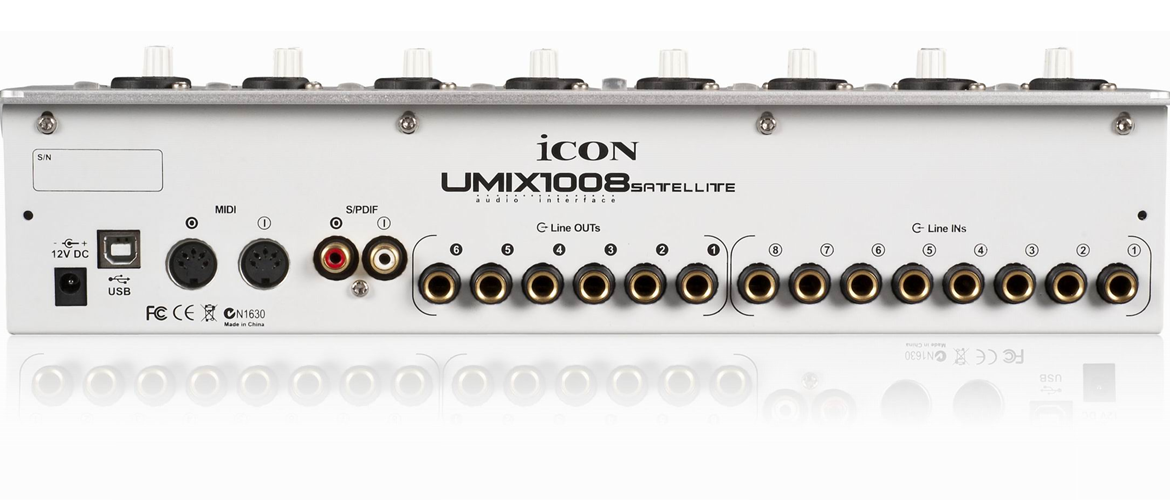

● 8 analog balanced inputs on 1/4” TRS jacks

● 6 analog balanced outputs on 1/4” TRS jacks

● S/PDIF I/O on RCA coaxial connectors

● 1 x 1 – 16 channel MIDI I/O

● 2 headphone output with assignable source and individual volume control

● Flexible channel routing via the software control panel

● USB2.0 High Speed equipped

● Supports DirectSound, WDM and ASIO2.0

● Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit), Windows 10 (32-bit & 64-bit)

● Full duplex, simultaneous record/playback

● Rugged aluminum construction

Mic/Inst 1-8 Inputs (Balanced; at Minimum Gain)
Frequency Response	22Hz to 22kHz (+/-0.1dB)
Dynamic Range	100dB, A-weighted
Signal-to-Noise Ratio	-100dB, A-weighted
THD+N	<0.0048% (-90dB)
Crosstalk	-100dB @ 1kHz
Input Impedance Inst in:	390K Ohms, typical
Input Impedance Mic in:	1.8K Ohms, typical
Adjustable Gain	+53dB
Total Gain Range	+53dB
Line Inputs 1-8 (balanced)
Frequency Response	22Hz to 22kHz (+/-0.1dB)
Dynamic Range	100dB, A-weighted
Signal-to-Noise Ratio	-100dB, A-weighted
THD+N	<0.0048% (-90dB)
Crosstalk	-100dB @ 1kHz
Nominal Input Level	Balanced: +4dBu
Unbalanced	-10dBV
Maximum Input level	Balanced: +10.2dBu, typical
Unbalanced:	+2.0dBV, typical
Input Impedance	10K Ohms, typical
Line Outputs 1-6 (balanced)
Frequency Response	22Hz 22kHz (+/-0.1dB)
Dynamic Range	102dB, A-weighted
Signal-to-Noise Ratio	-102dB, A-weighted
THD+N	<0.003% (-90 dB)
Crosstalk	-100dB @ 1kHz
Nominal Output Level	Balanced: +4dBu
Unbalanced	-10dBV
Maximum Output Level	Balanced: +10.2dBu, typical
Unbalanced	+2.0dBV, typical
Output Impedance	150 Ohm
Load Impedance	600 Ohm minimum
Headphone Outputs: 1 & 2 (at Maximum Volume; Into 100 Ohm load)
Frequency Response	22Hz to 22kHz (+/-1dB)
Power into Ohms	90 mW into 100 Ohms
THD+N	<0.06% (-66dB)
Signal-to-Noise Ratio	-90dB, A-weighted
Max Output Level into 100 Ohms	+2.0dBV, typical
Output Impedance	75 Ohm
Load Impedance	32 to 600 Ohms
General
Weight	1.9kg (4.2lb)
Dimensions	360(L) X 149(W) X 72(H)
Dimensions	14.2"(L) x 5.9"(W) x 2.8"(H)

NOTE TO MAC OSX 10.11 EL CAPITAN USERS: Due to a change in the OSX core audio functionality, ICON USB audio devices are currently not compatible with OSX 10.11 El Capitan. We are working diligently to repair this issue, and hope to arrive at a solution soon. In the mean time, please remember that ICON audio interfaces are still class compliant with previous OSX versions.

If you would like to join our El Capitan beta test team to receive OSX 10.11 drivers as soon as they become available, please sign up using the form on the contact page, and indicate that you would like to join the beta test team. We are very sorry for the inconvenience.

Thank you for your patience.

iOS 7-11	No
Mac OS 10.8(Intel CPU/32-bit)	Yes
Mac OS 10.8(Intel CPU/64-bit)	Yes
Mac OS X 10.9	Yes
Mac OS X 10.10	Yes
Mac OS X 10.11	No
Mac OS X 10.12	No
Windows XP (32-bit)	Yes
Windows XP (64-bit)	Yes
Vista (32-bit)	Yes
Vista (64-bit)	Yes
Windows 7 (32-bit)	Yes
Windows 7 (64-bit)	Yes
Windows 8 (32-bit)	Yes
Windows 8 (64-bit)	Yes
Windows 8.1 (32-bit)	Yes
Windows 8.1 (64-bit)	Yes
Windows 10 (32-bit)	Yes
Windows 10 (64-bit)	Yes
